Midea MDC17P0ABB Portable Countertop Dishwasher User Manual

Midea MDC17P0ABB Portable Countertop Dishwasher

QUICK START GUIDE

• Please read the entire manual for detailed operating instructions.

Connecting to Power Supply

• The power required is 120VAC 60Hz, 10A circuit.

Drain hose installation

• Place the end of the drain Hose into a sink or bucket.

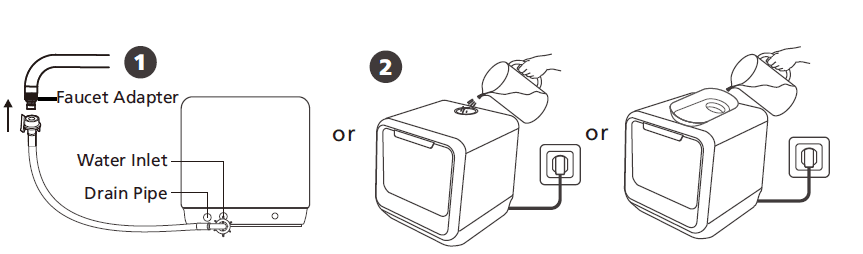

Adding Water to the Tank

• Note: Before adding water, you need to press the power button to turn on the dishwasher

There are two ways to add water to the tank:

1. Add water into the tank automatically by connecting the inlet hose to the tap.
2. Open the cap and slowly add water into the tank manually by using a water container.

IMPORTANT:

• The water tap symbol will be on if there is not enough water in the tank. Add water until the unit beeps rapidly for 3 seconds and is off, which means the tank is filled.

Prep the Dishware

• Remove the large residue on the dishware and glasses before placing them into the dishwasher

Loading The Dishwasher

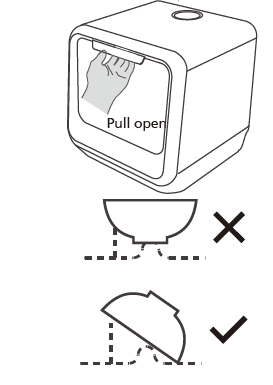

• Place dishes in the dishwasher in order by size and starting from the two ends, then load into the middle. All dishes are suggested to be tilted to improve cleaning performance.
• The top arm will be blocked if dishes are improperly placed, and the cleaning effect may not be ideal.

• Do not place the dishes in the upright direction or the cleaning performance may be affected. Try to leave the dirty side facing towards the spray arm.

• Detergent compartment. (Do not use detergent when running the FRUIT program.)

GETTING TO KNOW YOUR APPLIANCE

IMPORTANT:

• Before using this dishwasher for the first time and to get the best performance, read these instructions.

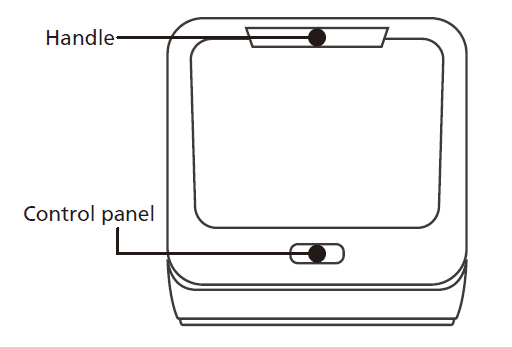

dishwasher features

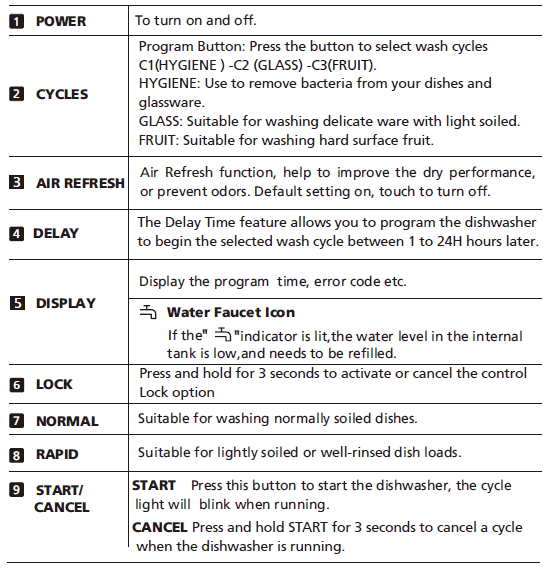

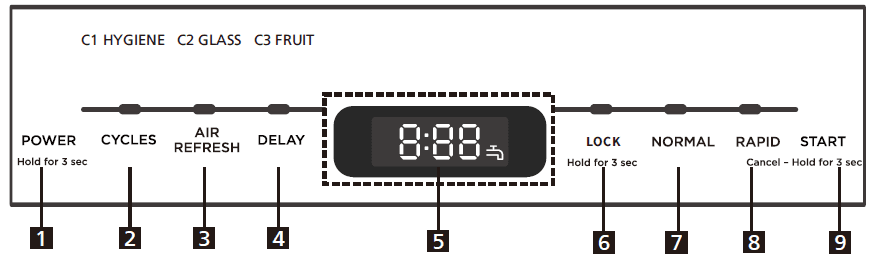

Control panel

USING YOUR DISHWASHER

Loading The Dishwasher

• All items to be washed should be marked “dishwasher safe”.
• Use only dish detergent designed for automatic dishwashers; hand dishwasher soap will create foam and require significant clean up and issues with the dishwasher
• For delicate items, select a program with lower temperatures.
• CAUTION: Do not take glass and cutlery out of the dishwasher immediately after the program has ended. These items will still be very hot.

Items Not Recommended for Dishwasher Use

Not suitable for use:

• Cutlery with wooden, horn, china, or mother-of-pearl handles
• Plastic items that are not heat resistant, older cutlery with glued parts that are not temperature resistant
• Bonded cutlery items or dishes
• Pewter or copper items
• Crystal glass
• Steel items are subject to rusting
• Wooden items
• Items made from synthetic fibres

Dishwasher Loading Tips

• (For the best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary for your model.)Scrape off any large food particles. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. Place objects in the dishwasher.

following way:

•  Items such as cups, glasses, pots/pans, etc., load face downwards.
• Curved items, or those with recesses, should be loaded at a slant so that water can run off.
• All utensils are stacked securely and can not tip over.

Loading The Baskets

• Position the dishes and cookware so that they will not get moved by the spray of water.

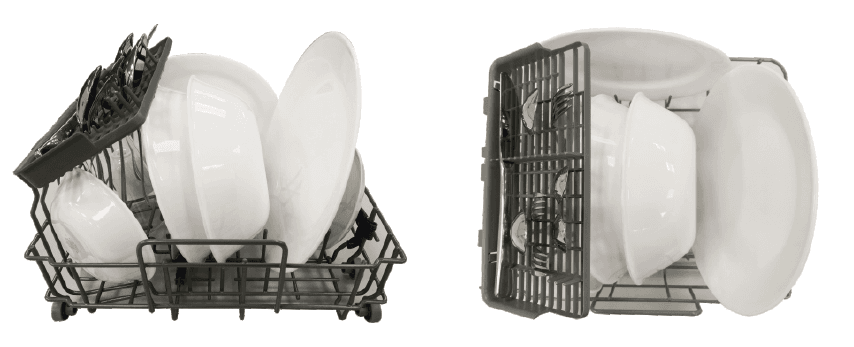

Recommended loading layouts below

• 2×Serving Bowl (1L)
• 1×Oval Platter (9.5in)
• 2×Serving Spoons
• 1×Serving Forks
• 1×Dinner Plates (10in)
• 1×Bread And Butter Plate (6.7in)
• 1×Dessert Bowl (5in)
• 1×Cups
• 1×Saucer (5.5in)
• 1×Glass (12.5OZ)
• 1×Dinner Fork
• 1×Salad Fork
• 1×Knives
• 1×Teaspoons

Recommended loading layout with 1 serving bowl and 2 settings of personal tableware

• 2×Dinner plates(10in)
• 2×Bread and butter plates (6.7in)
• 2×Dessert bowls(5in)
• 2×Cups
• 2×Saucers(5.5in)
• 2×Glasses(12.5OZ)
• 2×Dinner forks
• 2×Salad forks
• 2×Salad forks
• 2×tea spoons
• 1×Oval platter(9.5in)
• 1×Serving forks
• 1 Serving bowl(1L)
• 2×Serving spoons

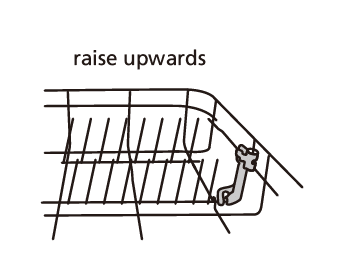

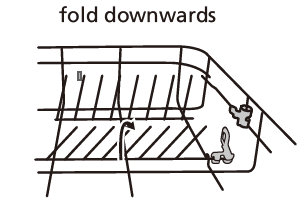

Folding Down The Rack Shelves

• The tines are used for holding plates and platters. They can be lowered to make more room for large items, such as large tableware, the fruit basket, or the baby bottle rack.

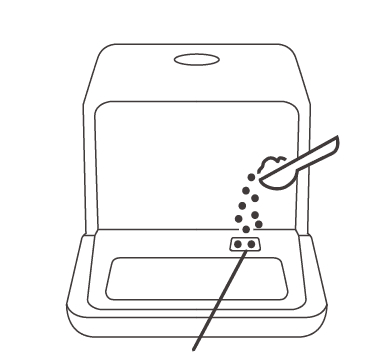

Loading The Detergent

• This product does n ot suppo rt rinse aid. Only add detergent

.Detergent Tablets

• Detergent tablets of different brands dissolve at different speeds. For these reasons, detergent tablets will not dissolve and develop their full cleaning power during short programs. Therefore, use long programs when using detergent tablets to ensure the detergent tablet dissolves completely.

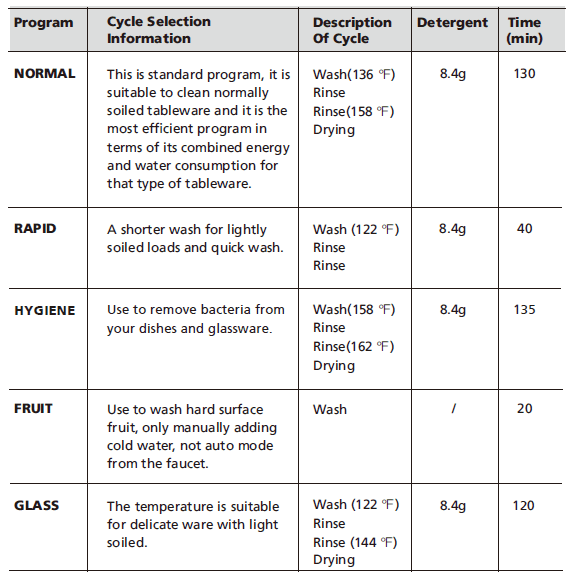

Wash Cycle Programs

• The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also shows various information about the programs.

Forgot to add a dish?

• A forgotten dish can be added within the first 10 minutes of the cycle. If this is the case.

Follow the instructions below

1. Open the door a little to stop the washing.
2. After the spray arms stop moving, you can open the door completely.
3.  Add forgotten dishes.
4. Close the door.
5. Press the Start/Cancel button, and the dishwasher will run 10 seconds later

Switch Off the Dishwasher

1.  Switch off the dishwasher by pressing the ON/OFF button.
2. Turn off the water tap!

MAINTENANCE AND CLEANING

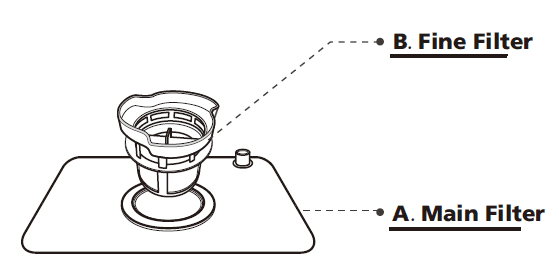

• The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle.
• For best performance and results, the filter assembly must be cleaned regularly.
• For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the filter and cup under running water.

• Traps the small soil particles, providing filtered water to the spray arms for cleaning. Filter.
• Food and soil particles are trapped in this filter and directed by a special jet on the lower spray arm and washed down to drain.

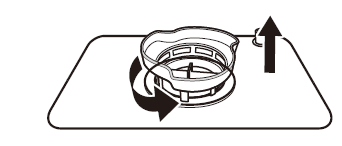

• Step 1: Turn the filter assembly clockwise, then lift it up.

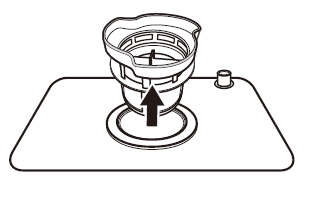

• Step 2: Lift the fine filter up and separate it from the main filter.
• Step 3: Clean all of the filter elements under running water to remove food soils

Dishwasher Care

• The control panel and exterior can be cleaned by using a lightly dampened clothAfter cleaning, make sure to dry it thoroughly. Never use sharp objects,s scouring pads, or harsh cleaners on any part of the dishwasher.

1. In standby mode, press and hold the NORMAL button + RAPID button for 3 seconds simultaneously to drain the water tank. Cut off the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the back of the dishwasher.
3. Drain water from the inlet pipe and dishwasher (use a pan to catch the water).

Moving the Appliance

• If the appliance must be moved, try to keep it in a vertical position to prevent water from draining from the dishwasher.
• If transporting a long distance, drain water from the interior tank and hoses:

1. Drain water from the interior tank. In standby mode, press and hold the NORMAL button + RAPID button for 3 seconds simultaneously to drain the water tank.
2. Disconnect the water inlet and drain hoses from the back of the dishwasher (place a catch pan under the connections before removing the hoses to catch any water )
3.  Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

INSTALLATION

Installation preparation

• The installation position of dish dishwasher should be near the existing water inlet tap and drain outlet, and power socket. One side of the cabinet sink should be chosen to facilitate the connection of the drain hoses of the dishwasher.

Positioning the Appliance

• The dishwasher is equipped with water supply and drain hoses that can be positioned to the right or the left to facilitate proper installation.

About Power Connection

Electrical Requirements

• Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse, or circuit breaker recommended, and provide a separate circuit serving only this appliance.

Electrical Connection

• Ensure the voltage and frequency of the power being supplied correspond to those on the rating plate. Only insert the plug into an electrical socket that is grounded properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using adaptors or the like, as they could cause overheating and burns.

Water Connection

1. Take the existing aerator off your faucet.
2. Screw the faucet adapter onto (or into) the faucet tap. Check for leaks (Use Teflon tape,
3. take the existing aerator off your faucet. Attach the quick connect to the faucet adapter by pulling down the locking collar. Then pull up the locking collar to fix the connection.
4. Slowly open the hot water line and check for any sign of water leaks at all hose connections.

Connection of drain hoses

TROUBLESHOOTING TIPS

Before calling for service

• Reviewing the charts on the following pages may save you from calling for service.
