Midland WR120B NOAA Emergency Radio

S.A.M.E. (Specific Area Message Encoding) Codes

For USA

1. The National Weather Service Toll-Free Number 1-888-NWS-SAME (1-888-697-7263)
2. National Weather Service Website www.nws.noaa.gov/nwr/indexnw.htm

For Canada

1. Environment Canada’s Meteorological Service Number 1-877-789-7733 (Canada Only)
2. Environment Canada’s Meteorological Service www.ec.gc.ca/weatheradio
3. Midland Radio Corporation website midlandusa.com
4. E-mail: weather.info.meteo@ec.gc.ca

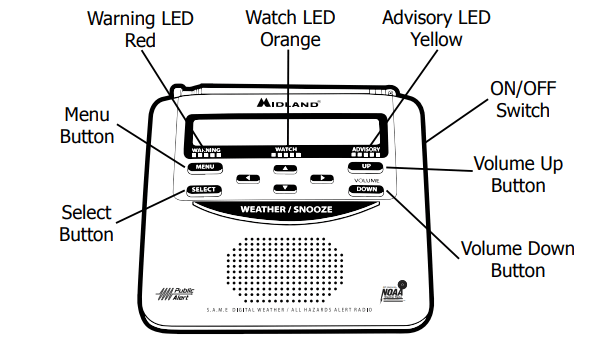

Getting to Know Your Weather Radio

WR120 Features

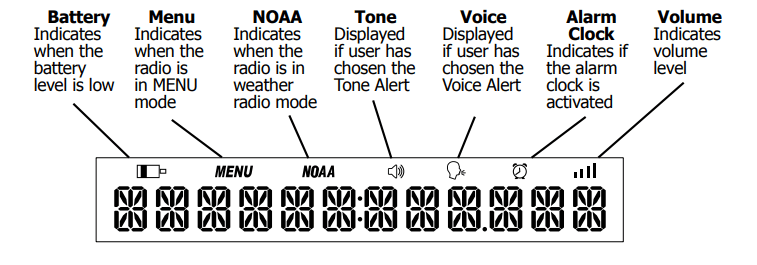

Icons on the Display

PLEASE NOTE: MIDLAND (NOAA) Weather Radio Model WR120, “S.A.M.E. Digital Weather/Hazard Alert Radio”. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference;
2. This device must accept any interference received, including interference that may cause undesired operation.

Setting up your Weather Radio

Set Time

1. Press the MENU to open menu options.
2. Press ▲ to scroll through menu to SET TIME.
3. Press SELECT (hour option will begin flashing).
4. Press ▲ until the current hour is displayed.
   (Note: AM/PM changes as you scroll through the hours.)
5. Press ►to save the current hour and advance to minute settings.
6. Program both minute digits the same way.
7. Press SELECT to store the current time.
8. Press the MENU button to exit the menu mode.

Set Alarm

1. Press the MENU button to open the menu options.
2. Press▲to scroll through menu to SET ALARM, then press SELECT.
3. Press▲to display ON. Press SELECT.
4. Press▲until the hour you want is displayed.
   (Note: AM/PM changes as you scroll through the hours.)
5. Press ►to save alarm hour and advance to alarm minutes. Program both minute digits the same way.
6. Press SELECT to save the alarm time.
7. Press Mthe ENU to exit menu mode.

To temporarily silence the sleep alarm, press the WEATHER / SNOOZE button. This will advance the alarm time by 8 minutes. To silence the alarm for the remainder of the day, press the MENU button.

Set Language

1. Press the MENU to open menu options.
2. Press▲to scroll through the menu to SET LANGUAGE, then press SELECT.
3. Press▲to choose “ENGLISH”, “ESPANOL,” or “FRANCAI, S” then press SELECT.
4. Press the MENU to exit the menu mode.

Programming the radio for your area

Your WR120 All Hazards Weather Alert Radio comes preprogrammed to receive weather and hazard alert transmissions for all S.A.M.E. codes within range of the transmitter of the selected channel. Follow these simple instructions to program your radio to receive alerts just for your county.

“Single” County (S.A.M.E.) Code

1. Press the MENU to open the menu options.
2. Press ▲ to scroll through the menu to SET LOCATION, then press SELECT.
3. Press ▲ to SINGLE, then press SELECT.
4. 01, EMPTY will be displayed. Press SELECT.
5. Press ▲ or ▼ to select the desired country, then press SELECT.
6. Press ▲ or ▼ to select the desired state/province, then press SELECT.
7. Press ▲ or ▼ to select the desired location, then press SELECT.
8. Press the MENU to exit the menu mode.

“Multiple” County Code

For multiple counties, follow the above instructions. At step 3, press ▲ until MULTIPLE is displayed. The “NEARBY” counties will come up automatically to make the selection easy. You can program up to 25 different location codes.

Note: To manually enter a FIPS code, press ► while ## LOCATION is displayed. However, selecting a NEARBY will be unavailable. NEARBY locations are based on the weather transmitter coverage area, not geographical location.

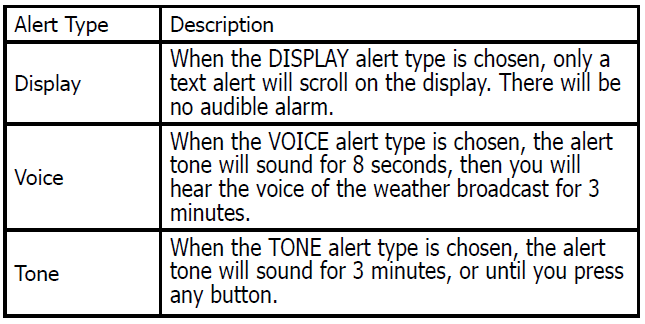

Set Alert Type (Display, Voice, or Tone)

1. Press the MENU to open menu options.
2. Press ▲ to scroll through menu to ALERT TYPE, then press SELECT.
3. Press ▲ to choose VOICE, TONE, or DISPLAY, then press SELECT.
4. Press the MENU to exit the menu mode.

Reviewing Recent Alerts

The WR120 All Hazards Weather Alert Radio can store up to 10 different Weather/Hazard alerts. You can review all alerts still in effect by pressing ▲ to scroll through the active alert memory on your weather radio. A double beep indicates the end of the list. “NO MESSAGE” will be displayed if no alerts are active.

Alert Test

1. Press the MENU to open the menu options.
2. Press ▲ to scroll through menu to ALERT TEST.
3. Press SELECT to sound the alert siren.
4. Press MENU or SNOOZE to silence the siren, then press MENU to exit menu mode.
   Note: Ensure the ON/OFF switch is in the ON position.

Set Channel/Volume

1. Press the MENU to open the menu options.
2. Press ▲ to scroll through the menu to SET CHANNEL, then press SELECT.
3. *Tune the channel to the desired broadcast by using ▲ or ▼.
   • Find the channel for your area by visiting http://www.nws.noaa.gov/nwr/nwrbro.htm and reviewing the corresponding frequency and channel for your area using the chart below.
4. **Adjust the volume to a comfortable level by using the VOLUME UP or VOLUME DOWN.
5. Press the MENU button to exit the menu mode.
   • * Press the ► button scan to the next available channel
   • **Ensure the ON/OFF switch is in the ON position

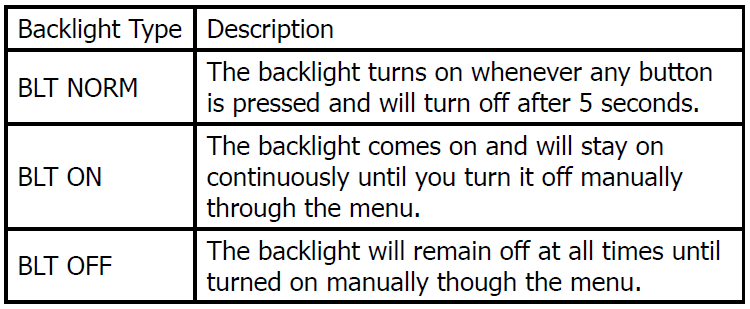

Backlight

1. Press the MENU to open menu options.
2. Press ▲ to scroll through menu to BACKLIGHT, then press SELECT.
3. Press ▲ to choose BLT NORM, BLT ON, and BLT OFF, then press SELECT.
4. Press the MENU to exit the menu mode.

Button Beeps

1. Press the MENU to open menu options.
2. Press ▲to scroll through menu to BUTTON BEEPS, then press SELECT.
3. Press ▲to choose ON or OFF, then press SELECT.
4. Press the MENU to exit the menu mode.

Set Events

1. Press the MENU to open menu options.
2. Press ▲ to scroll through the menu to SET EVENTS, then press SELECT.
3. Press ▲ to scroll through the options ALL ON, ALL OFF, ALL DEFAULT, EDIT EVENTS, then press SELECT.
4. Press the MENU to exit the menu mode.

• ALL ON
  • Enables audible tone for all applicable alerts
• All DEFAULT
  • Returns all alert settings to default
• ALL OFF
  • Defeats the audible siren for all applicable alerts.
• EDIT EVENTS
  • Allows applicable individual alert sirens to be enabled or disabled

Edit Events

1. Press the MENU to open the menu options.
2. Press ▲ to scroll through the menu to SET EVENTS, then press SELECT.
3. Press ▲ to scroll to EDIT EVENTS, then press SELECT.
4. Press ▲ to choose the desired alert, then press SELECT.
5. Press ▲ to toggle ON/OFF the audible notification for the selected alert.
6. Press the MENU to exit the menu mode.
   *For a complete list of editable events, please visit our website at midlandusa.com

Troubleshooting

• No Power
  • Make sure the power adapter is securely plugged into the back of the weather radio and into the wall outlet.
  • Make sure batteries are installed in case of a power failure.
• No Sound
  • Check the VOLUME control to ensure the volume is turned up to an audible level.
• No Weather broadcast when you press the WEATHER/SNOOZE button
  • Ensure the telescoping antenna is up and fully extended.

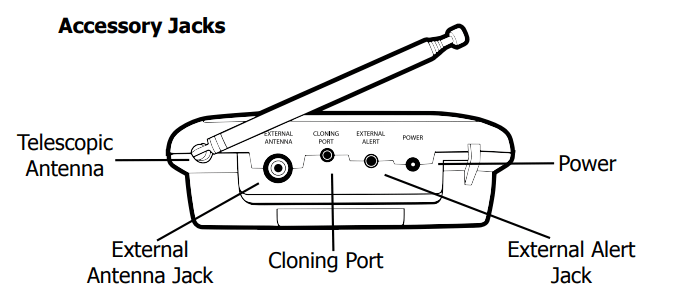

  • If you are using an external antenna, ensure it is connected properly.
  • Ensure the radio is set to the weather channel in use in your area.
  • Contact the broadcasting station to ensure they are presently broadcasting.
  • If in a metal structure, make sure you are close to a window.
  • If in a weak signal area, you will need an external antenna.
• The radio is not responding properly to weather alert broadcasts
  • Check to see that you have programmed in the correct S.A.M.E. code(s).
  • Check that the tower nearest you is broadcasting.

For Technical Support Contact

Midland Radio Corporation 5900 Parretta Drive
Kansas City, Missouri 64120
Phone: (816) 241-8500
Fax: (816) 241-5713
E-mail: mail@midlandradio.com
Website: midlandusa.com

Reception

Typical broadcasts are within reception distance of 25-40 miles of the weather broadcast station. Location, conditions of weather and terrain effect the reception. If you find reception is not good in your area, try different locations in your home or office to find a spot of improved reception.

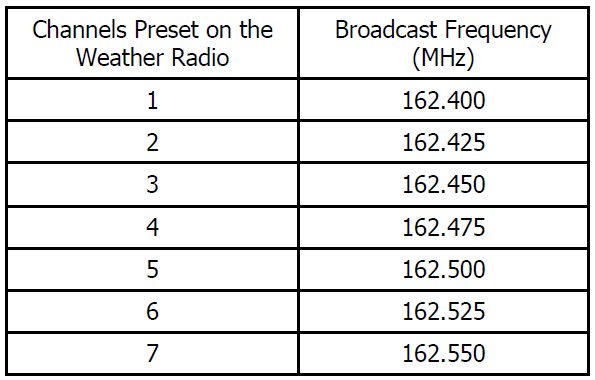

NOTE: Placement near a window usually improves reception. If a weather broadcast is not heard on any of the 7 channels, contact your local weather office and verify that the closest station is on air and the channel frequencies you are using are correct.

NOTE: If you live in a metal structure or in a “fringe” area, you may need an external antenna to improve reception.

Test Signals Broadcast

All Weather Service stations periodically transmit test signals. You can find out when your local station broadcasts test signals by calling the NOAA National Weather Service Forecast Office (listed under “Weather” in the Federal Government section of the telephone book). In Canada, these tests are performed every Wednesday at 12:00 noon.

During a test, the yellow advisory LED will light up, and the “Weekly Test” or “Monthly Test” message will be visible on the display. While disabled in the menu, the radio will not sound an audible alert tone to avoid giving the impression of an actual alarm. The visual response to the test is confirmation that your radio is working properly.

If an alert is not received within 10 days, CHECK RECEPTION will be displayed along with an audible beep repeating every 10 minutes. This notification is automatically removed once an alert is received. To manually clear it, you must reset the power by removing the batteries and power adapter for 10 seconds. After the ten seconds have passed, re-insert the batteries and plug back in. Even without power for this short amount of time, your S.A.M.E. codes will remain programmed as before. You will, however, need to re-set the time and any alarms you had previously programmed into the radio.

Batteries provide approximately 5 hours of emergency power or 75 hours of standby power for the radio in case of a power outage. To reset the radio to the factory defaults, press and hold the WEATHER / SNOOZE button while powering on the unit.

LIMITED WARRANTY

(United States and Canada) Subject to the exclusions set forth below, Midland Radio Corporation will repair or replace, at its option without charge, any Midland Weather Alert Radio transceiver that fails due to a defect in material or workmanship within One Year following the initial consumer purchase.

This warranty does not apply to water damage, battery leak, abuse or misuse of unauthorized vice or modification or altered products. warranty from the date of purchase, including any antennas, chargers, or earphones. This warranty does not include the cost of labor for removal or re-installation of the product in a vehicle or other mounting.

ANY IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED AS SET FORTH HEREIN AND TO THE DURATION OF THE LIMITED WARRANTY, OTHERWISE THE REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS EXPRESS LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER AND IS PROVIDED IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. _IN NO EVENT SHALL MIDLAND BE LIABLE, WHETHER IN CONTRACT OR TORT (INCLUDING BUT NOT LIMITED TO NEGLIGENCE, GROSS NEGLIGENCE, BODILY INJURY, PROPERTY DAMAGE AND DEATH) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT OR ACCESSORY, OR FOR ANY INDIRECT SOEGAE OBSRASE UETUA RAYAGETOF OT DAAD OPUTER PFAEVEDLE OR TOEIED: ANY KIND. OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS OR ACCESSORIES TO THE FULL EXTENT, THESE DAMAGES MAY BE DISCLAIMED BY LAW.

For Products Purchased in the USA

Performance of any obligation under this warranty may be obtained by returning the warranted product, prepaid freight, along with proof of purchase to:

Midland Radio Corporation
Warranty Service Department 5900 Parretta Drive
Kansas City, MO 64120

This warranty gives you specific legal rights, and you may also have other rights, which vary from state to state. ote: The above warranty applies only to merchandise purchased in the United States of America or any of the territories or possessions thereof or from a U.S. Military exchange.

For Products Purchased in Canada

Performance of any obligation under this warranty may be obtained by returning the warranted product, along with proof of purchase, to your place of purchase in Canada. This warranty gives you specified legal rights. Additional warranty rights may be provided by law in some within Canada.

Service

If you have a problem that you believe requires service, please first check the FAQ section of this website, check your Owner’s Manual, or call and speak with a service technician. Many problems can be remedied without returning the unit for service. If necessary, return as follows:

1. Pack the unit in its original box and packing. Then, pack the original box in a suitable shipping carton. Caution: Improper packing may result in damage during shipment.
2. Include the following:
   • Full description of any problems
   • Daytime telephone number, name & address
3. For warranty service, include a photocopy of the bill of sale from an authorized dealer or other proof of purchase showing the date of sale.
4. You do not need to return accessory items (AC/DC Adapter, Batteries, and Owners Guide) unless they are directly related to the problem.
5. Repairs not covered by warranty or units that are over ONE year old are subject to a repair fee.
   Please call for a quote on repair service cost at 816-241-8500. Send only cashier’s check, money order, Master Card or Visa card number.

Midland Radio Corporation 5900 Parretta Drive
Kansas City, Missouri 64120
Phone: (816) 241-8500
Fax: (816) 241-5713
E-mail: mail@midlandradio.com
