Mighty Mule MMK200 Digital Wireless Keypad

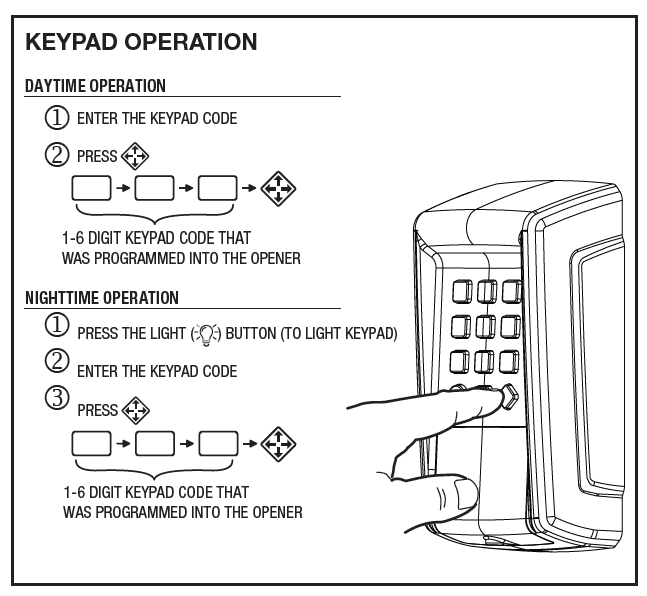

OPERATION (FOR PROGRAMMING, PROCEED TO STEP 2)

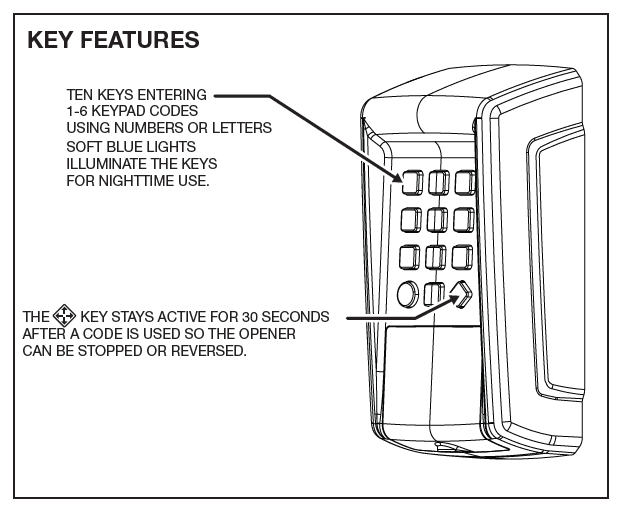

This MMK200 Digital Keypad is designed for use with Mighty Mule automatic gate operators. The radio format provides unparalleled security with more than a million different codes. To activate the automatic gate operator, the user enters their unique 1 to 6 digit long code on the unit’s keypad and presses the button. For up to 30 seconds after the last activation, the keypad can be re-triggered by simply pressing thebutton again. This allows the user to stop or reverse the opener quickly, without having to re-enter their code.

The keypad has built-in lighting for use at night or in dark areas. The clear silicone keys are backlit with a pleasing blue glow. Pressing any key will activate the backlight. The Mighty Mule gate operator contains a built-in receiver that is programmed by sending a signal from the keypad. This stores the keypad’s code into the receiver’s memory. The receiver will retain its memory even without power and will only activate from the “memorized” keypad.

PROGRAM A KEYPAD CODE TO THE OPENER (MODELS MM371, MM372, MM571, MM572)

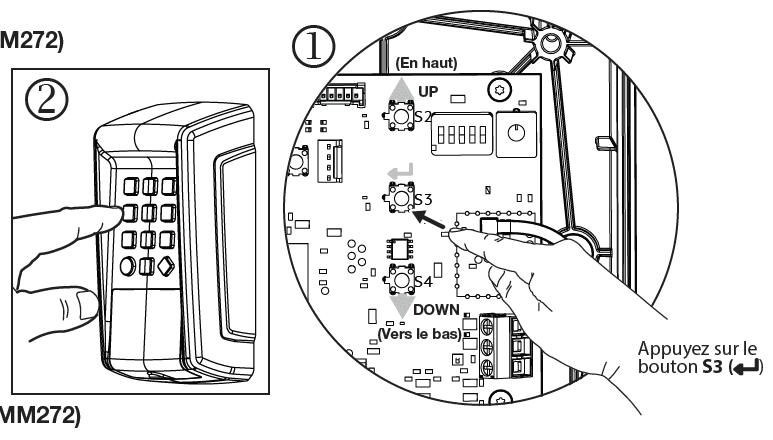

1. On the control board, press and hold the S3 button until LED2 [beside the S3 button illuminates and the buzzer sounds. Release the (S3) button.
2. While the LED2 button is lit, enter a 1-6 digit code into the keypad. Then PRESS and HOLD the keypad’skey until the opener BEEPS and the light BLINKS once. Repeat Steps 1 & 2 for any additional keypad codes.
   DELETE A KEYPAD CODE: Follow Steps 1 and 2 (above) to delete (overwrite) an existing keypad code.

PROGRAMMING A KEYPAD CODE (MM271 OR MM272)

1. Use the ON/OFF switch on the control box to power the system off.
2. Enter the desired 1-6 digit code into the keypad. PRESS and HOLDthe key, and continue to hold until instructed to release.
3. While still holding thekey, use the ON/OFF switch on the control box to power the system ON.
4. After the startup beep, there will be a silence for 5-10 seconds, followed by an uninterrupted beep.
5.  Release thekey.

DELETING A KEYPAD CODE (MM271 OR MM272)

Follow Steps 1 through 5 to delete the keypad code.
Note: If using the MM271, the gate must be in the closed position to delete an existing keypad code. It can be open or closed to program a new code.

WALL MOUNTING

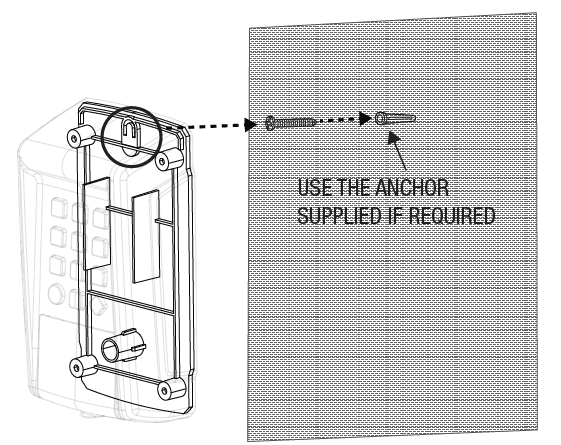

1. DRIVE THE PROVIDED SCREW INTO THE MOUNTING SURFACE (NOT ALL THE WAY).
2. ALIGN THE SCREW WITH U-SHAPED SLOT ON THE BACK OF THE UNIT, INSERT AND SLIDE DOWNWARD UNTIL SECURE. ADJUST THE SCREW DEPTH IF NEEDED.

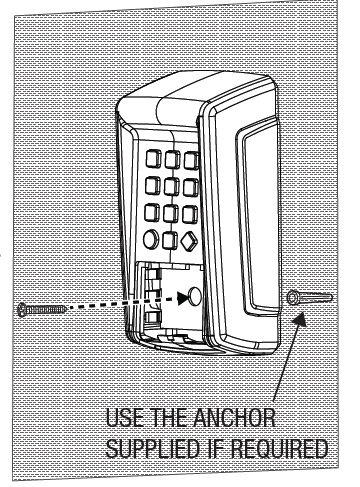

3. REMOVE THE BATTERY ASSEMBLY TO ACCESS THE SECOND MOUNTING HOLE (SEE CHANGING BATTERIES, BELOW). ALIGN THE SCREW WITH THE MOUNTING HOLE AND TIGHTEN. REPLACE THE BATTERY ASSEMBLY.

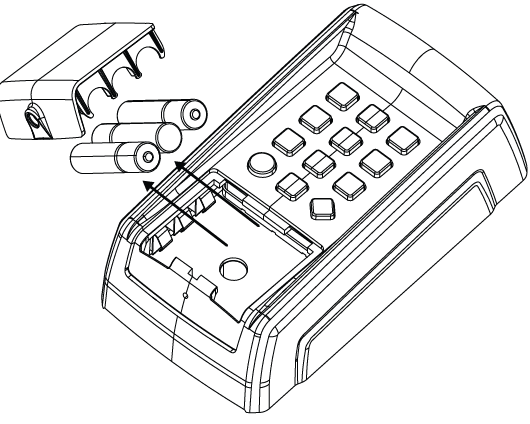

CHANGING BATTERIES

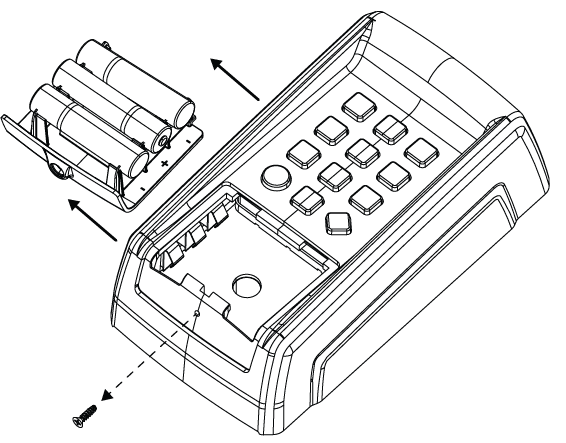

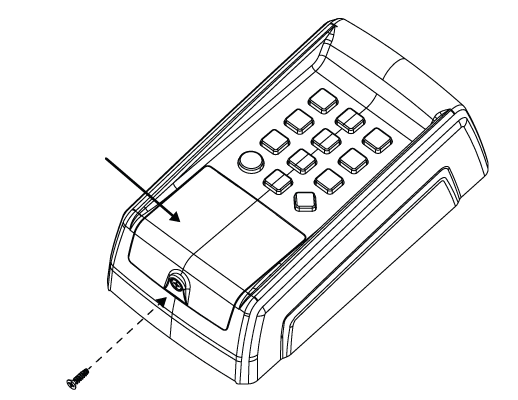

1. REMOVE ONE SCREW THEN REMOVE THE BATTERY CRADLE.
2. REMOVE THE OLD BATTERIES FROM THE CRADLE, AND DISPOSE OF THEM PROPERLY.
3. INSTALL 3 FRESH AAA BATTERIES INTO THE CRADLE.

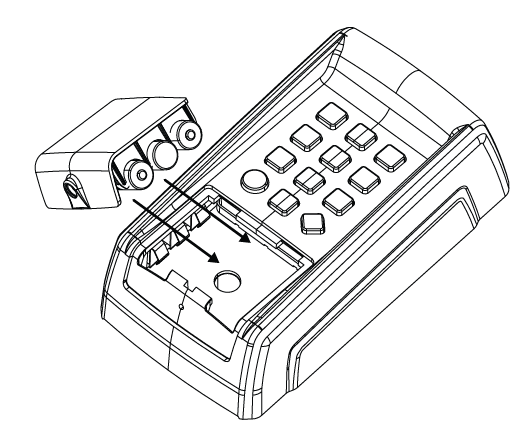

4. REPLACE BATTERY CRADLE AND SECURE THE SCREW.

WARNING

KEEP BATTERIES OUT REACH OF CHILDREN. Swallowing batteries can lead to serious injury or death. If you suspect someone has swallowed a battery, go to the hospital immediately. Do not induce vomiting or eat or drink anything. For more information, call the National Battery Ingestion Hotline: 202-625-3333. The battery identification number for this product is AAA Alkaline (LR03).

WARNING: Changes, modifications or adjustments not expressly approved by Nortek Security & Control could void the user’s authority to operate this equipment. There Are No User Serviceable Parts.

NOTICE: This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

This device complies with Industry Canada License-exempt RSS standards. Operation is subject to the following two conditions:

1. this device may not cause harmful interference, and
2. this device must accept any interference, including interference that may cause undesired operation of the device.

MIGHTY MULE LIMITED WARRANTY

This product is warranted to the consumer against defects in material and workmanship for one year from the date of purchase. This warranty applies to first retail buyers of new devices. Mighty Mule will repair, or at its option, replace, any device it finds that requires service under this warranty, and will return the repaired or replaced device to the consumer at the Might Mule’s cost. For warranty service and return authorization (RA) contact Mighty Mule Tech Service. Devices must be sent to Mighty Mule for service at owner’s expense. The remedies provided by this warranty are exclusive. Implied warranties under state law are to the one year period of this written warranty. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. In order to be protected by this warranty, save your proof of purchase as it is required for a return authorization. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

All products returned for warranty service require a Return Authorization (RA). Contact Mighty Mule Technical Services at 1-800-543-1236 for an RA# and other important details.
