Moiswell Explorer VP190 190 Pints Commercial Dehumidifier User Manual

Moiswell Explorer VP190 190 Pints Commercial Dehumidifier

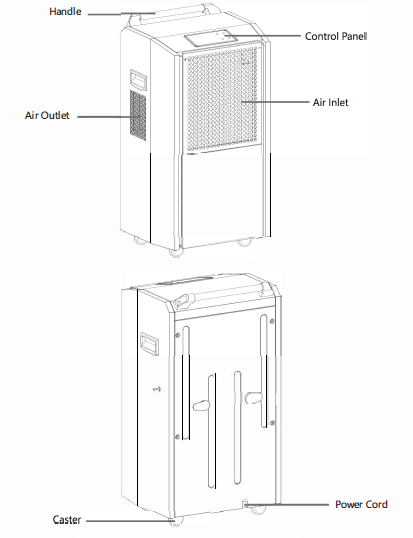

Parts Identification

Operation Instructions

1.Install the Handle

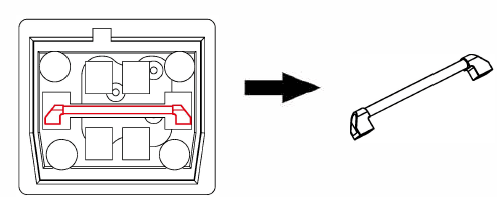

1. Get the handle from the bottom packing foam.
2. Install the handle as illustrated below. Please note to align the holes on the handle with the holes on the dehumidifier.
3. Use a screwdriver to tighten the screws until the handle is firmly attached to the dehumidifier.

Position Your Dehumidifier

• For optimal outcomes, use your dehumidifier in a confined space.
• Shut all entryways and windows.
• Position it clear of obstructions and avoid anything that could obstruct airflow in or out of the dehumidifier.
  • Note: Place the dehumidifier on a flat surface to minimize vibration or noise.

Setting up the Drainage System

• The dehumidifier comes equipped with an internal pump for drainage, specially designed to handle upward drainage needs.
• Note: To prevent any leakage, please ensure the drainage height does not exceed a distance of more than 16.4 feet from the drainage outlet.
• Please connect the provided drain hose to the outlet for secure and effective drainage. Note: If an alternative drainage hose(inner diameter is 0.197 inches) is used, please ensure it is compatible with the drainage outlet to avoid any risk of leakage.
• During the drainage process, please keep the hose unobstructed and free from twists or kinks. This will enable the smooth removal of condensate water.

Plug in Electrical Cord

IMPORTANT

• Please let the dehumidifier stand upright for 24 hours before plugging it in for the first time. During the shipping process, the dehumidifier may have been subjected to tilting or even placed upside down, which can cause the oil in the compressor to become unsettled. Failure to let the dehumidifier stand upright for the recommended duration can negatively impact its performance or even shorten its lifespan.
• To properly operate the dehumidifier, please plug it into a GFCl-protected 115-volt outlet with a rating of at least 16 amps. Uncoil the power cord and securely connect it to an appropriate outlet.
  • Note: When the dehumidifier is first plugged into AC power, the control panel display will light up for a second, which is part of the dehumidifier’s self-diagnosis procedure, and no action is required. This indicates that the dehumidifier is functioning correctly and ready to operate effectively. You will still need to press the POWER button to turn the dehumidifier on. effectively.

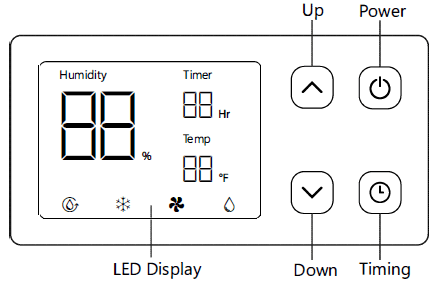

Understand the Control Panel

• The control panel of the dehumidifier features a user-friendly interface with 4 buttons and an LED screen. Press the POWER Button to turn the dehumidifier on. After turning on the dehumidifier, the LED screen will display the readouts.
• is a humidity percentage value. If no operations on the control panel, this number is the humidity readout of the inlet air that the dehumidifier detects, which is similar to the current room humidity level. When you are pressing the or ) button to set the target humidity percentage value, this digital number will turn to display the previous setting value and keep blinking.
• Is the temperature readout of the inlet air the dehumidifier detects, similar to the current room temperature.
• illuminates when the timer function is enabled and disappears when the timer function is disabled.
• Fan Icon: It illuminates when the fan is running and disappears when the compressor stops running.
• Water Droplet Icon: It illuminates when the compressor is running and disappears when the compressor stops running.
  • Note: In the following cases, it is normal if the water droplet icon disappears, which means the compressor stops or does not kick in.
    • A The humidity set-point is NOT at least 5% lower than the room humidity readout value (in this case, please double-check your setting);
    • B. The room humidity level has reached the set point, so the dehumidifier automatically stops running.
    • C. The dehumidifier was just turned on and may take a few seconds for the compressor to kick in.
    • D. The dehumidifier was restarted in a brief moment, and the compressor is under delay protection status.
• Defrosting icon: It illuminates when the dehumidifier detects frost on the interior. During defrosting, the fan operates while the compressor does not, and the defrost icon flashes until the frost melts. The dehumidifier will automatically begin to dehumidify, and the “Defrost” icon will disappear once the defrosting process is complete.
  • Note: Frequent defrosting indicates that the room temperature is too low. It is recommended to add heat when the room temperature is lower than 60°F for proper drying.
• CONTINUOUS MODE: This icon illuminates when the humidity set point is 10%, which means the dehumidifier will dehumidify continuously.
• Power Button: Press to turn the dehumidifier on and off.
• Up and Down Buttons: Press to increase or decrease the set-point of the humidity level.
• Timer Button: Press to check the settings and set the AUTO on/off timer.

General Operation Instructions

1. Turn on the dehumidifier
   • Press the Power Button to turn on the dehumidifier. Hold for the Ss to drain the pump.
2. Set a desired humidity percentage
   • First of all, read the current room humidity readout on the left of the display and remember that value. Then, press the up or down button to adjust the humidity set-point in increments of 1%. The set humidity value needs to be at least 5% lower than the current room humidity readout value.

Note

• The humidity set-point is between 10% and 98%. A humidity setting between 40% and 60% is recommended for optimal comfort.
• After selecting your target value, wait for 5 seconds for the setting to register automatically, which will ensure that your desired humidity level is set and maintained.
• Then, the dehumidifier will automatically stop and restart to maintain the room humidity level within a range of 3% of the set point. For instance, if the set humidity is 50%, the dehumidifier automatically stops when the room humidity reaches 47% and then automatically restarts when the room humidity rises back to 53% or higher.

Turn the dehumidifier off

• Press the Power Button to turn off the dehumidifier. Note: To protect the compressor, the fan will continue to operate for 30 seconds after the dehumidifier shuts off. Use the power button to stop the dehumidifier rather than forcibly disconnecting the power cord.

Timer Setting

It enables you to either delay the auto-on or auto-off function of the dehumidifier from 1 to 24 hours.

• Set AUTO ON: When the dehumidifier is off, press the Timer button to set a desired time it begins to work.
• Set the dehumidifier AUTO-OFF: When the dehumidifier is on, press the Timer button to set a desired time it shuts off.

Set the TIMER by the Below Steps

1. Press the Timer Button and the Timer icon and value BBH, lights up and flashes.
2. Adjust the timer setting by pressing the Timer button repeatedly to change the delay timer at 1-hour increments, up to 24 hours.
3. After selecting the target period, just wait for about 5 seconds to let the setting register automatically.
4. The digital readout will count down the remaining time until the dehumidifier either starts or stops.
5. To disable the timer function, manually turn the dehumidifier on/off, or set the timer to .

NOTE

• Before entering the AUTO ON TIMER setting, ensure that power is being supplied to the dehumidifier.
• For the AUTO ON setting, please turn on the dehumidifier to select a desired humidity level. Otherwise, it will be the same as the previous setting.
• Set the AUTO ON timer only when the dehumidifier is off or set an AUTO OFF timer when the dehumidifier is on, but not be able to set both AUTO ON and AUTO OFF timers at the same time. The AUTO ON/OFF function won’t be cycling.
• The TIMER function will be disabled when the dehumidifier is powered on/off manually.
• Set the timer, as the timer function will not be activated.

Smart Functions

1. 3 Minutes Compressor Protection Mechanism
   It prevents the dehumidifier from starting immediately after a complete cycle to avoid any potential damage. The compressor will start automatically after a 3-minute delay. During this time, the Fan icon is illuminated continuously on the LED screen, and until the compressor kicks in, the water droplets icon illuminates. That’s to say, if the dehumidifier is turned off and then restarted immediately, the compressor will not kick in until 3 minutes later.
2. Auto Defrost
   The compressor cycles off when frost builds up on the evaporator coils, and the fan will continue to run until the frost disappears. Meanwhile, the DEFROST icon will light up on the LED screen during the defrosting process.
3. Auto-Restart
   If the dehumidifier shuts off unexpectedly due to a power outage, the dehumidifier will restart with the previous function settings automatically when the power resumes.

Maintenance

1. Cleaning the Dehumidifier
   To clean the dehumidifier body, use a soft, damp cloth. Do not submerge or pour water on the dehumidifier or control panel, as water can damage the electronic components. Avoid using chemical solvents such as benzene, alcohol, gasoline, or heavy-duty cleaners, as they can damage or deform the surface.
2. Cleaning the Air Filter
   The air filter requires regular cleaning to maintain the dehumidifier’s performance. Clean the air filter every 2 weeks, or more frequently if there’s a significant amount of dander or fur in the air.

Follow the steps below to take the filter out

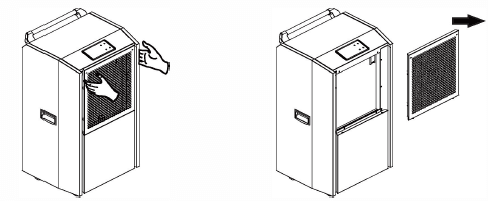

• To remove the grill: Hold the top part of both sides of the inlet grill and then pull upward to take the grill out, as illustrated below.
• To remove the air filter: Grasp the filter tab and pull it obliquely up to take out the entire filter, as illustrated below.

When Not Using the Dehumidifier for Long Periods of Time

• Wait for one day after turning off the dehumidifier to allow it to drain completely.
• Clean the dehumidifier and air filter thoroughly, ensuring that the dehumidifier is dry before storing it.
• Wrap the cord and hose and bundle them up to keep them safe.
• Cover the dehumidifier with a plastic bag.
• Store the dehumidifier upright in a dry, well-ventilated place.

Troubleshooting Guide

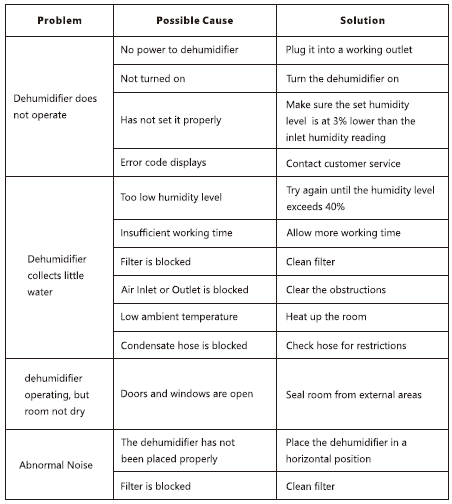

Troubleshooting Chart

The chart below will help you solve common problems that may occur. If the problem comes across can not be fixed after troubleshooting or is not listed in the troubleshooting chart below, please contact OOISWEEE customer service to get professional support at service@moiswell.com
