MOZOTER DBK02 Bluetooth Wireless Earbuds

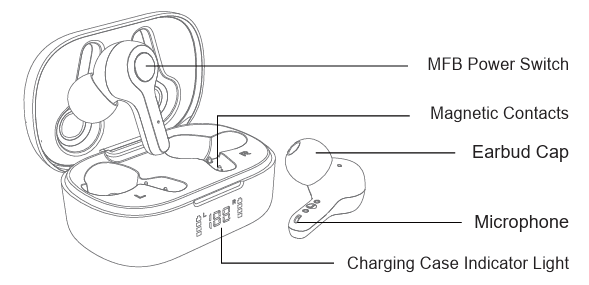

Product overview
- Choose the ear cap that suits you.
- Make sure that the ear caps face down and put the earbuds into the ear in the angle shown as the picture on the right.
- After putting on the earbuds, gently rotate the earbuds to a comfortable and secure position, shown as picture 3 on the right. Now the earbuds are put on correctly!
- Do not wear the earbuds like the way shown as the picture on the right
First time using
- Tear off the insulating film.
- Put the earbuds into the charging case and close the lid to charge(the earbuds are in charging state).

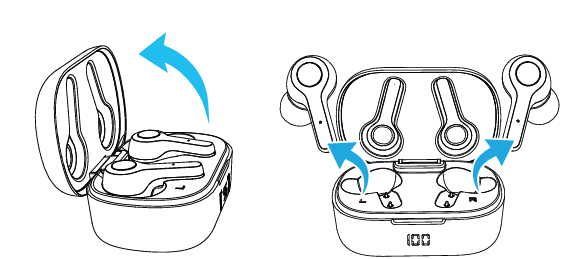

- Open the cover of the charging case and , they will turn on and pair automatically and will be prepared for pairing to the phone (the indicator will turn to Red and Blue alternately).
- The indicator of one earbud will go off and another will flash red and blue light alternately.(In pairing mode)

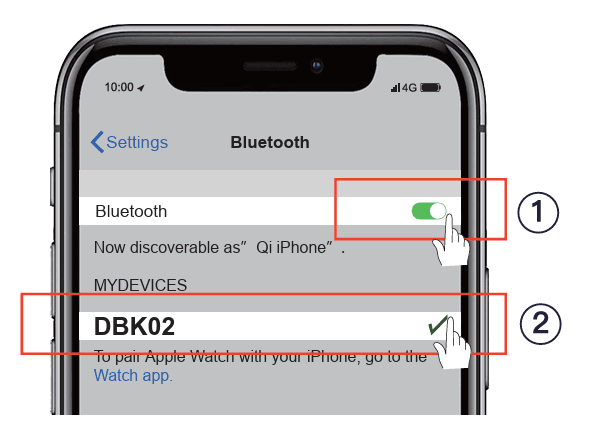

- Turn on the Bluetooth function on your phone and search for【DBK02】and connect it.
Warm notice
- If indicators of both earbuds keep flashing red and blue, click either earbud’s power switch twice. Then the indicator of one earbud will flash red and blue alternately, another will go off. (in pairing mode）

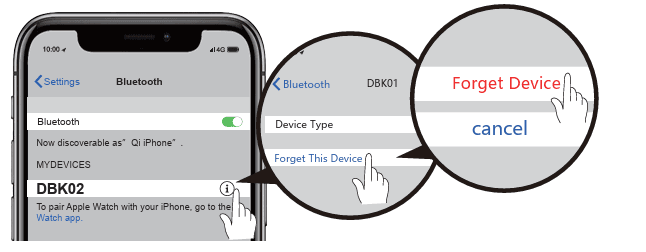

- If you want to switch the Bluetooth connection to another device, please disable the Bluetooth function in the previously connected device OR delete the pairing name of “DBK02” from the original device. Then the pairing name of “DBK02″can be searched in new device and connected successfully.

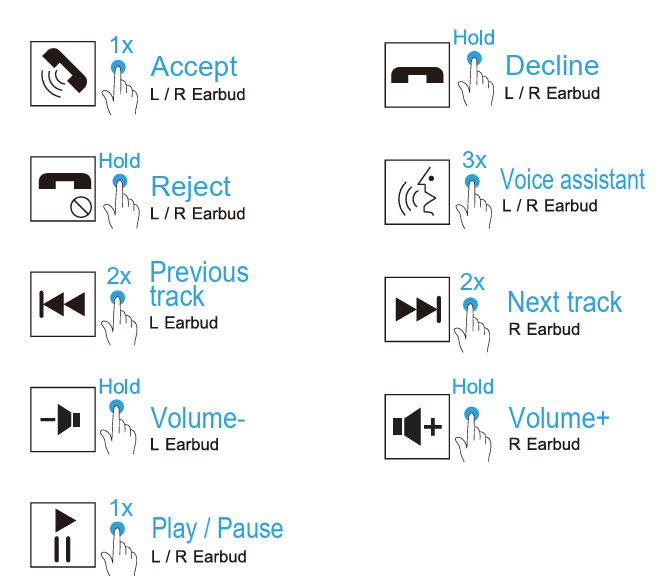

Button control
ON
ON- The earbuds will automatically turn on after opening the top lid of the charging case.
OR - Press and hold the power switch for 5s then leave hold, the earbuds will turn on.(Not in the charging compartment and is in the off state)
OFF
OFF- Put the earbuds into the charging case and close the lid; they will automatically shut down.
OR - While in the non-working state, press and hold the power switch for 5s, and the two earbuds will be turned off at the same time.
OR - Automatically shuts down after not being connected for more than 5 minutes
Warm notice
For any single earbud, when it is in standalone mode, you can’t use it to play the previous song or decrease the volume.
Siri and other Voice Assistant
IOS and part of the Android users can triple click the left or right power switch to turn on the voice assistant.
The voice assistant will be automatically activated depending on the different OS in mobile systems.
Restore factory setting
- When the earbud is on with the mobile phone unconnected, click the left and right power switch simultaneously four times quickly. The red and blue lights will be on for 2 seconds and then it will clear its memory, and the earbuds will shut down.
- Please delete all paired records on the phone and search again for “DBK02” on the Bluetooth of your mobile phone and reconnect.

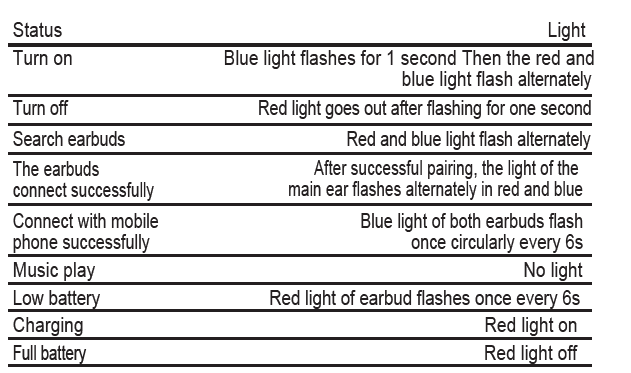

Earbuds indicator

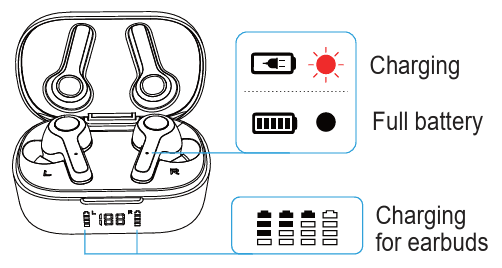

Charging case indicator

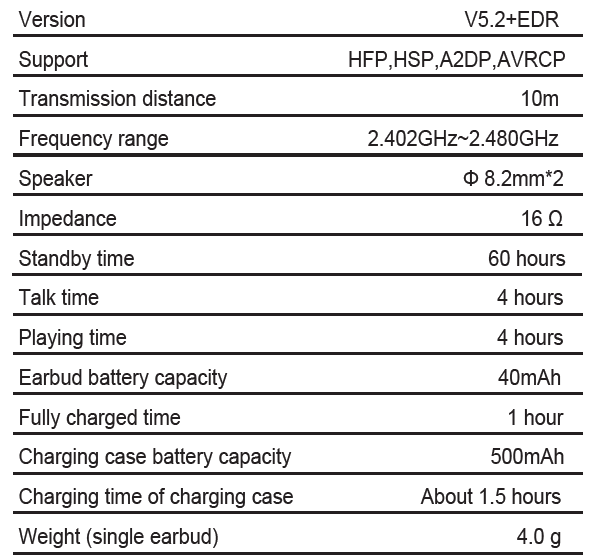

Specifications

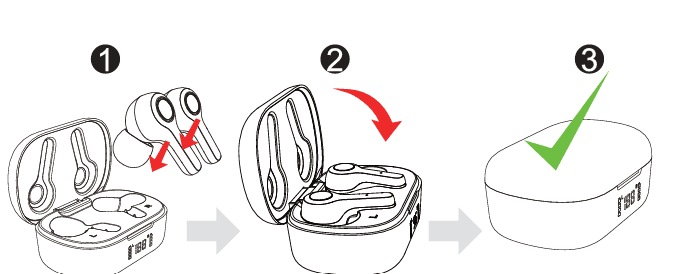

Steps of charging for earbuds:
Put the earbud in the charging case, and the lid must be closed to charge it, and they will automatically turn off and disconnect when the charging case lid is closed.
Charging case: Please use a charger with an output voltage of DC5V/1A to charge the charging case. You can also use a computer USB or other USB interface charger to charge (Must choose a charger certified by a regular manufacturer)
Notice: If the charging case is out of power, it may cause the earbuds to fail to shut down and remain connected to the phone even when they are placed in the charging case. So please remember to charge
the charging case in time.
Attentions

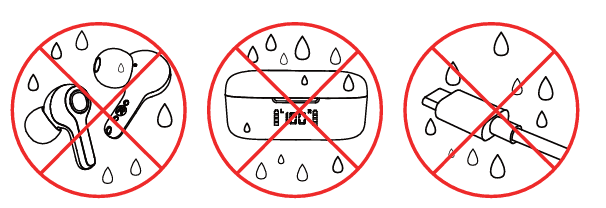

Please make sure that the products are dry. If there is a water droplet on the surface, please wipe it with a dry cloth before putting it back into the charging case to avoid damaging the device.
- Do not use corrosive liquid to clean this product.
- If it comes into contact with chemicals, please rub it with a damp cloth wet with clean water.
- Do not use this product under extreme circumstances for temperatures below -10 degrees Celsius or above 60 degrees Celsius.
- To avoid an explosion, please do not throw this product into a fire.
- To avoid scratches, please do not touch the earbuds with sharp objects.
- Do not insert objects into the earbuds, otherwise it would cause damage to the internal components.
- Do not disassemble the earbud.
- Please keep a regular charge on earbuds, don’t let them become empty battery status to keep their lifetime.
- Please do not charge products with a power adapter over 2A. Excessive current may cause damage to the battery.
