Ninja AF101 Air Fryer User Guide

Ninja AF101 Air Fryer

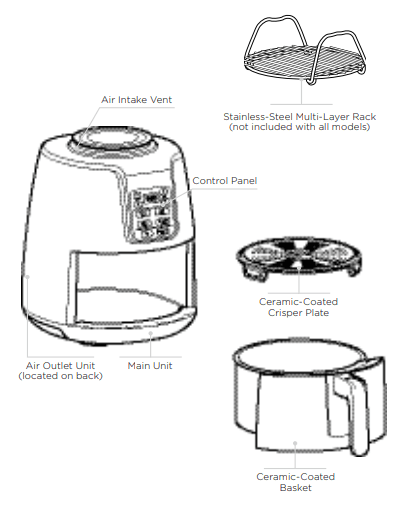

PARTS & ACCESSORIES GETTING TO KNOW YOUR AIR FRYER

FUNCTION BUTTONS

• AIR FRY: Use this function to give your food crispiness and crunch with little to no oil.
• ROAST: Use the unit as a roaster oven for tender meats, baked treats, and more.
• DEHYDRATE: Dehydrate meats, fruits, and vegetables for healthy snacks.
• REHEAT: Revive leftovers by gently warming them, leaving you with crispy results.

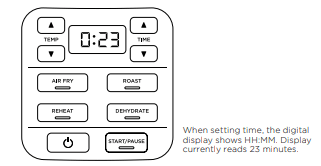

OPERATING BUTTONS

• TEMP arrows: Use the up and down.TEMP arrows to adjust the cook temperature before or during cooking.
• TIME arrows: Use the up and down. TIME arrows to adjust the cook time in any function.
• START/PAUSE button: After selecting the time and temperature, start cooking by pressing the START/PAUSE button. You can stop cooking at any time by pressing this button again.
• Power button: The Power button shuts off the unit and stops all cooking modes. STANDBY MODE After 10 minutes with no interaction with the control panel, the unit will enter standby mode. The Power button will be dimly lit.

BEFORE FIRST USE

1. Remove and discard any packaging material, promotional labels, and tape from the unit.
2. Remove all accessories from the package and read this . Please pay particular attention to operational instructions, warnings, and important safeguards to avoid any injury or property damage.
3. Wash the ceramic-coated basket and crisper plate in hot, soapy water, then rinse and dry thoroughly. NEVER clean the main unit in the dishwasher.

USING YOUR AIR FRYER

USING THE COOKING FUNCTIONS: To turn on the unit, first plug the power cord into a wall outlet. Press the power button.

Air Fry

1. Ensure the crisper plate is in the basket.

2. Press Air Fry button: The default temperature setting will display. Use the TEMP up and down arrows to set your desired temperature.

3. Press the TIME up and down arrow buttons to set your desired cook time.

4. Place ingredients on the crisper plate that is assembled in the basket. Insert the basket in the unit.

Press START/PAUSE to begin cooking.

When cooking is complete, the unit will beep and END will appear on the control panel display.

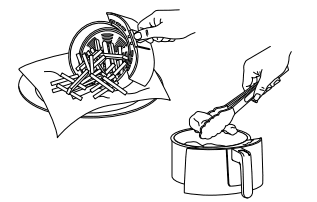

Remove ingredients by dumping them out or by using oven mitts or siliconetipped tongs/utensils.

USING YOUR AIR FRYER – CONT.

Roast

Ensure the crisper plate is in place if needed. If you are using a baking dish, the crisper plate is not needed.

Press Air Fry button. The default temperature setting will display. Use the TEMP up and down arrows to set your desired temperature.

Add ingredients to the basket. Insert the basket in the unit.

Press START/PAUSE to begin cooking.

When cooking is complete, the unit will beep and END will appear on the control panel display.

Remove ingredients by dumping them out or by using oven mitts or siliconetipped tongs/utensils.

Reheat

Ensure the crisper plate is in the basket.

Press the REHEAT button. The default temperature setting will display. Use the TEMP up and down arrow. buttons set- your desired temperature.

Press the TIME up and down arrows to set your desired cook time.

Add ingredients to the basket. Insert the basket in the unit.

Press the START/PAUSE button to begin cooking.

When cooking is complete, the unit will beep and END will appear on the control panel display.

Remove ingredients by dumping them out or by using oven mitts or siliconetipped tongs/utensils.

USING YOUR AIR FRYER – CONT.

Dehydrate

Place your first layer of ingredients in the bottom of the basket. Then install the crisper plate inside the basket and set a second layer of ingredients on the crisper plate.

Press the DEHYDRATE button. The default temperature will display. Use the TEMP up and down arrow buttons to set your desired temperature.

Press the TIME up and down arrow buttons to set your desired cook time.

Press the START/PAUSE button to start dehydrating.

CLEANING & MAINTENANCE

Cleaning Your Air Fryer

The unit should be cleaned thoroughly after every use.

1. Unplug the unit from the wall outlet before cleaning.
2. To clean the main unit and the control panel, wipe them clean with a damp cloth.
3. The basket, crisper plate, and any
   accessories can be washed in the dishwasher.
4. If food residue is stuck on the crisper plate or basket, place them in a sink filled with warm, soapy water and allow to soak.
5. Air-dry or towel-dry all parts after use.
6. Clean the heating element with a cleaning brush to remove any food residues.

HELPFUL TIPS

1. For consistent browning, make sure ingredients are arranged in an even layer on the bottom of the basket with no overlapping. If ingredients are overlapping, make sure to shake them halfway through the set cook time.
2. Cook time and temperature can be adjusted at any time during cooking. Simply press the up and down TIME or TEMP arrows to adjust the time or temperature.
3. To convert recipes from your conventional oven, reduce the temperature of the Air Fryer by 25°F. Check food frequently to
   avoid overcooking.
4. We recommend 3 minutes of preheating. You can use the built-in timer to set a 3-minute countdown.
5. Occasionally, the fan from the air fryer will blow lightweight foods around. To alleviate this, secure foods (like the top slice of bread on a sandwich) with toothpicks
6. The crisper plate elevates ingredients in the basket so air can circulate under and around them for even, crisp results.
7. After a cooking function is selected, you can press the START/PAUSE button to begin cooking immediately. The unit will
   run at the default temperature and time.
8. For best results, remove food immediately after the cook time is complete to avoid overcooking.
9. For best results with fresh vegetables and potatoes, use at least 1 tablespoon of oil. Add more oil as desired to achieve the preferred level of crispiness.
10. For best results, check progress throughout cooking, and remove food when desired level of brownness has been achieved. We recommend using an instant-read thermometer to monitor internal temp of proteins. After the cook time is complete remove food immediately to avoid overcooking.

TROUBLESHOOTING GUIDE

• Why won’t my temperature go any higher?
  The max temperature is 400 ˚F.
• How long does it take to preheat, and how will I know when it’s done?
  We recommend 3 minutes of preheating. You can use the built-in timer to set a 3-minute countdown.
• Should I add my ingredients before or after preheating?
  It is recommended to let the unit preheat for 3 minutes before adding ingredients.
• Do I need to defrost frozen foods before air frying?
  It depends on the food! Follow package instructions.
• How do I make the countdown pause?
  Press START/PAUSE.
• Is the basket safe to put on my countertop?
  The basket will heat during cooking. Use caution when handling, and place on heat-safe surfaces only.
• How do I know when to use the crisper plate?
  Use the crisper plate when you want food to come out crispy. The crisper plate allows for food to be elevated in the basket allowing for air to go under the plate and evenly crisp ingredients.
• My food didn’t cook.
  Make sure the basket is fully inserted during cooking. For consistent browning, make sure ingredients are arranged in an even layer on the bottom of the basket with no overlapping. Shake loose ingredients for even crispiness. Cook time and temperature
  can be adjusted at any time during cooking. Simply press the up and down TIME or TEMP arrows to adjust the time or temperature.

ONE (1) YEAR LIMITED WARRANTY

The 1-Year Limited Warranty applies to purchases made from authorized retailers of SharkNinja Operating LLC. Warranty coverage applies to the original owner and to the original product only and is not transferable. SharkNinja warrants that the unit shall be free from defects in material and workmanship for a period of 1 year from the date of purchase when it is used under normal household
conditions and maintained according to the requirements outlined in this instruction manual, subject to the following conditions and exclusions.

What is covered by my warranty?

1. The original unit and/or non-wearable components deemed defective, in SharkNinja’s sole discretion, will be repaired or replaced for up to 1 year from the original purchase date.
2.  In the rare event that a replacement unit is issued, the warranty coverage ends 6 months after the receipt date of the replacement unit or the remainder of the existing warranty, whichever is greater. If the unit is replaced, SharkNinja reserves the right to replace the unit with one of equal or greater value.

What is not covered by my warranty?

Our Customer Service and Product Specialists are available to provide all the warranty service options available to you, including the possibility of upgrading to our VIP Warranty Service Options for select product categories.

1. Normal wear and tear of wearable parts (including removable basket, crisper plate, racks, and pans) that require regular maintenance and/or replacement to ensure the proper functioning of your unit are not covered by your warranty.
2. Any unit that has been tampered with or used for commercial purposes.
3. SharkNinja will cover the cost for the customer to send the unit to us for repair or replacement. A fee of $19.95 for return shipping costs will be charged at the time of return shipment of the repaired or replacement unit.
4. Damage caused by misuse, abuse, or negligent handling, or damage due to mishandling in transit.
5. Consequential and incidental damages.
6. Defects caused by or resulting from damages from shipping or from repairs, service, or alteration to the product or any of its parts that have been performed by a repair person not authorized by SharkNinja.
7. Products purchased, used, or operated outside of North America.

Problems with your unit/How to get service:

If your appliance fails to operate properly while in use under normal household conditions within the warranty period, visit ninjakitchen.com for product care/maintenance self-help. Our Customer Service and Product Specialists are also available at 1-877-646-5288 to assist with product support and warranty service options.

How to initiate a warranty claim:

You can call 1-877-646-5288 to have a Customer Service Specialist assist you. Please note, you must call 1-877-646-5288 to initiate a warranty claim. Return and packing instruction information will be provided at that time. For Customer Service hours, visit ninjakitchen.com. Replacement parts are available for purchase at ninjaaccessories.com. For more information on what are classified as wearable and non-wearable parts, visit ninjakitchen.com/warranty.
This warranty gives you specific legal rights, and you may also have other rights that vary from state to state. Some states do not permit the exclusion or limitation of incidental or consequential damages, so the above may not apply to you.
