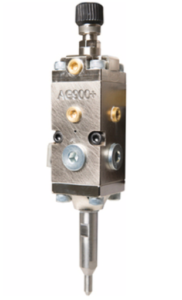

Nordson AG-900+S Modular Dispensing Applicator

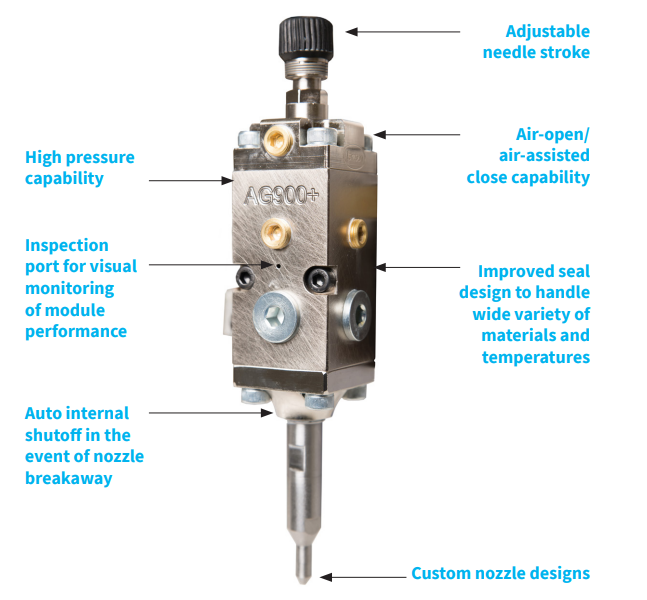

Features and Benefits
- Modular design allows configuration for a variety of dispensing functions.
- A zero-cavity feature is available for positive material shutoff.
- The optional dispense-head regulator provides accurate dispense control by
regulating pressure in the nozzle. - Hose interface options reduce stress on hoses and robots in automated applications.
- The compact size and weight enable its use in most production environments.
- Improved overall design to reduce the cost of operation and maintenance.
The Nordson AG-900+S modular dispensing applicator is designed for the application of solid and foamed high-performance materials such as epoxies, silicones, plastisols,
urethanes, butyl, and hot melts. Large internal fluid passages handle high viscosity materials. The applicator is compatible with most Nordson automated dispensing equipment. The modular design of the AG-900+S dispensing applicator allows different assemblies for various gasketing, sealing, and bonding applications. The applicator module can be used independently or in combination with regulators, actuators, and hose interfaces.
The AG-900+S module allows for a standard or custom nozzle and needle designs to meet a variety of product application requirements. A zero-cavity feature of the dispensing head is available and provides accurate material flow and positive shutoff to help eliminate clogs or dripping. The AG-900+S dispense head can incorporate an optional pressure regulator attached to the module. The pressure regulator reduces pressure fluctuations, particularly during opening. This allows the output of the applicator to be maintained at a consistent rate.
AG-900+S Modular Dispensing Applicator

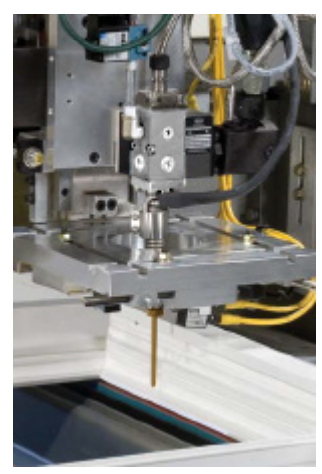

AG-900+S dispensing applicator in window backbedding application.

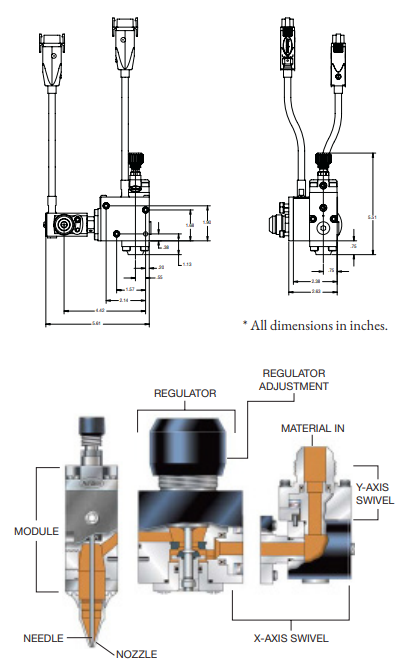

Dimensions
Technical Specifications
- Operating Temperature (max.): 200° C (392° F)
- Maximum Input Pressure: 20,684 Kpa at 121° C (3,000 psi at 250° F) 10,342 Kpa above 121° C (1,500 psi above 250° F)
- Electrical Requirements: 200/240 VAC, 50/60 Hz
- Heated Applicator: 270 watts – module/regulator, 100 watts – swivel
- Operating Air Pressure: 414-689 Kpa (60-100 psi)
- Operating Speed (max.): 3,200 cycles/minute
- Material Viscosity Range: 1,000-1,000,000 cP
