Nordson ProBlue P10 Hot Melt Adhesive Dispensing System
Section 1
Safety
Safety Labels and Tags

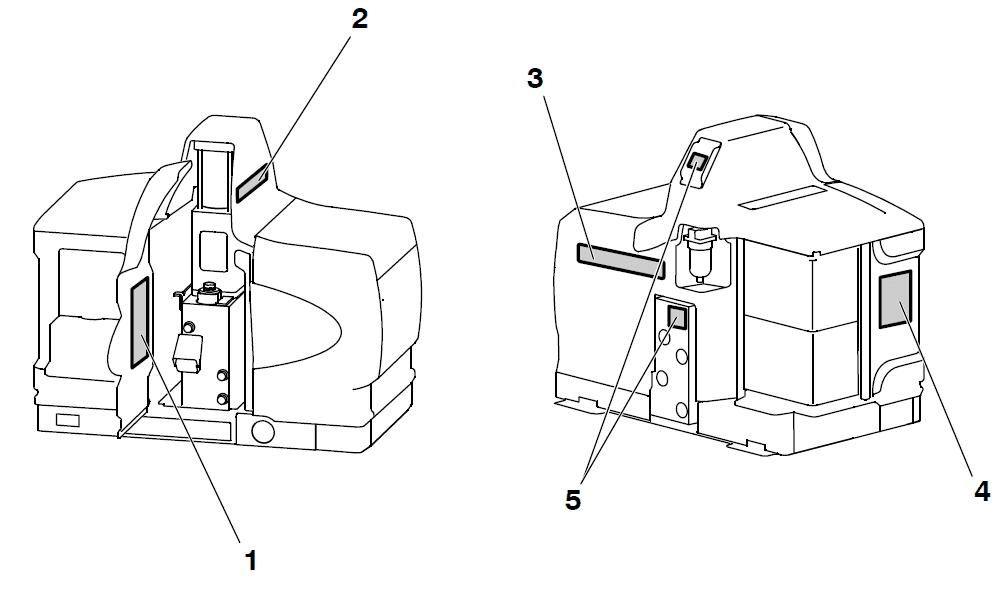

- Figure 1‐1 illustrates the location of the product safety labels and tags affixed to the equipment. Tables 1 and 2 provide an illustration of the hazard identification symbols that appear on each safety label and tag, the meaning of the symbol, and the exact wording of any safety message.
- The installation kit provided with the melter may contain label overlays that are printed in a variety of languages. If required by governing safety regulations, apply the appropriate overlay to the text portion of the labels shown in Figure 1‐1.
- Table 1‐2 General Safety Warnings and Cautions
Item Description 1
WARNING Burn hazard.
Hot adhesive.
Release pressure before servicing.
2
CAUTION Burn Hazard. Hot Surfaces.
3
WARNING Burn hazard.
Hot adhesive.
Release pressure before servicing.
4
WARNING Hazardous voltage.
Disconnect all power supply connections before servicing.
5 The symbol means: Hot Surface! Do not touch.
Section 2
Description
- With the exception of tank capacity, hose/gun capacity, and exterior appearance, all ProBlue melters are functionally identical. To simplify the presentation of information in this manual, depictions of the model P4 are used generically throughout this manual to represent all ProBlue melters

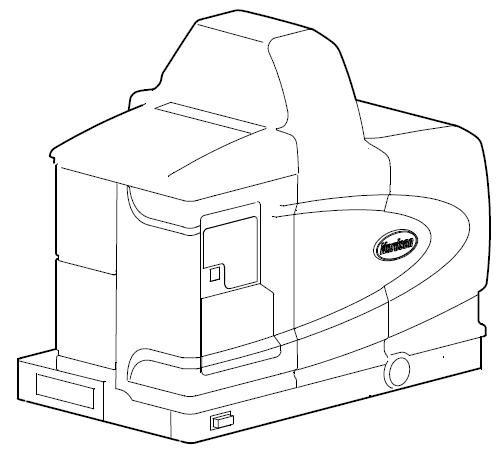

Product Description

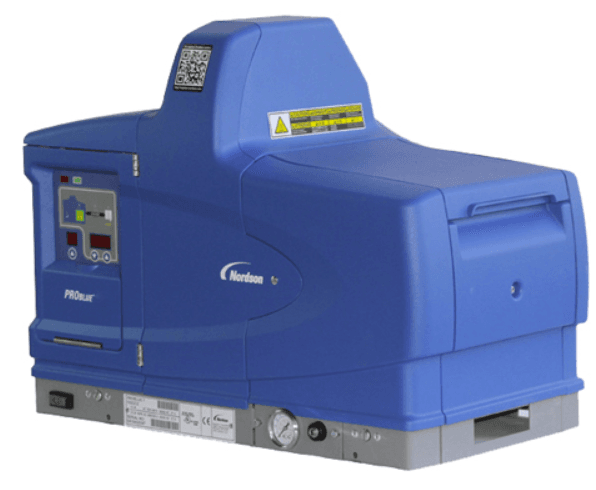

- The melter liquifies solid‐form hot melt and maintains the hot melt at the desired temperature. When the guns are activated, the melter pumps the liquified hot melt through the hoses and out the gun nozzles, where it is commonly applied to the surface of a product or package.

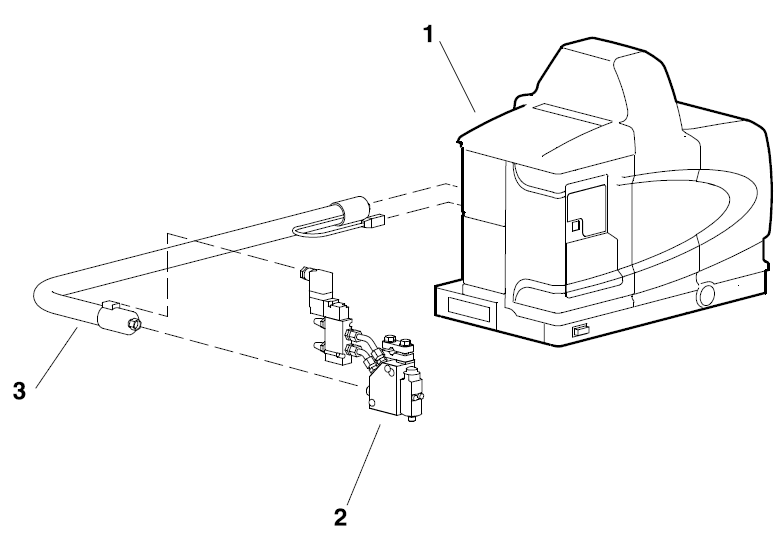

- ProBlue melter
- Hot melt gun
- Hot melt hose
Modes of Operation
ProBlue melters operate in the following modes:
- Automatic scan—The melter automatically checks and displays the current temperature of the tank, hoses, and guns to confirm that they are within their pre‐defined temperature range. By default, the melter is always in automatic scan mode unless it is placed in another operating mode.
- Standby—The temperatures of the tank, hoses, and guns are reduced from their operating temperature (hereafter referred to as set‐point temperature) by a pre‐set number of degrees.
- Setup—The setup mode is used to configure melter control options and features and to review stored operating data. To prevent unauthorized changes to the melter’s configuration, the melter can be password‐protected
- Fault—The melter alerts the operator when an abnormal event occurs.
Key Components

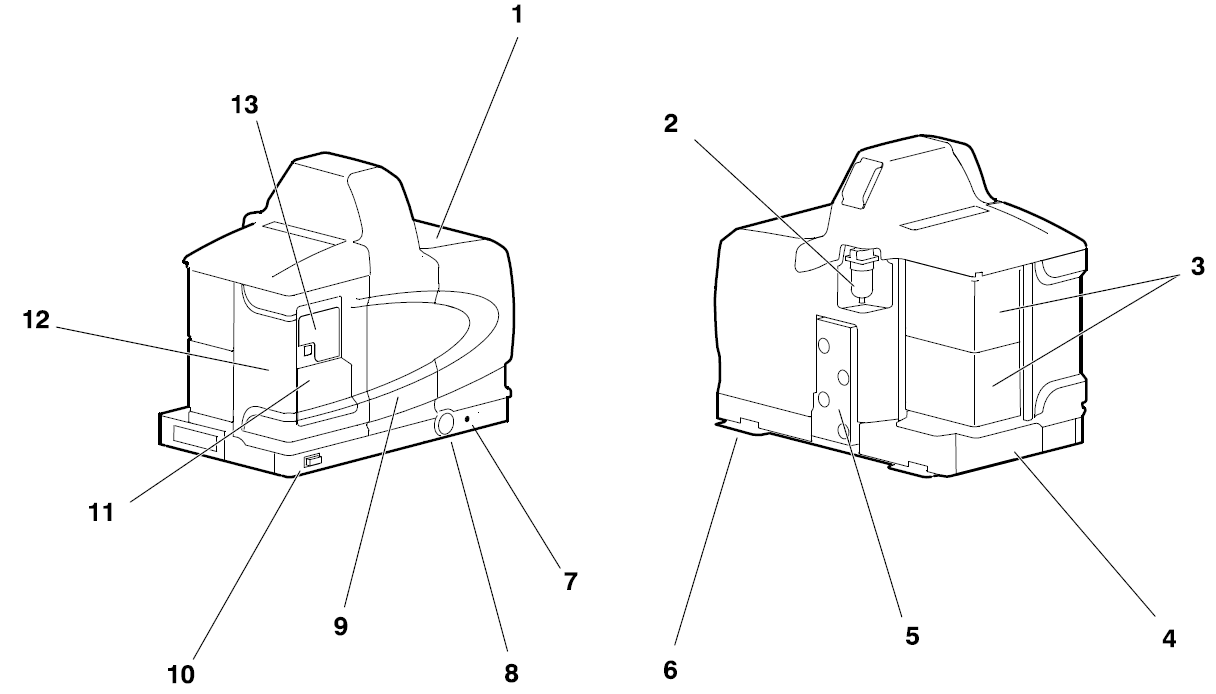

- Tank
- Air filter
- Hose/gun modules
- Chassis
- Manifold
- Sub‐base
- Pressure adjustment screw
- Pressure gauge
- Pump enclosure door
- Control switch
- Keypad door
- Electrical enclosure door

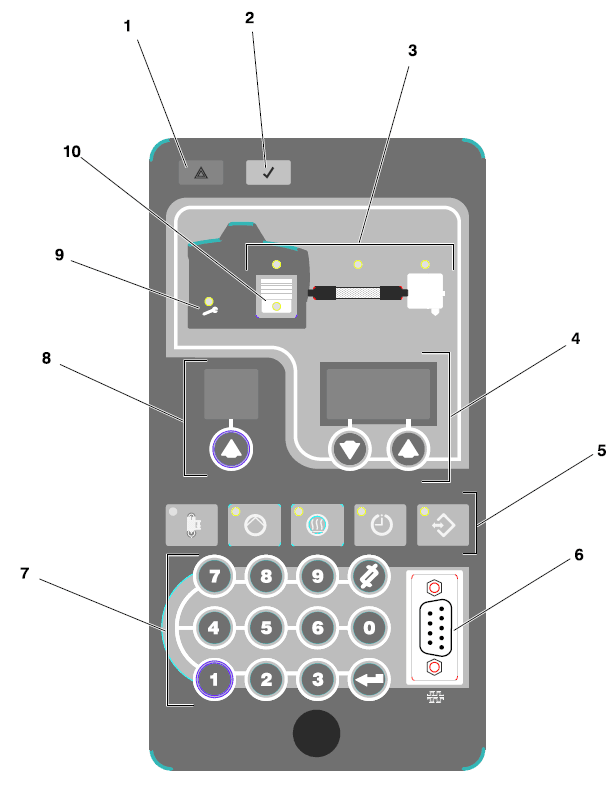

- Control panel (see Figure 2‐4)
- Fault LED
- Ready LED
- Component keys/LEDs
- Right display and scroll keys
- Function keys
- Serial port
- Keypad
- Left display and scroll key
- Service LED
- Tank low‐level LED
Section 3
Installation
Overview
- ProBlue melters are factory‐configured for each order and require only the assembly and set-up tasks described in this section. If your melter was ordered as a complete system, the shipping container will also contain one or more hot melt hoses and guns. ProBlue 400/480-volt melters include a transformer assembly that is shipped separately from the melter.
- The melter is shipped from the factory with an installation kit that contains components that must be assembled onto the melter by the customer. Some additional materials must also be supplied by the customer to complete the installation.
Installation Requirements
- Before installing the melter, ensure that the desired installation location provides the required clearances, environmental conditions, and utilities.
- Clearances

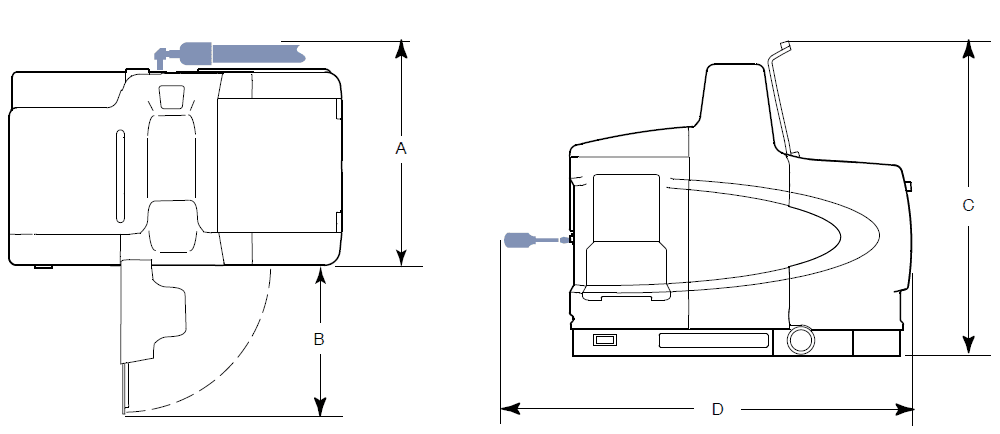

- Figure 3‐1 illustrates the minimum clearances that are required between the melter and surrounding objects. Table 3‐1 describes each clearance
- Table 3‐1 Installation Clearances
Item Description Required Clearance A
The distance from the outside edge of a 5/16‐inch Nordson hose to the front face of the melter when a short 90‐degree hose fitting is used to connect the hose to the melter P4 = 370 mm (14.5 in.) P7 = 370 mm (14.5 in.)
P10 = 391 mm (15.4 in.)
B
The clearance required to open the pump enclosure door P4 = 243 mm (9.6 in.) P7 = 243 mm (9.6 in.)
P10 = 268 mm (10.55 in.)
C
The distance from the melter sub‐base to the front edge of the tank lid when the lid is at its highest point. P4 = 502 mm (20.0 in.) P7 = 564 mm (22.2 in.)
P10 = 656 mm (26.0 in.)
D
The clearance required on the left side of the melter to open the electrical enclosure door or remove a hose/gun module. P4 = 648 mm (25.5 in.) P7 = 711 mm (28.0 in.)
P10 = 714 mm (28.1 in.)
Other Considerations
Consider the following additional factors when evaluating where to install the melter.
- The maximum distance between the melter and each gun is dictated by the power requirement of each hose. Refer to Appendix A, Calculating Melter Power Requirements, for information about how to determine the maximum allowable length.
- The operator must be able to safely reach the control panel and accurately monitor the control panel indicators.
- The operator must be able to safely observe the level of hot melt inside the tank.
- The melter must be installed so that it can be safely removed from its sub‐base.
- The melter must be installed away from areas with strong drafts or where sudden temperature changes occur.
- The melter must be installed where it will be in conformance with the ventilation requirements specified in the Material Safety Data Sheet for the hot melt being used.
Unpacking the Melter

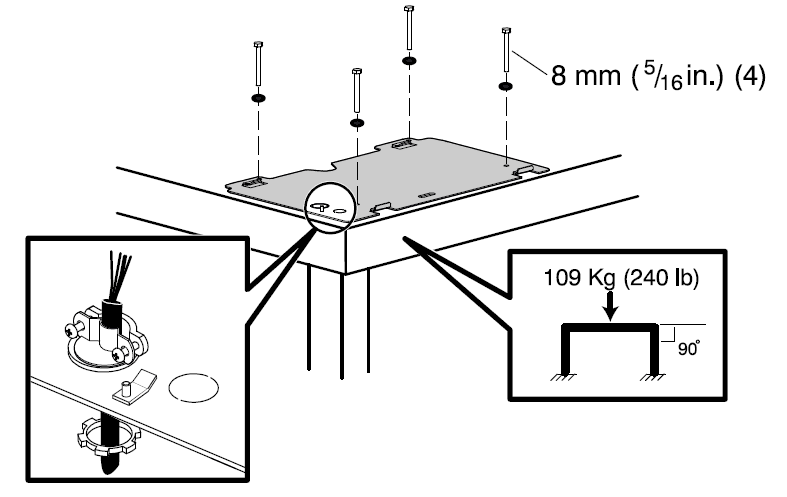

- Before starting the installation, remove the melter from the pallet, locate the installation kit, and inspect the melter for damaged and missing parts. Report any problems to your Nordson representative.
Contents of the Installation Kit
- The installation kit provided with the melter contains the components shown in Figure 3‐3. The quantity and type of hose fittings provided in the kit depends upon the melter’s model number and configuration.
- NOTE: 400/480 volt transformers are shipped with a separate installation kit. Refer to Appendix E for information about the contents of the transformer
installation kit. The installation kit also contains a package of safety label overlays that are printed in a variety of languages. If required by local regulations, the
appropriate language overlay should be applied over the English version of the same label. Refer to Section 1, Safety Labels and Tags, for the location of each safety label

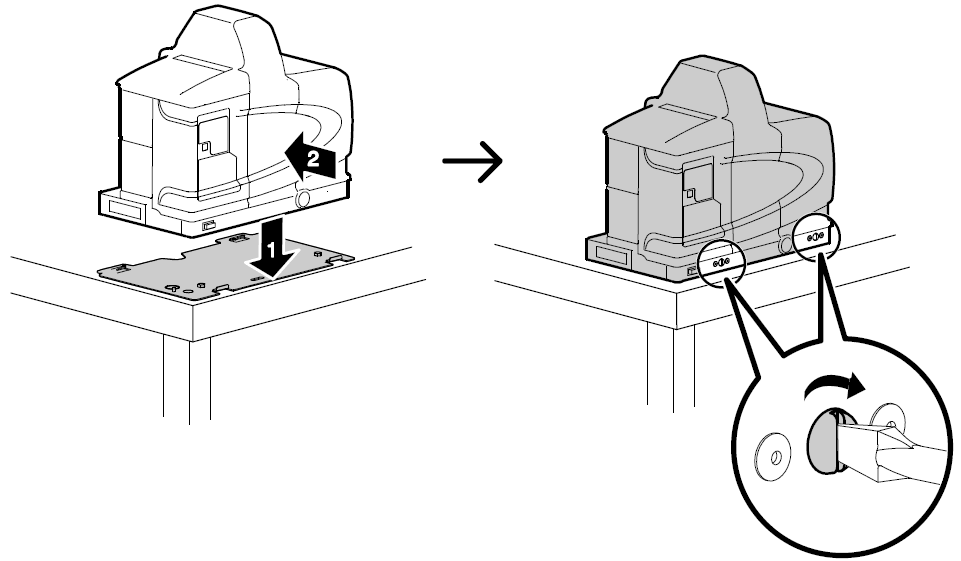

Mounting the Melter (contd)
Configuring the Electrical Service (contd)
- WARNING! Risk of electrocution! Install a lockable power disconnect switch between the electrical service and the melter. Failure to install or properly use the disconnect switch when servicing the melter can result in personal injury, including death.

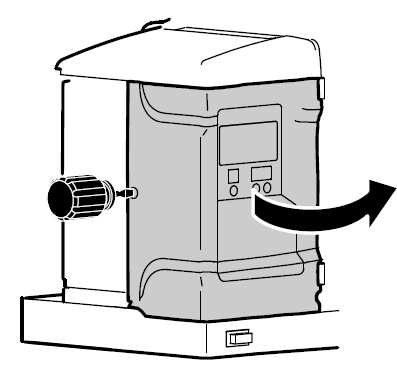

- Open the electrical enclosure door.
- Route the power cable into the wire tray in the base of the electrical enclosure.
NOTE: If the power cable cannot be routed through the conduit knockout provided in the sub‐base (Refer to Mounting the Melter earlier in this section), route the cable through the optional knockout provided on the left side of the chassis. See Figure 3‐5. - Connect each power cable lead to the appropriate terminal on the electrical connector (P/N 1022993). Table 3‐3 describes the terminal connections for each type of electrical service.

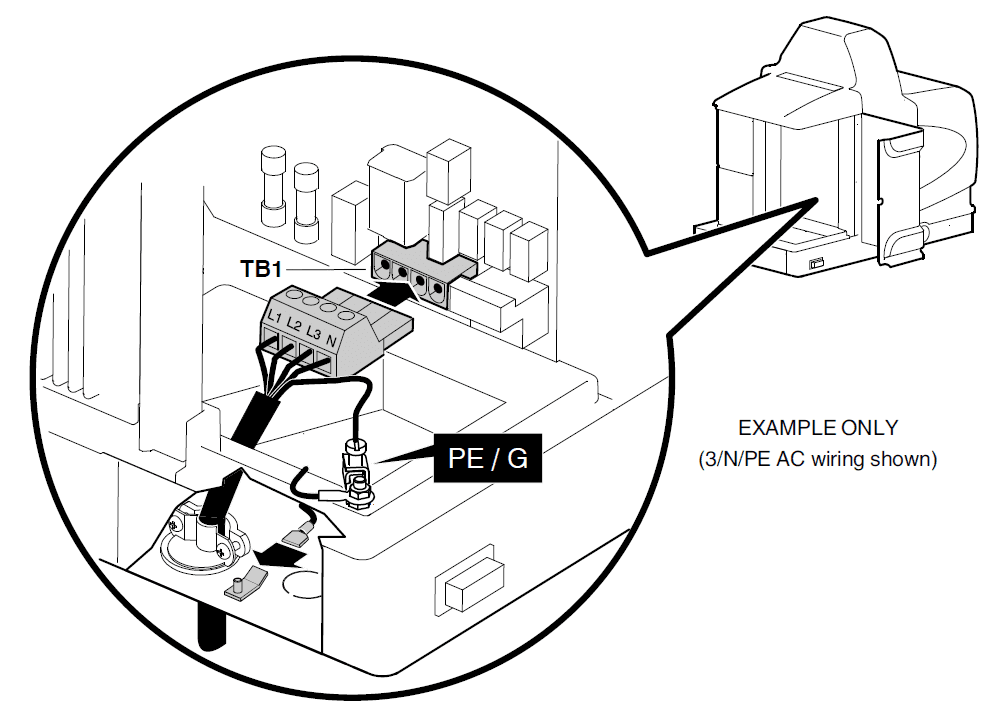

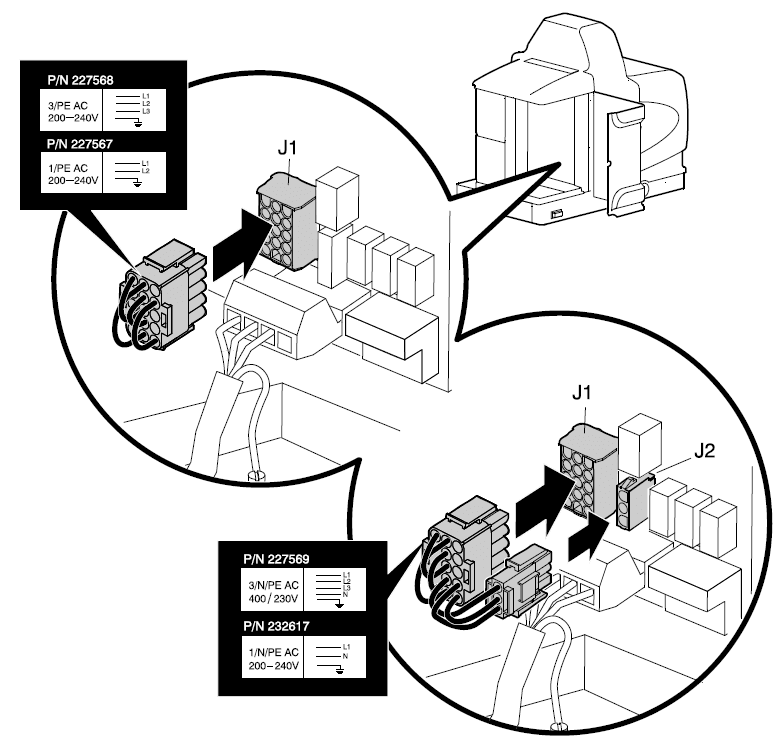

- Plug the electrical connector into receptacle TB1 on the main board.
- Connect the ground lead from the power cable to the ground lug that is located on the chassis. The lug is marked PE/G.
- Connect the ground jumper that is connected to the ground lug, to the ground post that is located on the sub‐ba
To connect a power cable to the melter (contd)
Table 3‐3 Electrical Service Information

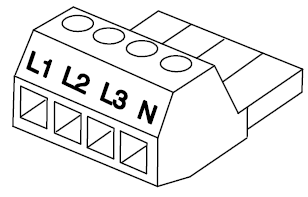

| Use Electrical Connector Terminals.. |
Use Voltage Plug.. | |||||
| If the Electrical Service Type is.. | L1 | L2 | L3 | N | ||
| 400/230 VAC 3‐phase (4‐wire service, including a neutral) See note. | 3/N/PE AC 400/230V | · | · | · | · | 227569 Red/Yellow |
| 230 VAC 1‐phase (2‐wire service, including a neutral) See note. | 1/N/PE AC 200–240V | · | · | 232617 Blue/Yellow | ||
| 200 to 240 VAC 3‐phase (3‐wire service without a neutral) | 3/PE AC 200–240V | · | · | · | 227568 Red/Green | |
| 200 to 240 VAC 1‐phase (2‐wire service without a neutral) | 1/PE AC 200–240V | · | · | 227567 Blue/Green | ||
| NOTE: The 400/230 VAC 3‐phase service (4‐wire service including neutral) includes the 415/240 VAC 3‐phase (4‐wire service, including neutral) voltage. The 230 VAC 1‐phase service (2‐wire service, including a neutral) includes the 240 VAC 1‐phase (2‐wire service, including a neutral) voltage. | ||||||
Setting Up the Melter
- After physically installing the melter, it must be set up to support your manufacturing process. Melter setup consists of enabling or making changes to factory‐set operating parameters that affect the use and function of the melter. The operating temperature (set‐point) of the tank and each hose and gun is also established during melter setup.
- The melter is shipped from the factory with the most commonly used operating parameters already set up. The factory setup can be modified at any time to suit your manufacturing process
Parameter Parameter Name Purpose Default Value 4
Ready Delay Time
A timer that delays the activation of the ready LED for a pre‐defined time period after the tank, hoses, and guns are at the desired set‐point temperature. The ready delay timer will only activate if the temperature of the tank, at the time the melter is turned on, is below its assigned set‐point temperature by 27 °C (50 °F) or more.
0 minutes
5
Service Interval Time
A timer that turns on a service LED when the value set for the timer equals the number of hours that the heaters have been on. The service LED is used to signal the need for maintenance. 500 hours
8
Automatic Pump On
Determines whether the pump will turn on automatically when the all components are at their desired set‐point temperature (enabled) or whether the pump must be turned on manually (disabled). Enabled
11
Create Password
Sets a password that must be entered before any melter operating parameter or set‐point temperature can be changed. 5000
20
Temperature Units
Sets the units of the temperature display to degrees Celsius (C) or to degrees Fahrenheit (F). C
21
Over Temperature Delta
Sets the number of degrees that any heated component can exceed its assigned set‐point temperature before an over-temperature fault occurs. 15 °C (25 °F)
22
Under Temperature Delta
Sets the number of degrees that any heated component can drop below its assigned set‐point temperature before an under-temperature fault occurs. 25 °C (50 °F)
23
Standby Delta
Sets the number of degrees that the temperature of all heated components will be decreased when the melter is placed into standby mode. 50 °C (100°F)
26
Manual Standby Time
Sets the amount of time the melter will remain in the standby mode after the standby key is pressed. Disabled
50 to 77
Seven‐day Clock
A group of parameters that control the melter’s clock. The clock is used to automatically turn the heaters on and off and to place the melter into the standby mode.
Disabled
Operating Parameters
- The melter uses operating parameters to store noneditable and editable values. Noneditable values are those that provide information about the historical performance of the melter. Editable values are either a numeric set‐point or a control option setting. Control options settings affect the display of information or the function of the melter.
- Operating parameters are stored in the melter’s firmware in the form of a sequentially numbered list. The list is organized into the logical groups described in Table 3‐5.
- Table 3‐5 Parameter Groups
Group Parameter Numbers Group Description Standard 0 to 11 and 14 Noneditable and other frequently used parameters Temperature Control 20 to 26 Control heaters Input Setup 30 to 39 Configure the standard and optional inputs Output Setup 40 to 46 Configure the standard and optional outputs Seven-day Clock 50 to 77 Configure the clock feature
Operating Parameters (contd)
Table 3‐6 Operating Parameters
| Parameter | Name | Range of Values | Default Value |
| Standard | |||
| 0 | Enter Password | 0 to 9999 | 4000 |
| 1 | Total Hours with Heaters On (noneditable) | 0-999,999 | 0 |
| 2 | Fault Log (noneditable) | — | _‐F0 (empty) |
| 3 | Change History Log (noneditable) | — | P‐_ (empty) |
| 4 | Ready Delay Time | 0 to 60 minutes | 0 minutes |
| 5 | Service Interval Time | 0 to 8736 hours | 500 hours |
| 6 | Service LED Heater Hours | 0 to 9999 hours | 0 |
| 8 | Automatic Pump On | 0 (disabled) or 1 (enabled) | 1 (enabled) |
| 9 | Automatic Pump On Temperature | 0 (disabled) or (1 to 230 C) | 0 (disabled) |
| 10 | Enable or Disable Password | 0 (disabled) or 1 (enabled) | 0 (disabled) |
| 11 | Create Password | 0 to 9999 | 5000 |
| 14 | External Communications Lock‐out | 0 or 1 | 0 (disabled) |
| Temperature Control | |||
| 20 | Temperature Units (degrees °C or °F) | C (degrees Celsius) or F (degrees Fahrenheit) | C (degrees Celsius) |
| 21 | Over Temperature Delta | 5 °C (10 °F) to 60 °C (110 °F) | 15 °C (25 °F) |
| 22 | Under Temperature Delta | 5 °C (10 °F) to 60 °C (110 °F) | 25 °C (50 °F) |
| 23 | Standby Delta | 25 °C (50 °F) to 190 °C (350 °F) | 50 °C (100 °F) |
| 24 | Automatic Standby Timeout | 0 to 1440 minutes | 0 (disabled) |
| 25 | Automatic Heaters Off Time | 0 to 1440 minutes | 0 (disabled) |
| 26 | Manual Standby Time | 0 to 180 minutes | 0 (disabled) |
| Input Setup | |||
| 30 | Standard Input 1 | 0-10, 15-16 | 10 (Automatic Standby) |
| 31 | Standard Input 2 | 0-9, 15-16 | 1 (Standby on/off) |
| 32 | Standard Input 3 | 0-9, 15-16 | 2 (Heaters on/off) |
| 33 | Standard Input 4 | 0-9, 15-16 | 4 (Hose/gun 1 enable/disable) |
| 34 | Optional Input 5 | 0-9, 15-16 | 0 (disabled) |
| 35 | Optional Input 6 | 0-9, 15-16 | 0 (disabled) |
| 36 | Optional Input 7 | 0-9, 15-16 | 0 (disabled) |
| 37 | Optional Input 8 | 0-9, 15-16 | 0 (disabled) |
| 38 | Optional Input 9 | 0-9, 15-16 | 0 (disabled) |
| 39 | Optional Input 10 | 0-9, 15-16 | 0 (disabled) |
| Continued… | |||
| Parameter | Name | Range of Values | Default Value |
| Output Setup | |||
| 40 | Standard Output 1 | 0–6 | 1 (Ready) |
| 41 | Standard Output 2 | 0–6 | 3 (Fault) |
| 42 | Standard Output 3 | 0–6 | 4 |
| 43 | Optional Output 4 | 0–6 | 0 (disabled) |
| 44 | Optional Output 5 | 0–6 | 0 (disabled) |
| 45 | Optional Output 6 | 0–6 | 0 (disabled) |
| 46 | Optional Output 7 | 0–6 | 0 (disabled) |
| Seven‐day Clock | |||
| 50 | Current Day | 1 to 7 (1 = Monday) | — |
| 51 | Current hour | 0000 to 2359 | — |
| 55 | Schedule 1 Heaters On | 0000 to 2359 | 06:00 |
| 56 | Schedule 1 Heaters Off | 0000 to 2359 | 17:00 |
| 57 | Schedule 1 Enter Standby | 0000 to 2359 | —:— |
| 58 | Schedule 1 Exit Standby | 0000 to 2359 | —:— |
| 60 | Schedule 2 Heaters On | 0000 to 2359 | —:— |
| 61 | Schedule 2 Heaters Off | 0000 to 2359 | —:— |
| 62 | Schedule 2 Enter Standby | 0000 to 2359 | —:— |
| 63 | Schedule 2 Exit Standby | 0000 to 2359 | —:— |
| 65 | Schedule 3 Heaters On | 0000 to 2359 | —:— |
| 66 | Schedule 3 Heaters Off | 0000 to 2359 | —:— |
| 67 | Schedule 3 Enter Standby | 0000 to 2359 | —:— |
| 68 | Schedule 3 Exit Standby | 0000 to 2359 | —:— |
| 71 | Schedule for Monday | 0-7 | 0 |
| 72 | Schedule for Tuesday | 0-7 | 0 |
| 73 | Schedule for Wednesday | 0-7 | 0 |
| 74 | Schedule for Thursday | 0-7 | 0 |
| 75 | Schedule for Friday | 0-7 | 0 |
| 76 | Schedule for Saturday | 0-7 | 0 |
| 77 | Schedule for Sunday | 0-7 | 0 |
Installing Melter Inputs
ProBlue melters are equipped with four standard inputs. Each input is customer‐wired to the melter and then set up to provide one of the following control options:
- Place the melter into standby mode
- Turn the heaters on and off
- Enable or disable a specific hose or gun
- Turn the pump on and off
- Inputs are activated using a constant 10 to 30 VDC signal voltage, which is supplied by the customer’s control equipment. The inputs are not polarity-sensitive.
To set up an input
- Set up the parameter control option for each input that you connected to the melter. Table 3‐8 lists the available control options. Refer to Setting Up the Melter earlier in this section for information about how to select operating parameters and edit parameter control options
- Table 3‐8 Input Data
| Input | Terminals | Operating Parameter | Control Option | Note |
| Standard Inputs | ||||
|
1 |
8 and 9 |
30 | 0 ‐ Input Disabled 1 ‐ Standby On/Off 2 ‐ Heaters On/Off 3 ‐ Pump Enable/Disable 4 ‐ Hose/Gun 1 Enable/Disable 5 ‐ Hose/Gun 2 Enable/Disable 6 ‐ Hose/Gun 3 Enable/Disable 7 ‐ Hose/Gun 4 Enable/Disable 8 ‐ Hose/Gun 5 Enable/Disable 9 ‐ Hose/Gun 6 Enable/Disable 10 – Automatic standby (Default) | A, B
C
F D |
|
2 |
10 and 11 |
31 | 0 ‐ Input Disabled 1 ‐ Standby On/Off (Default) 2 ‐ Heaters On/Off 3 ‐ Pump Enable/Disable 4 ‐ Hose/Gun 1 Enable/Disable 5 ‐ Hose/Gun 2 Enable/Disable 6 ‐ Hose/Gun 3 Enable/Disable 7 ‐ Hose/Gun 4 Enable/Disable 8 ‐ Hose/Gun 5 Enable/Disable 9 ‐ Hose/Gun 6 Enable/Disable |
F |
| 3 | 12 and 13 | 32 | Same as parameter 31 (Default=2) | |
| 4 | 7 and 14 | 33 | Same as parameter 31 (Default=4) | |
| Optional Inputs | ||||
| 5 | 11 and 12 | 34 | 0 (Disabled) | E |
| 6 | 13 and 14 | 35 | 0 (Disabled) | E |
| 7 | 15 and 16 | 36 | 0 (Disabled) | E |
| 8 | 17 and 18 | 37 | 0 (Disabled) | E |
| 9 | 19 and 20 | 38 | 0 (Disabled) | E |
| 10 | 9 and 10 | 39 | 0 (Disabled) | E |
| NOTE A: Parameter 30 has 10 control options. parameters 31, 32, and 33 each have only 9 control options. B: Parameters 34 through 39 are reserved for the six inputs created when the optional I/O expansion card is installed. The six optional inputs have the same control options as parameter 31. C: If control option 3 is selected, the pump will not turn on—even if you press the pump key—if voltage is not present on the input’s contacts. D: If control option 10 is selected for input 1, a time must be set in parameter 24. E: Refer to the instruction sheet provided with the optional I/O expansion card for wiring information. F: When the 8-Hose/Gun Expansion option is installed, the option for Hose/Gun 7 or 8 Enable/Disable appears as options 15 and 16 respectively. | ||||
Installing Melter Outputs (contd)
Table 3‐9 Output Data
| Output | Terminals | Operating Parameter | Control Options | Note |
| Standard Outputs | ||||
| 1 | 1 and 2 | 40 | 0 ‐ Output Disabled 1 ‐ Ready (Default) 2 ‐ Ready and the pump is on 3 ‐ Fault 4 ‐ Tank Low Level 5 ‐ Service LED is On 6 ‐ Alert | A A A B A
C |
| 2 | 3 and 4 | 41 | Same as parameter 40 (Default=3) | |
| 3 | 5 and 6 | 42 |
Same as parameter 40 (Default=4) | |
| Optional Outputs | ||||
| 4 | 1 and 2 | 43 | 0 (Disabled) |
D |
| 5 | 3 and 4 | 44 | 0 (Disabled) | |
| 6 | 5 and 6 | 45 | 0 (Disabled) | |
| 7 | 7 and 8 | 46 | 0 (Disabled) | |
| NOTE A: When the control option condition occurs, contacts close. Contacts are normally open when the power is off. B: When the control option condition occurs, contacts open. Contacts are normally open when the power is off. C: Control option 6 provides an output signal when a potential fault is detected. If control options 3 and 6 are both used, then both a fault output and an alert output signal will be present when the fault LED turns on. D: For wiring information, refer to the instruction sheet that is provided with the optional I/O expansion card | ||||
For more manuals by Nordson visit, ManualsLibraryy
Nordson ProBlue P10 Hot Melt Adhesive Dispensing System-FAQs
How do I purge the Nordson glue machine?
To purge the unit filter:
1. Lower the drain chute and place a container under the drain valve.
2. Open the valve until a steady glue flow begins.
3. If the flow slows down, increase the pump air pressure to 10 psi.
4. Continue until no char particles remain.
What is adhesive dispensing equipment?
Adhesive dispensing equipment controls the application of adhesives or silicones. Common types include manual caulk guns, hot melt glue guns, and automated dispensing systems.
How do I clean hot melt adhesive residue?
1. Scrape off excess glue using a putty knife.
2. Spray Infinity Bond EnviroClean on the remaining adhesive.
3. Let it sit for a few minutes, then wipe it away with a clean cloth.
What is adhesive bonding?
Adhesive bonding is a method of joining materials using adhesives. It is commonly used in manufacturing and repair, alongside welding and soldering.
What is a dispensing machine used for?
Dispensing machines automate the controlled release of substances, such as adhesives or medications. In healthcare, Automated Dispensing Cabinets (ADCs) are used to manage drug distribution securely.
What does Nordson Corporation specialize in?
Nordson is a leading manufacturer of precision equipment for industrial, consumer, and medical applications, including adhesive dispensing, coating, and fluid management systems.
What does the F2 error code indicate?
The F2 code is a warning that the temperature sensor detects excessive heat (above 615°F). If this occurs, test the sensor with a multimeter to check resistance.
What is CRC F2 glue?
CRC F2 is a high-performance contact adhesive known for its strong bond, flexibility, and water resistance. It is suitable for bonding a variety of materials.
How long does hot glue take to dry?
Hot glue typically sets in 1 to 2 minutes and fully dries within 5 to 10 minutes, though drying time may vary depending on temperature and material.
