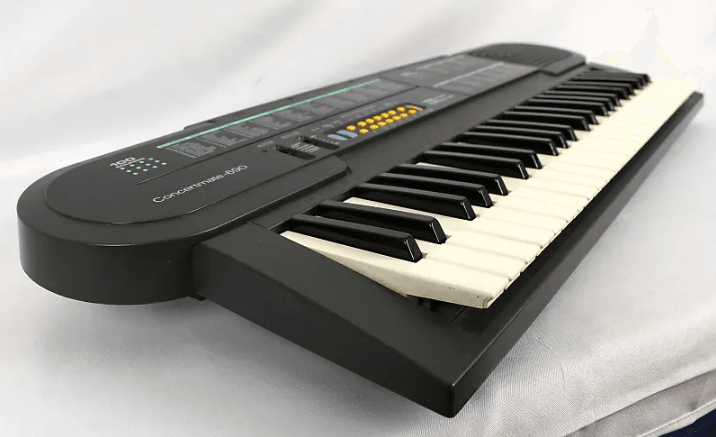

PREPARATION

CONNECTING POWER

For portable use, you can power your Concertmate 690 using internal batteries. Using optional adapters, you can also power it from a standard AC outlet or your vehicle’s cigarette lighter socket.

Notes:

• Connecting an AC or DC adapter automatically disconnects internal batteries.
• Always disconnect an AC or DC adapter when you finish using the Concertmate 690.

Using Batteries

Your Concertmate 690 can use six AA batteries for power. For the best performance, we recommend alkaline batteries, such as RadioShack Cat. No. 23-552.

Cautions:

• Use only fresh batteries of the required size and recommended type.
• Do not mix old and new batteries, different types of batteries (stan- dard, alkaline, or rechargeable), or rechargeable batteries of differ- ent capacities.

1. Set MODE to POWER OFF.

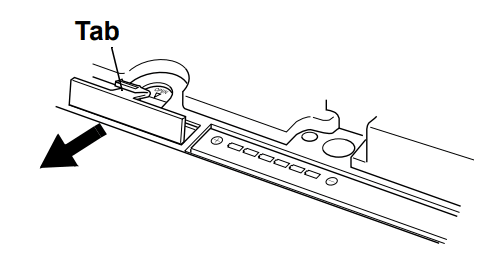

2. Press the tab on the battery compartment cover in the direction of the arrow, then pull up to remove the cover.
3. Put the batteries into the compartment as indicated by the polarity symbols (+ and –) marked beside the compartment.
4. Replace the cover.

Notes:

• If you do not plan to use the Concertmate 690 with batteries for a week or more, remove the batteries.
• If the Concertmate 690 sounds weak or does not work properly, replace all six batteries. Do not mix old and new batteries.

Caution: Dispose of old batteries promptly and properly.

Cautions:

• Always remove old or weak batteries; batteries can leak chemicals that can destroy electronic parts.
• Dispose of old batteries promptly and properly.

Using AC Power

You can power your Concertmate 690 from a standard AC outlet using a 9-volt AC adapter, such as Cat. No. 273- 1656.

Cautions:

• You must use an AC adapter that supplies 9 volts of DC power and delivers at least 500 milliamperes. Its center tip must be set to negative, and its barrel plug must properly fit the Concertmate 690’s DC 9V jack. The recommended adapter meets these specifications. Using an adapter that does not meet these specifications could damage the Concertmate 690 or the adapter.
• Always plug the AC adapter into the Concertmate 690 before you plug it into the AC outlet. Always unplug the AC adapter from the AC outlet before you unplug it from the Concertmate 690.

1. Set MODE to POWER OFF.

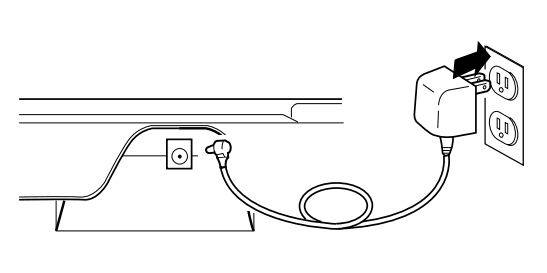

2. Insert the AC adapter’s barrel plug into the DC 9V jack on the rear of the Concertmate 690.
3. Plug the adapter into a standard AC outlet.

Using Vehicle Battery Power

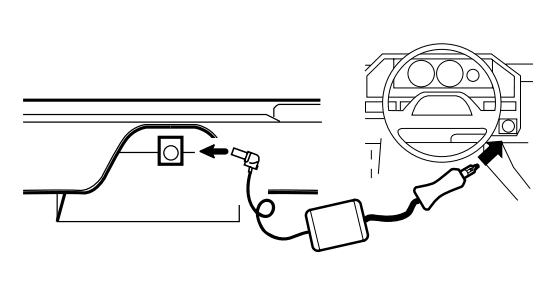

You can power your Concertmate 690 from your vehicle’s cigarette lighter socket using a DC adapter, such as Cat. No. 270-1562.

Cautions:

• You must use a DC adapter that supplies 9 volts of DC power and delivers at least 500 milliamperes. Its center tip must be sent to negative, and its barrel plug must properly fit the Concertmate 690’s DC 9V jack. The recommended adapter meets these specifications. Us- ing an adapter that does not meet these specifications could damage the Concertmate 690 or the adapter.
• Always plug the DC adapter into the Concertmate 690 before you plug it into the cigarette lighter socket. Always unplug the DC adapter from the cigarette lighter socket before you unplug it from the Concertmate 690.

1. Set MODE to POWER OFF.
2. Connect the adapter’s 5.5 mm outer diameter/2.1 mm inner diameter plug to the adapter’s cord, matching TIP to negative (-).
3. Set the adapter’s voltage switch to 9 volts.
4. Insert the adapter’s barrel plug into the Concertmate 690’s DC 9V jack.
5. Plug the other end of the adapter into the vehicle’s cigarette lighter socket.

USING THE SHEET MUSIC STAND

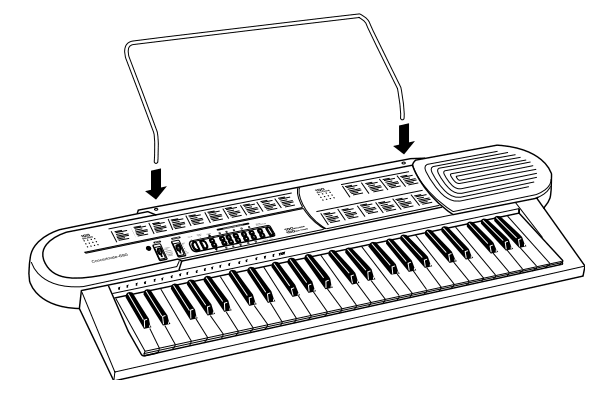

To easily view sheet music while playing your Concertmate 690, insert the supplied sheet music stand into the holes on the top rear panel.

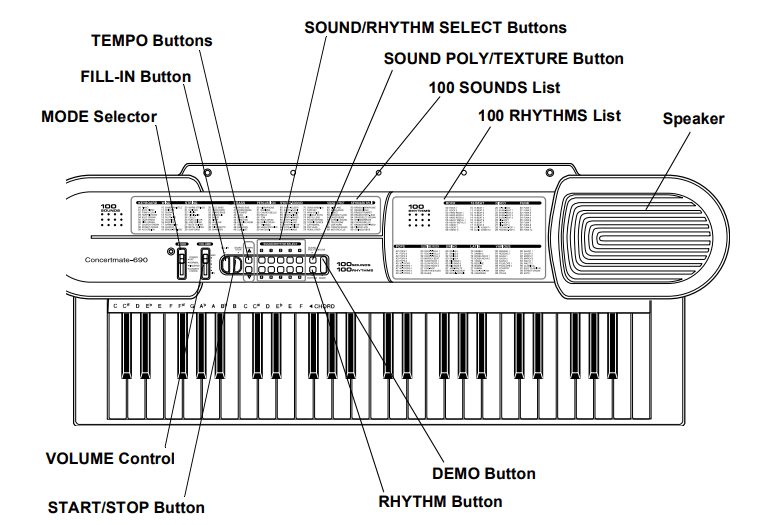

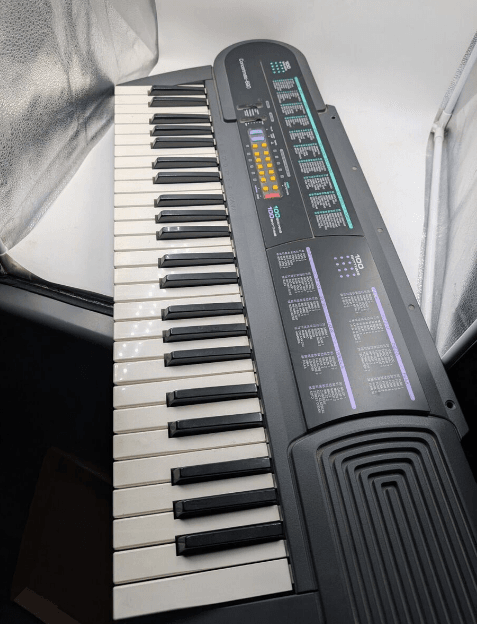

CONTROL LOCATIONS

OPERATION

BASIC OPERATION

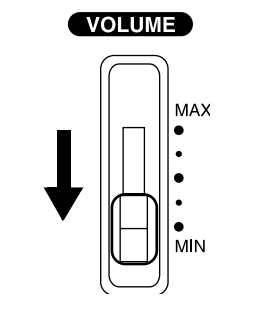

1. Set VOLUME to MIN.

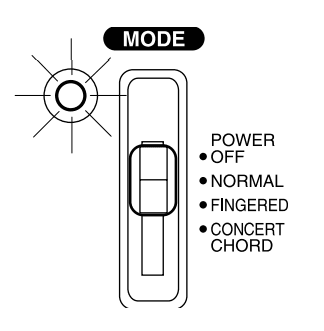

2. Set MODE to NORMAL to turn on the Concertmate 690. The MODE indicator lights.
3. To hear a sample of the Concert-mate 690’s many sounds, play the demonstration tune (see “Playing the Demonstration Tune”). To make your music, simply begin playing the keyboard. The Concertmate 690 automatically selects the sound PIANO (No. 00) each time you turn it on. To select a different sound, see “Using the Preset Sounds” on Page 10.

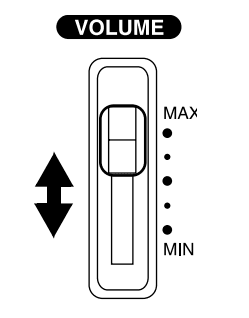

4. Adjust VOLUME to the desired set- ting. Slide it toward MAX to in- crease the volume, or toward MIN to decrease the volume.

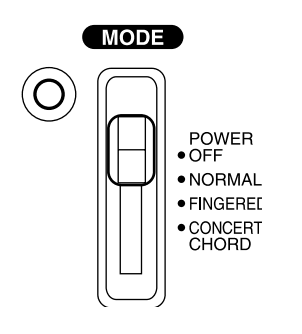

5. To turn off the Concertmate 690, set MODE to POWER OFF. The MODE indicator turns off.

PLAYING THE DEMONSTRATION TUNE

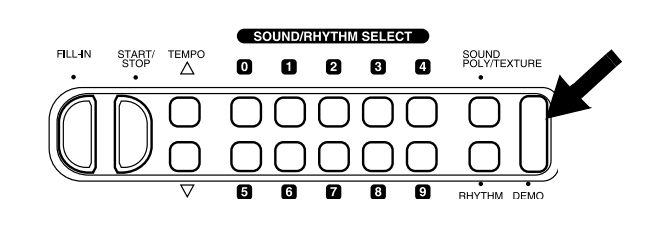

Your Concertmate 690 can play a pre-programmed demonstration tune that showcases its many sounds. To play the demonstration tune, press DEMO and adjust VOLUME to the desired setting. Your Concertmate 690 continues to play the demonstration tune. Press DEMO again to stop the tune.

Note: You cannot play the keyboard while the demonstration tune is playing.

USING THE PRESET SOUNDS

Your Concertmate 690 can sound like 100 different musical instruments or sound effects. The name and two-digit number of each preset sound are listed on the Concertmate 690’s top panel.

Selecting/Playing a Preset Sound

1. Set VOLUME to MIN.
2. Set MODE to NORMAL. Note: The Fingered and Concert Chord modes are described in “Using Auto Accompaniment” on Page 13.

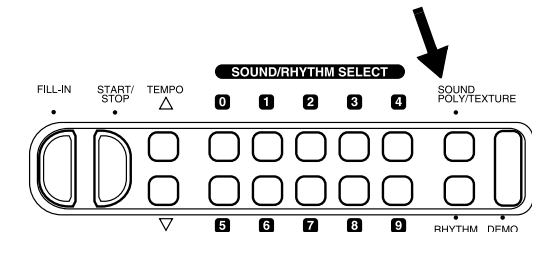

3. Press SOUND POLY/TEXTURE.

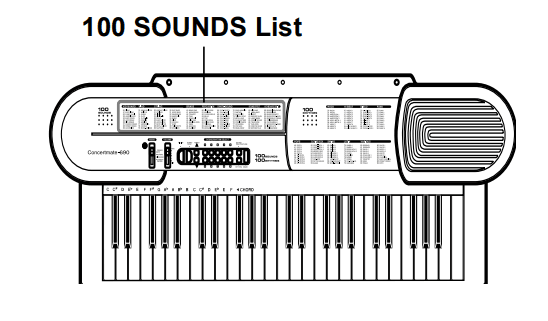

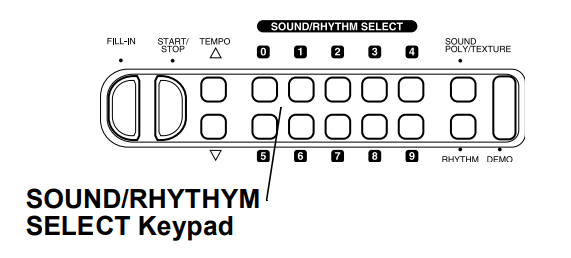

4. Select a sound from the 100 SOUNDS list and enter the two-digit number on the SOUND/ RHYTHM SELECT keypad. For example, to select OBOE (No. 47), press 4, then 7.
5. Play the keyboard to hear the se- lected sound.
6. Adjust the volume to the desired level.

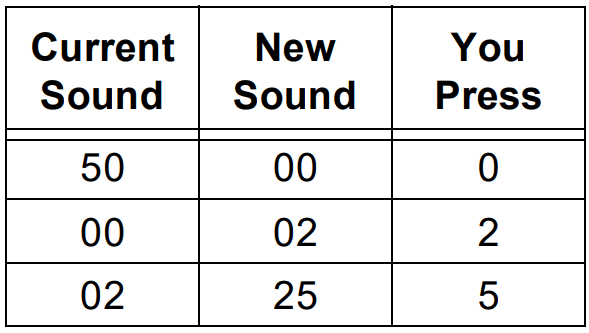

7. To select a different sound, repeat Step 4. Or, if the second digit of the current sound is the same as the first digit of the new sound, simply enter the second digit of the new sound on the SOUND/ RHYTHM SELECT keypad. For example:

Notes:

• Some preset sounds, such as INSECT (No. 82) and MOTORCYCLE (No. 89), do not follow the musical scale when played, but produce varying sounds with each key you press.
• These preset sounds change slightly as you play different oc- taves on the keyboard: SAMBA WHISTLE (No. 10), TOM (No. 54), ROCK DRUM (No. 55), SWING DRUM (No. 56), TRIANGLE (No. 57), MATSURI (No. 59), INSECT (No. 82), EMERGENCY ALARM (No. 83), LASER BEAM (No. 84), COSMIC SOUND (No. 85), TELE- PHONE (No. 86), and CAR HORN (No. 87).

Playing KEYBOARD SPLIT Sounds

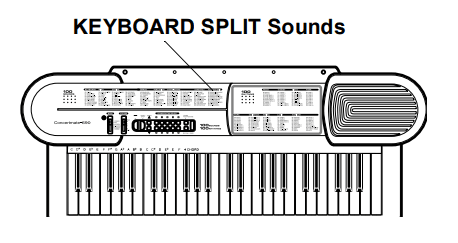

The KEYBOARD SPLIT preset sounds (Nos. 90-99) let you play two instrument sounds independently on opposite halves of the keyboard. The instrument listed first in the sound’s name plays on the left half of the keyboard. The instrument listed last plays on the right half of the keyboard.

For example, BASS/PIANO (No. 91) plays a bass sound on the left half of the keyboard and a piano sound on the right.

To play a KEYBOARD SPLIT sound, follow the steps in “Selecting/Playing a Preset Sound” on Page 10 and select any sound from Nos. 90–99.

Playing Drum/Bass Split Sounds

The preset sounds SLAP BASS (No. 29), ELEC BASS (No. 30), WOOD BASS (No. 31), SNARE BASS (No. 32), and SYNTH-BASS (No. 69) let you play drum sounds on the key- board’s lowest octave and bass sounds on the upper (other) three oc- taves.

To play a drum/bass split sound, follow the steps in “Selecting/Playing a Pre-set Sound” on Page 10 and select any sound from Nos. 29-32 or No. 69.

USING THE PRESET AUTO-RHYTHMS

Your Concertmate 690 has 100 preset auto-rhythms that provide a steady beat for your music. The name and two-digit number of each preset auto-rhythm are listed on the Concertmate 690’s top panel.

Selecting/Playing an Auto-Rhythm

1. Set VOLUME to MIN.
2. Set MODE to NORMAL.
   Note: The Fingered and Concert Chord modes are described in “Using Auto Accompaniment” on Page 13.
3. Press RHYTHM.

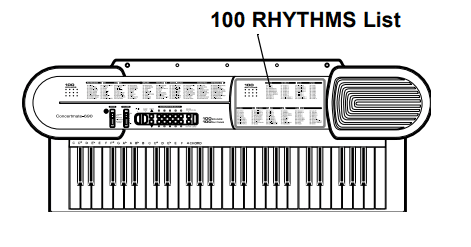

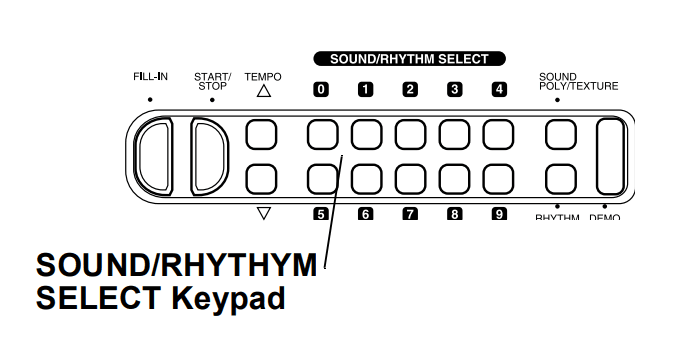

4. Select an auto-rhythm from the 100 RHYTHMS list and enter the two-digit number on the SOUND/ RHYTHM SELECT keypad. For example, to select EURO BEAT (No. 24), press 2, then 4.
5. Press START/STOP. The Concertmate 690 begins playing the selected rhythm.
6. Adjust the volume to the desired level.
7. To speed up the rhythm, press TEMPO △. To slow it down, press TEMPO ▽.
   Note: You can adjust TEMPO△\▽  to play an auto-rhythm from 40 to 256 beats per minute.
8. Play the keyboard to hear the selected sound along with the rhythm.
9. To select a different rhythm, repeat Step 4. Or, if the second digit of the current rhythm is the same as the first digit of the new rhythm, simply enter the second digit of the new rhythm on the SOUNDI RHYTHM SELECT keypad.
10. To stop an auto-rhythm, press START/STOP again.

Using FILL-IN

The Concertmate 690 lets you insert a variation into any of its 100 preset auto-rhythms.

While an auto-rhythm is playing, press FILL-IN. The Concertmate 690 inserts a 1- to 2-measure variation, then automatically resumes the original rhythm pattern at the end of the current measure. To insert another variation, press FILL-IN again.

To insert a variation longer than 1-2 measures, hold down FILL-IN. The Concertmate 690 plays the variation until you release FILL-IN, then automatically resumes the original rhythm pattern at the end of the current measure.

USING AUTO ACCOMPANIMENT

After you select an auto-rhythm, the Concertmate 690 lets you automatical- ly add a harmonic accompaniment.

You can select from two auto accompaniment types- easy random fingering or standard fingering. Both methods are explained in detail in the following sections. But, in brief, to add an auto accompaniment pattern, first set MODE to CONCERT CHORD for easy random fingering or to FINGERED for standard fingering. Then use the “accompaniment keys” (the 18 keys with raised labels above them) to select the chord. Use the rest of the keys to play the melody.

Easy Random Fingering

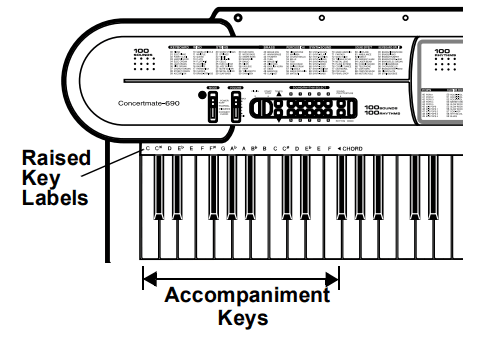

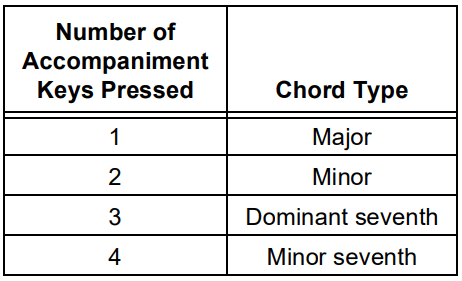

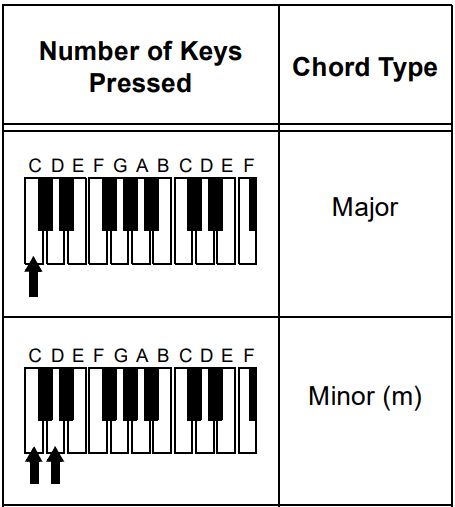

The easy random fingering method lets beginning keyboard players easily select and play a chord. The number of accompaniment keys you press determines the type of chord played. The following chart shows the type of chord that plays when you press one, two, three, or four accompaniment keys at the same time.

The lowest note you play determines the key of the chord. For example, if the lowest note is C, the Concertmate 690 plays a C chord.

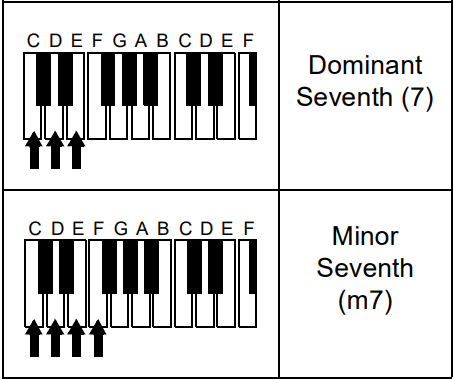

Note: You can press any labeled note(s) to the right of the lowest note in the chord to produce a minor, seventh, or minor seventh chord.

Follow these steps to start easy random fingering auto accompaniment.

1. Set VOLUME to MIN.
2. Set MODE to CONCERT CHORD.
3. Select and enter an auto-rhythm.
4. To start the auto-rhythm and auto accompaniment at the same time, simply press the desired accompaniment key(s). To start the auto-rhythm before you begin the auto accompaniment, press START/STOP. Then, at the desired interval, begin the accompaniment by pressing the accompaniment key(s).
5. Adjust TEMPO △/▽ and VOLUME to the desired levels.
6. To change chords without interrupting the rhythm, simply press the auto accompaniment key(s) required to form the new chord.
7. To stop auto accompaniment and auto-rhythm, press START/STOP.
   Note: After you press the auto accompaniment key(s), the keyboard plays until you press other keys to play a different chord or until you press START/STOP.

ADJUSTING THE POLYPHONY/TEXTURE

The Concertmate 690 lets you adjust the polyphony and texture of its sound.

Note: “Polyphony” refers to the level of harmony and the number of notes played to produce the sound. “Texture” refers to the sound’s quality or depth.

Your Concertmate 690 is automatically set to high-level polyphony/texture every time you turn it on and begin play- ing.

To switch to low-level polyphony/texture at any time during play, simply press SOUND POLY/TEXTURE. To switch back to high-level polyphony/ texture, press it again.

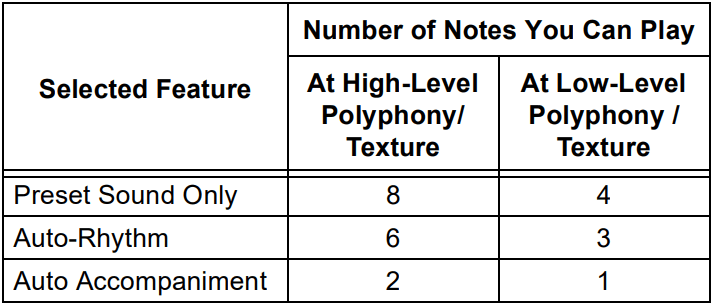

Based on the selected feature and the polyphony/texture setting, you can play as many as eight notes at the same time, or as few as one note.

Note: It might be difficult to tell the difference between the high- and low-level polyphony/ texture settings at low (MIN) volume with certain sound selections. If this occurs, adjust the volume slightly toward MAX and try again.

TROUBLESHOOTING

If your Concertmate 690 is not performing as it should, these suggestions might help. If you still cannot solve the problem, take your Concertmate 690 to your local RadioShack store for assistance.

No sound from the Concertmate 690

Possible Cause:

Power supply problem.

Suggestion:

• Check the power supply.
• Are batteries installed correctly?
• Are batteries fresh?
• Is the adapter connected properly?

No accompaniment when accompaniment keys are pressed

Possible Cause:

MODE is set to FINGERED, and you pressed fewer than three keys for a chord.

Suggestion:

Press at least three accompaniment keys.

Occasional interference

Possible Cause:

Refrigerators, washing machines, and similar electric appliances are causing interference.

Suggestion:

Use an AC outlet on a different electrical circuit, away from the appliance.

CARE AND MAINTENANCE

Your Optimus Concertmate 690 Portable Electronic Keyboard is an example of su- perior design and craftsmanship. The following suggestions will help you care for the Concertmate 690 so you can enjoy it for years.

•  Keep the Concertmate 690 dry. If it gets wet, wipe it dry immediately. Liquids can contain minerals that corrode electronic circuits.
• Use and store the Concertmate 690 only in normal temperature environments. Temperature extremes can shorten the life of electronic devices and distort or melt plastic parts.
•  Handle the Concertmate 690 gently and carefully. Dropping it can damage circuit boards and cases and can cause the Concertmate 690 to work improperly.
•  Keep the Concertmate 690 away from dust and dirt, which can cause premature wear of parts.
•  Wipe the Concertmate 690 with a damp cloth occasionally to keep it looking new. Do not use harsh chemicals, cleaning solvents, or strong detergents to clean your Concertmate 690.

Modifying or tampering with the Concertmate 690’s internal components can cause a malfunction, invalidate its warranty, and void your FCC authorization to operate it. If your Concertmate 690 is not performing as it should, take it to your local RadioShack store for assistance.

SPECIFICATIONS

• Number of Keys ……………………………………………………………………………………… 49
• Polyphony ………………………………………………………………………. 8-Note (Maximum)
• Preset Sounds ……………………………………………………………………………………… 100
• Auto-Rhythms ………………………………………………………………………………………. 100
• Built-In Speaker …………………………………. 4 Inch (10 cm) Diameter (Output = 2W)
• Demonstration Tune ………………………………………………………. 1 (Classical Medley)
• Auto Accompaniment ………………………………………………. Concert Chord, Fingered
• Power Source ………………………………………………… 3-Way AC/DC Power Sources;
• AC: 120V, 60 Hz, With Optional AC Adapter (Cat. No. 273-1656)
• DC: 6 AA Alkaline Batteries
• Battery Life: About 6 Hours) (Cat. No. 23-552)
• Vehicle Battery: With Optional DC Adapter (Cat. No. 270-1562)
• Power Consumption …………………………………………………………………………… 6.0 W
• Dimensions (HWD) ……………………………………………… 311/16 ´ 349 /16 ´ 127/8 Inches (9.4 ´ 87.7 ´ 32.7 cm)
• Weight (Without Batteries) …………………………………………………………… 6 lbs 11 oz (3.05 kg)
• Included Accessory …………………………………………………………. Sheet Music Stand

Specifications are typical; individual units might vary. Specifications are subject to change and improvement without notice.
