Pawport Outdoor Pet Door
WARNING
Important Safety Information – Please Read First
Before you begin installation, please read all instructions, safety information, and warnings provided in this manual and in the included safety documentation. The Pawport Outdoor Pet Door contains electronic, mechanical, and structural components. This product is intended only for use with the Pawport Smart Pet Door. Do not install as a standalone entry. Improper installation may result in injury to persons or pets, water intrusion, structural damage, or voided warranty.
Always install the Outdoor Pet Door according to the instructions provided. Use only official Pawport accessories and components. Do not attempt to modify or disassemble the product. Keep all parts and tools out of reach of children and pets during installation. If you are unsure about any part of the installation, consult our support team or visit www.pawport.com/support before proceeding.

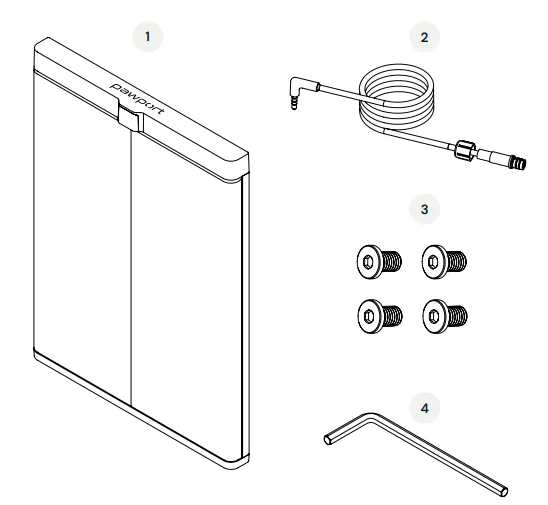

What’s included
Before you start installing your Pawport Outdoor Pet Door, check that you have everything you need.
- Outdoor Pet Door
- Pairing wire
- M5 ultra-low-profile screws ×4
- 3 mm Allen wrench
- Magnetic finish trim ×2
- Adhesive strips ×6
STOP!
The Pawport Outdoor Pet Door functions exclusively with the Pawport Smart Pet Door and cannot operate independently. It must be installed with the Pawport Tunnel & Frame System and is not compatible with retrofit installations.
NOTE: Before you install the Pawport Outdoor Pet Door, ensure that you have already installed the Pawport Tunnel & Frame System, the pairing wire, and the Pawport Smart Pet Door.
STOP!
If you have not installed the pairing wire, do so now before continuing. Scan the QR code to view the instructional video and read the instructions.
Hate to read?
We feel you! Scan below to view the instructional video and follow along.
Step 1

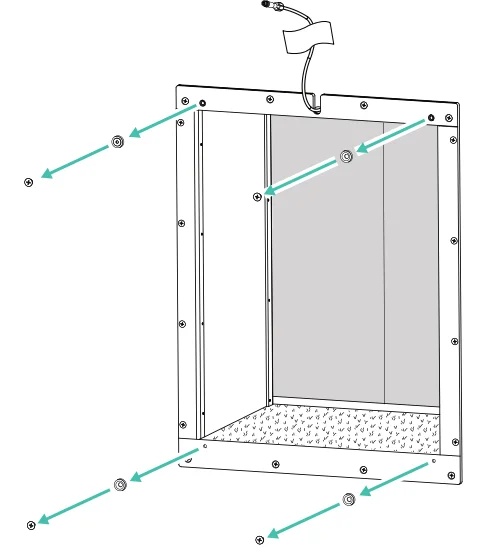

Using a Phillips head screwdriver, remove the four magnets and screws from the exterior frame.
Step 2

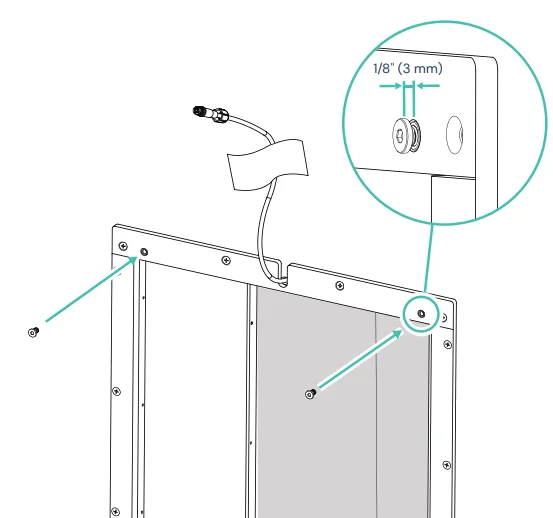

Using the included Allen wrench (item 4), partially install two of the ultra-low-profile screws (item 3) into the top of the exterior frame as shown. Do not tighten all the way. Leave about 1/8″ (3 mm) of thread exposed.
Step 3

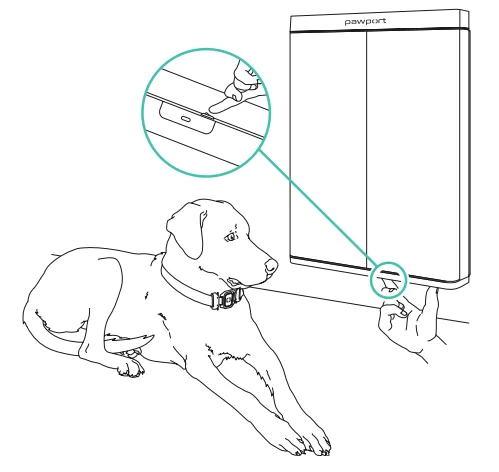

Ensure that the doors of the Smart Pet Door on the interior of your home are closed. Then, turn off the Smart Pet Door by flipping the master switch underneath the unit to “off.” Do not use the on/off button on the top control panel.
Step 4

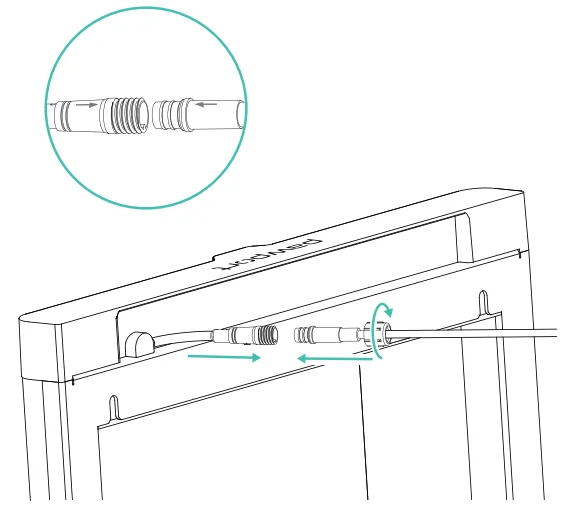

Locate the plug on the top back of the Outdoor Pet Door (item 1) and connect it to the pairing wire (item 2) that is located above the exterior frame. IMPORTANT: Align the arrows on both connectors and plug them together. Screw the lock ring until snug, then tuck the excess cable into the wall.
Step 5

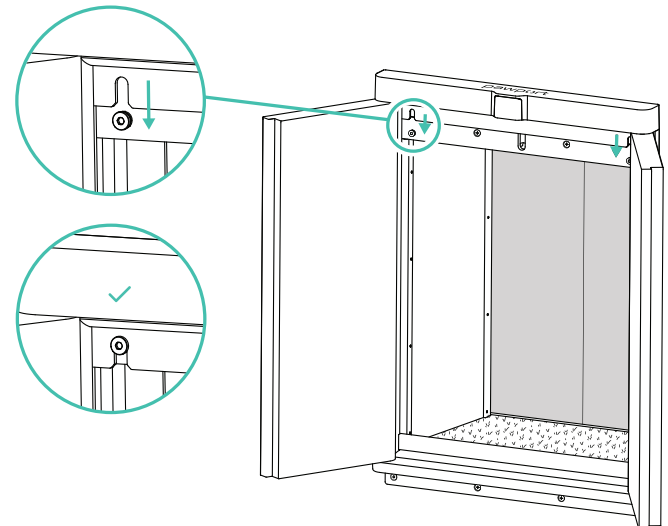

Gently push open the doors of the Outdoor Pet Door from the back. Facing the door, locate the slots in the top of the door frame, just underneath the top cap.
Holding the Outdoor Pet Door with one hand on each side, lift and hang the unit by positioning the slots in the frame onto the two protruding screws from step 2. Slowly lower the door so both screws are fully inserted into the slots and support the unit.
Step 6

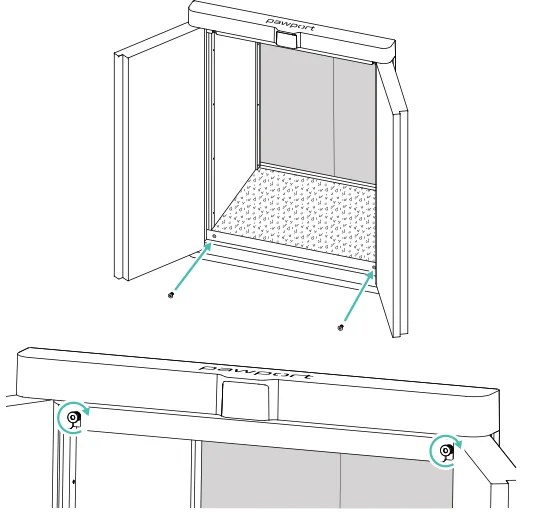

Using the included Allen wrench (item 4), install the remaining two ultra-low-profile screws (item 3) into the bottom of the Outdoor Pet Door frame and tighten as shown. Tighten the two partially-installed upper screws.
Step 7

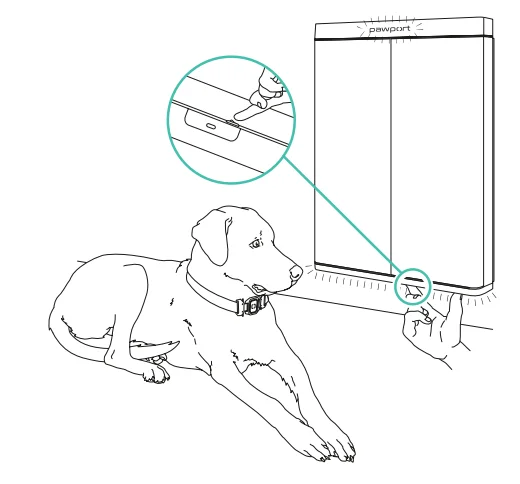

Close the doors by gently pressing them shut. Turn the Smart Pet Door back on by flipping the master switch underneath the unit to “on.” Your Pawport Outdoor Pet Door will now work in sync with your Smart Pet Door. No additional configuration or setup is required.
Step 8

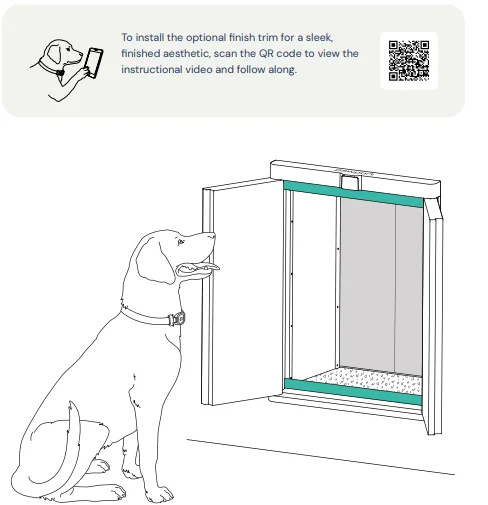

To install the optional finish trim for a sleek, finished aesthetic, scan the QR code to view the instructional video and follow along.
Job done!
Your Pawport Outdoor Pet Door installation is now complete. For additional manuals and video tutorials, visit: www.pawport.com/support.
For More Manuals By Pawport, Visit ManualsLibraryy.
Pawport Outdoor Pet Door-FAQs
What is the Pawport Outdoor Pet Door, and how does it work?
The Pawport Outdoor Pet Door is a weatherproof add-on designed to work with the Pawport Smart Pet Door. Together, they form a dual-door system that automatically opens when your pet approaches, offering enhanced protection against intruders, pests, and energy loss.
Do I need the Pawport Smart Pet Door to use the Outdoor Pet Door?
Yes, the Outdoor Pet Door cannot function independently. It is specifically built to operate alongside the Pawport Smart Pet Door and requires a compatible tunnel and frame system or glass mount for proper installation and functionality.
Is the Pawport Outdoor Pet Door weatherproof?
The Outdoor Pet Door is designed with durable, weather-resistant materials like powder-coated finishes, steel, and aluminum. It is built to withstand rain, snow, and varying climates, making it ideal for installations where the pet door is exposed to outdoor elements.
How does the dual-door system improve security?
The dual-door setup adds an extra layer of protection by creating a barrier between indoor and outdoor environments. It helps prevent unwanted animals or intruders from entering while also reducing drafts and thermal leaks, improving overall home efficiency and safety.
Can I install the Pawport Outdoor Pet Door myself?
Yes, installation is designed to be simple once the tunnel and frame system are already in place. The Outdoor Pet Door mounts securely onto the frame in seconds, making it a convenient upgrade for existing Pawport Smart Pet Door users.
How is the Pawport Outdoor Pet Door powered?
The Outdoor Pet Door does not require a separate power source. It connects directly to the Smart Pet Door and receives power through a concealed cable, ensuring seamless integration without additional wiring complexity.
Can I control the Outdoor Pet Door using a mobile app?
Yes, the Outdoor Pet Door works in sync with the Smart Pet Door and can be controlled via the companion app. Users can open, close, lock, or adjust settings remotely, providing flexible control over their pet’s access.
How close does my pet need to be for the door to open?
The detection range can be customized through the app, typically between one and six feet. When your pet enters the selected range, sensors recognize their presence and trigger the doors to open automatically for convenient entry and exit.
What size Pawport Outdoor Pet Door should I choose?
You should select the same size as your Pawport Smart Pet Door to ensure compatibility. Sizes are based on your pet’s height and weight, so choosing the correct dimensions ensures comfortable and safe movement for your pet.
Is the Pawport Outdoor Pet Door necessary for all installations?
It is not always required, especially if your setup is already sheltered from weather exposure. However, for installations exposed to rain, snow, or extreme conditions, adding the Outdoor Pet Door is recommended to maintain durability and insulation.
