Petwant HIP-C101 Smart Cat Litter Box
Precautions
- This product should be placed indoors or similar indoor environment to use.
- Should be placed on a level, hard ground or wooden floor.
- When transporting the product without a package, please do not drag it without leaving the ground and handle it carefully; otherwise, the weight sensor will be damaged.
- The cat’s weight should be 1.0kg -10kg.
- There is a magnet installed on the front of this product. Patients with pacemakers or related materials should consult their physicians before using this product.
Packing List
- Host ×1
- Power supply adapter ×1
- Special garbage bag (gift) ×1
- Manual ×1
Instructions

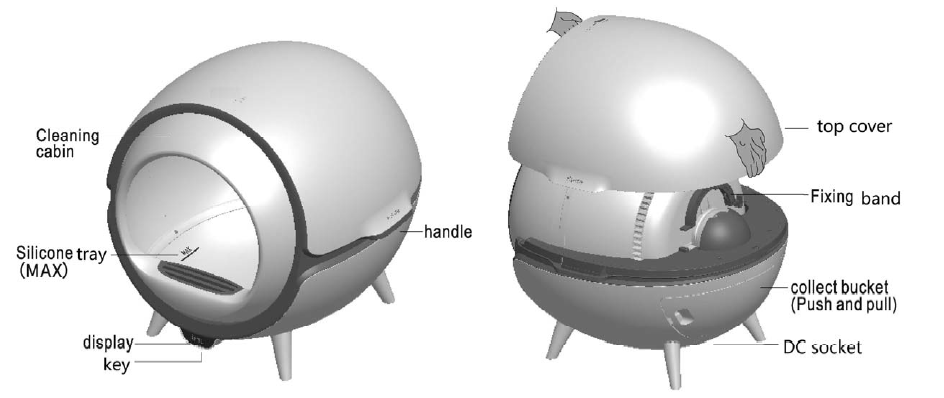

Product sketch
Preparation before turning on
Before connecting the power supply adapter, make the following preparations (otherwise, the weight sensor of the device cannot initialize the data).
- First, load the cat litter onto the silicone tray (refer to the MAX line).
- Take out the collection bucket, put the garbage bag in it, and put the bucket back in its place.
Turn on the device

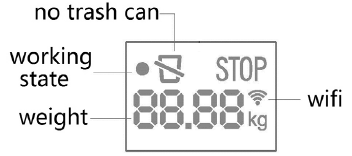

Connect the adaptor to the device (IN DC 12V), and the device automatically enters the standby state. Display interface and function operation.
- Working status: the green indicator light is flashing, indicating that the cleaning cabin is about to rotate; the green indicator light is on steady when the cleaning cabin is rotating.
- Weight display: when the cat is in use, it is displayed as the cat’s weight.
- No bucket reminder: it will be displayed after the collection bucket is taken out. The voice will be broadcast, and the device will stop working.
- STOP: The cleaning cabin will stop when it is rotating, and it will be displayed when the device is in the induction protection and sterilization mode.
- Bucket full reminder: display when the bucket is full, and the device will stop working.

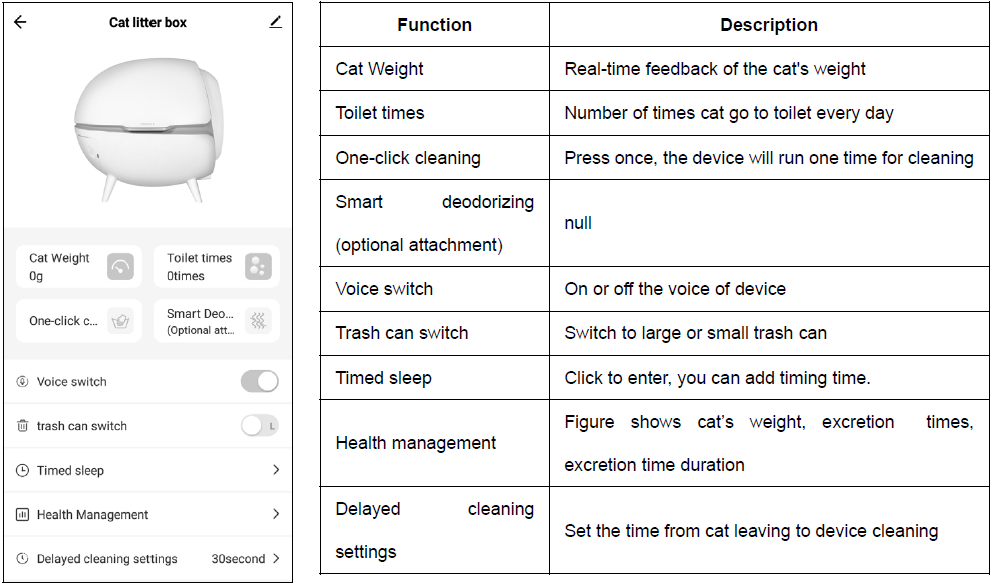

Use of APP
- Use your cell phone to search “tuyasmart” in the app store or scan the QR code on the product. Then download and set up.
- The device is placed within the effective distance of WIFI, and the device is in standby.
- Switch on the cell phone’s Wifi, location, Bluetooth, then open the APP, click “Add Device” on the homepage, and then click “Auto Scan”.
- Immediately press the button under the display of the device for 5 seconds, until hearing the “ticking” sound, and the WIFI icon flashes.
- Click “Access location” in the “Auto Scan” of the APP, and then click “Start Search”.
- When searching for the “automatic cat litter box” and then clicking “Next”. Enter the WIFI password and click confirm. Click “Done” after connecting and adding successfully.
Cleaning and Maintenance
Clean the top cover and surface
Please unplug the power supply adapter, and use a clean, soft, damp cloth with some detergent to wipe.
Note: There is a circuit board inside the product, and liquids are not allowed to enter.
Clean the cleaning cabin and collection bucket
The cleaning cabin and the collection bucket are detachable structures, which can be disassembled and washed separately, but they must be dried before being put back together.
Disassembly steps:
- Unplug the power supply adapter.
- Take out the top cover (refer to the product sketch).
- Remove the fixing band (refer to the product sketch).
- Take out the cleaning cabin.
Common Failures and Troubleshooting Methods
If it still fails after doing the above, please call the customer service for consultation.
Note: The company reserves the right to change the technology and appearance of the product. Specifications and information are subject to change without notice.
For more Manuals by Petwant, visit ManualsLibraryy
Petwant HIP-C101 Smart Cat Litter Box-FAQs
How does a smart cat litter box work?
The Petwant HIP-C101 uses built-in sensors to detect when your cat has finished. It then automatically sifts or rakes the litter, moving waste into a separate sealed compartment.
How do I clean the Petwant HIP-C101?
Press the cleaning button, remove the waste drawer, and wash it with warm, soapy water. Wipe the interior and exterior surfaces with a mild detergent and soft cloth, dry thoroughly, and reassemble.
What type of litter should I use?
Clumping cat litter is the most effective option. It forms tight clumps that can be easily separated from clean litter by the self-cleaning system.
How often should I change the litter?
Scoop or allow the unit to self-clean daily, but replace all litter every 2–4 weeks depending on the number of cats and their bathroom habits.
Is the Petwant HIP-C101 safe for cats?
Yes, it is equipped with safety sensors that pause cleaning if your cat enters the box. The litter used is also safe as long as you choose non-toxic, clumping litter.
Does the litter box connect to Wi-Fi?
Yes, the HIP-C101 can connect to your home Wi-Fi, allowing you to monitor your cat’s usage and receive maintenance alerts via the companion app.
Can I use pellets or non-clumping litter?
No, non-clumping, pellet, or absorbent types are not recommended as they may interfere with the cleaning system. Stick to clumping clay-based litter.
What are the disadvantages of an automatic litter box?
Some cats may be startled by the cleaning noise, and moving parts require occasional maintenance. Also, only certain types of litter are compatible.
How often do I need to empty the waste drawer?
For one cat, emptying is usually needed every 1–2 weeks. For multiple cats, you may need to empty the drawer weekly.
How do I remove odors from the litter box?
Use baking soda to help neutralize odors. You can also clean the waste drawer and surfaces regularly with mild soap and water.
