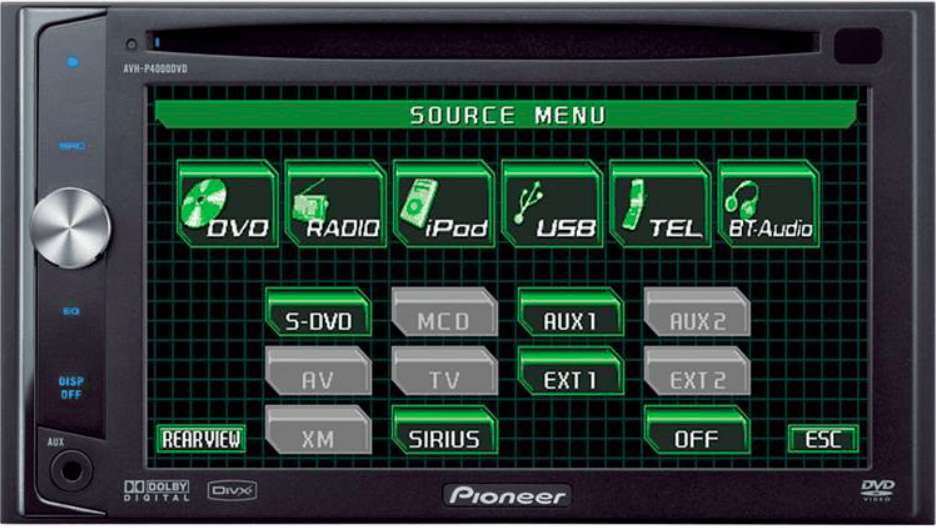

Pioneer AVH-P4000 Car DVD Player Installation

Connecting the units

CAUTION

• PIONEER does not recommend that you install or service your display yourself. Installing or servicing the product may expose you to the risk of electric shock or other hazards. Refer all installation and servicing of your display to authorized Pioneer service personnel.
• Secure all wiring with cable clamps or electrical tape. Do not allow any bare wiring to remain exposed.
• Do not drill a hole into the engine compartment to connect the yellow lead of the unit to the vehicle battery. Engine vibration may eventually cause the insulation to fail at the point where the wire passes from the passenger compartment into the engine compartment. Take extra care in securing the wire at this point.
• It is extremely dangerous to allow the display lead to become wound around the steering column or gearshift. Be sure to install the display in such a way that it will not obstruct driving.
• Make sure that wires will not interfere with moving parts of the vehicle, such as the gearshift, parking brake, or seat sliding mechanism.
• Do not shorten any leads. If you do, the protection circuit may fail to work properly.

Note

• This unit cannot be installed in a vehicle without an ACC (accessory) position on the ignition switch.
• Using this unit in other than the following conditions could result in fire or malfunction.
  • Vehicles with a 12-volt battery and negative grounding.
  • Speakers with 50 W (output value) and 4 ohms to 8 ohms (impedance value).
• To prevent short-circuit, overheating, or malfunction, be sure to follow the directions below.
  • Disconnect the negative terminal of the battery before installation.
  • Secure the wiring with cable clamps or adhesive tape. To protect the wiring, wrap adhesive tape around them where they lie against metal parts.
  • Place all cables away from moving parts, such as gear shift and seat rails.
  • Place all cables away from hot places, such as near the heater outlet.
  • Do not pass the yellow cable through a hole into the engine compartment to connect to a battery.
  • Cover any disconnected cable connectors with insulating tape.
  • Do not shorten any cables.
  • Never cut the insulation of the power cable of this unit in order to share the power to other equipment. The current capacity of the cable is limited.
  • Use a fuse of the rating prescribed.
  • Never wire the speaker negative cable directly to the ground.
  • Never band together multiple speaker’s negative cables.

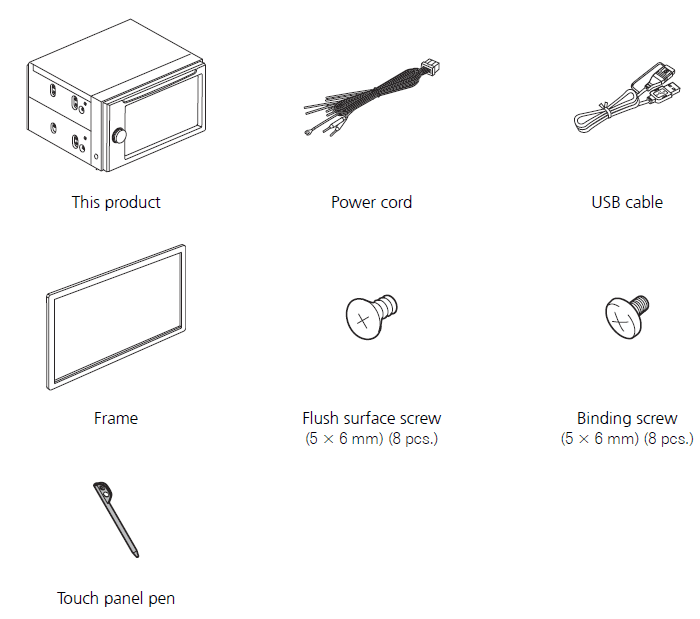

Parts supplied

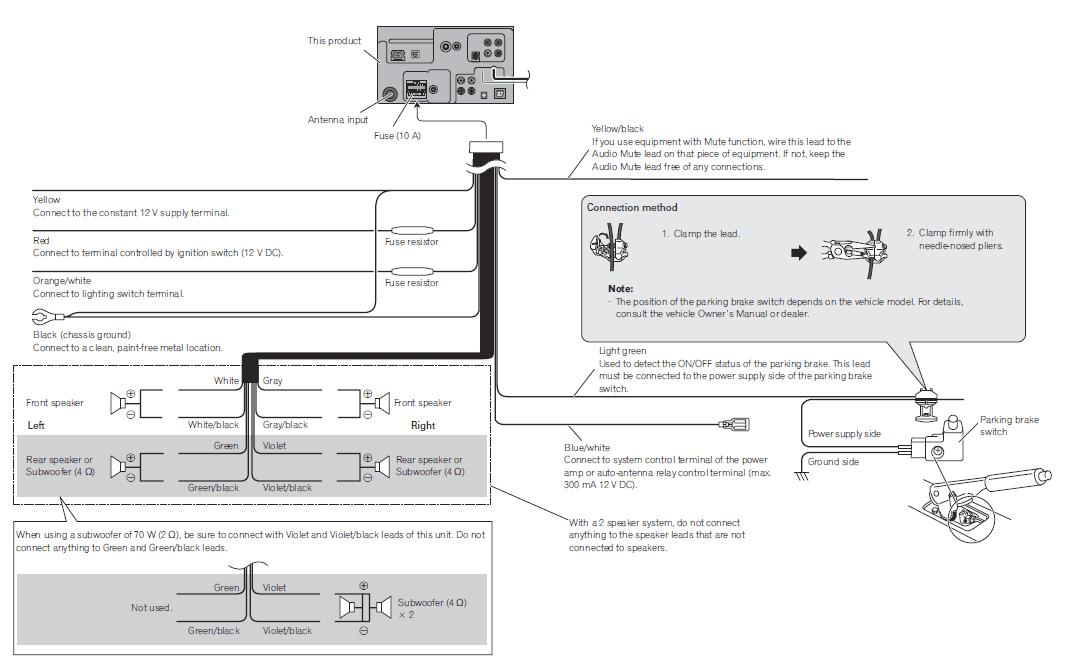

Connecting the power cord

• When you connect the separately sold multi-channel processor (e.g., DEQ-P8000) to this unit, do not connect anything to the speaker leads and system remote control (blue/white).

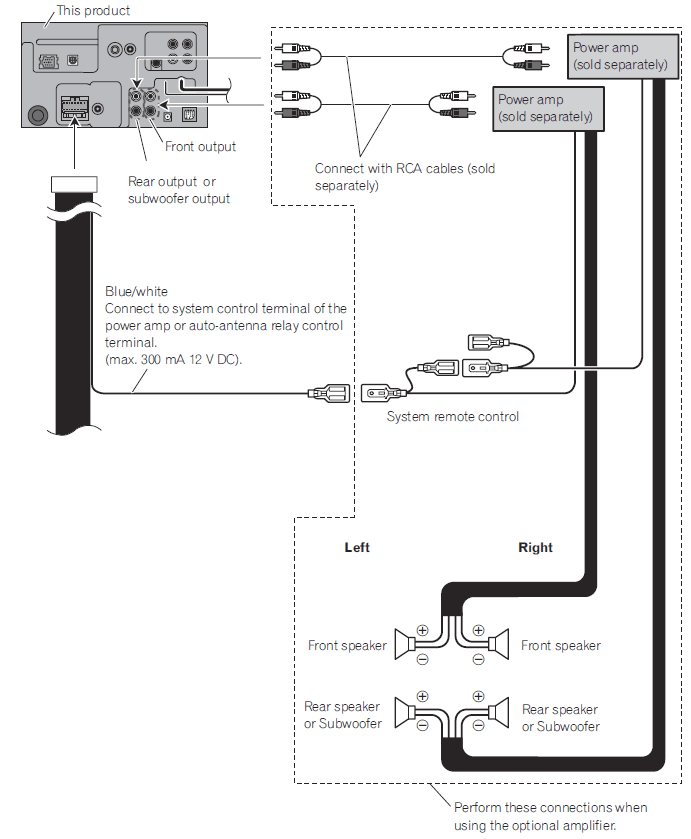

• When connecting to a separately sold power amp
• When you connect the separately sold multi-channel processor (e.g., DEQ-P8000) to this unit, do not connect anything to the speaker leads and system remote control (blue/white).
• Note:
  • Change the initial setting of this unit (refer to the Operation Manual). The subwoofer output of this unit is monaural

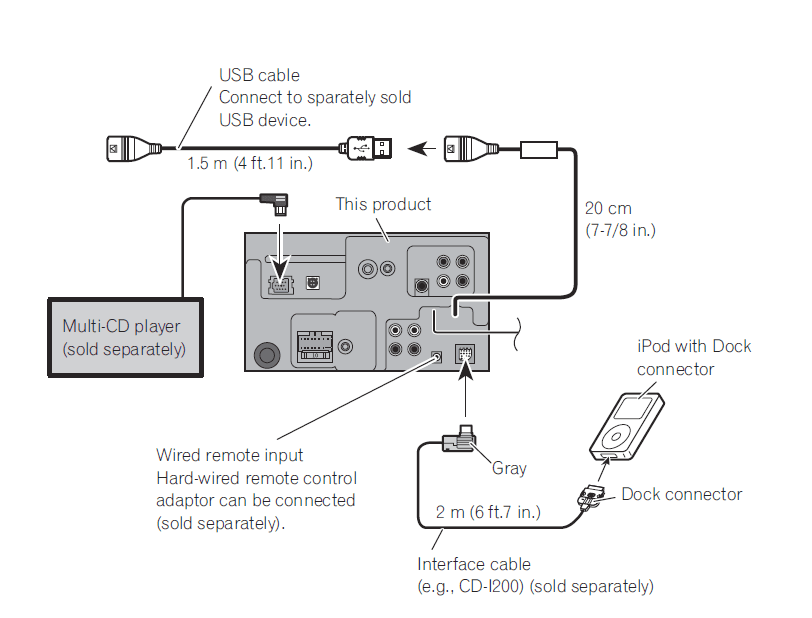

Connecting the system

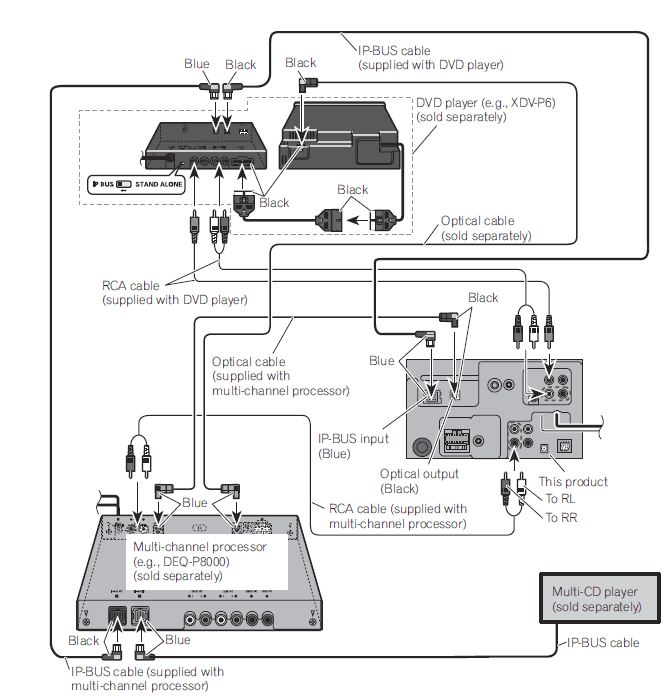

When connecting with a multi-channel processor

• When you connect a separately sold DVD player to the separately sold multi-channel processor, the optical cable from the DVD player must be connected to the optical cable 2 input (OPT. IN2) of the multi-channel processor.
• You can use only one video component with this unit.

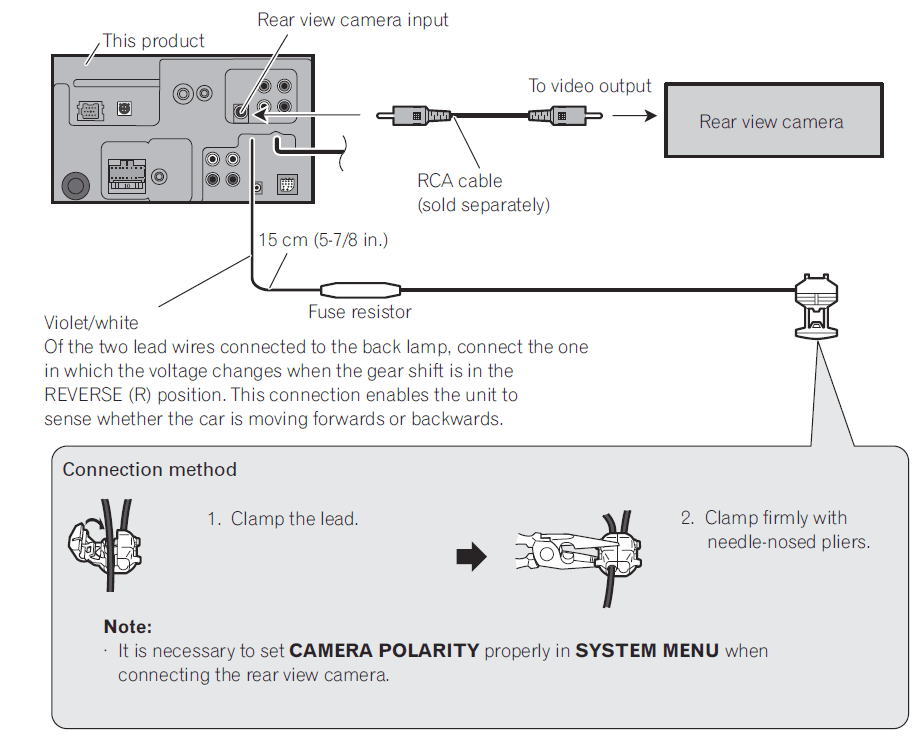

When connecting with a rearview camera

• When this product is used with a rearview camera, it is possible to automatically switch from the video to the rear view image when the gear shift is moved to REVERSE (R).
• CAUTION
  • The screen image may appear reversed.
  • The rearview camera function is to be used as an aid for backing into a tight parking spot. Do not use this function for entertainment purposes.
  • Objects in the rearview may appear closer or more distant than they actually are.

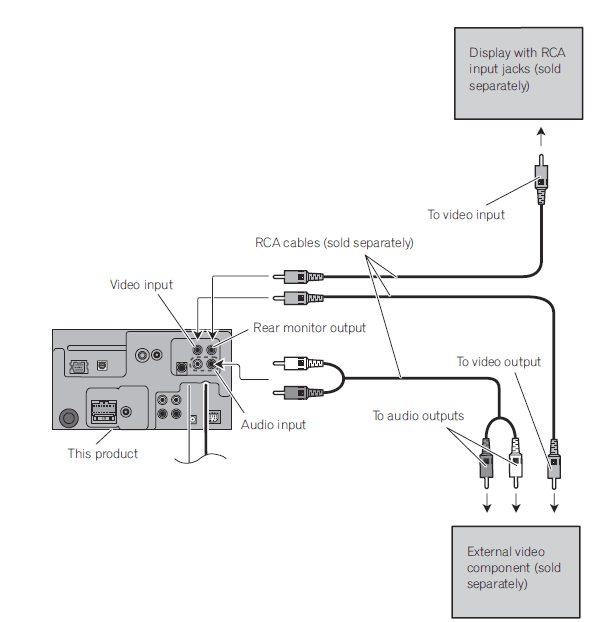

When connecting the external video component and the display

• It is necessary to set AV INPUT to VIDEO in SYSTEM MENU when connecting the external video component.
• It is necessary to set AV INPUT to S-DVD in SYSTEM MENU when connecting a multi-DVD player.

When using a display connected to the rear video output

• This product’s rear video output is for connection of a display to enable passengers in the rear seats to watch the DVD or Video CD.

Installation

Note

• Check all connections and systems before final installation.
• Do not use unauthorized parts. The use of unauthorized parts may cause malfunctions.
• Consult with your dealer if installation requires the drilling of holes or other modifications of the vehicle.
• Do not install this unit where:
  • it may interfere with the operation of the vehicle.
  • it may cause injury to a passenger as a result of a sudden stop.
• Do not install the display where it may
  • (i) obstruct the driver’s vision
  • (ii) impair the performance of any of the vehicle’s operating systems or safety features, including airbags, and hazard lamp buttons
  • (iii) impair the driver’s ability to safely operate the vehicle.
• The semiconductor laser will be damaged if it overheats. Install this unit away from hot places such as near the heater outlet.

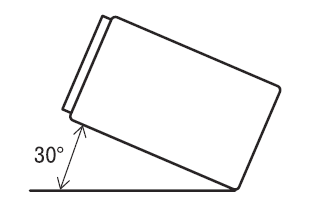

• Optimum performance is obtained when the unit is installed at an angle of less than 30°.
• To some types of vehicles, this unit cannot be properly installed. In such case, use the optional installation kit (ADT-VA133)

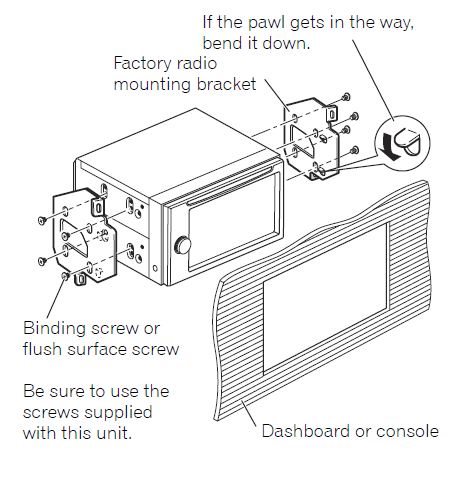

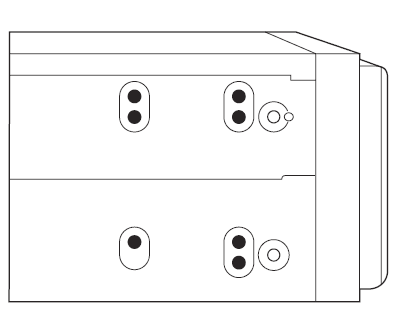

Installation using the screw holes on the side of the unit

Fastening the unit to the factory radio-mounting bracket.

Position the unit so that its screw holes are aligned with the screw holes of the bracket, and tighten the screws at 3 or 4 locations on each side.

Note

• In some types of vehicles, discrepancies may occur between the unit and the dashboard. If this happens, use the supplied frame to fill the gap.
