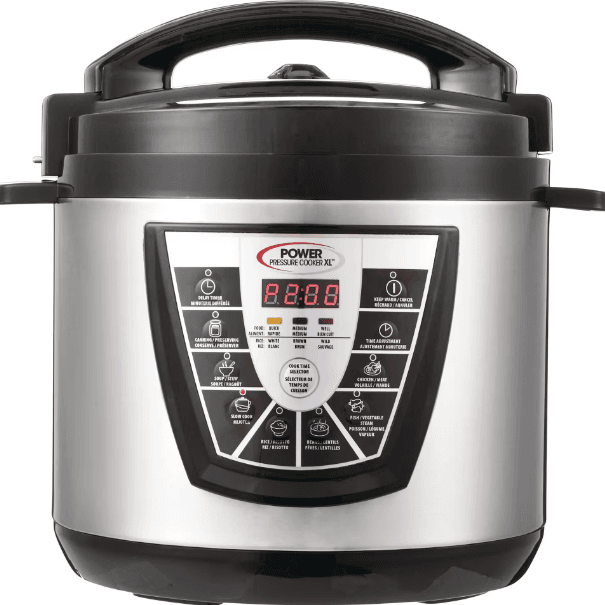

Power Pressure Cooker XL PPC772 8 Qt Owners Manual

Power Pressure Cooker XL PPC772 8 Qt Owners

Special Features

Digital Display

The Digital Display on your Power Cooker offers a wide range of choices including Sauté, Low Temp Cooking, Stewing, and Steaming.

Warm Mode

Cooking Time may be adjusted to suit any recipe or personal preference. After the cooking cycle, the unit will automatically shift to the KEEP WARM mode. The KEEP WARM mode holds and keeps cooked food warm for up to 24 hours. Foods kept at KEEP WARM mode for periods beyond 4 hours may lose their good flavor and texture.

Sterile Environment

Digital Pressure Cooking utilizes temperatures up to 248° F (120° C) creating a more sterile and healthier environment when compared to traditional cooking methods.

Steam Mode

The STEAM mode heats the cooking liquid in the INNER POT to a boil in a matter of minutes, for steaming and cooking an endless variety of foods.

Pressure Release Valve

The Pressure Release Valve allows you to lower pressure quickly and completely. To do so, carefully rotate the Pressure Valve to the vent position using tongs or another kitchen tool. NEVER USE BARE HANDS.

One-Touch Technology

One-touch technology means all you have to do is press one of the pre-set buttons. Your family’s favorite homemade meals are cooked to perfection quickly and easily. All in one pot!

Unit Specifications

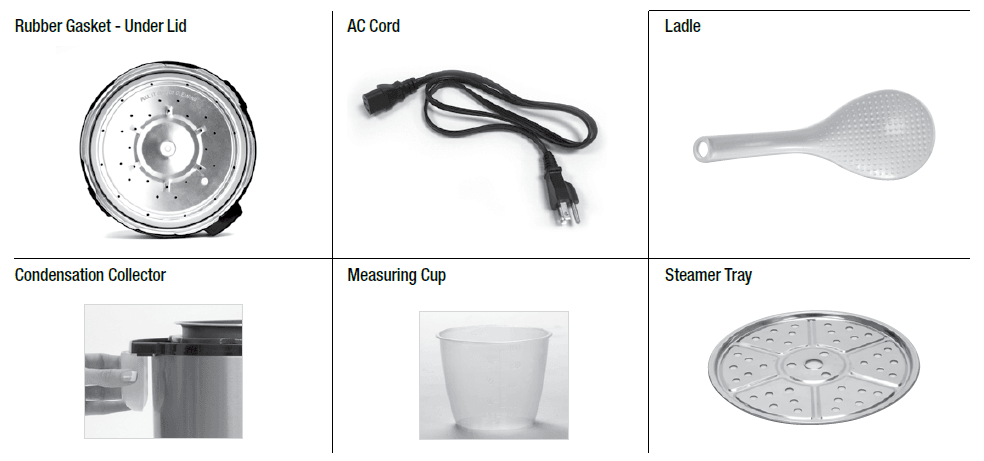

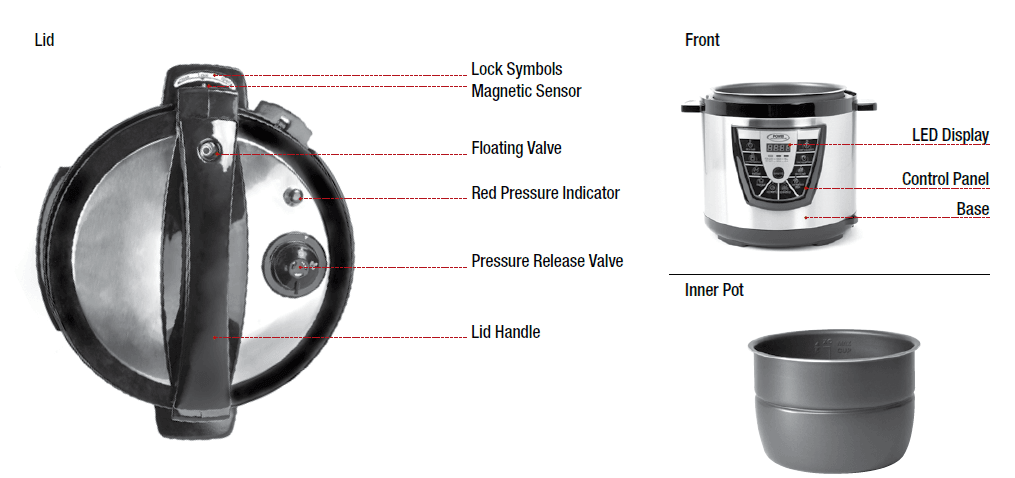

Parts & Accessories

Before the First Use

1. Lid (underside) Rubber Gasket
   Before using the Power Pressure Cooker XL for the first time, wash the Inner Pot, the Lid, and the Rubber Gasket with warm soapy water. Rinse with clean water and dry thoroughly. For proper cleaning, the Rubber Gasket should be removed. Using the Pull Tab located beneath the Lid, remove the Pot Lid Liner that holds the Gasket. After cleaning, re-attach the Gasket to the Lid Liner and snap it back in place. NOTE: Properly place the Rubber Gasket on the lid; otherwise unit may not pressurize.

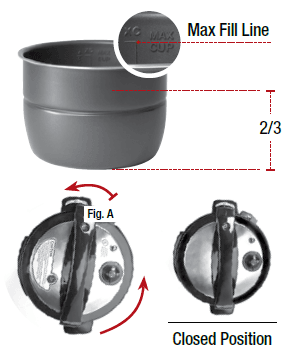

2. Fill with Water – Place the Lid on the Cooker
   NEVER load the Inner Pot above the MAX line. Rotate the Inner Pot to make certain that it is seated properly. Place Lid on the Cooker with the Handle and Recessed Valve (Fig. A) pointed to the “10:00” position. Rotate Lid counter-clockwise until you feel a click. HOT LIDWARNING: Use a black composite handle only when opening the lid. The stainless steel parts become very hot and could burn your hands. To ensure the correct fitting of the Rubber Gasket, fill the Inner Pot with water about 2/3 full. Place the Inner Pot into the unit. Place the Lid on the cooker, then rotate the Pressure Valve to the Lock position and run on CANNING mode for 10 minutes.
   IMPORTANT LID SAFETY PRECAUTIONS: The unit has a Magnetic Safety Sensor to ensure the lid is properly closed and the unit can pressurize. If the lid is not on correctly, a beeping noise will occur and the word “Lid” will appear on the display indicating the lid is not fully closed and the unit cannot pressurize.
3. Pressure Valve
   When the cycle is complete, using tongs or another kitchen tool, carefully rotate the Pressure Valve to the Open position allowing all pressure to escape. The Floating Valve and Red Pressure Indicator will drop. Let the appliance cool to room temperature. Pour out the water. Rinse and towel dry the Inner Pot. The Power Pressure Cooker XL is now ready for use.
   WARNING: To avoid serious injury, never use your hand to set the Pressure Valve in the Open or Close Positions after any cooking process. Use tongs or some other kitchen tool.

Red Pressure Indicator
The Red Pressure Indicator on the lid indicates that the unit is pressurized. DO NOT touch or press the indicator, doing so will release hot steam which reduces the unit’s pressure and can cause injury. Always use the manual pressure release valve to release pressure.

General Operating Instructions

Program Buttons Default Time Quick-Med Well Select BT Cook Time Adjust Range Temperature °C °F Pressure kPa PSI

1. Hold the head of the Float Valve and insert the fluted end into the hole in the Lid of the unit with a pencil or any other slim tool. Push and hold the head of the Float Valve tightly in place and reverse the Lid to the underside.
2. The fluted end of the Float Valve should be sticking to the inside of the Lid
3. Place the silicon gasket onto the fluted end of the Float Valve so it sits in the groove.
4. The Float Valve should be able to move up and down freely only stopping when the silicon gasket meets the Lid.

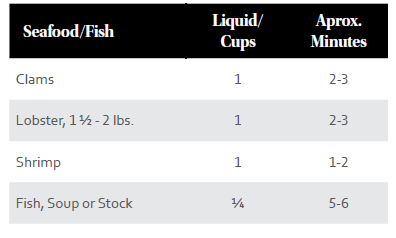

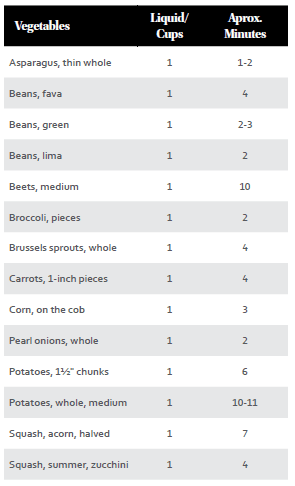

Pressure Cooking Charts

Frequently Asked Questions

1. Does the Power Pressure Cooker XL have lead in it?
   No!
2. What type of steel is the unit made of?
   Stainless steel outside. Aluminum inner pot.
3. How do you assemble/disassemble the unit?
4. What is the default time?
   Each cooking mode has a default time that appears as soon as you select that desired mode button. Before the default time “minute countdown” clock begins, the unit must first reach the proper pressure and/or temperature for that mode.
5. How long does it take for the unit to reach full pressure and for the cook time clock to start a countdown?
   Up to 17 minutes.
6. Can you change the cooking time so that it is more than the default setting?
   Yes!
7. Can you leave the unit on while not at home?
   Yes! However, it is not recommended to leave the unit on and unattended.
8. Can you put frozen foods in without defrosting?
   Yes, remember to add an extra 10 minutes for frozen meals.

Care & Cleaning

Cleaning the Safety Devices

In addition to the gasket, the other safety devices on the Power Pressure Cooker XL must also be cleaned after each use.

The Pressure Valve

To remove the Pressure Valve, simply pull up and the valve will release from its spring lock mechanism. Apply mild detergent and wash it under warm running water. After cleaning, check to see that the interior spring-loaded part moves freely by pressing down on it. Put the Pressure Valve back in place by pushing it down onto the spring-loaded mechanism. This appliance requires little maintenance. It contains no user-serviceable parts. Do not try to repair it yourself. Contact customer service for qualified repair information.

To Clean After Use

Unplug the unit and allow it to cool completely before cleaning. The Power Pressure Cooker XL must be cleaned thoroughly after each use to avoid staining caused by a build-up of food or cooking residue. DO NOT POUR COLDWATER INTO A HOT Power Pressure Cooker XL.

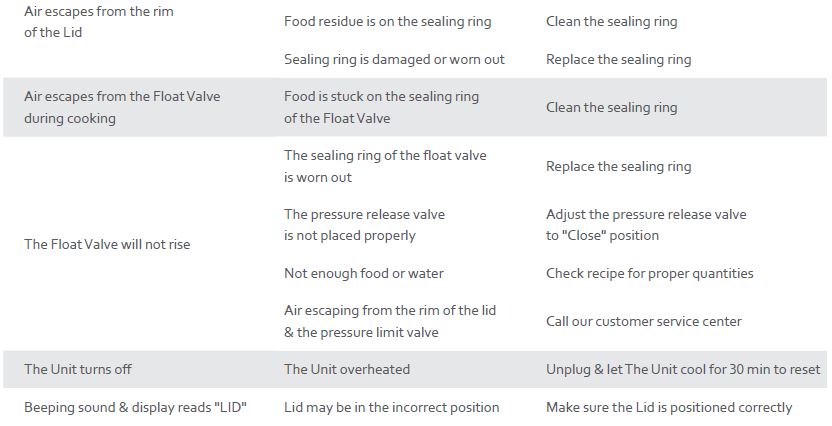

Trouble Shooting

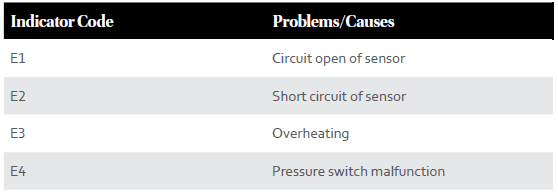

Display Error Indicator

Food Acidity

The lower the acid content in the food, the greater the potential for spoilage and contamination. Many foods such as fruits are high in acid whereas others such as meats, dairy products, and sea foods have low acid levels. (see charts below)

Examples of High Acidic Foods                                       Examples of Low Acidic Foods
