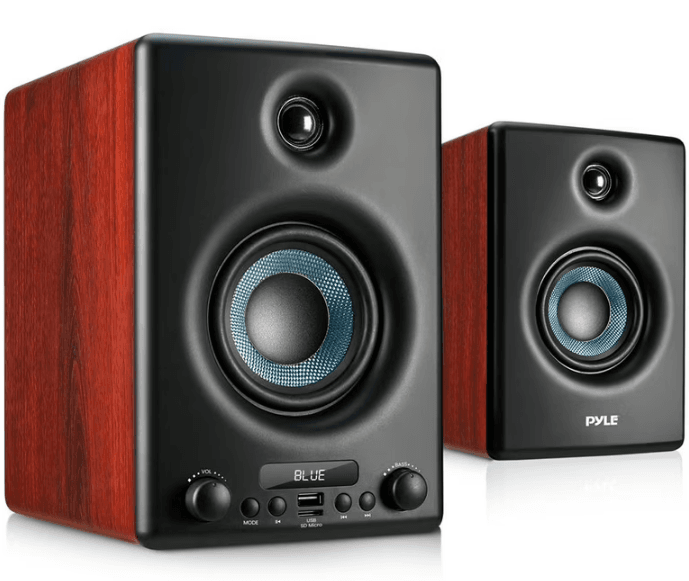

Pyle PBKSP33BK HiFi Active Bookshelf Speaker
Getting Started
- Remove the unit from the box.
- Remove any packaging from the unit.
- Place the packaging inside the box and either store or dispose of it safely.
What’s in the Box:
- Active Bookshelf Speaker
- Passive Bookshelf Speaker
- RCA Input Cable
Technical Specs:
- Power Output: 300 Watts
- Power Supply: AC 110V
- Amplifier Type: 2-Channel
- Monitor Speaker Driver: 4″ -inch
- Tweeter Driver: 1.0’’ -inch Dome
- System Channel Impedance: 4 Ohms
- Frequency Response: 70Hz-20kHz
- Sensitivity: 85dB
- Digital Audio File Support: MP3
- Maximum USB Flash Support: Up to 16GB
- Power Cable Length: 4.9 ft.
- Power: 110V
- Single Speaker Weight: Active, 5.1 lbs. (Passive, 4.3 lbs.)
- Single Speaker Size: (W x D x H): 6.4” x 8.9” x 9.7” -inches (Each)
Parts Description

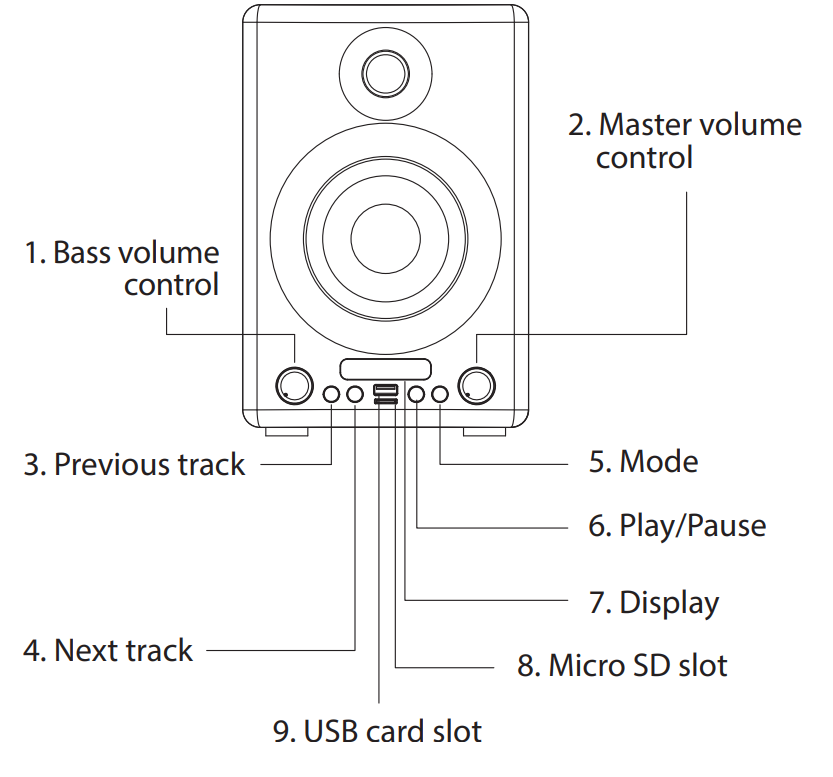

Front panel
- Bass volume control
- Master volume control
- Previous track
- Next track
- Mode
- lay/Pause
- Display
- Micro SD card slot
- USB card slot

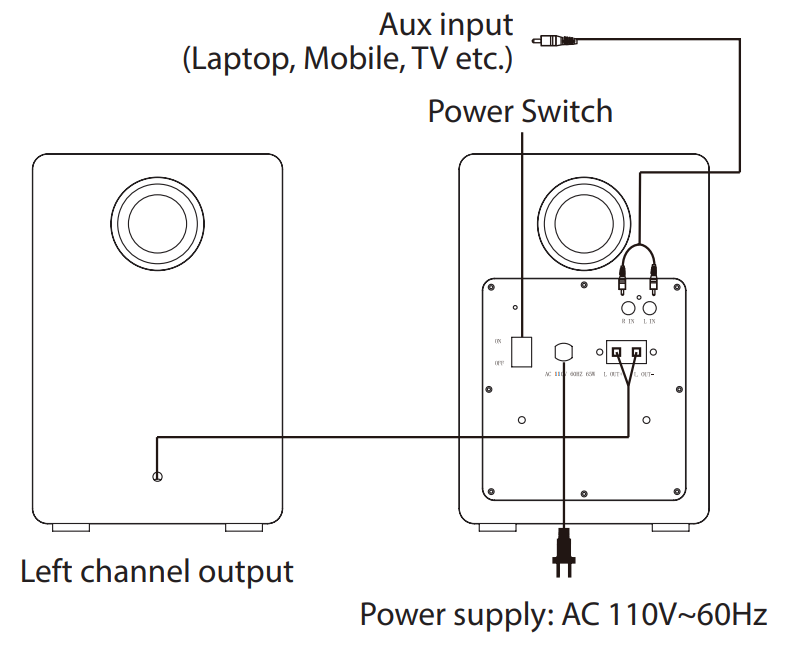

Back Panel Instruction
User Instructions
Wireless BT Operation
- Power ON the speaker, the unit will automatically activate BT mode turned ON.
- Search for pairing name “PyleUSA” to connect with the device, there’s a tone when successfully connected.
- While playing, press the Prev/Next button for the previous or next song, and press and hold the Prev/Next button to fast forward or fast forward.
- Press the “Play/Pause” button to pause or play the music.
USB/MicroSD Operation
- Insert a USB/MicroSD to play the music automatically.
- Press the “Play/Pause” button to pause or play the music.
- While playing, press Prev/Next for previous or next song, press and hold the Prev/Next button to fast backward or fast forward.
- When USB/MicroSD is inserted at the same time, MicroSD will be the priority to play. Please don’t take out the USB/MicroSD card while playing, otherwise the USB/MicroSD card will be damaged.
RCA In Operation
Connect the RCA cable to your device to play music. Press the “Play/Pause” button to mute the music.
Bass
Turn the Bass volume knob to increase or decrease bass effect.
Supplement:
- Mode Switch Sequence: BT > RCA > USB > MicroSD
- Default Mode: BT
FOR MORE MANUALS BY PYLE, VISIT MANUALSLIBRARYY
Pyle PBKSP33BK HiFi Active Bookshelf Speakers-FAQ’s
How do bookshelf speakers work?
Bookshelf speakers use a combination of drivers (like woofers for bass and tweeters for highs) to deliver high-quality sound despite their compact size.
How do I connect the Pyle PBKSP33BK to my audio system?
For wired connections, use the provided speaker cables (positive to positive, negative to negative).
For Bluetooth, enable pairing mode and connect via your device’s Bluetooth settings.
Can I use bookshelf speakers as my main speakers?
Yes! While they may not produce deep bass like subwoofers, they offer excellent midrange and high-frequency performance.
Should I keep the speaker grilles on or off?
Grilles on: Protects speakers from dust, pets, or accidental damage.
Grilles off: May slightly improve sound clarity and aesthetics.
Does the Pyle PBKSP33BK have Bluetooth?
Yes, it supports Bluetooth for wireless streaming from smartphones, tablets, and other compatible devices.
What is the default Bluetooth PIN for pairing?
The default PIN is “0000” (if required).
Do I need an amplifier for these speakers?
No, the Pyle PBKSP33BK is an active speaker with a built-in amplifier—just plug into power and connect your audio source.
Can I use these speakers for surround sound?
Yes, they can work as front, rear, or surround speakers in a home theater setup when paired with a center channel and subwoofer.
What’s the best placement for bookshelf speakers?
Position at ear level (about 24-48 inches high, depending on seating).
Angle them slightly inward (15-20° toe-in) toward the listening area.
Do bookshelf speakers need a subwoofer?
While they provide decent bass, a subwoofer enhances low-frequency performance for movies and bass-heavy music.
