Polk Audio XT15 Bookshelf Speakers User Manual

Polk Audio logo

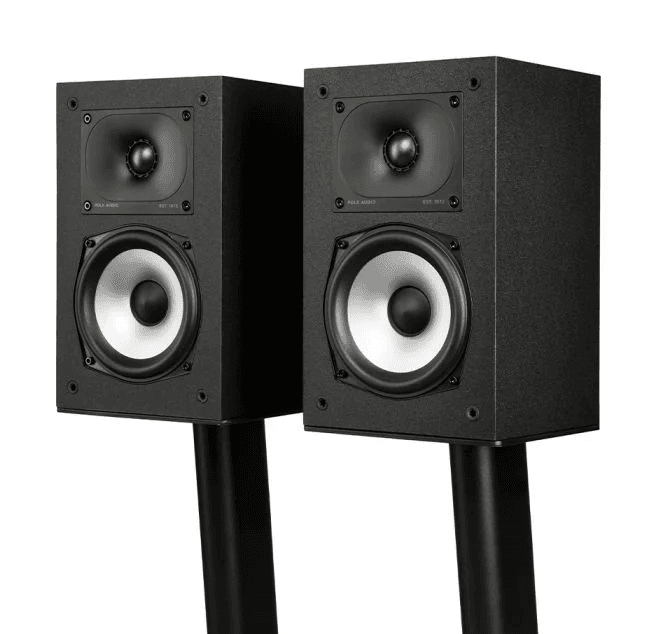

Polk Audio XT15 Bookshelf Speakers

Polk Audio XT15 Bookshelf Speakers-product

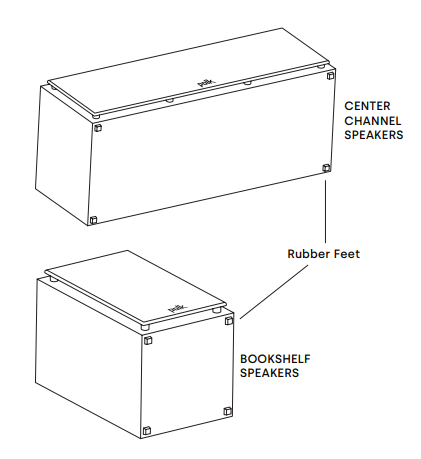

Adding Adhesive-Backed Rubber Feet

To keep your Polk speakers firmly in place and prevent damage to floors or furniture, it’s a smart idea to attach the included adhesive-backed rubber feet to the bottom of your speaker.

Polk Audio XT15 Bookshelf Speakers-1

How to Connect Your System

To get the best sound quality, it’s important to wire your speakers correctly.
How to Use Binding Post Connectors: Loosen hex nut and insert bare speaker wire through hole. Tighten hex nut down to make connection.
Note: Do not insert the insulated section of wire into the hole (you will not get a connection).

Polk Audio XT15 Bookshelf Speakers-2

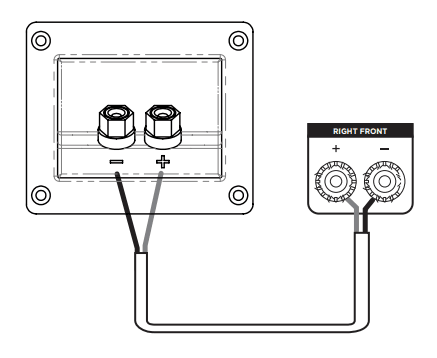

Basic Speaker Hookup

Make sure that the red (+) and black (-) connectors on your amplifier or receiver connect to the red (+) and black (-) connectors on your speakers. If your speakers sound “thin,” with little bass and little or no center image, odds are that one of the speaker wires is connected backwards. Double-check all connections.

Polk Audio XT15 Bookshelf Speakers-3

Processor Mode for Center Channel Speaker

Note: Set Center Channel Speaker to “small” in your receiver’s Bass Management Settings. The “bass management” or “speaker configuration” menus of most surround receivers offer the choice of “normal” or “wide” modes for center channel operation. In discrete channel digital processors, these modes are referred to as “small” and “large.” Normal (small) mode filters bass frequencies from the center channel speaker and sends them instead to the front left and right main speakers or to the subwoofer output (LFE) jack. Wide (large) mode sends an unfiltered, full-range signal to the center channel speaker. Use the Small (normal) mode for optimum center (and surround) channel performance and reliability.

Speaker Positioning

To maximize the sound quality of your speaker system— whether you’ve purchased XT15 bookshelf speakers, an XT30 center channel speaker, or XT70 tower speakers—correct placement is everything. Take a look at the following examples and give them a try based on the Polk Monitor XT Series speakers you’ve purchased.
Note: Your Polk Monitor XT Series speakers are compatible with 2.0, 2.1, 3.1, 5.1, 7.1 and 9.1 setups (optional subwoofer shown in graphics).

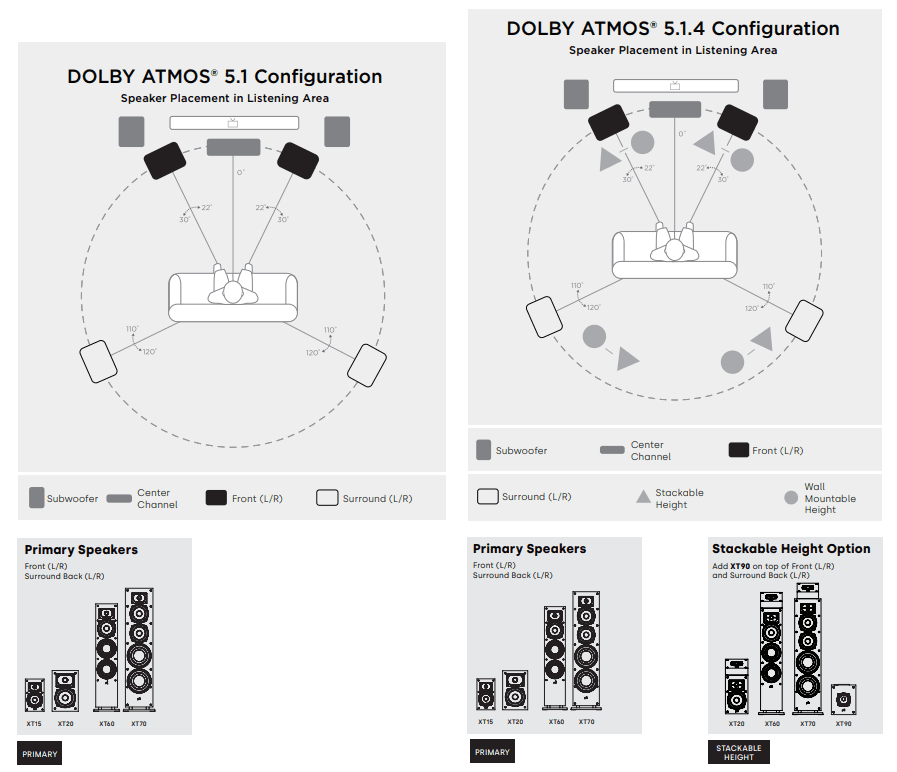

Listening in 5.1 Surround
You can use the Polk Monitor XT Series speakers as rear surround speakers in a Polk Audio home theater system. Ideal rear channel surround speaker placement is on a side wall, slightly behind and above the listening position.

Listening in 3.1 System
Get the most realistic stereo image by placing speakers as far apart as the listeners are sitting from them. If room conditions require that you place the speakers farther apart, you may choose to angle the speakers toward the middle to support a more solid center image.
Listening in 5.1 Surround—alternate option
Alternate rear channel surround speaker placement for Polk Monitor XT Series speakers. If you cannot place rear surrounds on the side walls, position them on the rear wall above the listening position.

Polk Audio XT15 Bookshelf Speakers-4

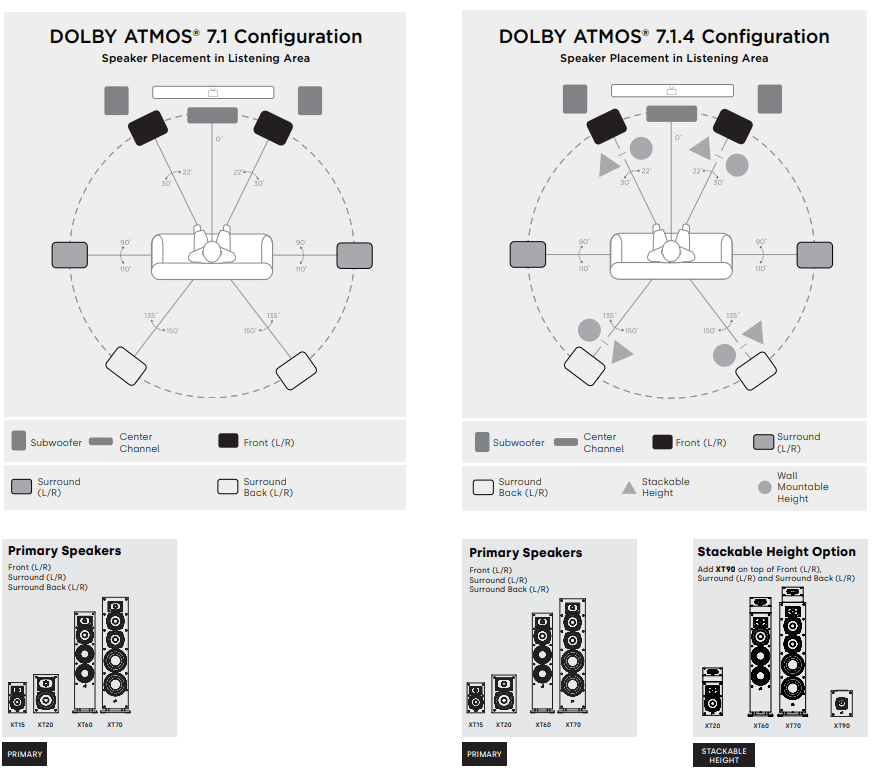

Listening in 7.1 Surround
Enjoy added depth to your surround sound experience with four rear surround speakers instead of two.

Polk Audio XT15 Bookshelf Speakers-5

Polk Audio XT15 Bookshelf Speakers-6
