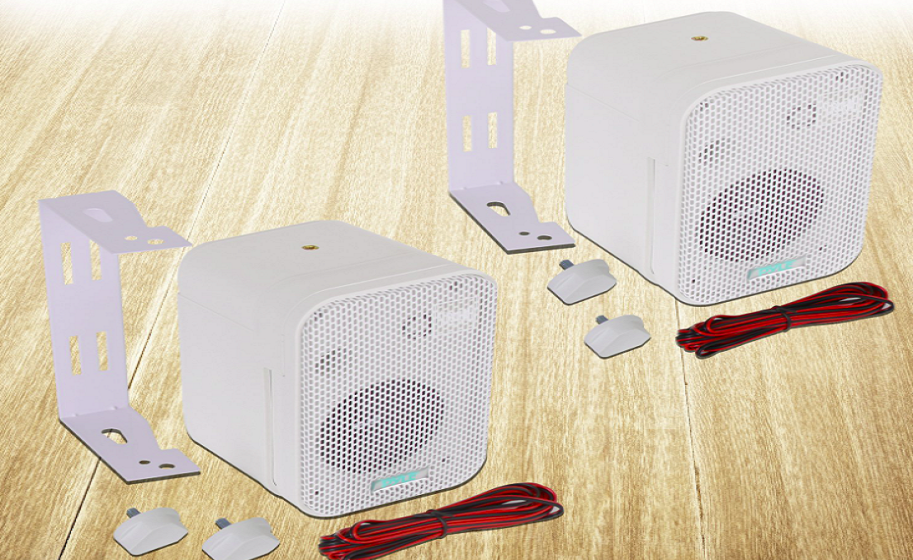

Remove the bracket knobs and the bracket from the speaker.

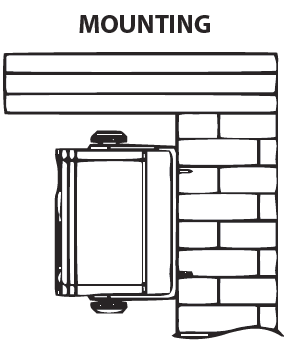

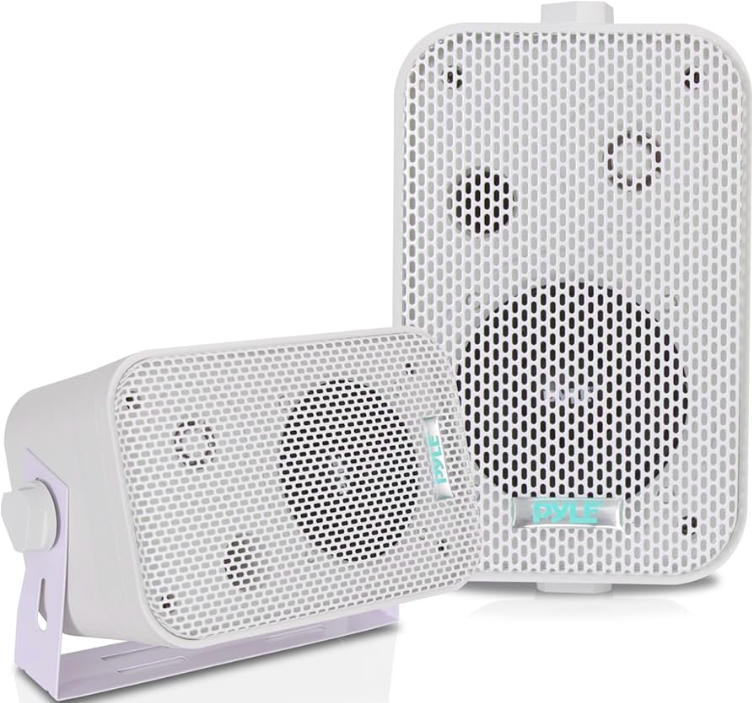

Hold the bracket up to the mounting surface. PDWR30B Waterproof Speakers can be mounted either horizontally or vertically. Hold the bracket so that the speaker wire fits through the large, circular wire hole in the bracket, align the bracket to be square with the surrounding (Use A level for accuracy)
Mark the locations of the three shaped screw holes, use all of the holes.
DrIII plot holes into the mounting surface.
Gently pull the speaker wire through the wire hole in the center of the mounting bracket, so that the holes all line up.
Use your hardware to attach the bracket to the mounting surface.

After checking that the speaker is in phase and works correctly, angle the speaker for the best sound.
Hand tighten rhe bracket knobs only, power tools may over-tighten rhe knob, and strip the threads of the insert.
Check that the entire installation is safe and secure.

Connecting the speakers to your amplifier or receiver.

First, turn your amplifier OFF to avoid damage that may result from accidental shorting of the speaker leads.
Correct phase polarity is critical for proper stereo imaging and bass performance. The red (+) terminal on your amplifier or receiver must be connected to the red (+) terminal on your speaker, the same applies for the black (-) terminal.
Connect one loudspeaker at a time to ensure proper connection of left and right channels. Make sure all wires are firmly fastened.
If you notice a high level of bass or central image focus, double-check your connections for proper polarity
