Pyle PPHP849KT Powered PA Speaker System User Manual

Pyle PPHP849KT Powered PA Speaker System

PPHP849KT

1. LCD screen
2. Mp3 control
   MODE: USB/SD/BT/FM convertor
   : Play / Pause
   SCAN: Press and hold to auto search under FM radio
   FOL: Press and hold for 5 seconds to enter the folder option function mode (press the previous/next songs button to choose the folder)
   : Repeat one / Repeat all / Random
   : PRE/NEXT under FM mode, Press and hold to search lower/ higher stations manually
   : Short press to tune toa  saved station
   : Previous Song
   Press and hold for fast rewind
   : Next Song
   Press and hold for fast forward
3. USB input
4. SD card input
5. Remote control
6. MIC level control
7. MP3 level control
8. Bass control
9. Treble control
10. XLR microphone line input
11. Line input
12. AUX input
13. Master volume
14. Speaker out 8 Ohm
15. Main power switch
16. Fused IEC mains inlet

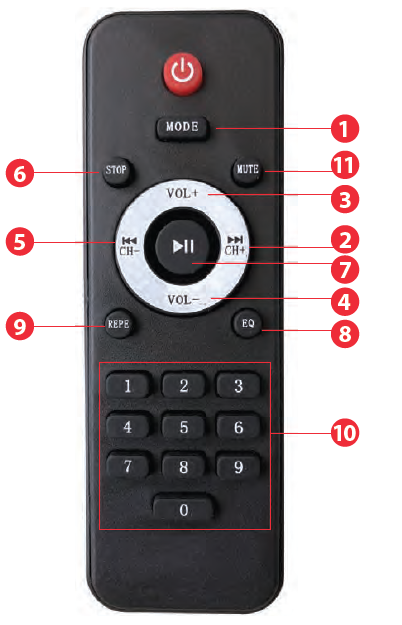

REMOTE CONTROL

1. MODE: USB/SD/BT/FM CONVERTER
2. : In USB/SD: Previous Song, Press and hold for fast rewind
   In FM: switch to backward
3. VOL + : Increase volume
4. VOL – : Decresse volume
5. : In USB/SD: next Song, Press and hold for fast forward
   In FM: switch to the next channel
6. : Stop. Switch the MP3 player off.
7. /SCAN: Play / Pause In FM: Auto search
8. EQ: NORMAL, ROCK, POP, CLASS, JAZZ.
9. REP: Shot press: Random/Single/Order
10. 0-9: choosing music by numbers
11. MUTE: Mute the sound of the MP3 player

System Features:

• Dual 8-inch High-Powered Loudspeaker PA Systems
• Includes (1) Active Speaker + (1) Passive Speaker + (2) Stands
• Rugged, Durable & Reliable Sound
• Bluetooth Wireless Music Streaming Ability
• High-Frequency 1.0” Tweeters
• Compression Driver with Titanium Diaphragm
• 2-Way Full Range Audio Projection
• Built-in Digital Audio Amplifier
• XLR Microphone Input
• 1/4’’ SpeakOn (8 Ohm) Input
• 1/4’’ SpeakOn (8 Ohm) Speaker Output
• Aux (3.5mm) Input Jack
• Connect & Stream Audio from External Devices
• USB Flash Drive & SD Memory Card Readers
• Digital LCD Display
• Rear Panel Rotary Dial & Button Control Center
• Master Volume, Mic Volume, Treble, Bass Adjustable
• Integrated Carry Handles
• 35mm Speaker Stand Mount Compatible
• Heavy-Duty Engineered ABS Housing

What’s in the Box:

• (1) 8” Active PA Speaker
• (1) 8” Passive PA Speaker
• (2) Speaker Stands
• Wired Microphone
• Remote Control
• Power Cable

Bluetooth Wireless Streaming:

• Instantly Stream Music from Your Bluetooth Devices
• Works with All Your Favorite Bluetooth Devices (iPhone, Android, Smartphone, iPad, Tablet, PC, etc.)
• Bluetooth Version: 4.0
• Bluetooth Wireless Range: 100’+ Feet
• Bluetooth Network Name: ‘Pyle’

Speaker Stands:

• Effectively Elevates Speakers for Optimum Sound Performance
• Universal Speaker Compatibility (35mm Insert)
• Easy Setup and Quick Adjustment Control
• Reinforced Steel Support Construction
• Speaker Support Arm Extension
• Rugged and Reliable
• Safety Lock-in Pin
• Foldable for Quick Storage and Transport
• Rubber-Capped Tripod Feet Base
• Perfect for On-Stage or Studio Use
• For Professional or Beginner Applications
• Speaker Height Adjustable: 59.1” to 82.7”
• MAX. Load Capacity: 100 lbs. (50 kgs.) -Each

Technical Specs:

• MAX Power Output: 700 Watts
• Amplifier: Class D
• Impedance: 8 Ohms
• T.H.D.: <1%
• Magnet: 20 oz.
• Sensitivity: 92dB (+/-2dB)
• Mic Input Level: <15mV
• Line Input/Output Level: >250mV
• Frequency Response: 65- 18 kHz
• Digital Audio File Compatibility: MP3, WMA
• Maximum SD/USB Flash Memory Support: 32GB
• Power: 120/240V
• Single Speaker Weight: 5.98 lbs.
