Razer Viper V3 Pro Wireless Esports Gaming Mouse

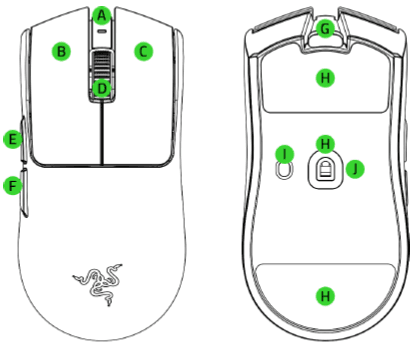

WHAT’S INSIDE
Razer Viper V3 Pro
- Mouse indicator LED
- Left mouse button
- Right mouse button
- Scroll wheel
- Mouse button 5
- Mouse button 4
- USB Type-C port (mouse)
- PTFE mouse feet
- Power / DPI cycle button
- RazerTM Focus Pro 35K Optical Sensor Gen-2
The DPI stages are 400, 800, 1600 (default), 3200, and 6400, and can be customized using Razer Synapse.
Razer HyperPolling Wireless Dongle
- USB Type-C port (dongle)
- Dongle indicator LED
USB Type A to Type C cable
Important product information guide
WHAT’S NEEDED
PRODUCT REQUIREMENTS
USB Type A port
RAZER SYNAPSE REQUIREMENTS
- Windows® 10 64-bit (or higher)
- Internet connection for software installation
LET’S GET YOU COVERED

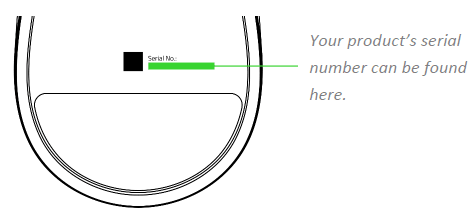

Register your product and score exclusive benefits razerid.razer.com/warranty
TECHNICAL SPECIFICATIONS
- Form factor: Right-handed Symmetrical
- Connectivity:
- Razer HyperSpeed Wireless
- Wired
- RGB lighting: No
- HyperPolling / Polling Rates: Up to 8000 Hz
- Sensor: Focus Pro 35K Optical Sensor Gen-2
- Max sensitivity (DPI): 35000
- Max speed (IPS): 750
- Max acceleration (G): 70
- Programmable controls: 8
- Switch type: Optical Mouse Switches Gen-3
- Switch lifecycle: 90 million Clicks
- On-board memory profiles: 1
- Mouse feet: 100% PTFE
- Cable: USB Type A to USB Type C cable
- Tilt scroll wheel: No
- Dock compatibility: No
SETTING UP YOUR RAZER VIPER V3 PRO

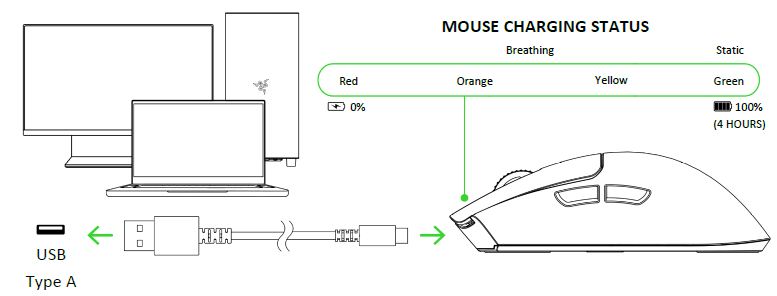

CHARGING YOUR MOUSE
Plug the USB Type A to USB Type C cable from your PC’s USB port into the Razer Viper V3 Pro. For best results, please fully charge the mouse before using it for the first time. A depleted battery will be fully charged in approximately 4 hours.
For best results, please fully charge the mouse before using it for the first time. Install Razer Synapse when prompted, or download the installer from razer.com/synapse to personalize your mouse’s DPI settings, button configurations, polling rate, and other features.
CONNECTING YOUR MOUSE

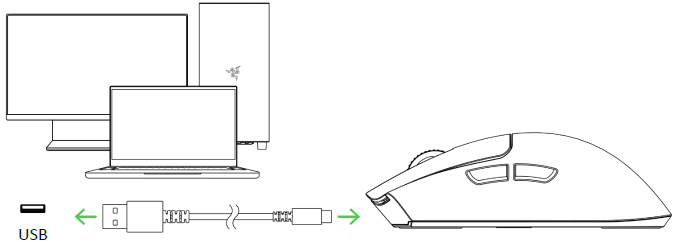

- Via wired mode
Connect the mouse to any of your PC’s USB ports using the charging cable to use it in wired mode.

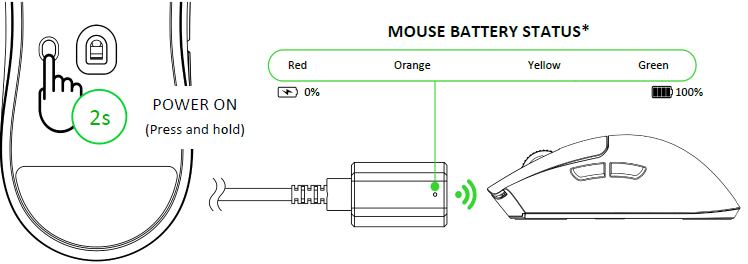

- Via Razer™ HyperSpeed Wireless (2.4 GHz) mode

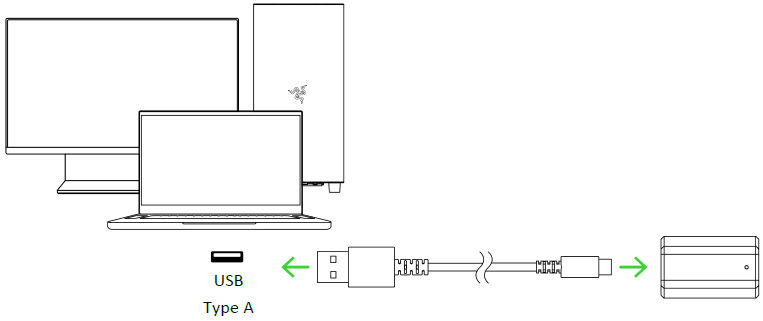

- Connect the Razer HyperPolling Wireless Dongle to your PC.
- Press and hold the Power / DPI cycle button for 2 seconds to power on your mouse.
Indicator display can be customized to show connection status, mouse battery status (default), or low-battery warning only using the Razer Synapse app.
Your Razer Viper V3 Pro is now ready for use in Razer HyperSpeed Wireless (2.4 GHz) mode.
USING YOUR RAZER VIPER V3 PRO
LOW BATTERY NOTIFICATION
The mouse indicator LED will blink red twice in repeated intervals to indicate that its battery’s power is less than 5%. This lighting sequence will repeat until the battery is drained or the mouse is connected to a PC via the charging cable.
POWER ON / OFF
Press and hold the power / DPI button for 2 seconds to power on or off the mouse.
PERSONALIZING YOUR MOUSE WITH RAZER SYNAPSE

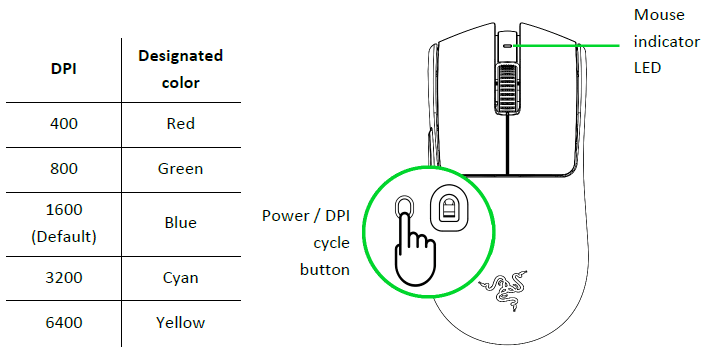

Change the mouse’s DPI to match your playstyle with a press of the Power / DPI cycle button, or fine-tune your own sensitivity setting using the Razer Synapse app. The mouse indicator LED will briefly change its color to show which DPI stage is currently active.
CONFIGURING YOUR RAZER VIPER V3 PRO VIA RAZER SYNAPSE
An internet connection is required for installation, updates, and cloud-based features. Registering for a Razer ID account is recommended but optional. All listed features are subject to change based on the current software version, the connected device(s), and supported apps and software.
SYNAPSE TAB
The Synapse tab is your default tab when you first launch Razer Synapse. This tab allows you to navigate the Dashboard subtab.
Dashboard
The Dashboard subtab is an overview of your Razer Synapse, where you can access all your Razer devices, modules, and online services.
Gamer Room
Use the Gamer Room subtab to manage which devices are directly controlled by Razer Synapse and the Razer Gamer Room app. You can power on or off any Razer Gamer Room device using the Power on/off button or switch app control by clicking on any device and toggling Synapse Override.
Modules
The Modules subtab displays all installed and available modules for installation.
Global Shortcuts
Bind operations or Razer Synapse functions to custom key combinations from Razer Synapse-enabled device inputs that apply across all device profiles.
Only Razer Synapse-enabled device inputs will be recognized.
MOUSE TAB
The Mouse tab is the main tab for your Razer Viper V3 Pro. From here, you can change your device’s settings, such as button assignment, stored profiles, DPI sensitivity, and lighting. Changes under this tab are automatically saved to your system and cloud storage.
Customize
The Customize subtab is for modifying your mouse’s button assignments.
Profile
A Profile is a data storage for keeping all your Razer peripherals’ settings. By default, the profile name is based on your system’s name. To add, import, rename, duplicate, export, reset, or delete a profile, press the Miscellaneous button.
Standard / Hypershift
Hypershift mode is a secondary set of button assignments activated when the Hypershift key is held down. By default, the Hypershift key is assigned to the fn key of your Razer Synapse-supported keyboard. However, you can also set any mouse button as a Hypershift key.
Indicator LED
Customize the Razer HyperPolling Wireless Dongle to either indicate your Razer mouse’s connection or battery status, or only indicate battery warnings when your Razer mouse needs charging.
Sidebar
Clicking the Sidebar button will reveal all current button assignments for your Razer Viper V3 Pro.
Alternatively, you can skip to a specific button assignment by selecting it on the Customize tab.
Upon selecting a button assignment, you may then change it to one of the following functions:
Default
This option enables you to return the mouse button to its original setting.
Keyboard Function
This option changes the button assignment into a keyboard function. You can also enable Turbo mode, which allows you to emulate a repeated keyboard function while the button is held down.
Mouse Function
This option substitutes the current button assignment for another mouse function. Listed below are the functions that you can choose from:
- Left Click – Performs a left mouse click using the assigned button.
- Right Click – Performs a right mouse click using the assigned button.
- Scroll Click – Activates the universal scrolling function.
- Double Click – Performs a double left click using the assigned button.
- Mouse Button 4 – Performs a “Backward” command for most internet browsers.
- Mouse Button 5 – Performs a “Forward” command for most internet browsers.
- Scroll Up – Performs a “Scroll Up” command using the assigned button.
- Scroll Down – Performs a “Scroll Down” command using the assigned button.
- Scroll Left – Performs a “Scroll Left” command using the assigned button.
- Scroll Right – Performs a “Scroll Right” command using the assigned button.
You can also choose to enable Turbo mode in some of the mouse functions, which allows you to repeatedly press and release said function while the button is held down.
Sensitivity
This function allows you to manipulate the DPI setting of your Razer Viper V3 Pro with a touch of a button. Listed below are the Sensitivity options and their description:
- Sensitivity Clutch – Changes the sensitivity to a predefined DPI while the designated button is held down. Releasing the button will return it to the previous sensitivity.
- Sensitivity Stage Up – Increases the current sensitivity by one stage.
- Sensitivity Stage Down – Decreases the current sensitivity by one stage.
- On-The-Fly Sensitivity – Pressing the designated button and moving the scroll wheel either up or down will increase or decrease the current DPI.
- Cycle Up Sensitivity Stages – Increases the current sensitivity stage by one. Once it reaches the highest sensitivity stage, it will return to stage 1 when the button is pressed again.
- Cycle Down Sensitivity Stages – Decreases the current sensitivity stage by one. Once it reaches stage 1, it will return to the highest sensitivity stage when the button is pressed again.
Macro
A Macro is a prerecorded sequence of keystrokes and button presses that is executed with precise timing. You can conveniently execute a chain of commands by setting the button function to Macro. This function will only be visible when the Macro module is installed.
Inter-device
Inter-device allows you to change the functionality of other Razer Synapse-enabled devices. Some of these functionalities are device-specific, such as using your Razer gaming keyboard to change the Sensitivity Stage of your Razer gaming mouse.
Switch Profile
Switch Profile lets you quickly change profiles and load a new set of button assignments. An on-screen notification will appear whenever you switch profiles.
Switch Lighting
Switch Lighting allows you to switch between all advanced lighting effects easily. This function will only be visible when the Chroma Studio module is installed.
Razer Hypershift
Setting the button to Razer Hypershift will allow you to activate Hypershift mode as long as the button is held down.
Launch Program
Launch Program lets you open an app or a website using the assigned button. When you select Launch Program, two choices will appear, which require you to search for a specific app you want to open or write the website address you want to visit.
Multimedia
This option allows you to assign multimedia controls to your Razer device. Listed below are the multimedia controls you can choose from:
- Volume Down – Decreases the audio output.
- Volume Up – Increases the audio output.
- Mute Volume – Mutes the audio.
- Mic Volume Up – Increases the microphone volume.
- Mic Volume Down – Decreases the microphone volume.
- Mute Mic – Mutes the microphone.
- Mute All – Mutes both the microphone and audio output.
- Play / Pause – Play, pause, or resume playback of the current media.
- Previous Track – Play the previous media track.
- Next Track – Play the next media track.
Windows Shortcuts
This option allows you to assign your preferred button to a Windows Operating System shortcut command. For more information, please visit: support.microsoft.com/kb/126449
Text Function
Text Function enables you to type a prewritten text with a touch of a button. Simply write your desired text in the given field, and your text will be typed whenever the assigned button is pressed. This function has full Unicode support, and you can also insert special symbols from character maps.
Disable
This option renders the assigned button unusable. Use Disable if you do not want to use the selected button or if it interferes with your gaming.
Performance
The Performance subtab allows you to modify the sensitivity, acceleration, and polling rate.
Sensitivity
Sensitivity refers to the distance the cursor will travel based on how far the mouse moves. The higher the DPI, the farther the cursor will travel, given the same mouse movement distance.
Sensitivity Stages
A sensitivity stage is a preset sensitivity value. You can create up to 5 different sensitivity stages, which you can cycle through using the Power / DPI cycle button.
Enable X-Y
By default, the X-axis (horizontal) and Y-axis (vertical) use the same sensitivity values. However, you may set different sensitivity values to each of the axes by selecting the Enable X-Y option.
Polling Rate
The higher the polling rate, the more often the computer receives information about the status of your mouse, effectively reducing input latency and improving your mouse pointer’s reaction time. You can switch between 125Hz, 500Hz, 1000Hz, 2000Hz, 4000Hz, and 8000Hz by selecting your desired polling rate from the options provided.
Mouse Properties
Access the Windows Mouse Properties, where you can modify operating system settings that directly affect your mouse.
Sensitivity Matcher
Calibrate your mouse to mimic the feel and movement of another mouse to ensure a seamless transition between different mice.
A second mouse is required for this feature.
Power
The Power subtab allows you to set your device to enter sleep mode when idle for a certain amount of time or manage its energy consumption when the battery level is low.
Calibration
The Calibration subtab allows you to optimize the sensor of your Razer mouse to any surface for better tracking.
Smart Tracking
Smart Tracking lets you set the distance the sensor stops tracking when it’s lifted from its surface to avoid unwanted cursor movement. You may assign different values to the lift-off and landing distances by selecting the Enable Asymmetric Cut-Off.
PROFILES TAB
The Profiles tab is a convenient way to manage all your profiles and link them to your games and applications.
Devices
View which games are linked to each device’s profiles or which Chroma Effect is linked to specific games using the Devices subtab.
You can import Profiles from your computer or the cloud through the import button or create new profiles within the selected device using the add button. To rename, duplicate, export, or delete a profile, simply press the Miscellaneous button. Each profile can be set to activate when you run an application using the Linked Games option.
Linked Games
The Linked Games subtab allows you to add games, view devices linked to games, or search for added games. You can also sort games based on alphabetical order, last played, or most played. Added games will still be listed here, even if they are not linked to a Razer device.
To link games to connected Razer devices or Chroma Effects, simply click on any game from the list, and then click Select a device and its profile to launch automatically during gameplay to select the Razer device or Chroma Effect it will link with. Once connected, you may click the Miscellaneous button of the corresponding Chroma Effect or device to select a specific Chroma Effect or profile.
SETTINGS WINDOW
The Settings window, accessible by clicking the button on Razer Synapse, enables you to configure the startup behavior and display language of Razer Synapse, control the recommendations you see on the Dashboard, check the firmware version and master guide of each Razer device, or perform a factory reset on any connected Razer device.
General tab
The General tab lets you change the software’s display language, startup behavior, theme, and on-screen notifications. You may also manually sync your profiles to the cloud or view the master guide of all connected Razer devices and installed modules.
Dashboard tab
Use the Dashboard tab to customize which Razer device recommendations based on your setup, and the games you play will appear on the Dashboard.
Firmware tab
Access the Firmware tab to view the current firmware version of your Razer device(s), and/or visit the Software and Firmware Update page to see whether a firmware update is available for your device(s).
Reset tab
The Reset tab allows you to perform a factory reset on all connected Razer devices with on-board memory and/or reset Razer Synapse tutorials to acquaint yourself again with Razer Synapse’s new features on its next launch.
All profiles stored on the selected device’s onboard memory will be erased when you reset a Razer device.
About tab
The About tab displays brief software information and a copyright statement, and provides relevant links for its terms of use. You may also use this tab to check for software updates or as quick access to Razer’s social communities.
SAFETY AND MAINTENANCE
SAFETY GUIDELINES
To achieve maximum safety while using your Razer Viper V3 Pro, we suggest that you adopt the following guidelines:
Should you have trouble operating the device properly and troubleshooting does not work, unplug the device and contact the Razer hotline or go to support.razer.com for assistance.
Keep the mouse’s accessories out of the reach of small children to avoid accidents and/or injuries.
Don’t take apart the device, and don’t attempt to operate it under abnormal current loads. Doing so will void your warranty.
Keep the device away from liquid, humidity, or moisture. Operate the device only within the specific temperature range of 0°C (32°F) to 40°C (104°F). Should the temperature exceed this range, unplug and/or switch off the device to stabilize the temperature to an optimal level.
COMFORT
Research has shown that long periods of repetitive motion, improper positioning of your computer peripherals, incorrect body position, and poor habits may be associated with physical discomfort and injury to nerves, tendons, and muscles. Below are some guidelines to avoid injury and ensure optimum comfort while using your Razer Viper V3 Pro.
- Position your keyboard and monitor directly in front of you with your mouse next to it. Place your elbows next to your side, not too far away, and your keyboard within easy reach.
- Adjust the height of your chair and table so that the keyboard and mouse are at or below elbow-height.
- Keep your feet well supported, your posture straight, and your shoulders relaxed.
- During gameplay, relax your wrist and keep it straight. If you do the same tasks with your hands repeatedly, try not to bend, extend, or twist your hands for long periods.
- Don’t rest your wrists on hard surfaces for long periods. Use a wrist rest to support your wrist while gaming.
- Don’t sit in the same position all day. Get up, step away from your desk, and do exercises to stretch your arms, shoulders, neck, and legs.
If you experience any physical discomfort while using your mouse, such as pain, numbness, or tingling in your hands, wrists, elbows, shoulders, neck, or back, please consult a qualified medical doctor immediately.
MAINTENANCE AND USE
The Razer Viper V3 Pro requires minimal maintenance to keep it in optimum condition. Once a month, we recommend you unplug the device from the computer and clean it using a soft cloth or cotton swab to prevent dirt buildup. Don’t use soap or harsh cleaning agents.
To get the ultimate experience in movement and control, we highly recommend a premium mouse mat from Razer. Some surfaces will cause undue wear on the feet, requiring constant care and eventual replacement.
Do note that the Razer Viper V3 Pro’s sensor is ‘tuned’ or optimized specially for the Razer mouse mats. This means that the sensor has been tested extensively to confirm that the Razer Viper V3 Pro reads and tracks best on Razer mouse mats.
BATTERY WARNING
The Razer Viper V3 Pro contains a Li-ion rechargeable battery. In general, the life expectancy of such batteries is dependent upon usage. If you suspect that the Li-ion rechargeable battery inside the Razer Viper V3 Pro may be drained (has a low charge), try charging it.
Caution: Don’t open, mutilate, or expose to conducting materials (metal), moisture, liquid, fire, or heat. Doing so may cause batteries to leak or explode, resulting in personal injury. Battery life varies with usage.
