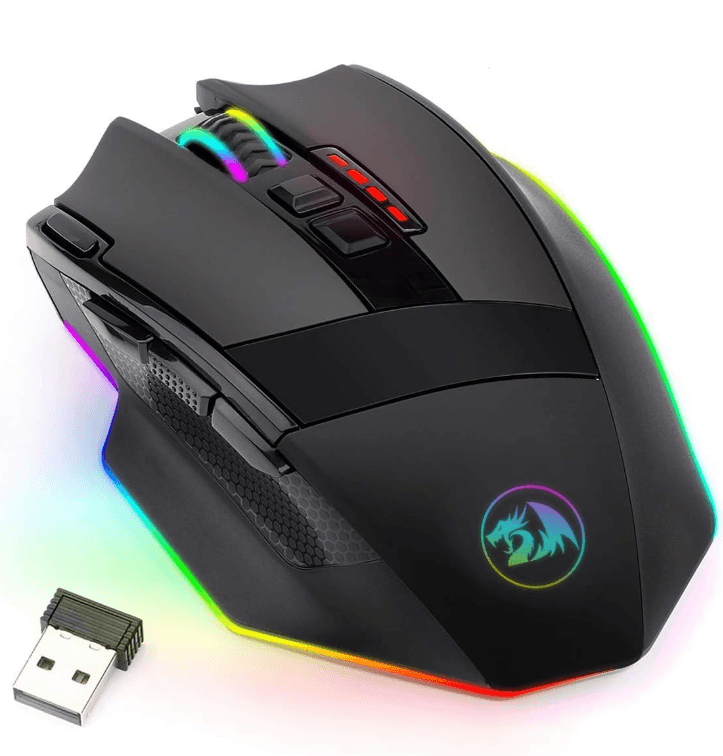

Redragon M801 Gaming Mouse

Table of Contents

Dear user

Thank you for you choosing RedRagon Brand, to protect your rights and for better customer service, we ask that you note our warranty rules.

Within guaranty period, repair is guaranteed for failure due to electrical circuit problem:;;. Man-made damages, such as disassembly, hard impacts, submersion Into water, plugging Imo improper current or voltage, and damage caused by natural disasters such as fire, flood ,or earthquake are not included.
Consumable parts (such as foot stick) and spare parts replacement are no included In our warranty.

OS support
Window, XPMsra/Win7/Win8/Win1 O/Win11

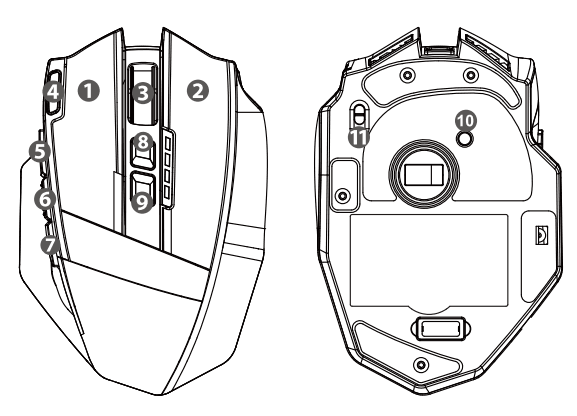

Button Description

Left mouse button
Right mouse button,
Scroll wheel and middle button.
Fire button.
Forward button.
Backward button.
Shift button.
DPI+ button {defaulted to speed up the cursor).
DPI- button (defaulted to slow down the cursor).
Working Mode button (used to switch among the two working modes).
Power Switch, Power On with LEDON/ Power OFF / Power On without LED.

Basic Operation

How to Connect the Mouse with a Computer

Wired Connection

Take out the USB to USB C cable In the package and connect the mouse with your computer.
Slide the power switch on the bottom of the mouse to Power On with LED ON or Power On without LED.
The computer will recognize and configure the mouse automatically.
The mouse will be ready for use when the configuration is finished. The LED of the LOGO and the lower edge will light on then if the power switch on the bottom of the mouse to Power On with LED ON,
The mouse Is under recharging whatever the power switch Is put to On with or without LED ON. The scroll wheel will light up if the power switch is put to Power ON with LED ON. And it does not light up if the power switch is put to power On without LED. It may take about four hours for the mouse to be fully recharged.

Wireless Connection

Takeout the USB receiver in the package and plug it into any available USB port on your computer.
Slide the power switch on the bottom of the mouse to Power On with LED ON or Power on without LED.
The computer will recognize and configure the keyboard automatically.
The mouse will be ready for use when the configuration is finished. The LED of the LOGO and the lower edge will light on then to the power switch on the bottom of the mouse to Power On with LEDON,
The mouse can work about 9 hours with LED backlight be OFF, and about 2 hours with LED backlight be ON. The scroll wheel light will flash when battery Is low
Recharge the keyboard when the battery is low.

How to Select DPI

The two buttons on the top of mouse are set to DPI+ / DPI – as default
The 4 red DPI Indicators nearly beside the buttons show the corresponding DPI value as below,

LED OFF—- 1000 DPI
One LED ON– 2000 DPI
Two LED ON——4000 DPI
Three LEDON –8000 DPI
Four LEDON — 16000 DPI

How to Switch the Working Mode

There are two working modes for the mouse. You can change the working mode with the mode button on the bottom of the mouse. When you press the mode button, the scroll wheel flashes In blue voilet four times slowly or quickly, and the polling rate of the mouse was set 1 25Hz or 1OOOHz correspondingly. The dpJ value, backlight effects and button functions can be set via software for each working mode.

How to Recharge the Battery

When the battery Is low, please recharge the battery In time. Take out the USB to USB C cable and connect the mouse and any USB power output port. While the battery Is under recharging, the scroll wheel lights up a flash firstly In (if the battery Is very low), then in yellow and finally lights steadily on in green when the battery is full)’ recharged. Meanwhile the side edge light lights up and expands from back to front in red till the battery is fully recharged. The battery can be recharged for more than 300 cycle times. And you can use the mouse while it is under recharging

Note: Slide the power switch on the bottom of the mouse to OFF for long term storage.

How to Reconnect the Mouse the with the USB Receiver

The mouse may lost connection with the USB receiver for some occasional reasons such as strong magnet, violent vibration. So you may need to reconnect the mouse with the USB receiver. ln thisca5e, unplug the receiver and plug it back again. Slide the power switch on the bottom of the mouse to ON, press and hold the Left, Middle and Right button at the same time till the scroll wheel lights up and flash in yellow green. It will flash for about twenty seconds and then change back to the previous light effect . The reconnection will be completed and you can use the mouse then.

Features

Auto Sleep and Smart Shutdown
The mouse will sleep in eight minutes if there is no operation or when you shut down the computer or unplug the USB receiver. You can wake It up by clicking any mouse button except the DPl+ and DPI- buttons.

Low Battery Indication
The scroll wheel light will flash in yellow when battery is low.

Backlight Effects (set via software)

LOGO Effects: Steady ON, Respiration, Neon, OFF.
LED Effects: Steady ON, Respiration, Streaming, OFF.

Storage for the Nano USB Receiver
The nano USB receiver can be stored in the storage slot on the bottom of the mouse,

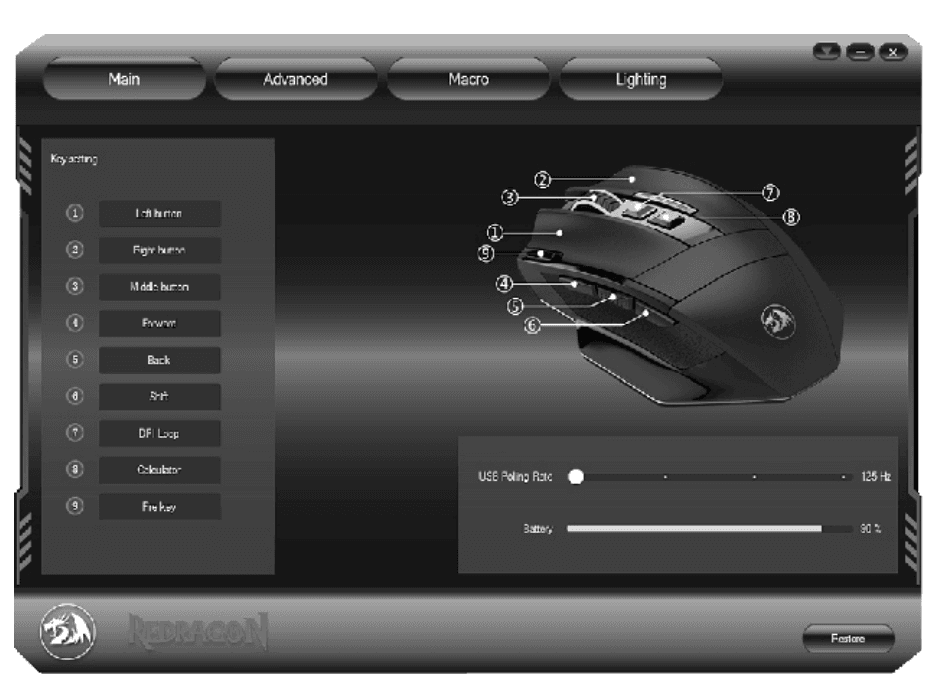

SOFTWARE INSTRUCTIONS

Please download 1he software on www.re<lragonzone.com for this mouse. You can get more functions and settings after software Installation.

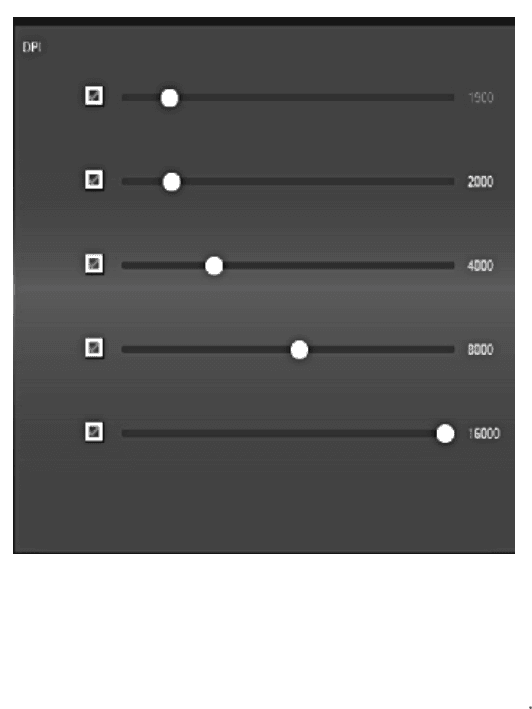

The DPI value can be set from 1 OO to 16ll00DPI.
Continuous keystroke function: Set the number of clicks and delay time.
Backlight mode of the IDGO: Steady ON/OFF.
Backlight mode of the side edge, Steady OFF.
10 of the mouse buttons can be remapped to various actions.
Polling rate, 1 25Hz/250Hz/500Hz/1 OOOHz. As default, working mode 1 was set to 125Hz and working mode 2 was set to 1OOHL
For each of the two working modes, the mouse buttons can be set independently.
Battery percentage lndication: Battery percentage Information Is shown on the main Interface of software.

BATTERY SAFETY GUIDELINES

DO NOT replace the battery with a different model.
DO NOT use this product if the battery shows signs of damage Including, but not limited to tearing, deformation, leakage, or the smell of electrolytic material.
DO NOT touch the battery Ii material is leaking and seek immediate medical attention if any material comes Into contact with your skin or eyes.
DO NOT expose the battery to liquid, heat sources, electricity (outside of the product itself), or other non-standard operating condition.
DO NOT remove the battery except for proper disposal and recycling as re<:1ulred by local laws and regulations.
DO NOT impact, bend, alter, dissemble, or otherwise damage the tJattery as the contents are volatile, hazardous, and can be harmful.

CAUTION

Falling to follow all safety guidelines may result product damage, explosion, fire, and/or electric shock.
This device contains license- exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s}.
Operation is subject to the following two conditions:
(1) This device may not cause Interference.
(2) This device must accept any Interference, Including Interference that may cause undesired operation of the device.
