Redragon S101 Gaming Keyboard User Manual

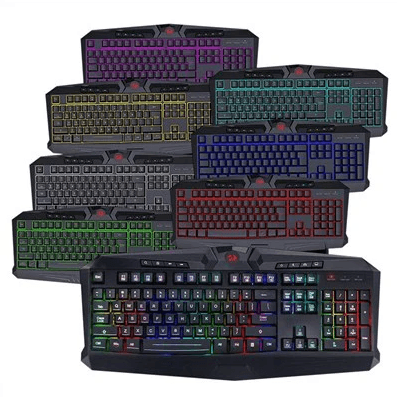

Redragon S101 Gaming Keyboard

Dear user

Thank you for choosing the Redragon Brand. To protect your rights and for better customer service, we ask that you note the warranty rules.

1. Within the guarantee period, repair is guaranteed for failure due to electrical circuit problems. Man-made damages, such as disassembly, hard impacts, submersion into water, plugging into improper current or voltage, and damage caused by natural disasters such as fire, flood, or earthquake, are not included.
2. Consumable parts (such as foot sticks) and spare parts replacement are not included in our warranty.
3.  Please fill out the Warranty card. The warranty card is valid with the stamp of the retailer.
4. This warranty card will not be reissued if lost. Please keep it in a safe place.

OS support

Windows XP/Vista/Win7/WinB/Win10

Function Introduction

• Installation: Plug & Play, no need for driver
• Keyboard interface: USB port, Full speed
• 25 N-key roll-ober: Q, A, Z, W, S, X, E, D, C, R, F, V, T, G, B, M, Space, Tab, Ctrl-L, Alt-L, Shift-L, up, down, left, right arrows
• RGB -lighting effects

1. FN+DEL, Neon mode in red, blue, and green colors.
2. FN+INS, Spectrum mode in 7 colors.
3. FN+END, Enable or disable the breathing mode of the backlight.
4. FN+HOME, static mode in one of 7 colors( red, green, blue, yellow, purple, cyan, white).
5. FN+PGUP, static mode in one of 3 color sequences (red-blue-green, green-red-blue, blue-green-red).
6. FN+PGDN, ON/OFF switch mode.

• Brightness adjustment:

1. FN+up arrow for brightness level +
2. FN+down arrow for brightness level –

• Backlighting adjustment:

1. FN+right arrow speed up
2. FN+left arrow speed down

• Win key lock function

N+WIN-L for disabling the WIN key and menu key. Repeat to unlock.

Multi-media keys

• FN+F1 Open the media player
• FN+F2 Volume down
• FN+F3 Volume up
• FN+F4 Mute
• FN+F5 Stop
• FN+F6 Pre-track.
• FN+F7 Play/Pause
• FN+F8 Next track
• FN+F9 E-mail
• FN+F10 Home
• FN+F11 Open my computer
• FN+F12 Search

FAQ

1. If the keyboard doesn’t respond, please check if the keyboard’s USB cable is correctly inserted into the corresponding USB port on the computer, or try another USB port on the computer.
2. If you spill liquid on the keyboard, please remove the keyboard USB cable from the computer immediately. Wipe up excess liquid and put the keyboard in a warm place (for instance, under a lamp), to let the keyboard dry naturally before using again.

OS support

Windows XP/Vista/Win7/Win8

Key Instructions

1. The left and right keys.
2. Scroll button, The scroll button is the equivalent of the middle button.
3. Supports 4 resolution speeds. When the DPI button is pressed, the mouse DPI resolution will switch among four gears (800/1600/2400/3200), and the mouse movement speed will change simultaneously.
4. Two side keys, the default function is forward, backward.

Light instructions

The mouse is backlit when working. Every time the DPI button is pressed. LED twinkle will be sped up as long as the DPI level goes higher. The corresponding twinkle LED light speed and DPI gear are as follows:

1. LED twinkle speed level 1—800 DPI.
2. LED twinkle speed level 2—1600 DPI.
3. LED twinkle speed level 3—2400 DPI.
4. LED twinkle speed level 4···3200 DPI.

Counterbalance Instructions

Built-in counterpoise, which can carry up to 8 balance weights, allows users can adjust the weight by adding or reducing the counterpoise.
