Rointe KYROS Digital Electronic Radiator Instruction Manual

Rointe KYROS Digital Electronic Radiator Instruction

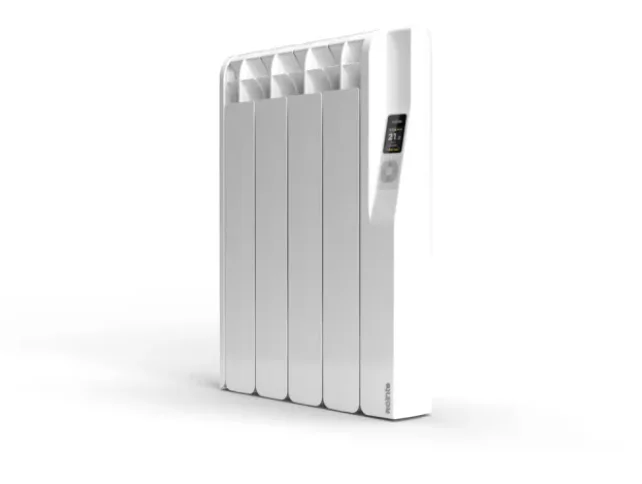

KYROS Radiator Information

Control Panel

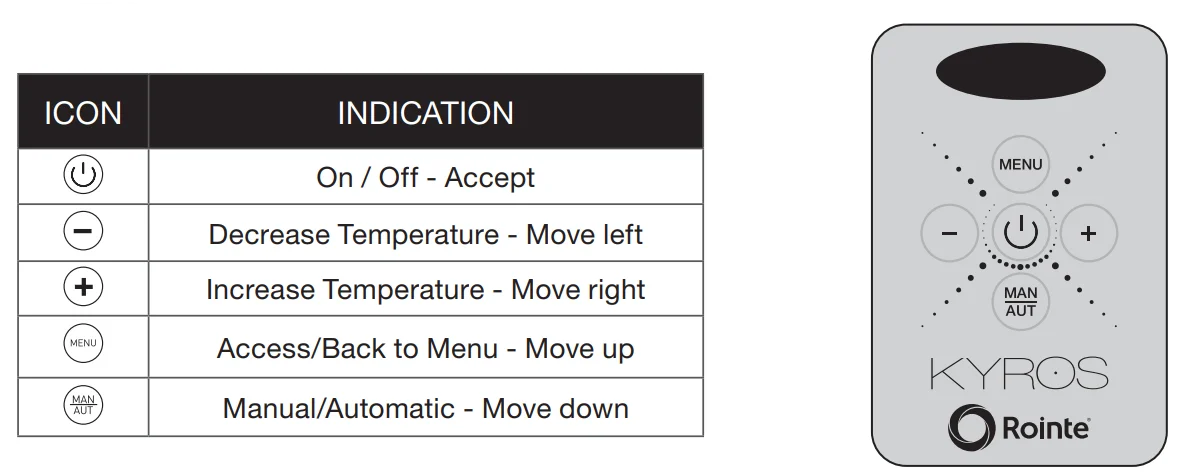

Keypad

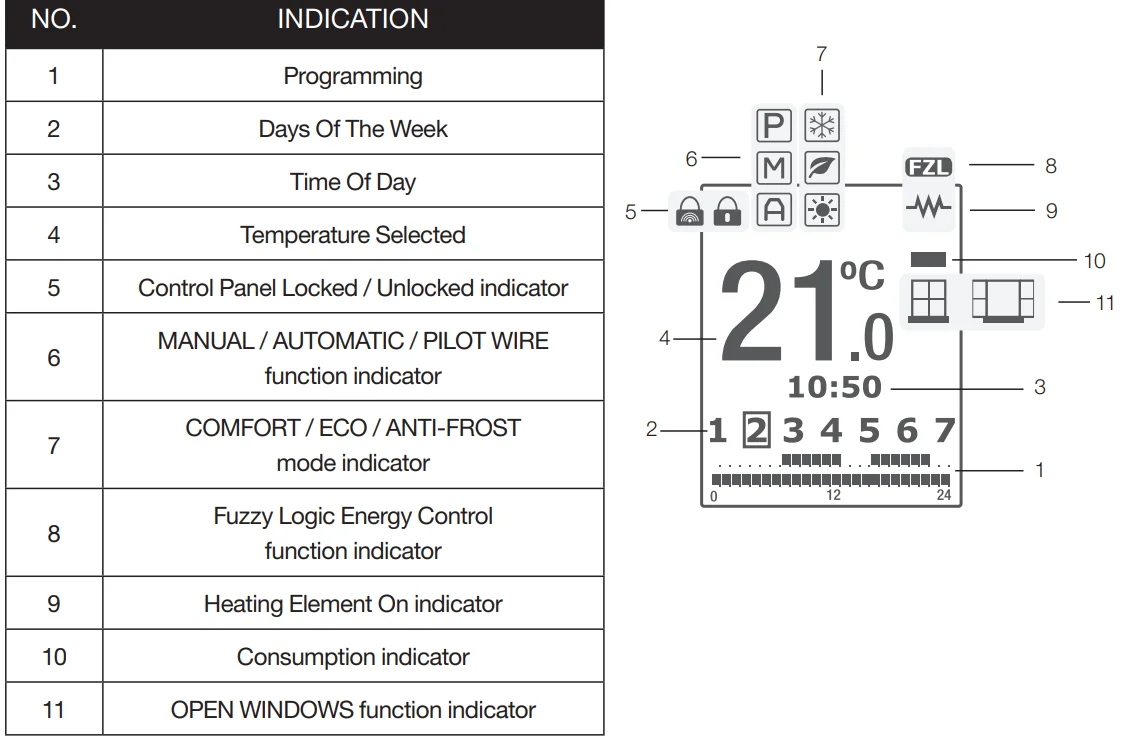

Display Panel

Switching On and Off (stand-by)

To switch the product ON, please press the button once.

The image to the right will appear on the display panel when the product is switched on.

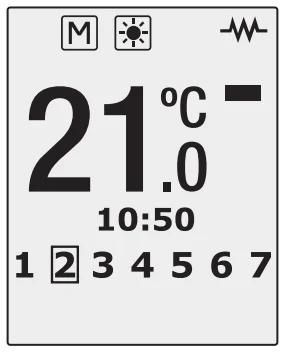

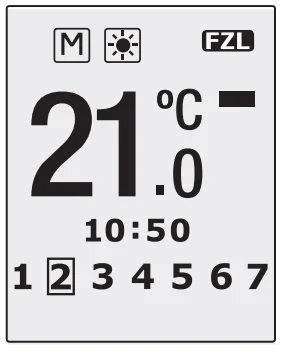

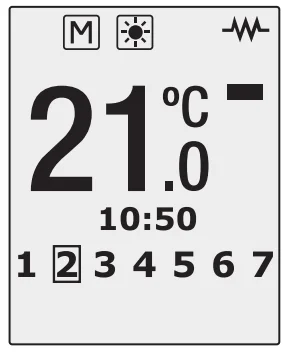

After 5 seconds, the temperature, time,  and days of the week will be displayed on the display panel.

To switch the product OFF, please press the button again once.

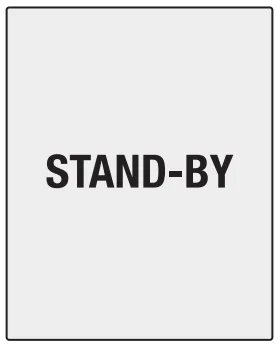

The product will go into stand-by mode with the word ‘STAND-BY’ displayed on the display panel.

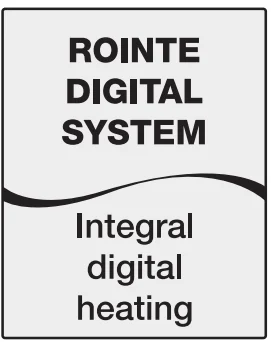

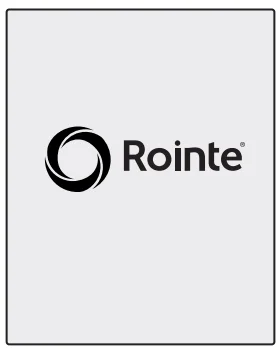

After 5 seconds, the Rointe logo will appear.

Adjust the Day and Time

To set the day and time, please press the button on the keypad panel to access the Main Menu.

Select the `Settings´ menu using the or buttons on the keypad. To move left, press the button to move right, press the button. Once the icon is highlighted on the display panel, press the button to access.

Now use the and buttons again to select the clock option and press to access.

Use the buttons and to set the hour, then press to confirm.

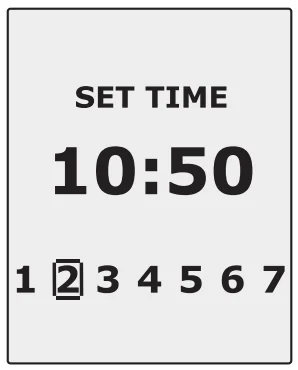

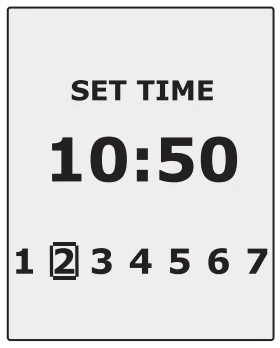

Then use the and buttons to set the minutes and press to confirm. Finally, use the and buttons to set the day (1 = Monday, 2 = Tuesday, etc.) and confirm by pressing the button.

Temperature Selection

To change the temperature, please press the or the button. To decrease the temperature, press the  button,  and to increase the temperaturere-press  the button.

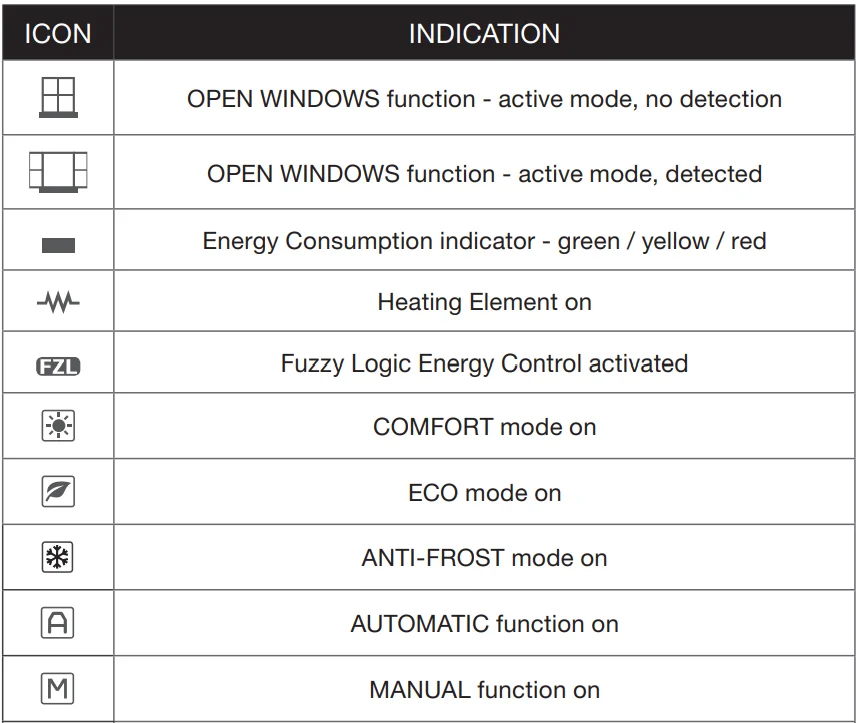

When the room temperature is lower than the set temperature on the display panel, the product will come on with the symbol appearing in the top right of the display panel.

When the Fuzzy Logic Energy Control technology is activated, the symbol  will replace the symbol in the top right of the display panel.

To learn more about Fuzzy Logic Energy Control technology, please see point 1.8. on page 21 of this manual.

Locking the Keypad

You can lock the keypad from your product or from your remote control* (optional).

TO LOCK USING THE KEYPAD

To lock the keypad manually, please hold and press the button AND the button TOGETHER for 3 seconds.

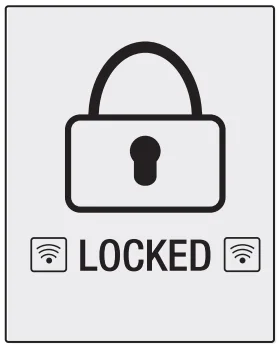

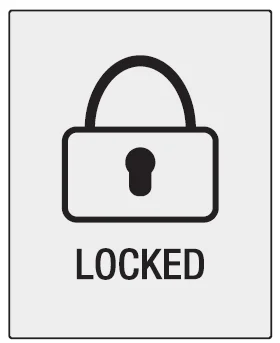

The symbol will appear on the display panel, and the keys will not respond.
To unlock the keypad manually, please hold and press the button AND the button TOGETHER for 3 seconds.

*To lock the keypad using your remote control, please see the corresponding instruction manual for your remote control separately.

Please note that if you lock your product using your remote control, then you can only unlock using the remote control. If your product is locked using your remote control and you press the keypad on your product, en the following image will appear on the display panel.

Main Menu

The Main Menu is accessed by pressing the menu  button.

You can navigate through the different options available on the menu by pressing the and buttons to move left and right, respectively, and to scroll through all 4 options.

The selected sub-menu will be highlighted with a frame, as shown in the image to the right on the `Settings´ section of the display panel.

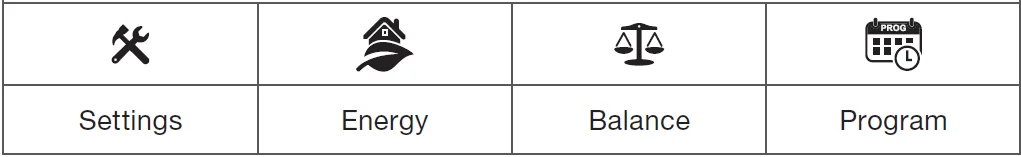

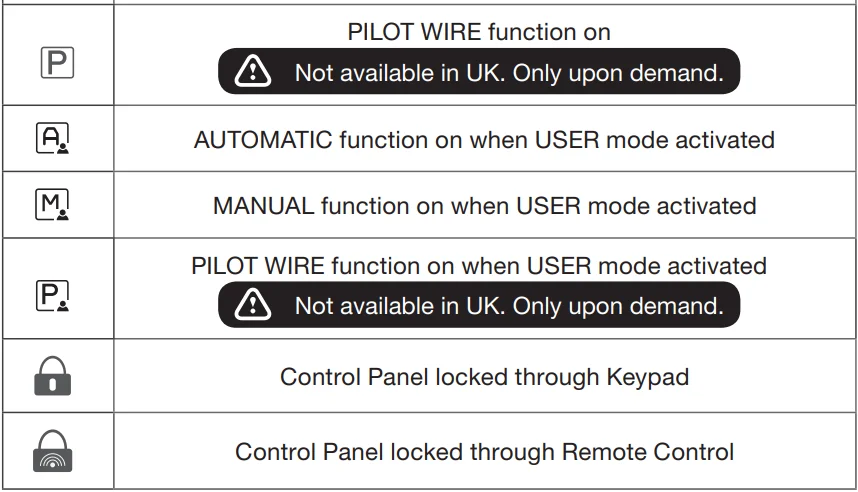

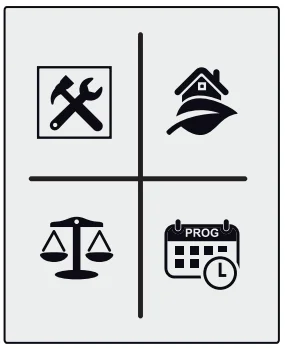

The icons below displayed on the screen take you to the following sub-menus:

Main Menu: Settings sub-menu

The `Settings´ sub-menu configures the technical parameters of your product.

To access, select the icon displayed in the Main Menu screen and press to confirm.
Use the  and buttons to move across the different options on the sub-menu to choose your parameter and press to access.

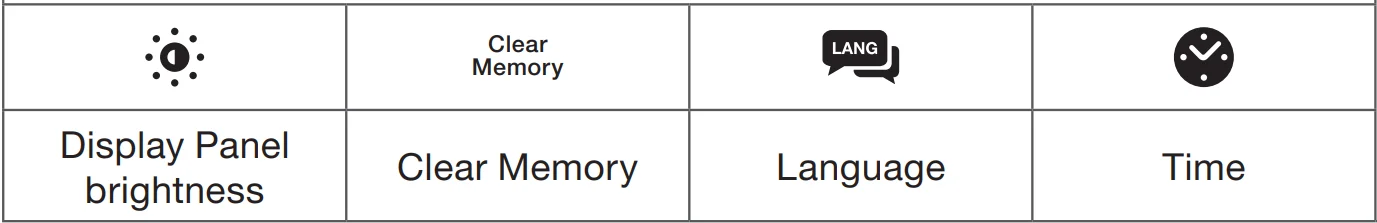

The icons below displayed on the screen take you to the following parameters:

• Adjust the brightness of the Display Panel..

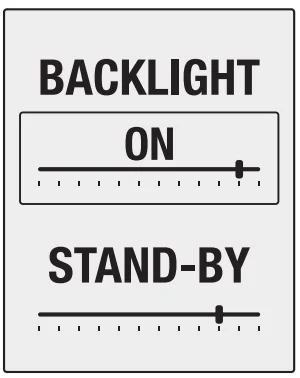

  This allows you to change the brightness of the display panel in both the STANDBY and ON modes separately. To change the brightness, ensure the icon is highlighted and press the button to confirm. T,,  hen with the buttons and you can switch between the two modes.
  With t and buttons, you can increase or decrease the brightness as you wish.
  The cursor indicates the intensity of the light. Once you have set the required brightness, press the button to save and exit.

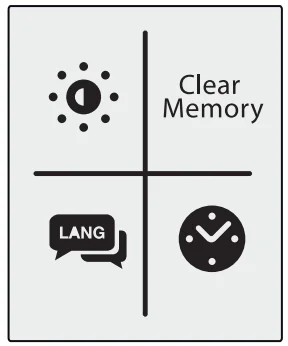

• Clear the Memory
  This allows you to clear any information saved in your product.
  To clear the memory, ensure the icon is highlighted in the `Settings´ sub-menu and press the button to confirm.

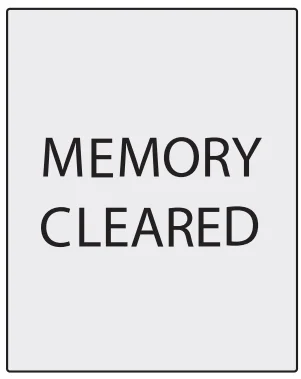

  The display panel will show when complete, and the language will change to default.
• Change the Language

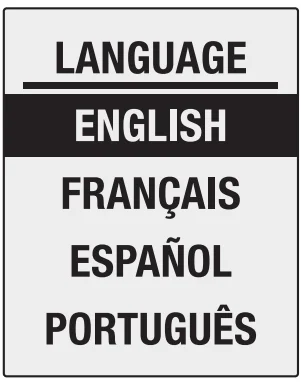

  To set your chosen language, ensure the icon is highlighted in the `Settings´ sub-menu and press the button to access.
  Use the and buttons to move up or down, respectively, until your chosen language is highlighted and confirm by pressing the button.
• Adjust/Set the Time
  This option sets the hour, minutes, and day of the week in your product. Please refer to section 1.3. on page 7 of this manual.

Main Menu: Energy sub-menu

The `Energy´ sub-menu provides access to functions related to energy management of the product. To access, select the icon displayed in the Main Menu screen and press to confirm.
Use the and buttons to move across the different options on the submenu to choose your function and press to confirm.

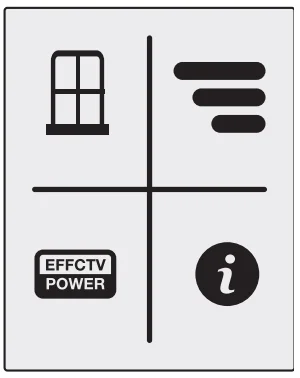

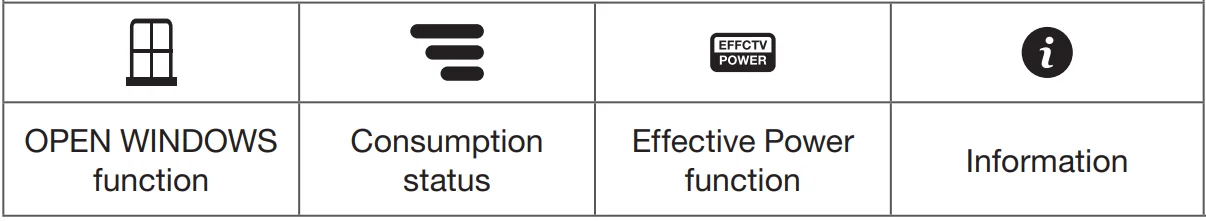

The icons below displayed on the screen take you to the following functions:

• OPEN WINDOWS function

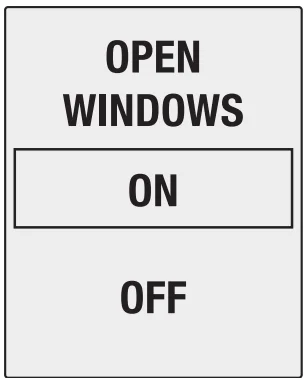

  To set the OPEN WINDOWS* function, ensure the icon is highlighted in the `Energy´ sub-menu and press the button to access.
  Use the and buttons to move up or downrespectivelyyy, until your preference is highlighted and confirmed by pressing the button.
  *To learn more about how this function works, please go to point 1.7. on page 21 of this manual.
• Consumption status
  To check the current consumption status of your product, ensure the icon is highlighted in the `Energy´ sub-menu and press the  button to access.

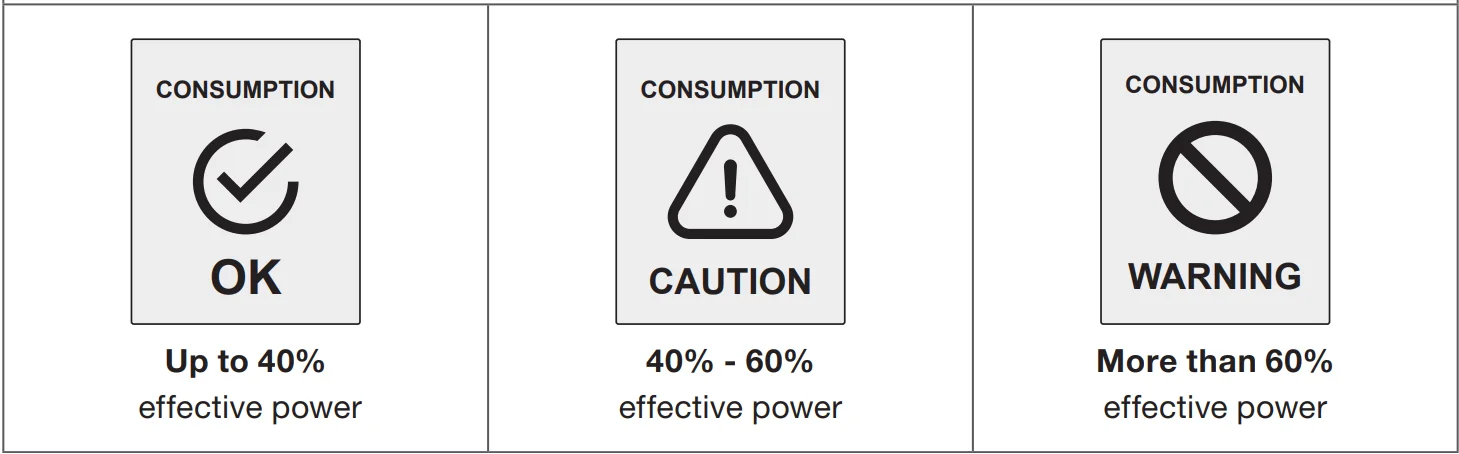

  The display panel will then show a status according to the current state of consumption of the product:
• Effective power function
  To check the Effective Power status of your product, ensure the icon is highlighted in the `Energy´ sub-menu and press the button to access.
  • The display panel will then show a status according to the current state of consumption of the product:
    • Working Time
    • Total Time

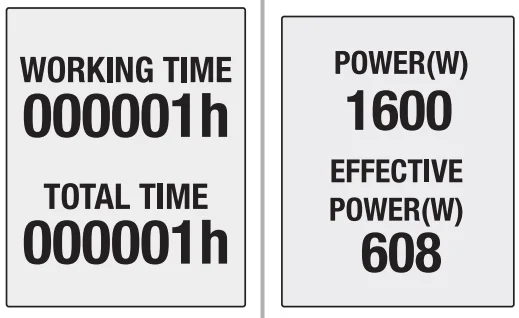

  • After 6 seconds, the display panel will then show:
    • Nominal Power (w)
    • Effective Power* (w)

  *The effective power is the actual value of its nominal power that the product consumes during periods of operation.



• Information

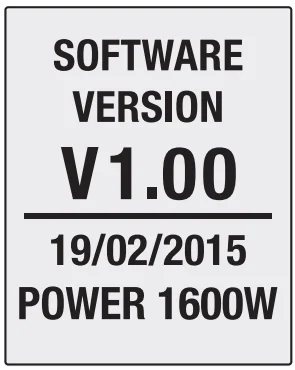

  This function will display the software version, the date of this release, and the rated power of the product.
  To access this information, ensure the icon is highlighted in the `Energy´ sub-menu and press the button to confirm. The information will then show in the display panel.

Main Menu: Balance sub-menu

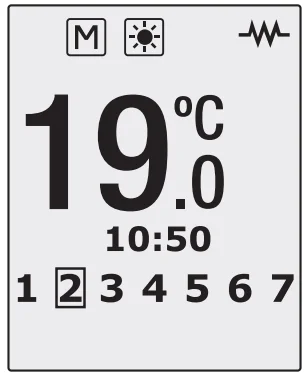

The `Balance´ sub-menu/function returns the product to a constant temperature of 19°C. To activate this function, ensure the icon is highlighted in the `Balance´ sub-menu and press the button to confirm. The product will return to the display panel in MANUAL function, with the temperature set to 19ºC.

Main Menu: Program sub-menu

This section explains the operational aspects of your product in its various functions and modes.

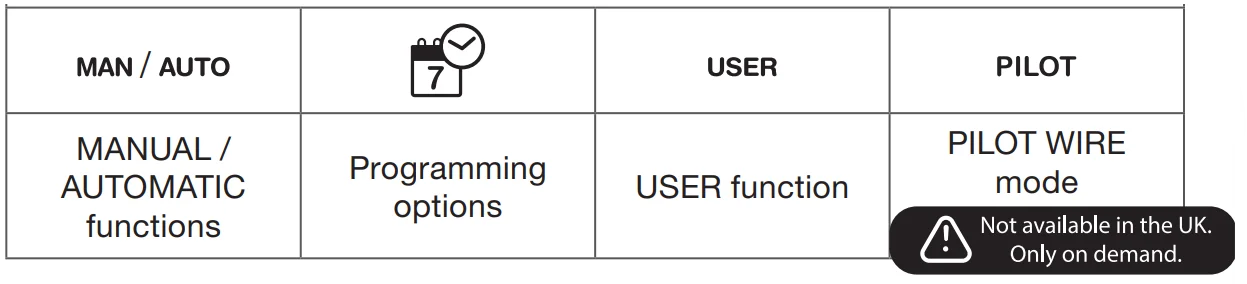

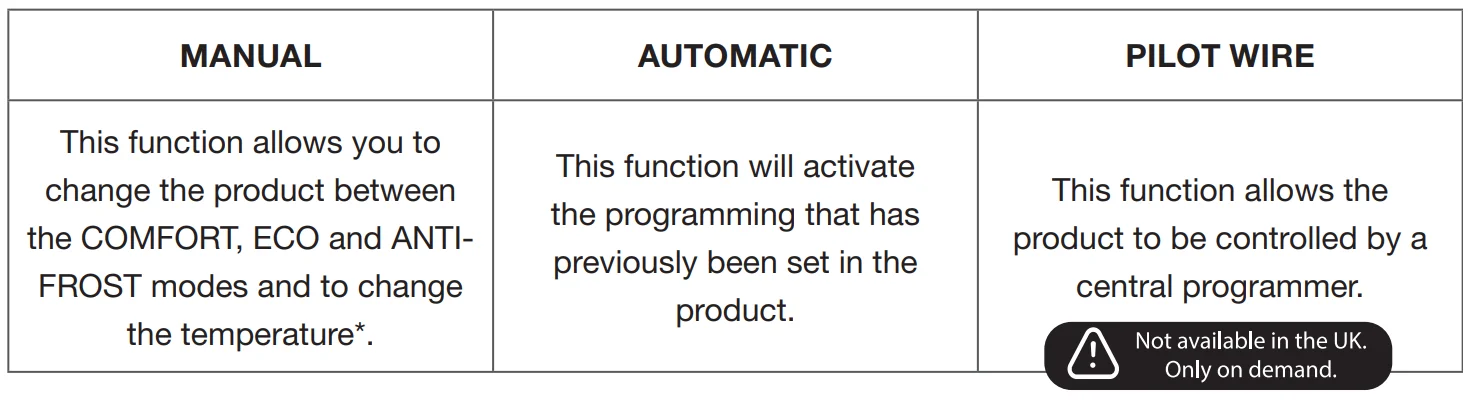

What are the functions of MANUAL, AUTOMATIC, and PILOT WIRE mode?

* To change the temperature, please see point 1.4 on page 7 of this manual.

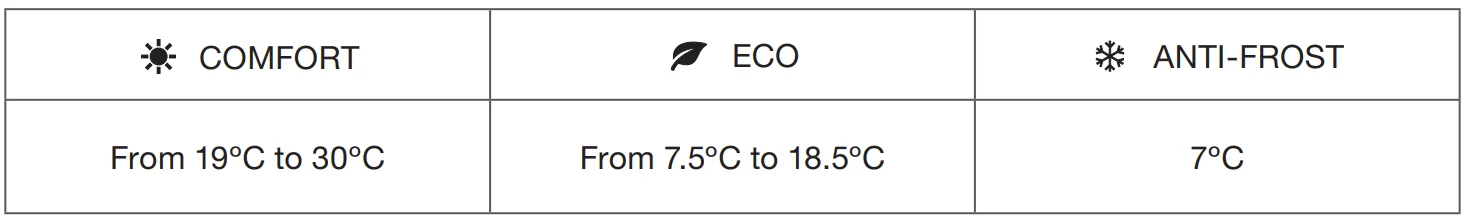

What are COMFORT, ECO, and ANTI-FROST modes?

These modes are the different temperature ranges available within the product.

The `Program´ sub-menu provides access to functions related to programming the product. To access, select the icon displayed in the Main Menu screen and press to access.
Use the and buttons to move across the different options on the sub-menu to choose your program and press  to access.

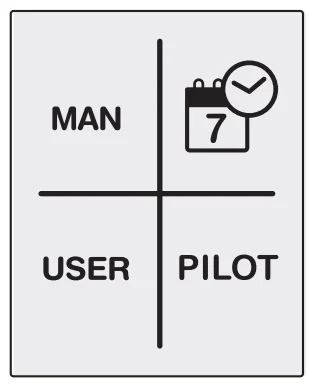

The icons displayed on the screen take you to the following functions:

Maintenance & Cleaning

The product does not require any type of maintenance. We recommend that all parts of the product be kept clean (behind, underneath, upper fins, etc.). Do not use any abrasive product on the aluminium. Clean the product with a damp cloth and a pH-neutral soap, and the control panel with a dry cloth.

Installation & Safety Precautions (EN 60335 Standards)

Before switching on the product, please read the “Installation & Safety Precautions” in detail first to ensure the correct operation of the product.

Installation precautions

The product is designed for household or residential use. You are advised to have the product installed by an authorized professional installer. Make sure the product is properly connected to 230V and is earthed.

Safety precautions

This product can be used by children aged 8 years and above and persons with reduced physical,  sensory, or mental capabilities or lack of experience and knowledge if they are supervised or have been given instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance should not be carried out by children without supervision. Children must be supervised at all times to ensure that they do not interfere with the product.

This product is filled with a precise amount of special oil that does not need any maintenance. Any repairs requiring the opening of the oil tank must only be done by ROINTE or its after-sales service personnel, who should also be notified should an oil leak be noticed. The regulations on discarding oil when the heater is being disposed of must be observed. If the power cable is damaged, it must be replaced by the manufacturer, its after-sales service, or authorized personnel in order to avoid any damage.

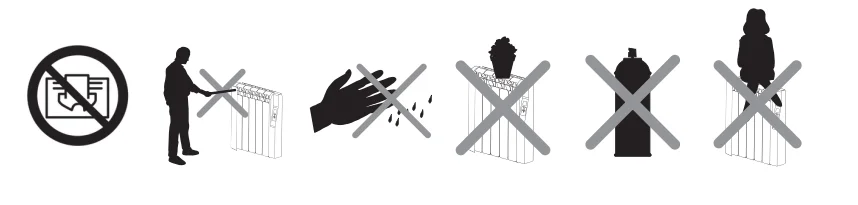

WARNING! In order to avoid overheating, don’t cover the product. Don’t insert any kind of object in the air vents. Never use it with wet hands. Don’t place any containers with water, such as glasses, vases, etc., on or near the product. Don’t use insecticides, paint, or aerosols on or near the product. Don’t sit on the product or place anything in front of it.

European Directive 2012/19/EU

Under the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE), the product cannot be disposed of in the usual council bins and containers. They must be separated to optimize the recovery and recycling of all of the components and materials, and reduce the impact on human health and the environment. The symbol of the container crossed out over a horizontal line is marked on all of ROINTE’s products to remind the consumer of the obligation to separate them on disposal.

The consumer should contact the local authority or original point of sale to learn more about the correct disposal of this product.

Guarantee

In this section, we hereby describe the guarantee conditions that the buyer acquires upon buying this product from ROINTE. These conditions comply with all the rights construed in the national legislation in force, as well as any additional rights and guarantees, which are offered by ROINTE.

1. Any incident that you might detect in your ROINTE product can be sorted by the product seller or quickly by the manufacturer. Please contact ROINTE by telephoning 0203 321 5929 for Technical Support. Alternatively, you can email ROINTE at [email protected], through which we will instruct you on how to solve the incident.

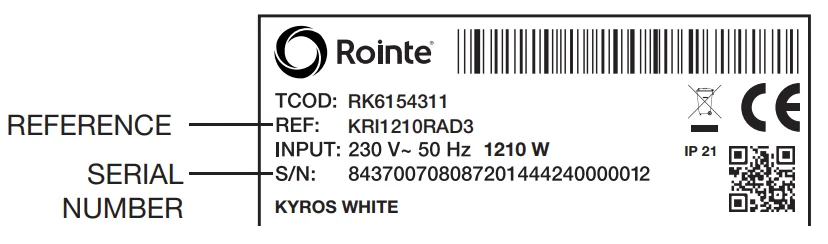

   You will need to state the product reference (located on the label indicating product features), serial number, proof of purchase, and the type of incident at hand when contacting us so that we can check the guarantee. In addition, please attach a copy of the product invoice.
2. ROINTE guarantees that there are no material defects of design or manufacture at the time of original acquisition and guarantees the aluminium for a period of 240 months and any electronic and electrical components for 36 months.During the guarantee period, the product does not work correctly under normal use, and any design, material, or manufacturing defect is found, ROINTE will repair or substitute the product as it may see fit, in accordance with the terms and conditions as follows:
3. 1. The guarantee is only applicable if the original guarantee is issued by the seller and when the said guarantee is filled in correctly, including product reference, series number (marked on the product’s label indicating technical features), purchase date, and the seller’s stamp. ROINTE reserves the right to reject the guarantee service when this information has been removed or modified after the original product purchase.
   2. The guarantee only applies to those cases that concern material, design, and manufacturing defects, and under no circumstances covers damage to the product for the following reasons:
      1. Incorrect use of the product, i.e., used for other purposes that are not construed as its normal use oro,,r for not respecting the instructions of use and maintenance given by ROINTE, as well as incorrect installation or use of the product that may not comply with the current technical standards of safety.
      2. Corrosion caused by direct exposure to salt water is excluded from the guarantee. When the product is installed no more than 200m from the coast, the guarantee for damages caused by corrosion the period will be reduced by 50%.
      3. Any unauthorized repairs carried out by unauthorized technicians or opening of the product by unauthorized people.
      4. Any accidents that are deemed outside the control of ROINTE, such as lightning, fires, floods, natural disasters, public disorders, etc.
   3. Any repairs or substitutions that are included in this guarantee do not allow any additions or new periods of guarantee.
   4. Any repairs or substitutions covered under this guarantee must be functionally equivalent parts. The defective parts or parts removed or replaced shall become the property of ROINTE.
4. The Technical Service department of ROINTE will advise you if you need to buy any parts not covered under the guarantee or out of guarantee.
5. This guarantee does not affect the buyer’s legal rights stipulated in the current national legislation, nor affects those rights against the distributor or installer that could come forth in compliance with the purchase contract.
6. In the absence of a national legal legislation applicable, this guarantee shall prevail and may be construed as the buyer’s only protection. ROINTE, its offices, distributors, and installers may not be held responsible for any accidental damage that emerges due to infringement of any rules implicitly related to this product.

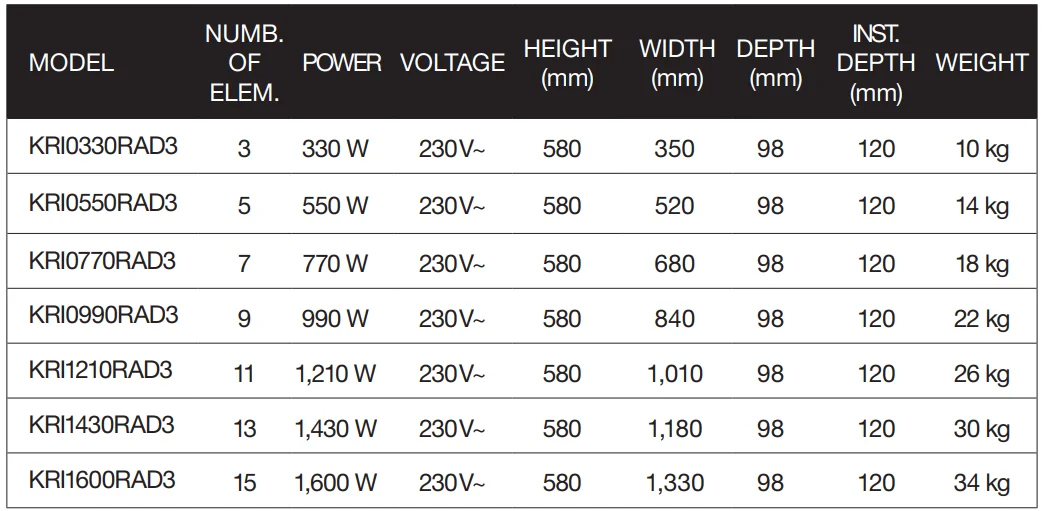

KYROS Radiator Technical Characteristics

CERTIFICATE OF GUARANTEE

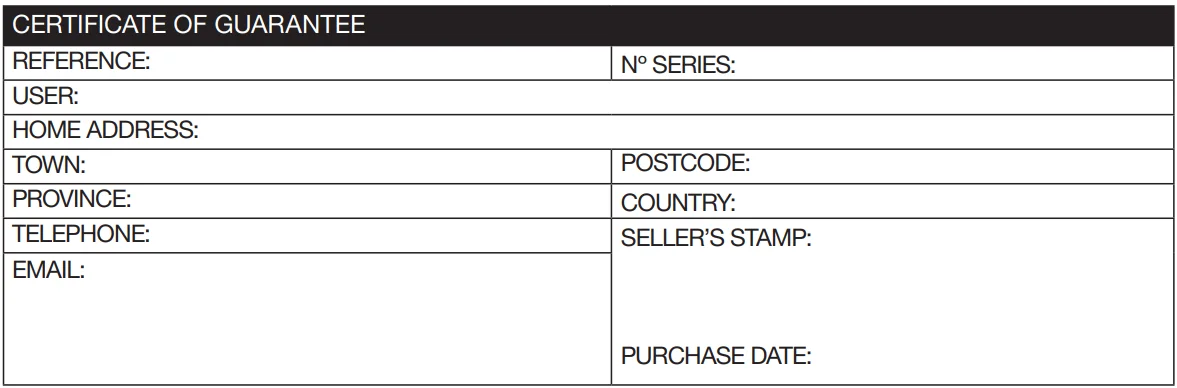

In the event of detecting any defect in the product within the period of guarantee, you must fill in the following Guarantee Certificate and send it to us stamped together with a copy of the sales invoice via email to [email protected] or to the following postal address: INDUSTRIAS ROYAL TERMIC, S.L., C/E, Parcela 43, 30140 Santomera (Murcia, Spain).

For new constructions must attach the Certificate of First Occupation.

NB: This certificate of Guarantee must be filled in out in full to obtain guarantee rights. The date of purchase and the seller’s stamp are compulsory. Please attach a copy of your sales invoices. In addition, for new constructions, include a certificate of first participation.
