S7 MIG 200 Welder User Manual

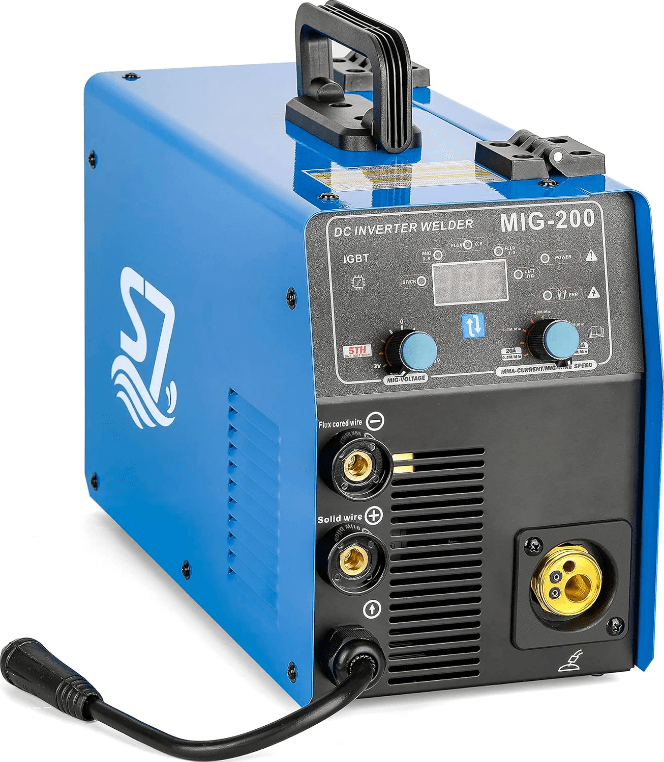

S7 MIG 200 Welder

ARC Mode

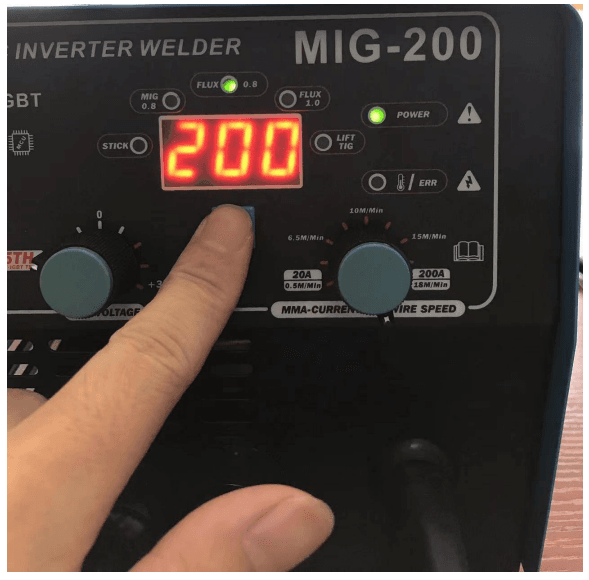

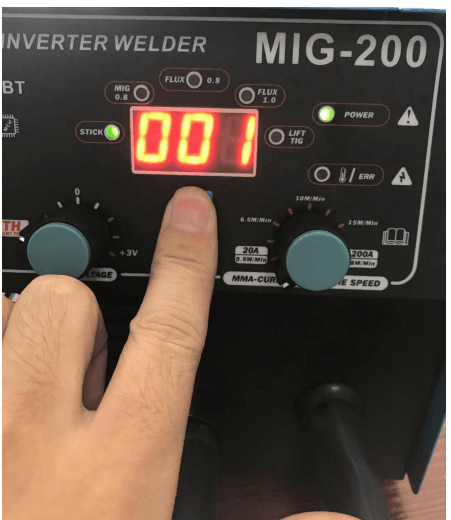

• Step 1– Press the blue button below the LCD to select “STICR”.

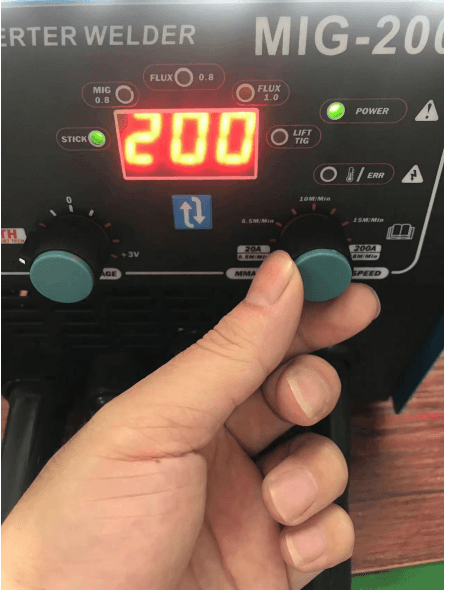

• Step 2– Adjust the current knob to increase the current.

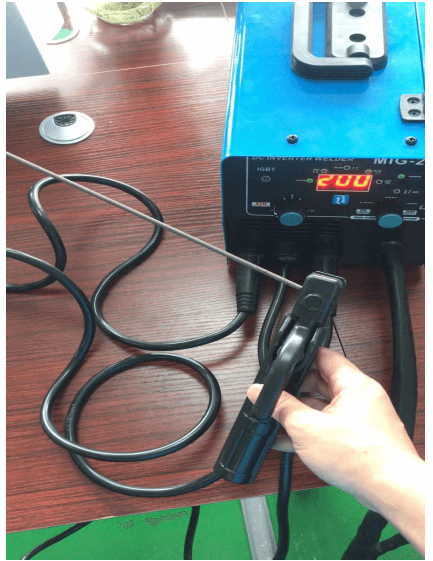

• Step 3– Connect the ground clip and solder the handle to the machine.
• Step 4– Clamp the ground clamp to the workpiece.
• Step 5– The welding handle clamps the electrode, and the welding work starts.

MIG function

MIG 0.8 Mode（This mode is needed to use with carbon dioxide gas and 0.8 solid wire）

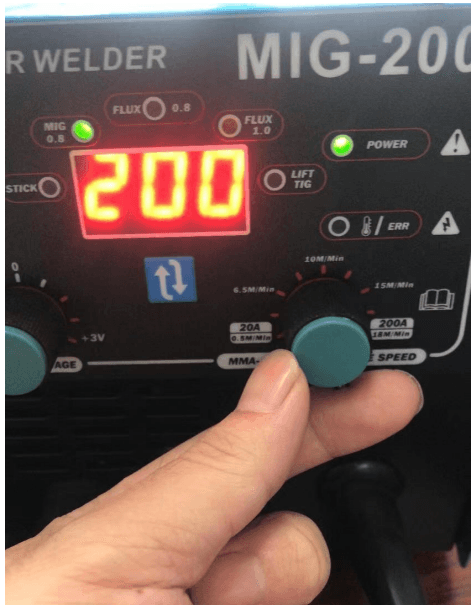

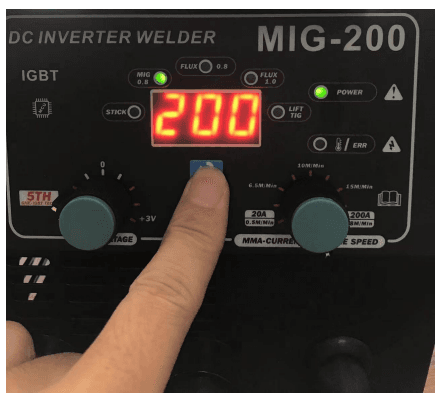

• Step 1– Press the blue button below the LCD to select “MIG 0.8”
• Step 2– Adjust the current knob to increase the current
• Step 3– Connect carbon dioxide gas

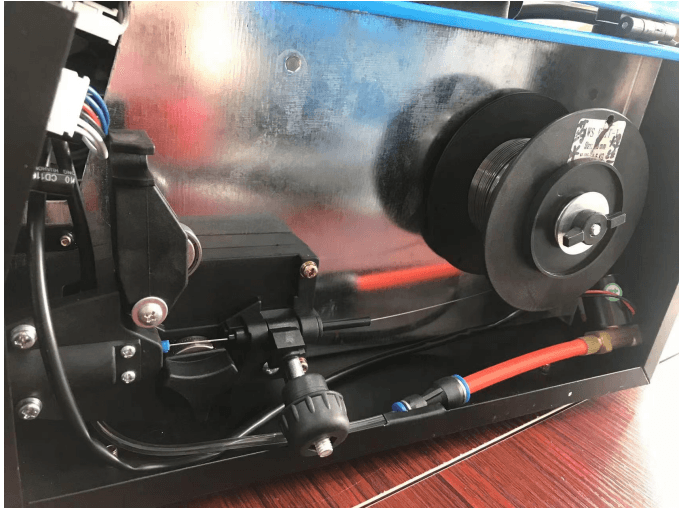

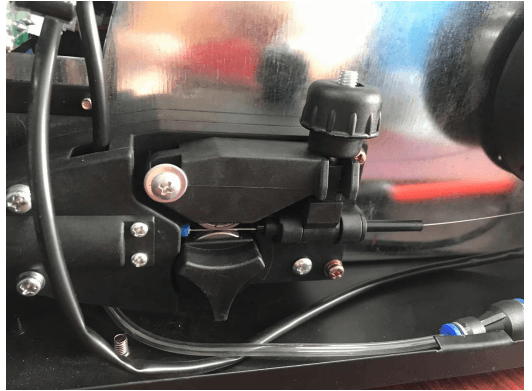

• Step 4– Install the welding wire. Click the link below to watch the wire installation.
  https://www.amazon.com/ask/questions/Tx14BVHOSFNO21R/ref=ask_dp_dpmw_al_hzaConnect the welding wire to the wire feeding device, pay attention to insert the welding wire directly into the wire guide tube, and then press the welding wire well.

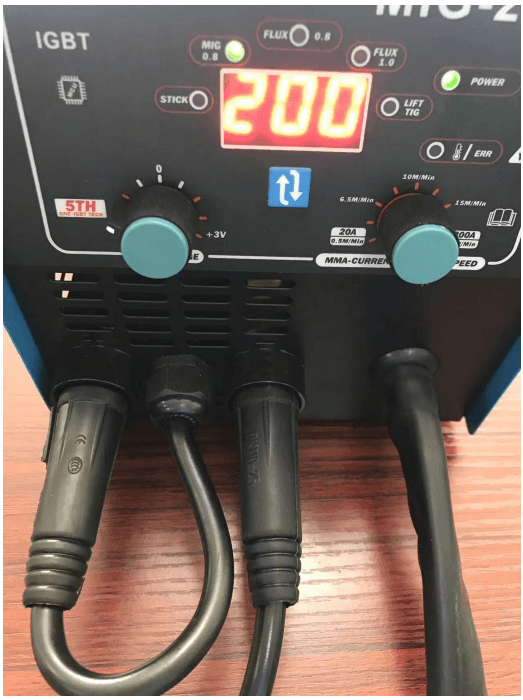

• Step 5-Connect the ground clip and output wire to the machine.

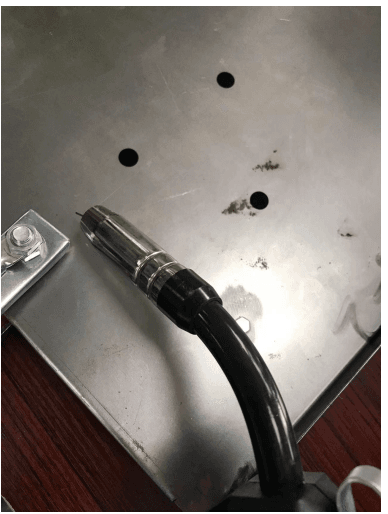

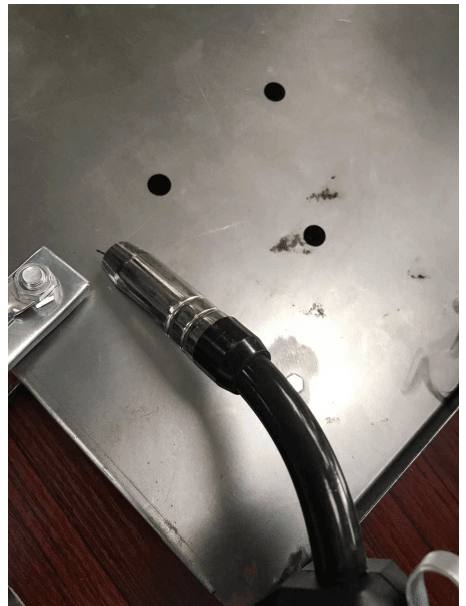

• Step 6-Clamp the ground clip to the workpiece, then start your MIG work.

MIG- FLUX 0.8 Mode(Request 0.8 flux cored wire, no need to connect any gas）

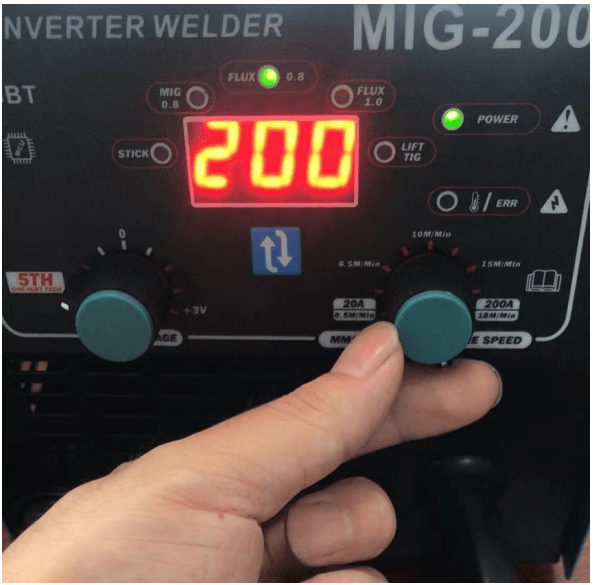

• Step 1– Press the blue button below the LCD to select “FLUX 0.8”

• Step 2– Adjust the current knob to increase the current

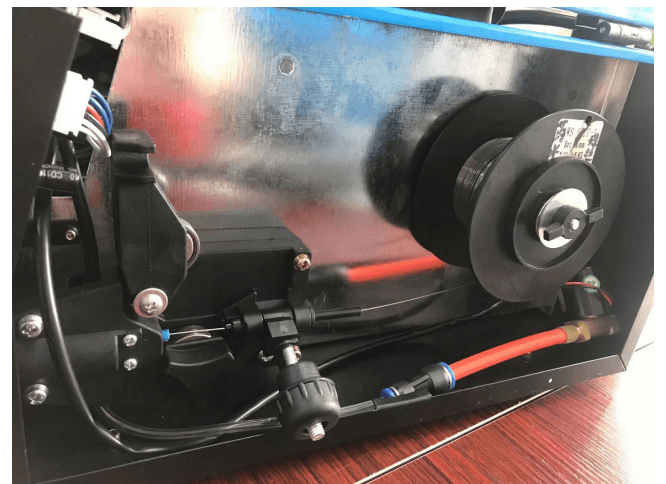

• Step 3-Install the welding wire. Click the link below to watch the wire installation.
  https://www.amazon.com/ask/questions/Tx14BVHOSFNO21R/ref=ask_dp_dpmw_al_hza

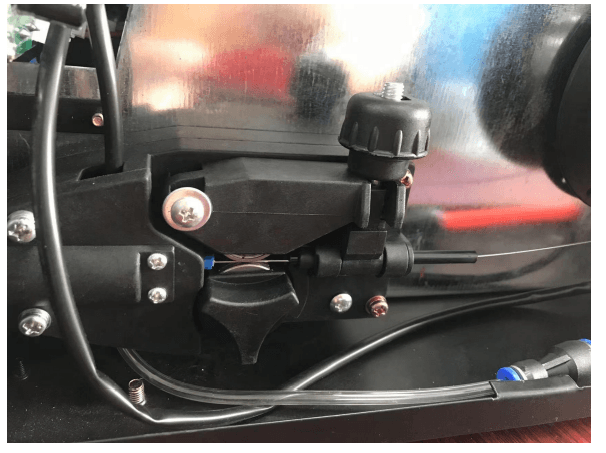

• *Connect the welding wire to the wire feeding device, pay attention to insert the welding wire directly into the wire guide tube, and then press the welding wire well.

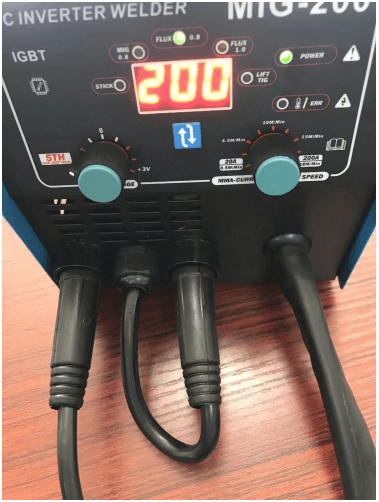

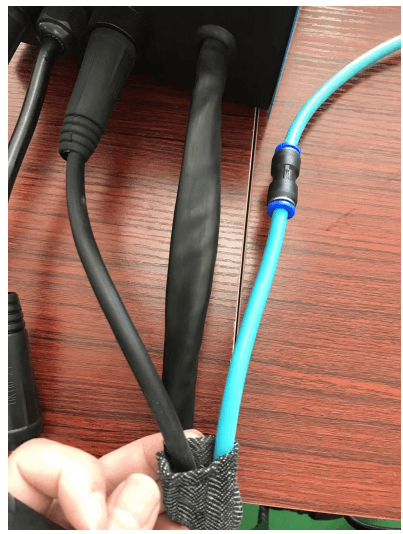

• Step 4– Connect the ground clip and output wire to the machine (Note that the method of installation is different from that of solid wire; refer to the following figure to install)
• Step 5-Clamp the ground clip to the workpiece, then start your MIG work.

MIG- FLUX 1.0 Mode(Request 1.0 flux cored wire, no need to connect any gas）

* All the steps are the same as FLUX 0.8 Mode, just request to use 1.0 flux cord wire.

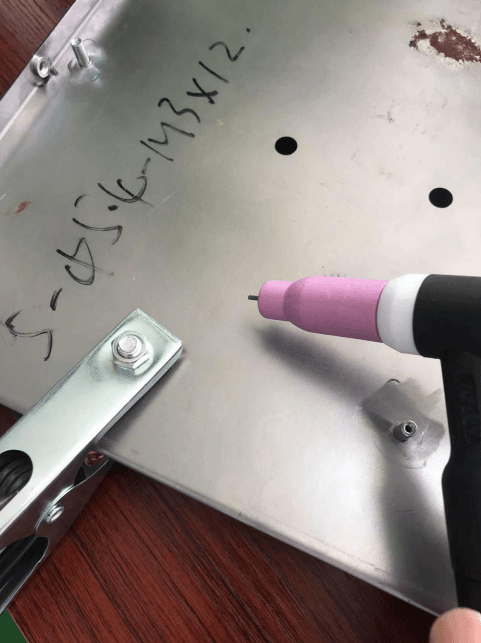

TIG Mode（Use with Air Cooled Lift TIG Torch)

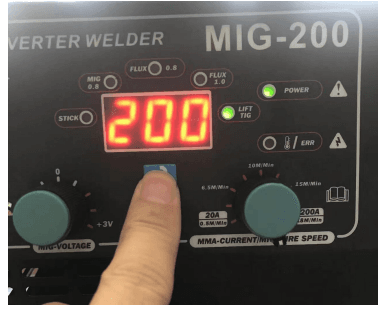

• Step 1– Press the blue button below the LCD display to select “LIFT TIG”
• Step 2– Adjust the current knob to increase the current

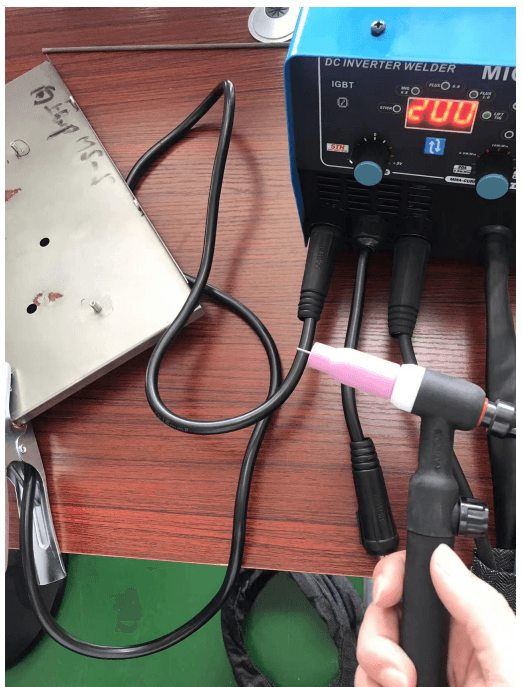

• Step 3-Connect the ground clip and TIG torch to the machine.
• Step 4– Put argon gas into the gun’s trachea
• Step 5– Rotate the knob on the TIG torch to adjust the air outlet value
• Step 6– The ground clip is fastened to the workpiece, and then you can start your TIG work.
