Samsung Aa59 00600a Tv Remote control
Getting Started
Safety Precautions
Power Related
The following images are for your reference and may differ depending on models and countries.
Warning
- Avoid using a damaged power cord or plug or a loose power outlet. Otherwise, it may result in an electric shock or fire.
- Avoid plugging in or unplugging the power supply with wet hands. Otherwise, it may result in an electric shock.
- Make sure to connect the power cord to a grounded wall outlet (for insulation class 1 equipment only). Otherwise, it may result in an electric shock or injury.
- Avoid connecting multiple electric appliances to a single wall outlet. Otherwise, it may result in a fire due to overheating of the wall outlet.
- Plug the power plug in firmly. Otherwise, it may result in fire.
- Avoid bending or twisting the power cord excessively, and avoid placing heavy objects on the cord. Otherwise, it may result in an electric shock or fire due to a damaged power cord.
- Keep the power cord and the product away from a heater. Otherwise, it may result in an electric shock or fire.
- If the pins of the power plug or the wall outlet are covered in dust, clean them using a dry cloth. Otherwise, it may result in a fire.
Installation Related
Warning
- Avoid placing burning candles, mosquito repellent cigarettes on the product. Otherwise, it may result in a fire.
- Avoid installing the product in a badly-ventilated location such as inside a bookshelf or closet. Otherwise, it may result in fire due to internal overheating.
- Avoid installing the product in a location that is unstable or exposed to excessive vibration, such as on an unstable or slanted shelf. The product may fall, and this may result in damage to the product or injury. If you use the product in a location exposed to excessive vibrations, it may result in a problem with the product or fire.
- Ask an installation engineer or a relevant company to install the product on the wall. Otherwise, it may result in injury. Make sure to use the specified wall mount.
- Keep the plastic bags used to pack the product away from children. If children place the plastic bags over their heads, they may suffocate.
- Avoid installing the product in a location exposed to dust, moisture (sauna), oil, smoke, or water (raindrops), and installing it within a vehicle. This may result in an electric shock or fire.
- Avoid installing the product in a location exposed to direct sunlight, and installing the product near a heat source such as a fire or heater. This may shorten the product life cycle or cause a fire.
- Avoid installing the product where children may reach it. If a child touches the product, the product may fall, and this may result in injury. Since the front part is heavier, install the product on a flat and stable surface.
- Bend the outdoor antenna cable downwards at the location where it comes into the house so that rainwater does not flow in. If rainwater enters the product, it may result in an electric shock or fire.
- Install the antenna far away from any high-voltage cables. If the antenna touches or falls onto a high-voltage cable, it may result in an electric shock or fire.
List of Features
Media Play (USB)
Allows you to play video files, music files, and pictures saved on a USB device.

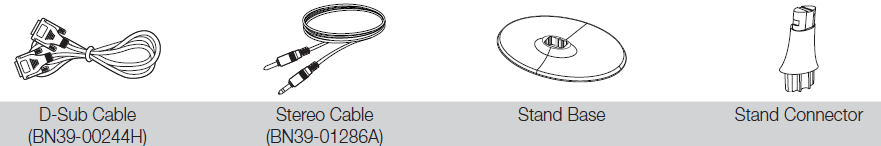

Accessories
Please make sure the following items are included with your TV. If any items are missing, contact your dealer.
The items’ colors and shapes may vary depending on the model.
Check that there is no accessory hidden behind packing materials when you open the box.
- Remote Control (AA59-00600A) & Batteries (AAA x 2)
- Warranty Card / Safety Guide / Quick Setup Guide
- Cleaning Cloth
- Power Cord
- User Manual (CD)

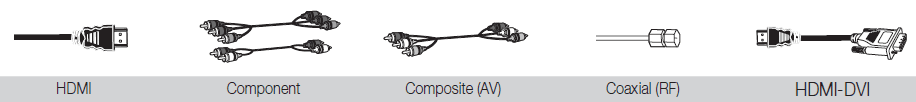

Input Cables (Sold Separately)
Check the cable before plugging
Do not plug the cable upside down.
Be sure to check before plugging.
Viewing the Control Panel
The product color and shape may vary depending on the model.
- SOURCE: Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTER button on the remote control.
- MENU: Displays an on-screen menu, the OSD (on-screen display) of your TV’s features.
- VOL: Adjusts the volume. In the OSD, use the VOL buttons as you would use the LEFT and RIGHT buttons on the remote control.
- CH: Changes the channels. In the OSD, use the CH buttons as you would use the DOWN and UP buttons on the remote control.
- Power: Turns the TV on or off.
- Remote control sensor: Aim the remote control towards this spot on the TV.
- Power Indicator: Blinks and turns off when the power is on and lights up in standby mode.
Standby mode
Your TV enters Standby mode when you turn it off and continues to consume a small amount of electric power. To be safe and to decrease power consumption, do not leave your TV in standby mode for long periods of time (when you are away on a holiday, for example). It is best to unplug the power cord.

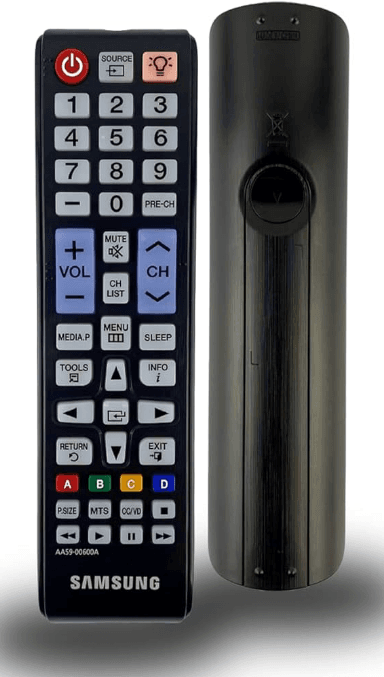

Viewing the Remote Control
This is a special remote control for the visually impaired and has Braille points on the Channel and Number “5” button.
Installing batteries (Battery size: AAA)
NOTE:
- Use the remote control within 23 feet of the TV.
- Bright light may affect the performance of the remote control. Avoid use when nearby fluorescent lights or neon signs.
- The color and shape may vary depending on the model.
How to Navigate Menus
Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.
- MENU button: Displays the main on-screen menu.
- ENTER / Direction button: Move the cursor and select an item. Confirm the setting.
- RETURN button: Returns to the previous menu.
- EXIT button: Exits the on-screen menu.
How to Operate the OSD (On-Screen Display)
The access steps may differ depending on the selected menu.
- MENU: The main menu options appear on the screen: Picture, Sound, Channel, Setup, Input, Application, Support.
- UP/DOWN: Select an icon or option with the UP or DOWN button.
- ENTER: Press ENTER to access the sub-menu.
- UP/DOWN: Select the desired submenu with the UP or DOWN button.
- LEFT/RIGHT: Adjust the value of an item with the LEFT or RIGHT button. The adjustment in the OSD may differ depending on the selected menu.
- ENTER: Press ENTER to confirm the selection.
- EXIT: Press EXIT.
Connecting to an Antenna
Connecting the power cord and an antenna or cable connection
When you move or swivel the TV with the Antenna cable tightly connected, there is a high risk antenna jack on the TV will break off.
Connections
Connecting to an AV Device

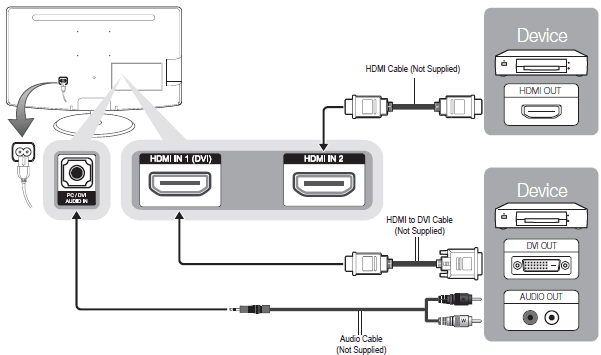

Using an HDMI or HDMI/DVI Cable: HD connection (up to 1080p)
We recommend using the HDMI connection for the best quality HD picture.
Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver
HDMI IN 1 (DVI), HDMI IN 2, PC/DVI AUDIO IN
- TB300 series have only HDMI IN 1 (DVI).
- When using an HDMI/DVI cable connection, you must use the HDMI IN 1 (DVI) jack for video. A DVD, Blu-ray player, HD cable box, or HD STB satellite receiver may require a DVI-HDMI (DVI to HDMI) cable or DVI-HDMI (DVI to HDMI) adapter.
- The picture may not display normally (if at all) or the audio may not work if an external device that uses an older version of HDMI mode is connected to the TV. If such a problem occurs, ask the manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.
- Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display, or a connection error may occur.
- For better picture and audio quality, connect to a digital device using an HDMI cable.
- An HDMI cable supports digital video and audio signals and does not require an audio cable. To connect the TV to a digital device that does not support HDMI output, use an HDMI/DVI and audio cables.

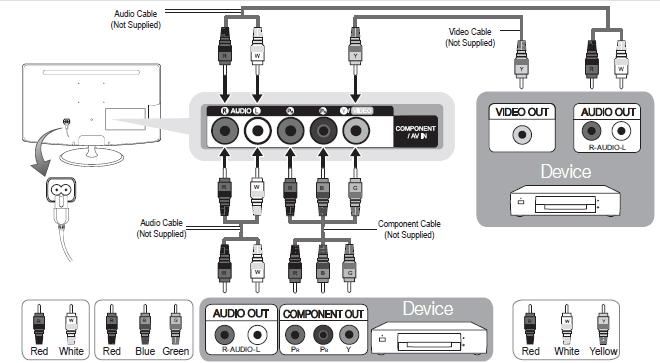

Using a Component (up to 1080p) or Audio/Video (480i only) Cable
Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR
When connecting to AV IN, the color of the AV IN [Y/VIDEO] jack (green) will not match the video cable (yellow).
For better picture quality, the Component connection is recommended over the A/V connection.
Other Information
Troubleshooting
If the TV seems to have a problem, first review this list of possible problems and solutions. If none of the troubleshooting tips apply, visit www.samsung.com/support or call Samsung Customer Service at 1-800-SAMSUNG(1-800-726-7864).
| Issues | Solutions and Explanations |
| PC Connection | |
| A Mode Not Supported message appears. | • Set your PC’s output resolution so it matches the resolutions supported by the TV. |
| The video is OK, but there is no audio. | • If you are using an HDMI connection, check the audio output setting on your PC. |
| Poor picture | First of all, please perform the Picture Test and confirm that your TV is properly displaying the test image. (go to MENU – Support – Self Diagnosis – Picture Test) If the test image is properly displayed, the poor picture may be caused by the source or signal. |
| The TV image does not look as good as it did in the store. | • If you have an analog cable/satellite box, upgrade to an HD digital set-top box. Use HDMI or Component cables to deliver HD (high definition) picture quality. • Cable/Satellite subscribers: Try HD stations from the channel lineup. • Antenna connection: Try HD stations after performing the Auto program. Many HD channels are upscaled from SD(Standard Definition) content. • Adjust the Cable/Sat box video output resolution to 1080i or 720p. • Make sure you are watching the TV at the minimum recommended distance based on the size and definition of the signal. |
| The picture is distorted: macro block error, small block, dots, pixelization. | • Compression of video content may cause picture distortion, especially in fast-moving pictures such as sports and action movies. • A low signal level can cause picture distortion. This is not a TV problem. • Mobile phones used close to the TV (within 3.3ft) may cause noise in the picture on analog and digital channels. |
| Color is wrong or missing. | • If you’re using Component connection, make sure the component cables are connected to the correct jacks. Incorrect or loose connections may cause color problems or a blank screen. |
| There is poor color or brightness. | • Adjust the Picture options in the TV menu. (go to Picture mode / Color / Brightness / Sharpness) • Adjust the Energy Saving option in the TV menu. (go to MENU – Setup) • Try resetting the picture to view the default picture settings. (go to MENU – Picture – Picture Reset) |
| There is a dotted line on the edge of the screen. | • If the picture size is set to Screen Fit, change it to 16:9. • Change cable/satellite box resolution. |
| The picture is black and white. | • If you are using an AV composite input, connect the video cable (yellow) to the Green jack of component input 1 on the TV. |
| When changing channels, the picture freezes or is distorted, or is delayed. | • If connected to a cable box, please try to reset it. (Reconnect the AC cord and wait until the cable box reboots. It may take up to 20 minutes. • Set the output resolution of the cable box to 1080i or 720p. |
| Sound Problem | First of all, please perform the Sound Test to confirm that your TV audio is properly operating. (go to MENU – Support – Self Diagnosis – Sound Test) If the audio is OK, the sound problem may be caused by the source or signal. |
| There is no sound, or the sound is too low at maximum volume. | • Please check the volume of the device (Cable/Sat Box, DVD, Blu-ray etc) connected to your TV. |
| The speakers are making an inappropriate noise. | • Check cable connections. Make sure a video cable is not connected to an audio input. • For antenna or Cable connections, check the signal strength. A low signal level may cause sound distortion. • Perform the Sound Test as explained above. |
No Picture, No Video | |
| The TV won’t turn on. | • Make sure the AC power cord is securely plugged into the wall outlet and the TV. • Make sure the wall outlet is working. • Try pressing the POWER button on the TV to make sure the problem is not the remote. If the TV turns on, refer to “The remote control does not work” below. |
| Issues | Solutions and Explanations |
| The TV turns off automatically. | • Ensure the Sleep Timer is set to Off in the Setup menu (p. 26). • If your PC is connected to the TV, check your PC power settings. • Make sure the AC power cord is plugged in securely to the wall outlet and the TV. • When watching TV from an antenna or cable connection, the TV will turn off after 10 – 15 minutes if there is no signal. |
| There is no picture/video. | • Check cable connections (remove and reconnect all cables connected to the TV and external devices). • Set your external device’s (Cable/Sat Box, DVD, Blu-ray, etc) video outputs to match the connections to the TV input. For example, if an external device’s output is HDMI, it should be connected to an HDMI input on the TV. • Make sure your connected devices are powered on. • Be sure to select the TV’s correct source by pressing the SOURCE button on the remote control. • Reboot the connected device by reconnecting the device’s power cable. |
RF(Cable/Antenna) Connection | |
| The TV is not receiving all the channels. | • Make sure the coaxial cable is connected securely. • Please try the Auto Program to add available channels to the channel list. Go to MENU – Channel – Auto Program, then select Auto, and make sure the correct Cable TV signal type is set in the menu. There are 3 options (STD, HRC and IRC) (p. 20). • Verify the Antenna is positioned correctly. |
| The picture is distorted: macro block error, small block, dots, pixelization. | • Compression of video content may cause picture distortion, especially with fast-moving pictures such as sports and action movies. • A low signal can cause picture distortion. This is not a TV problem. |
| Others | |
| Purple/green rolling horizontal bars and buzzing noise from the TV speakers with a Component cable connection. | • Remove the left and right audio connections from the set-top box. If the buzzing stops, this indicates that the set-top box has a grounding issue. Replace the Component video cables with an HDMI connection. |
| A “Mode Not Supported” message appears. | • Check the supported resolution of the TV, and adjust the external device’s output resolution accordingly. Refer to the resolution settings on page 18 of this manual. |
| The caption on the TV menu is greyed out. | |
| There is a plastic smell from the TV. | • This smell is normal and will dissipate over time. |
| The TV Signal Strength is unavailable in the Self-Diagnostic Test menu. | |
| The TV is tilted to the side. | • Remove the base stand from the TV and reassemble it. |
| The channel menu is greyed out (unavailable). | • The Channel menu is only available when the TV source is selected. |
| Your settings are lost after 30 minutes or every time the TV is turned off. | |
| You have intermittent loss of audio or video. | • Check the cable connections and reconnect them. • Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are flexible enough for long-term use. If mounting the TV to a wall, we recommend using cables with 90-degree connectors. |
| You see small particles when you look closely at the edge of the frame of the TV. | • This is part of the product’s design and is not a defect. |
| POP (TV’s internal banner ad) appears on the screen. | |
| The remote control does not work. | • Replace the remote control batteries with correct polarity (+/-). • Clean the transmission window located on the top of the remote control. • Try pointing the remote directly at the TV from 5~6 feet away. |
