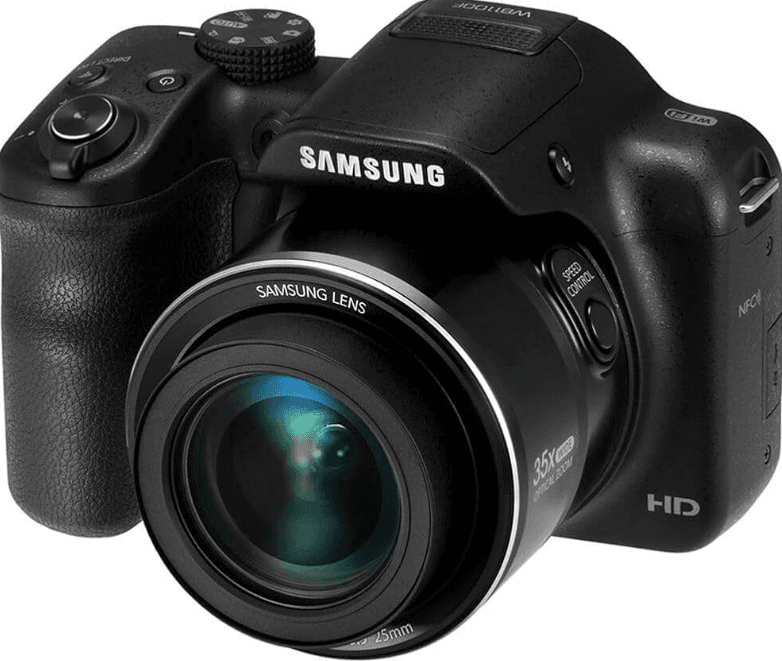

Samsung WB1100F Smart Wi-Fi Digital Camera User Manual

Samsung WB1100F Smart Wi-Fi Digital Camera

Health and safety information

Always comply with the following precautions and usage tips to avoid dangerous situations and ensure peak performance of your camera.

Warning—situations that could cause injury to yourself or others

Do not disassemble or attempt to repair your camera.
You can damage the camera and expose yourself to the risk of an electric shock.

Do not use your camera near flammable or explosive gases and liquids.
This may cause a fire or explosion.

Do not insert flammable materials into the camera or store these materials near the camera.
This may cause a fire or electric shock.

Do not handle your camera with wet hands.
This may result in an electric shock.

Prevent damage to subjects’ eyesight.
Do not use the flash in close proximity (closer than 1 m/3 ft) to people or animals. If you use the flash too close to your subject’s eyes, this can cause temporary or permanent eyesight damage.

Keep your camera away from small children and pets.\
Keep your camera and all accessories out of the reach of small children and animals. Small parts may cause choking or serious injury if swallowed. Moving parts and accessories may present physical dangers as well.

Do not expose the camera to direct sunlight or high temperatures for an extended period of time.
Prolonged exposure to sunlight or extreme temperatures can cause permanent damage to your camera’s internal components.

Avoid covering the camera or charger with blankets or clothes.
The camera may overheat, which may distort the camera or cause a fire.

Do not handle the power supply cord or the charger during a thunderstorm.
This may result in electric shock.

If liquid or foreign objects enter your camera, immediately disconnect all power sources, such as the battery or charger, and then contact a Samsung service center.

Comply with any regulations that restrict the use of a camera in a certain area.

• Avoid interference with other electronic devices.
• Turn off the camera when in an aircraft. Your camera can cause interference with aircraft equipment. Follow all airline regulations and turn off your camera when directed by airline personnel.
• Turn off the camera near medical equipment. Your camera can interfere with medical equipment in hospitals or health care facilities. Follow all regulations, posted warnings, and directions from medical personnel.

Avoid interference with pacemakers.

Maintain a safe distance between this camera and all pacemakers to avoid potential interference, as recommended by the manufacturer and research groups. If you have any reason to suspect that your camera is interfering with a pacemaker or other medical device, turn off the camera immediately and contact the manufacturer of the pacemaker or medical device for guidance.

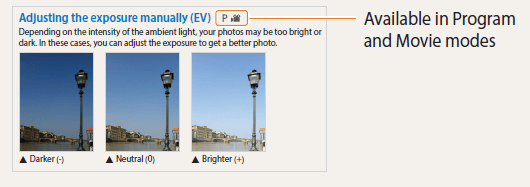

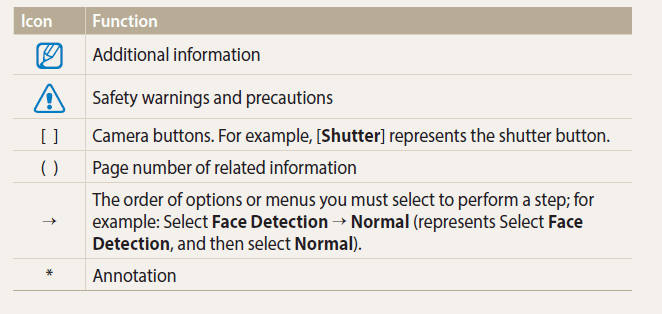

Indicators used in this manual

Shooting mode icons

These icons appear in the text when a function is available in a mode. See the example below.
Note: Theormode may not support functions for all scenes or modes.

Expressions used in this manual

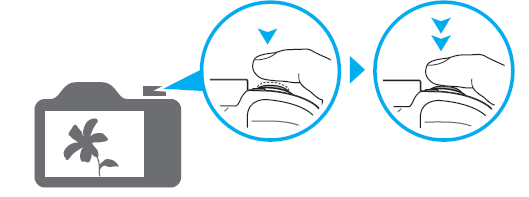

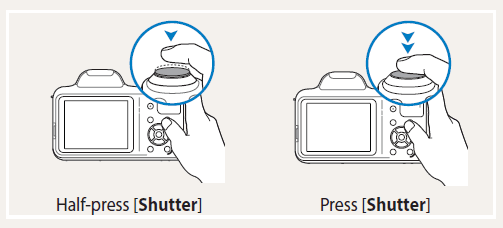

Pressing the shutter

• Half-press [Shutter]: Press the shutter halfway down
• Press [Shutter]: Press the shutter all the way down

Exposure (Brightness)

The amount of light that enters your camera determines the exposure. You can alter the exposure by changing the shutter speed, aperture value, or ISO sensitivity. By altering the exposure, your photos will be darker or lighter.

Special features of your camera

Press the DIRECT LINK button to activate the Wi-Fi function that you have designated.

Setting a DIRECT LINK button option

You can select a Wi-Fi function to launch when you press the DIRECT LINK button.

1. Access Settings.
2. Access the DIRECT LINK button option.
3. Select a Wi-Fi feature from the list.

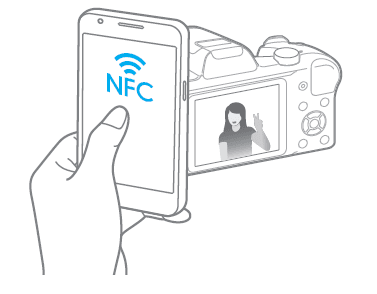

Reading NFC tag information (Tag & Go)

Install the Samsung SMART CAMERA App on an NFC-enabled device, and then place the device’s NFC antenna near the camera’s NFC tag. The Samsung SMART CAMERA App launches automatically. If the app is not installed, a prompt to install the app will appear.

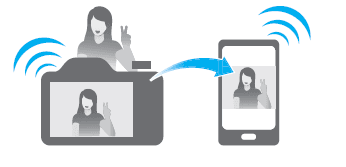

Using AutoShare

When you capture a photo with your camera, the photo is saved to a smart phone automatically. The camera connects to the smart phone wirelessly.

1. Install Samsung SMART CAMERA App on the smart phone
2. Turn on the AutoShare feature on the camera.
3. Launch Samsung SMART CAMERA App on the smart phone.
4. Select the camera from the list and connect the smart phone to the camera.
   • If a pop-up message appears on your camera, allow the smart phone to connect to your camera.
5. Capture a photo.
   • The captured photo is saved to the camera, and then transferred to the smart phone.

Using MobileLink

You can send files easily from your camera to a smart phone. The camera connects wirelessly to smart phones that support the MobileLink feature.

1. Install the Samsung SMART CAMERA App on the smart phone.
2. Access the MobileLink mode on the camera.
   • If a pop-up message appears, select an option.
3. Launch the Samsung SMART CAMERA App on the smart phone.
4. Select the camera from the list and connect the smart phone to the camera.
   • If a pop-up message appears on your camera, allow the smart phone to connect to your camera.
5. On the smart phone or camera, select files to transfer from the camera.
6. On the smart phone, touch the copy button or on the camera, select Send.

Using Remote Viewfinder

You can remotely control your camera from a smart phone. The camera connects to the smart phone wirelessly. Use the smart phone as a remote shutter release with the Remote Viewfinder feature. The captured photo will appear on the smart phone.

1. Install the Samsung SMART CAMERA App on the smart phone.
2. Access the Remote Viewfinder mode on the camera.
3. Launch the Samsung SMART CAMERA App on the smart phone.
4. Select the camera from the list and connect the smart phone to the camera.
   • If a pop-up message appears on your camera, allow the smart phone to connect to your camera.
5. Touch and hold to focus, and then release it to capture a photo.
6. Touch the thumbnail to view the photo.

Shooting samples – Macro

You can capture close up shots of a subject or small subjects, such as flowers or insects.

The example image may differ from the actual photo that you capture.

1. Select the macro option .
2. Capture a photo.

Basic function

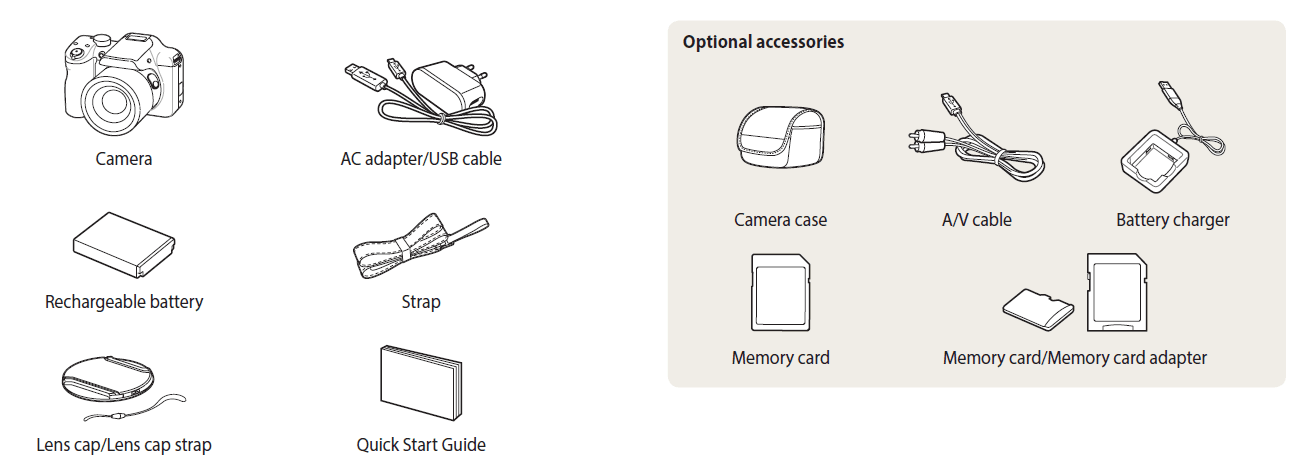

Unpacking

The following items are included in your product box.

• The illustrations may differ slightly from the items shipped with your product.
• The items included in the box may differ depending on the model.
• You can purchase optional accessories at a retailer or a Samsung service center.
  Samsung is not responsible for any problems caused by using unauthorized accessories.

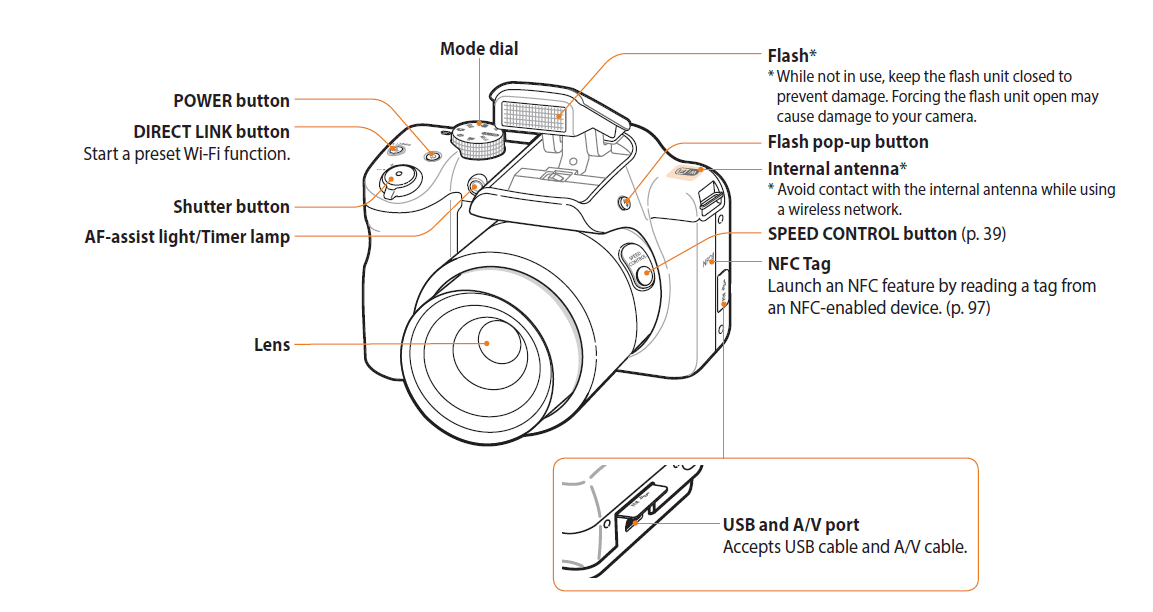

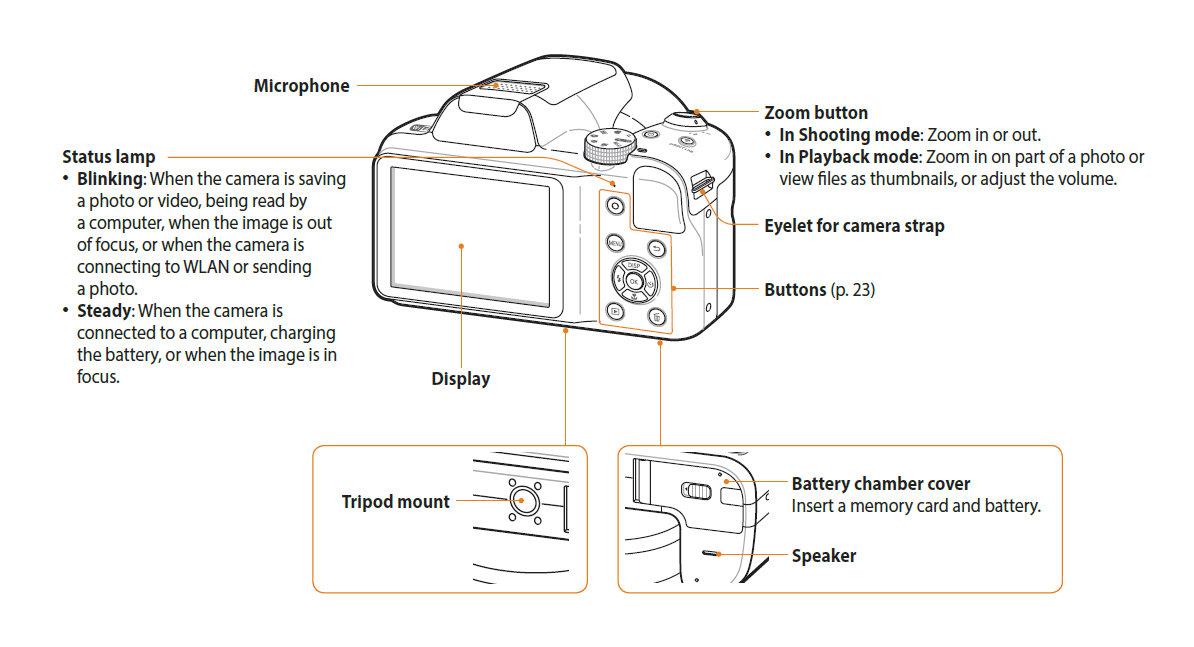

Camera layout

Before you start, familiarize yourself with your camera’s parts and their functions.

Buttons

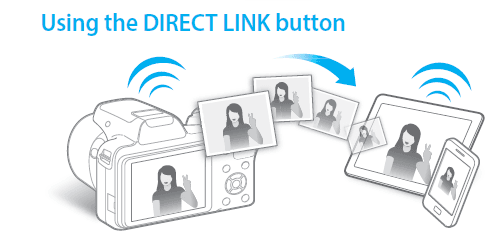

Using the DIRECT LINK button

• You can turn on the Wi-Fi feature conveniently with [DIRECT LINK].
• Press [DIRECT LINK] to activate the Wi-Fi function that you
• Press [DIRECT LINK] again to return to the previous mode.

Setting a DIRECT LINK button option

You can select a Wi-Fi function to launch when you press [DIRECT LINK].

1. Rotate the mode dial to.
2. Select General → DIRECT LINK (Wi-Fi Button).
3. Select a Wi-Fi feature. (p. 114)

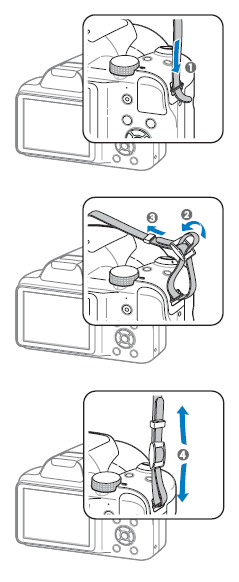

Attaching a strap

Attach a strap to carry your camera conveniently.

Attaching a lens cap

Attach a lens cap with a lens cap strap to protect the camera lens.

Inserting the battery and memory card

Learn how to insert the battery and an optional memory card into the camera.

• Insert a memory card with the gold-colored contacts facing up.

Insert the battery with the Samsung logo facing up.

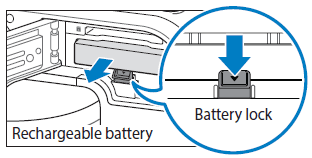

Removing the battery and memory card

• Slide the lock down to release the battery.
• Push the card gently until it disengages from the camera, and then pull it out of the slot.

Using the memory card adapter

To use micro memory cards with this product, a PC, or a memory card reader, insert the card into an adapter.

Charging the battery and turning on your camera

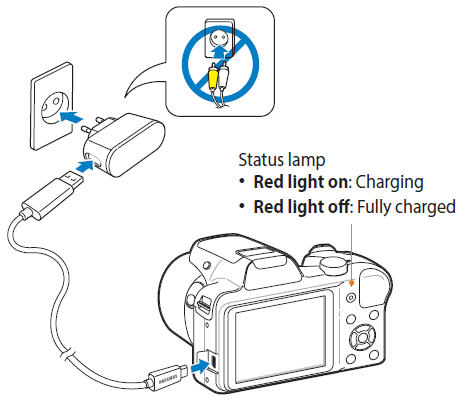

Charging the battery

Before you use the camera for the first time, you must charge the battery. Plug the small end of the USB cable into your camera, and then plug the other end of the USB cable into the AC adapter.

Use only the AC adapter and USB cable supplied with your camera. If you use another AC adapter (such as AD5055), the camera battery may not charge or work properly.

Turning on your camera

Pressto turn your camera on or off.

• The initial setup screen appears when you turn on the camera for the first time. (p. 27)

Turning on your camera in Playback mode

• Press. The camera turns on and immediately accesses Playback mode.If you turn on your camera by pressing and holding, the camera does not emit any sounds.

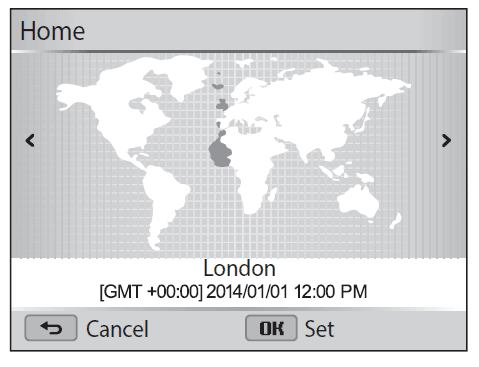

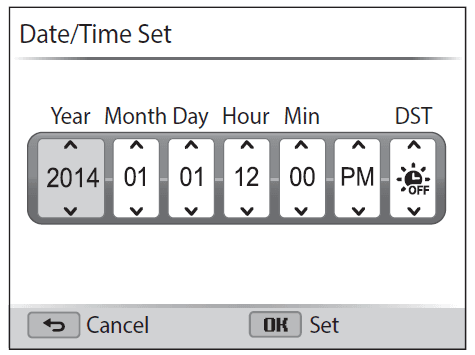

Performing the initial setup

When the initial setup screen appears, follow the steps below to configure the camera’s basic settings. The default language is preset for the country or region where the camera is sold. You can change the language as desired by selecting Language.

1. Pressto select Time Zone, and then pressor [OK].
2. Pressto select a time zone, and then press [OK].
3. Pressto select Date/Time Set, and then pressor [OK].
4. Pressto select an item.
5. Pressto set the date, time, and daylight-saving time, and then press [OK].

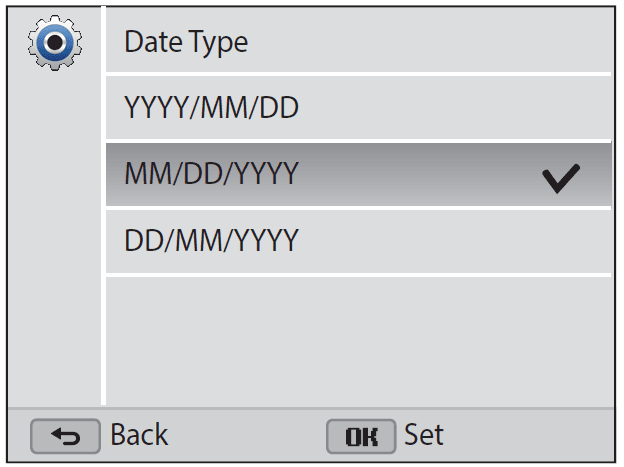

6. Pressto select Date Type, and then pressor [OK].
7. Pressto select a date type, and then press [OK].
8. Pressto select Time Type, and then pressor [OK].
9. Pressto select a time type, and then press [OK].
10. Pressto finish the initial setup.

The screen may differ depending on the language you selected.

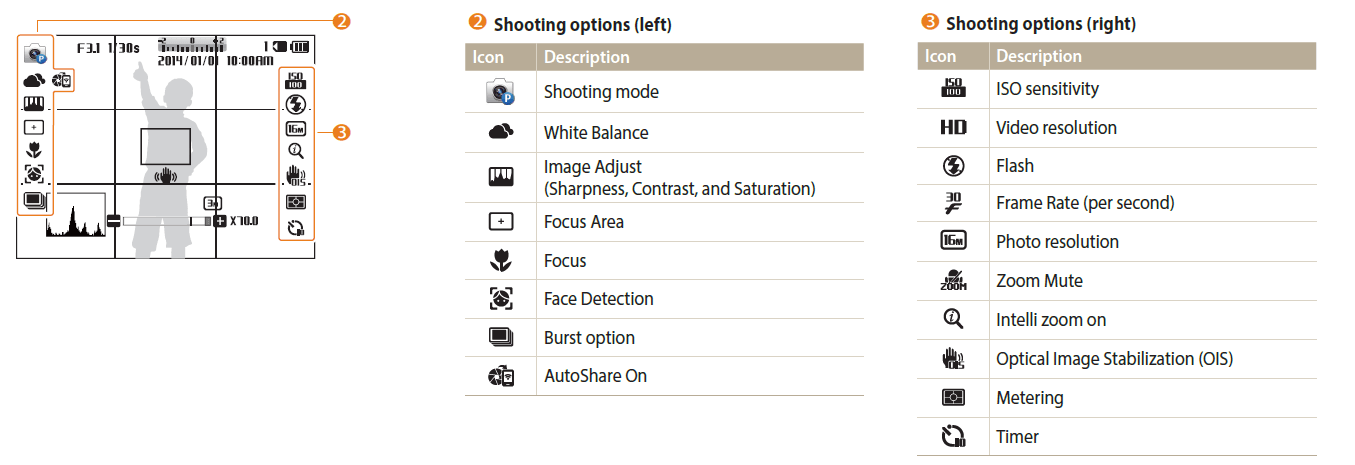

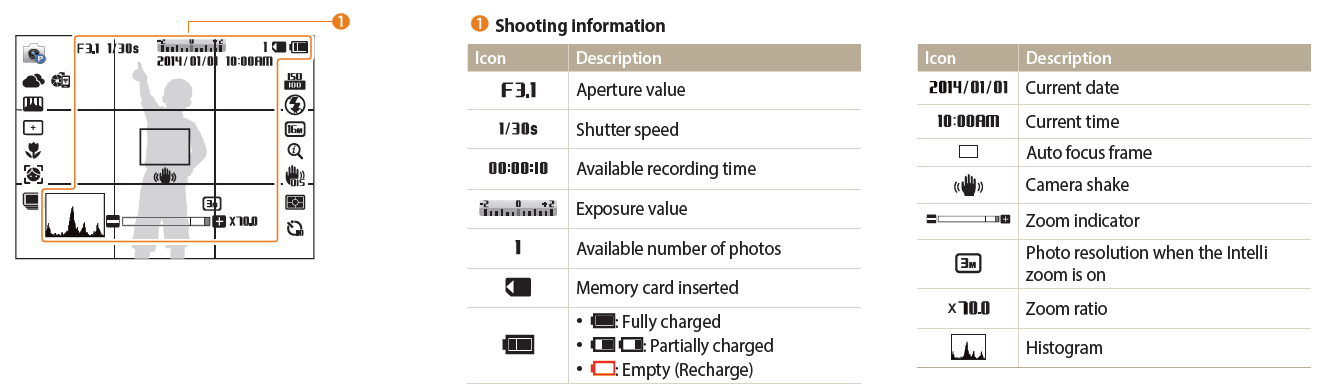

Learning icons

The camera displays icons for the mode and options you set. The icons flash yellow for a while if you change options.

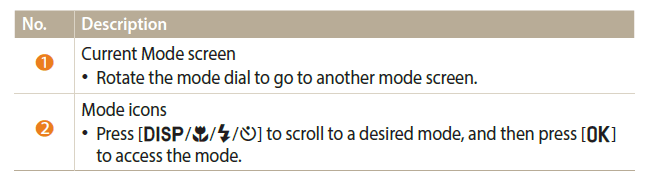

Using the Mode screen

Use the mode dial to select a shooting mode or function. Rotate the mode dial to a desired mode. You can also select an icon on the Mode screen in some modes.

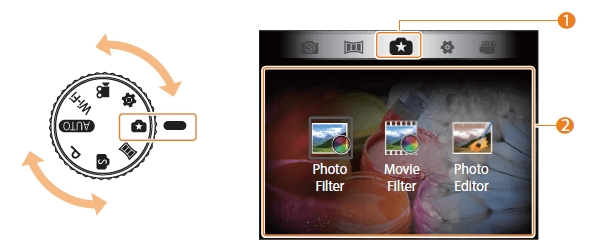

Selecting a Mode Screen

In Shooting or Playback mode, rotate the mode dial to display a Mode Screen. You can select an icon on the Mode screen in Magic Plus mode.

For example: When you select Photo Filter in Magic Plus mode.

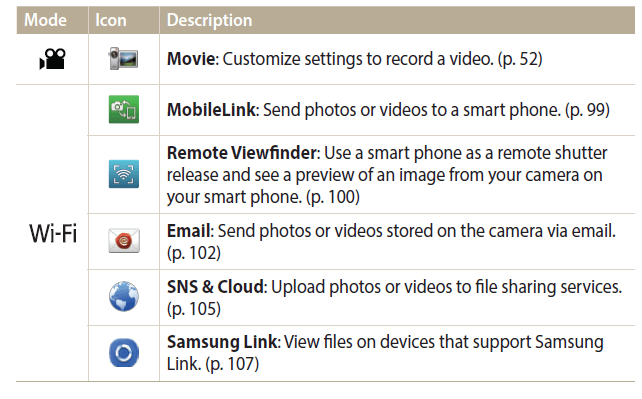

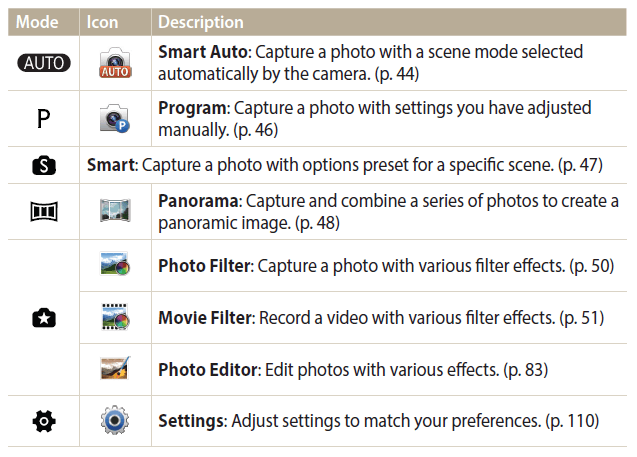

Icons on the Mode screen

Selecting options or menus

To select an option or a menu, press [MENU], and then pressor [OK].

1. In Shooting or Playback mode, press [MENU].
2. Select an option or a menu.
   • To move up or down, press[DISP] or.
   • To move left or right, press[]or.
3. 3 Press [OK] to confirm the highlighted option or menu.

Going back to the previous menu

• Pressto go back to the previous menu.

Half-press [Shutter] to return to Shooting mode.

Setting the display and sound

Learn how to change the basic display information and sound settings.

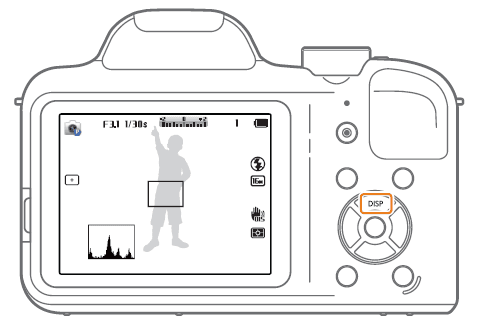

Setting the display type

You can select a display type for the Shooting or Playback mode. Each type displays different shooting or playback information. See the table below.

Press [DISP] repeatedly to change the display type.

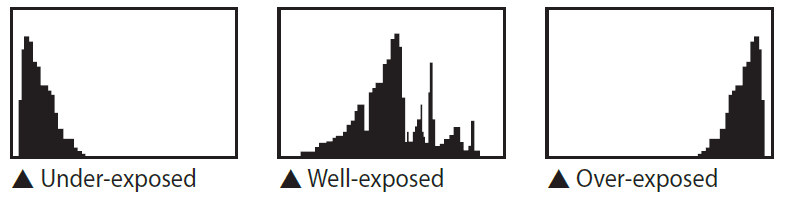

About histograms

A histogram is a graph that illustrates how light is distributed in your photo. If the histogram has a high peak on the left, the photo is underexposed and will appear dark. A peak on the right of the graph means that the photo is overexposed and will appear washed out. The height of the peaks is related to color information. The more of a particular color, the taller the peak.

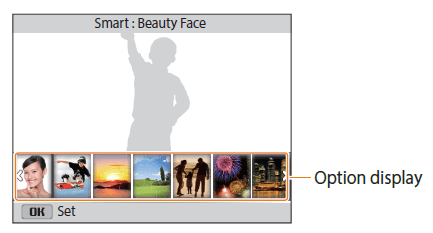

Setting the option display view

You can hide or show the option display appearing in some modes.
Press [OK] repeatedly.

• Hide the option display.
• Show the option display.

For example, inmode

Setting the sound

Turn the sound your camera emits when you perform functions on or off.

1. Rotate the mode dial to.
2. Select Sound → Beep Sound.
3. Select an option.

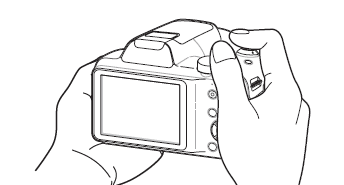

Capturing photos

Learn how to capture photos easily and quickly in Smart Auto mode.

1. Rotate the mode dial to AUTO.
2. Align your subject in the frame.
3. Half-press [Shutter] to focus.
   • A green frame means the subject is in focus.
   • A red frame means the subject is out of focus.
4. Press [Shutter] to capture a photo.
5. Pressto view the captured photo.
   • To delete the photo, press [DELETE], and then select Yes.
6. Pressto return to Shooting mode.

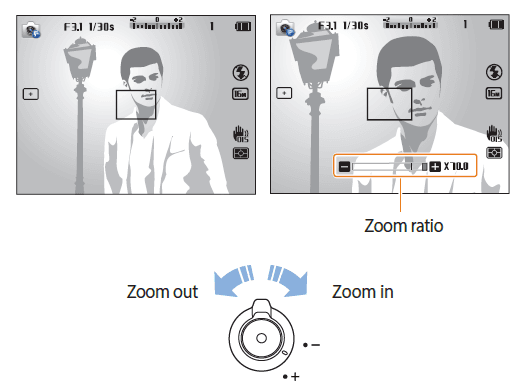

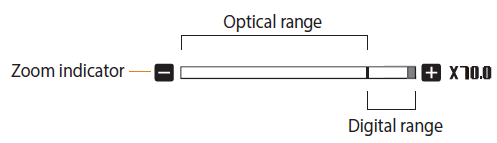

Zooming

You can capture close-up photos by adjusting the zoom.

When you rotate the zoom button, the zoom ratio shown on the screen may
change inconsistently.

Digital zoom

Digital zoom is supported by default in Shooting mode. If you zoom in on a subject in Shooting mode and the zoom indicator is in the digital range, your camera is using Digital zoom. By using both the 35X Optical zoom and 2X Digital zoom, you can zoom in up to 70 times.

• Digital zoom is not available with the Tracking AF option or Face Detection options.
• If you capture a photo with Digital zoom, the photo quality may be lower than normal.

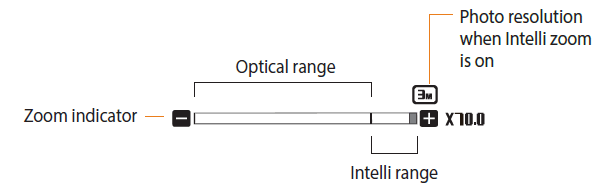

Intelli zoom

If the zoom indicator is in the Intelli range, your camera is using Intelli zoom. Photo resolution varies according to the zoom rate if you use Intelli zoom. By using both Optical zoom and Intelli zoom, you can zoom in up to 70 times.

• Depending on the shooting options you selected, Intelli zoom is not available.
• Intelli zoom helps you capture a photo with less quality deterioration than Digital zoom. However, the photo quality may be lower than when you use Optical zoom. Intelli zoom is available only when you set a 4:3 resolution ratio. If you set another resolution ratio with Intelli zoom on, Intelli zoom will be turned off automatically.
• Intelli zoom is always on in AUTO mode.

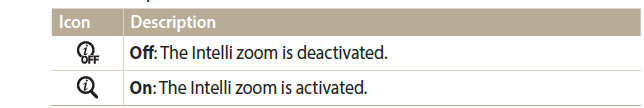

Setting Intelli zoom

1. In Shooting mode, press [MENU].
2. Select Intelli Zoom.
3. Select an option.

Changing the zoom speed

When you use the zoom button with [SPEED CONTROL], the speed of the zoom is changed.

• Photo recording mode: the zoom function works faster.
• Video recording mode: the zoom function works slower.

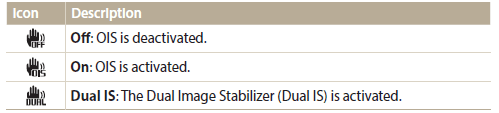

Reducing camera shake (OIS)

In Shooting mode, you can set either the Optical Image Stabilizer (OIS) or the Dual Image Stabilizer (Dual IS) to reduce or eliminate picture blurriness from camera shake.

• In Shooting mode, press [MENU].
• Select OIS.
• Select an option.

• OIS may not function properly when:
  • you move your camera to follow a moving subject
  • you use Digital zoom
  • there is too much camera shake
  • the shutter speed is slow (for example, when you capture night scenes)
  • you capture a close-up shot
• If you use the OIS function with a tripod, your images may be blurred by the vibration of the OIS sensor. Deactivate the OIS function when you use a tripod.
• If the camera is hit or dropped, the display will be blurry. If this occurs, turn off the camera, and then turn it on again.

Extended functions

Using the Smart Auto mode

In Smart Auto mode, your camera automatically chooses the appropriate camera settings based on the type of scene it detects. The Smart Auto mode is helpful if you are not familiar with the camera settings for various scenes.

1. Rotate the mode dial to AUTO.
2. Align your subject in the frame.

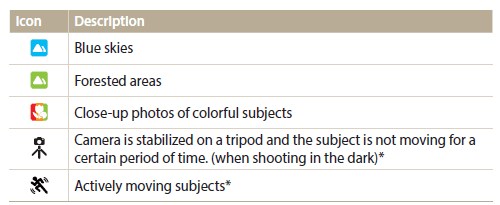

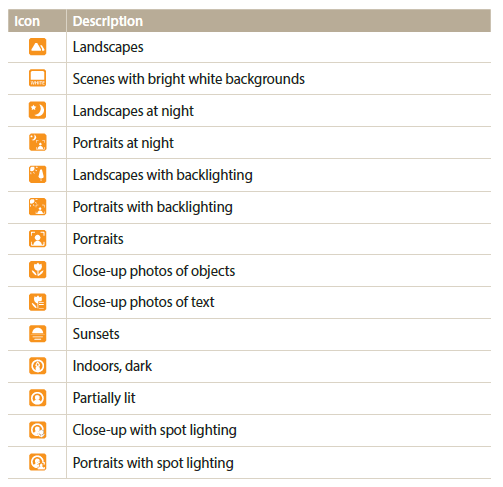

   • The camera automatically selects a scene. An appropriate scene icon appears at the top left of the screen. The icons are listed below.
3. Half-press [Shutter] to focus.
4. Press [Shutter] to capture the photo.

This icon appears next to the scene icon.

If the camera does not recognize an appropriate scene mode, it uses the default
settings for mode.

• Even if it detects a face, the camera may not select a portrait mode depending on the subject’s position or lighting.
• The camera may not select the correct scene depending on the shooting conditions, such as camera shake, lighting, or distance to the subject.
• Even if you use a tripod, the camera may not detect themode if the subject is moving.
• The camera consumes more battery power, because it changes settings often to select appropriate scenes.

Using the Program mode

In Program mode, you can set most options, except the shutter speed and aperture value, which the camera sets automatically.

1. Rotate the mode dial to P.
2. Set the desired options.
   • For a list of options, refer to “Shooting options”. (p. 53)
3. Align your subject in the frame, and then half-press [Shutter] to focus.
4. Press [Shutter] to capture the photo.

Using the Smart mode

In Smart mode, you can capture a photo with options that are preset for a specific scene.

1. Rotate the mode dial to.
2. Select a scene.


   Option	Description
   Beauty Face	Capture a portrait with options to hide facial imperfections.
   Action Freeze	Capture subjects moving at high speed.
   Sunset	Capture scenes at sunset, with natural-looking reds and yellows.
   Landscape	Capture still-life scenes and landscapes.
   Silhouette	Capture subjects as dark shapes against a light background.
   Fireworks	Capture scenes with fireworks.

   Option	Description
   Night	Capture a photo with less image noise in low light conditions.
   Macro	Capture small or close-up subjects.
   Light Trace	Capture scenes with the light trailing in low-light conditions.

3. Align your subject in the frame, and then half-press [Shutter] to focus.
4. Press [Shutter] to capture the photo.

Using the Panorama mode

In Panorama mode, you can capture a wide panoramic scene in a single photo. Panorama mode captures and combines a series of photos to create a panoramic image.

1. Rotate the mode dial to.
2. Align your subject in the frame, and then half-press [Shutter] to focus.
   • Align the camera with the far left or the far right, or very top or bottom, of the scene you want to capture.
3. Press and hold [Shutter] to start shooting.

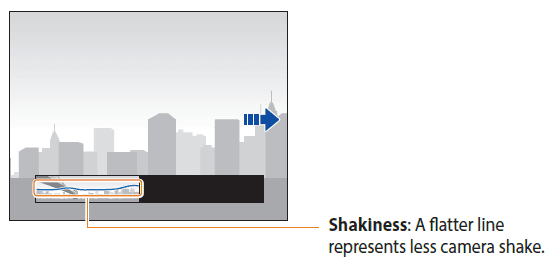

4. With [Shutter] pressed, slowly move the camera in the direction that will let it capture the rest of the panorama.
   • Arrows pointing in the direction of motion are displayed, and the entire shooting image is displayed in the preview box.
   • When the viewfinder is aligned with the next scene, the camera captures the next photo automatically.
5. When you are finished, release [Shutter].
   • When you have captured all the necessary shots, the camera combines them into one panoramic photo.

• For best results when capturing panoramic photos, avoid the following:
  • moving the camera too quickly or too slowly
  • moving the camera too little to capture the next image
  • moving the camera at irregular speeds
  • shaking the camera
  • shooting in dark places
  • capturing moving subjects nearby
  • shooting conditions where the brightness or color of light is changing.
• Photos taken are automatically saved, and shooting is stopped under the following conditions:
  • if you change the shooting direction while shooting
  • if you move the camera too rapidly
  • if you don’t move the camera
• Selecting Panorama mode will disable the digital and optical zoom functions. If you select Panorama mode while the lens is zoomed in, the camera automatically zooms out to the default position.
• Some shooting options are not available.
• The camera may stop shooting due to the shooting composition or movement within the scene.
• Your camera may not capture the last scene in its entirety if you stop moving the camera exactly where you want the scene to end. To capture the entire scene, move your camera slightly beyond the point where you want the scene to end.

Using the Magic Plus mode

Capture a photo or record a video with various effects.

Using the Photo Filter mode

Apply various filter effects to your photos to create unique images.

1. Rotate the mode dial to.
2. Select.
3. Select an effect.


   Option	Description
   Miniature	Apply a tilt-shift effect to make the subject appear in miniature. (The top and bottom of the photo will be blurred.)
   Vignetting	Apply the retro-looking colors, high contrast, and strong vignette effect of Lomo cameras.
   Fish-eye	Distort close objects to imitate the visual effect of a fisheye lens.
   Classic	Apply a black and white effect.
   Retro	Apply a sepia tone effect.
   Cross Filter	Add lines that radiate outward from bright objects to imitate the visual effect of a cross filter.

4. Align your subject in the frame, and then half-press [Shutter] to focus.
5. Press [Shutter] to capture a photo.

Using the Movie Filter mode

Apply various filter effects to your videos to create unique images.

1. Rotate the mode dial to.
2. Select.
3. Select an effect.


   Option	Description
   Miniature	Apply a tilt-shift effect to make the subject appear in miniature. (The top and bottom of the photo will be blurred.)
   Vignetting	Apply the retro-looking colors, high contrast, and strong vignette effect of Lomo cameras.
   Fish-eye	Distort close objects to imitate the visual effect of a fisheye lens.
   Classic	Apply a black and white effect.
   Retro	Apply a sepia tone effect.
   Palette Effect 1	Create a vivid look with sharp contrast and strong color.
   Palette Effect 2	Make scenes clean and clear.
   Palette Effect 3	Apply a soft brown tone.
   Palette Effect 4	Create a cold and monotone effect.

4. Press (Video recording) or [Shutter] to start recording.
5. Press (Video recording) or [Shutter] again to stop recording.

• If you select Miniature, playback speed will increase.
• If you select Miniature, you cannot record sound in the video.
• Depending on the option you select, the recording resolution may change to VGR or less automatically.

Using the Movie mode

In Movie mode, you can customize settings to record HD (1280 X 720) videos of up to 20 minutes in length. The camera saves recorded videos as MP4 (H.264) files.

1. Rotate the mode dial to.
2. Set desired options.
   • For a list of options, refer to “Shooting options”. (p. 53)
3. Press (Video recording) or [Shutter] to start recording.
4. Press (Video recording) or [Shutter] again to stop recording.

• MP4 (H.264) is a high-compression video format established by the international standards organizations ISO-IEC and ITU-T.
• If you use memory cards with slow write speeds, the camera may not save videos properly. Video recordings may be corrupted or fail to play back correctly.
• Memory cards with slow write speeds will not support high-resolution videos. To record high-resolution videos, use memory cards with faster write speeds.
• If you use the zoom function when recording a video, the camera may record the noise of the zoom operating. Use the Zoom Mute function not to record zoom noise. (p. 73)

You can start recording a video in some modes by pressing (Video recording) without having to rotate the mode dial to.

Pause recording

The camera allows you to temporarily pause a video while recording. With this function, you can record separate scenes as a single video.

• Press [OK] to pause while recording.
• Press [OK] to resume.

Wireless network

Connecting to a WLAN and configuring network settings

Learn to connect via an access point (AP) when you are in a range of a WLAN. You can also configure network settings.

Connecting to a WLAN

1. Rotate the mode dial to .
2. Select.

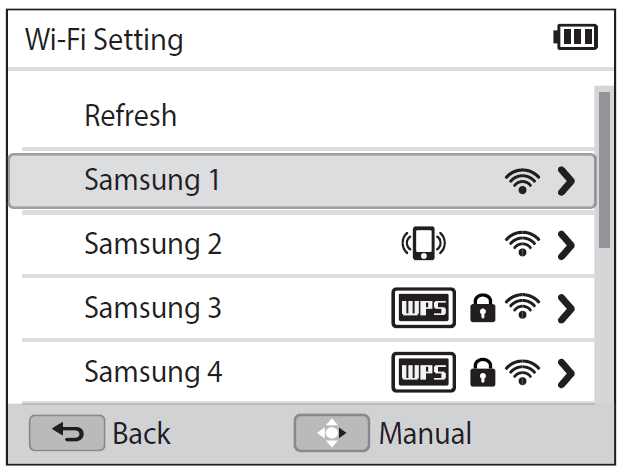

3. Follow the on-screen instructions until the Wi-Fi Setting screen appears.
   • The camera automatically searches for available AP devices.
   • In some modes, press [m], and then select Wi-Fi Setting.

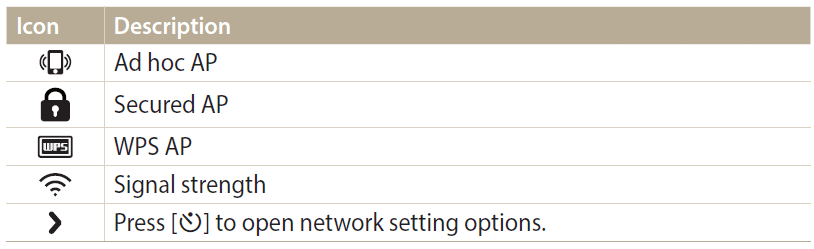

4. Select an AP.
   • Select Refresh to refresh the list of connectable APs.
   • Select Add wireless network to add an AP manually. The AP name must be in English to add the AP manually.

• When you select a secured AP, a pop-up window appears. Enter the required passwords to connect to the WLAN. For information about entering text, refer to “Entering text”. (p. 96)
• When a login page appears, refer to “Using the login browser”. (p. 94)
• When you select an unsecured AP, the camera will connect to the WLAN.
• If you select a WPS profile supported AP, select → WPS PIN connection, and then enter a PIN on the AP device. You can also connect to a WPS profile supported AP by selecting >→ WPS button connection on the camera, and then pushing the WPS button on the AP device.
• If a pop-up message about data collection regulations appears, read and agree to it.

Setting network options

1. In the Wi-Fi Setting screen, move to an AP, and then press.
2. Select each option, and then enter the required information.


   Option	Description
   Network Password	Enter the network password.
   IP Setting	Set the IP address automatically or manually.

Manually setting the IP address

1. In the Wi-Fi Setting screen, move to an AP, and then press.
2. Select IP Setting → Manual.
3. Select each option, and then enter the required information.


   Option	Description
   IP	Enter the static IP address.
   Subnet Mask	Enter the subnet mask.
   Gateway	Enter the gateway.
   DNS Server	Enter the DNS address.

Using the login browser

You can enter your login information via the login browser when connecting to some APs, sharing sites, or cloud servers.

Button	Description
	Move to an item or scroll the page.
[OK]	Select an item.
[MENU]	Access the following options: •  Previous Page: Move to the previous page. •  Next Page: Move to the next page. •  Reload: Reload the page. •  Stop: Stop loading the page. •  Exit: Close the login browser.
	Close the login browser.

• You may not be able to select some items depending on the page you connected to. This does not indicate a malfunction.
• The login browser may not close automatically after you log into some pages. If this occurs, close the login browser by pressing, and then proceed with the desired operation.
• It may take longer to load the login page due to the page size or network speed. If this occurs, wait until the login information input window appears.

Network connection tips

• Some Wi-Fi features are not available if you do not insert a memory card.
• The quality of the network connection will be determined by the AP.
• The further the distance between your camera and the AP, the longer it will take to connect to the network
• If a nearby device is using the same radio frequency signal as your camera, it may interrupt your connection.
• If your AP name is not in English, the camera may not be able to locate the device or the name may appear incorrectly.
• For network settings or a password, contact your network administrator or network service provider.
• If a WLAN requires authentication from the service provider, you may not be able to connect to it. To connect to the WLAN, contact your network service provider.
• Depending on the encryption type, the number of digits in the password may differ.
• A WLAN connection may not be possible in all surroundings.
• The camera may display a WLAN enabled printer on the AP List. You cannot connect to a network via a printer.
• You cannot connect your camera to a network and a TV simultaneously.
• Connecting to a network may incur additional charges. Costs will vary based on the conditions of your contract.
• If you cannot connect to a WLAN, try another AP from the available AP list.
• A login page may appear when you select free WLANs provided by some network service providers. Enter your ID and password to connect to the WLAN. For information about registering or the service, contact the network service providers.
• Be cautious when you enter personal information for an AP connection. Do not enter any payment or credit card information on your camera. The manufacturer is not liable for any problem caused by entering such information.
• Available network connections may differ by country.
• The WLAN feature of your camera must comply with radio transmission laws in your region. To ensure compliance, use the WLAN feature only in the country where you purchased the camera.
• The process for adjusting network settings may differ, depending on network conditions.
• Do not access a network that you are not authorized to use.
• Before you connect to a network, ensure your battery is fully charged.
• You cannot upload or send files captured in some modes.
• Files that you transfer to another device may not be supported by the device. In this case, use a computer to playback the files.

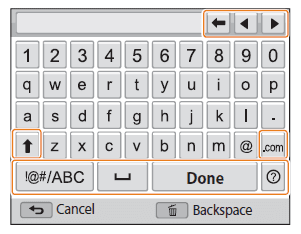

Entering text

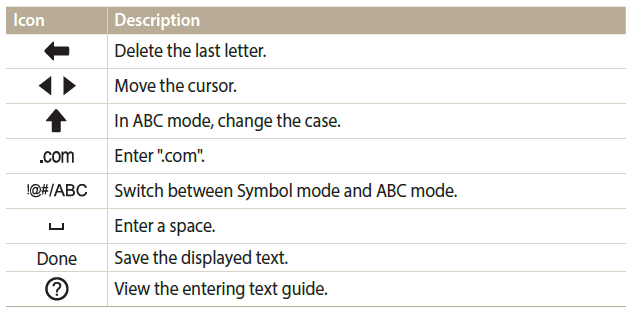

Learn how to enter text. The icons in the table below let you move the cursor, change the case, etc. Pressto move to a desired key, and then press [OK] to enter the key.

• You can use only the English alphabets in some modes, regardless of the display language.
• To move to Done directly, press.
• You can enter up to 64 characters.
• The screen may differ depending on the input mode.

Using the NFC Feature (Tag & Go)

Place a smart phone’s NFC tag near the camera’s NFC tag to launch the feature for saving photos to a smart phone automatically or the feature for using a smart phone as a remote shutter. You can also transfer files to an NFC-enabled device in Playback mode.

Using NFC features in Shooting mode

Launch AutoShare or Remote Viewfinder by reading a tag from an NFC-enabled device. (p. 98, 100) Preset to launch the Wi-Fi function by reading a tag on an NFCenabled device. (p. 114)

Using NFC features in Playback mode (Photo Beam)

In Playback mode, the camera transfers the current file to the smart phone automatically when you read a tag from an NFC-enabled device.

• To transfer multiple files, read a tag from an NFC-enabled device in the thumbnail view, and then select files.

Using NFC features in Wi-Fi mode

Select MobileLink or Remote Viewfinder from the pop-up window that appears by reading a tag from an NFC-enabled device. (p. 99, 100)

• This feature is supported by NFC-enabled smart phones running Android OS. It is recommended that you use the latest version. This feature is not available for iOS devices.
• You should install Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps or the Google Play Store. Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.
• To read an NFC tag, place the NFC-enabled device near the camera’s NFC tag for more than 2 seconds.
• Do not modify the tag information in any way.

Saving files to a smart phone automatically

The camera connects to a smart phone that supports the AutoShare feature via a WLAN. When you capture a photo with your camera, the photo is saved to the smart phone automatically.

1. On the camera, in Shooting mode, press [m].
2. On the camera, select AutoShare → On.
   • If the pop-up message that prompts you to download the application appears, select Next.
3. On the smart phone, turn on the Samsung SMART CAMERA App.
   • For iOS devices, turn on the Wi-Fi feature before turning on the application.
   • To start the application automatically on an NFC-enabled smart phone, turn on the function and place the smart phone near the NFC tag (p. 21) on the camera.
4. Select the camera from the list and connect the smart phone to the camera.
   •  The smart phone can connect to only one camera at a time.
5. On the camera, allow the smart phone to connect to your camera.
   • If the smart phone has been connected to your camera before, it is connected automatically.
   • An icon that shows the connection statuswill appear on the camera’s screen.
6. On the camera, capture a photo.
   • The captured photo is saved to the camera, and then transferred to the smart phone.

• The AutoShare feature is supported by smart phones or tablets running Android OS or iOS. Some features may not be supported by some models. Before using this feature, update the device’s firmware to the latest version. If the firmware version is not the most recent, this function may not perform properly.
• You should install the Samsung SMART CAMERA App on your phone or device before using this feature. You can download the application from Samsung Apps, the Google Play Store, or the Apple App Store. The Samsung SMART CAMERA App is compatible with Samsung camera models manufactured in 2013 or later.
• If you set this function, the setting is maintained even when you change the Shooting mode.
• This feature may not be supported in some modes.

Sending photos or videos to a smart phone

The camera connects to a smart phone that supports the MobileLink feature via a WLAN. You can easily send photos or videos to your smart phone.

1. On the camera, rotate the mode dial to WI-FI.
2. On the camera, select.
   • If the pop-up message that prompts you to download the application appears, select Next.
3. On the camera, select a sending option.
   • If you select Select Files from Smartphone, you can use your smart phone to view and share files stored on the camera.
   • If you select Select Files from Camera, you can select files to send on the
     camera.
4. On the smart phone, turn on the Samsung SMART CAMERA App.
   • For iOS devices, turn on the Wi-Fi feature before turning on the application.
   • To start the application automatically on an NFC-enabled smart phone, turn on the function and place the smart phone near the NFC tag (p. 21) on the camera.
5. Select the camera from the list and connect the smart phone to the camera.
   • The smart phone can connect to only one camera at a time.
6. On the camera, allow the smart phone to connect to your camera.
   • If the smart phone has been connected to your camera before, it is connected automatically.
   • The application on the smart phone can be closed if no operations are performed on the camera for 30 seconds.
7. On the smart phone or camera, select files to transfer from the camera.
8. On the smart phone, touch the copy button or on the camera, select Send.
   • The camera will send the files.

Sending photos or videos via email

You can change settings in the email menu and send photos or videos stored on the camera via email

Changing email settings

In the email menu, you can change settings for storing your information. You can also set or change the email password. For information about entering text, refer to “Entering text”. (p. 96)

Storing your information

1. Rotate the mode dial to WI-FI.
2. Select.
3. Connect to a WLAN. (p. 93)
4. Press [MENU].
5. Select Sender Setting.
6. Select the Name box, enter your name, and then select Done
7. Select the Email box, enter your email address, and then select Done.
8. Select Save to save your changes.
   • To delete your information, select Reset.

Setting an email password

1. Rotate the mode dial to .
2. Select.
3. Connect to a WLAN. (p. 93)
4. Press [MENU].
5. Select Setting Password → On.
   • To deactivate the password, select Off.
6. When the pop-up appears, select OK.
7. Enter a 4-digit password.
8. Enter the password again.
9. When the pop-up appears, select OK.

Changing the email password

1. Rotate the mode dial to WI-FI.
2. Select.
3. Connect to a WLAN. (p. 93)
4. Press [MENU].
5. Select Change Password.
6. Enter your current 4-digit password.
7. Enter a new 4-digit password.
8. Enter the new password again.
9. When the pop-up appears, select OK.

If you forget your password, you can reset it by selecting Reset on the password setting screen. When you reset the information the previously saved user’s setting information, email address, and recently sent email list will be deleted.

Sending photos or videos via email

You can send photos or videos stored on the camera via email. For information
about entering text, refer to “Entering text”. (p. 96)

1. Rotate the mode dial to .
2. Select.
3. Connect to a WLAN. (p. 93)
4. Select the Sender box, enter your email address, and then select Done.
   • If you have previously saved your information, it will be inserted automatically. (p. 102)
   • To use an address from the list of previous senders, select→ an address.
5. Select the Receiver box, enter an email address, and then select Done.
   • To use an address from the list of previous recipients, select→ an address.
   • Select to add additional recipients. You can input up to 30 recipients.
   • Select to delete an address from the list.
6. Select Next.
7. Scroll to files to send, and then press [OK].
   • You can select up to 20 files. The total size must be 7 MB or less.
8. Select Next.
9. Select the comment box, enter your comments, and then select Done.
10. Select Send.
    • The camera will send the email.

For more more Manuals by Samsung, visit MnaualsLibraryy

Samsung WB1100F Smart Wi-Fi Digital Camera-FAQs
