Sharp CV P10RC Portable Air Conditioner User Manual

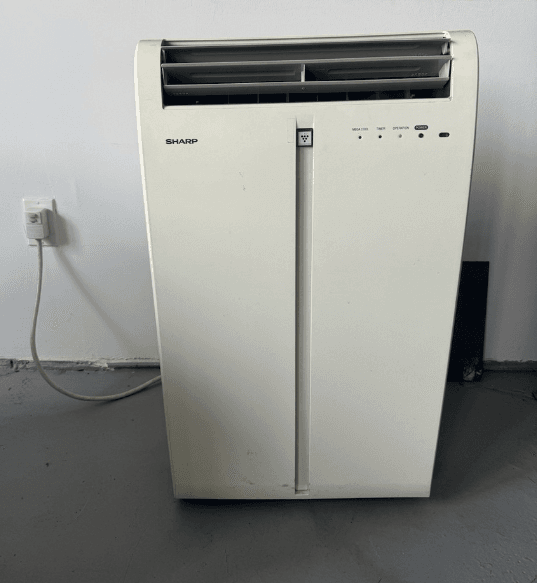

Sharp CV P10RC Portable Air Conditioner

Table of Contents

CONSUMER LIMITED WARRANTY

CONSUMER LIMITED WARRANTY FOR THE U.S. USERS

SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.

This warranty does not apply to any appearance items of the Product, nor the additional excluded items. Set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction.

To enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer.

The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE, ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the period described herein on behalf of Sharp.

The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser concerning the Product, and shall constitute satisfaction of all claims, whether based on contract, negligence, strict liability, or otherwise.

In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

Your Product Model Number & Description:

CV-P10RC
Portable Air Conditioner. Be sure to have this information available when you need service for your Product.

Warranty Period for this Product:

One (1) year parts and labor from the date of purchase. The warranty period continues for a total of five (5) years from the date of purchase for the Sealed Cooling System parts; labor and service are not provided free of charge for this additional period.

Additional Item(s) Excluded From Warranty
Coverage (If any):

Appearance items of the Product, filters, or accessories, or any printed materials.

A product that has been used for rental and/or commercial purposes.

Where to Obtain Service:

From a Sharp Authorized Servicer located in the United States. To find the location of the nearest Sharp Authorized Servicer, call Sharp Toll Free at 1-800-BE-SHARP.

What to Do to Obtain Service:

Contact your Sharp Authorized Servicer to obtain in-home service for this Product.

The Servicer will come to your home, and if it is necessary to remove the Product, the Servicer will reinstall it. Be sure to have Proof of Purchase available.

TO OBTAIN SUPPLY, ACCESSORY, OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP, OR VISIT OUR WEBSITE AT www.sharpusa.com

PRECAUTIONS

Points to keep in mind when using your air conditioner.

WARNINGS FOR USE

Install the air conditioner according to the installation instructions in the latter section of this manual.
Do not modify any part of this product.
Do not insert anything into any part of the unit.
Ensure the power supply used has an appropriate voltage rating.
Only use a three-pin grounded electrical AC socket rated 125V, 60Hz, and 15 amps or more as shown on the right. Use of a power supply with an improper voltage rating can result in damage to the unit and possibly fire.
Always use a fuse with the proper amp rating.
Do not, under any circumstances, use wire, pins, or other objects in place of a proper fuse.
In the event of any abnormality with the air conditioner (ex., a burning smell), turn itTurn off immediately and disconnect the power supply.

LOCATION

The air conditioner should be placed on a fi rm foundation to minimize noise and vibration. For safe and secure positioning, place the unit on a smooth, level fl oor strong enough to support the unit.
The unit has casters to aid placement, but it should only be rolled on smooth, fl at surfaces. Use caution when rolling on carpet surfaces. Do not attempt to roll the unit over objects.
The unit must be placed within reach of a properly rated grounded socket.
Never place any obstacles around the air inlet or outlet of the unit.

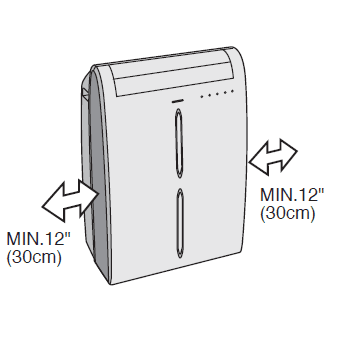

Allow at least 12″ (30cm) of space from the wall for efficient air-conditioning.

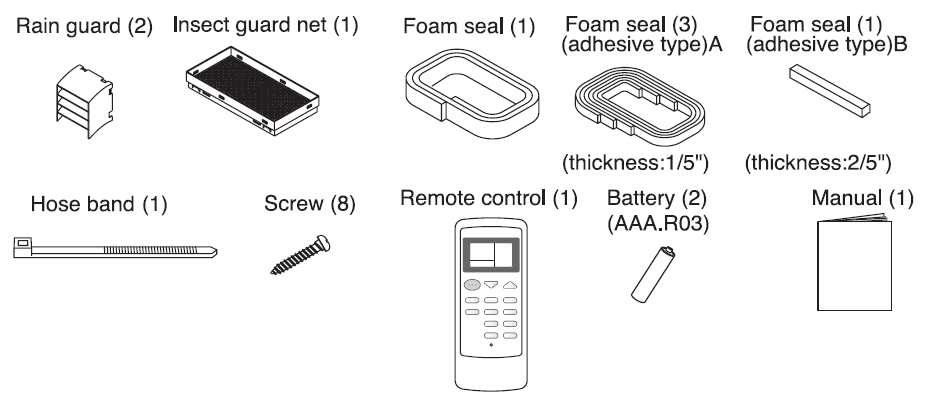

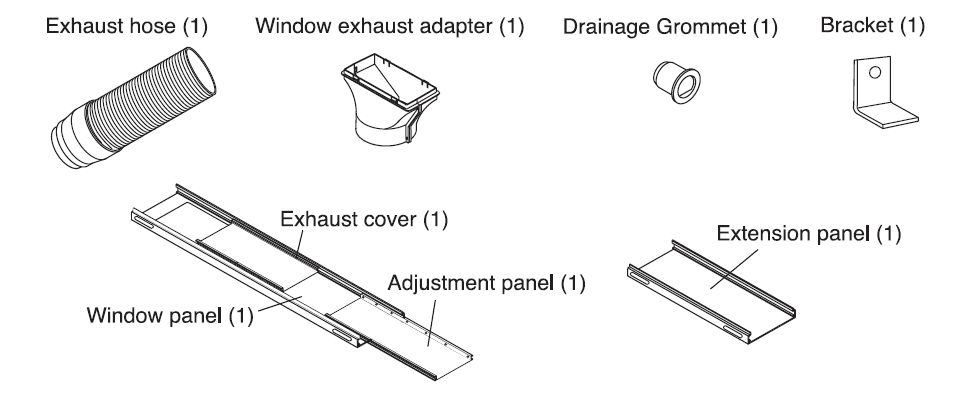

INCLUDED

SUGGESTED TOOLS FOR WINDOW PANEL INSTALLATION

Screwdriver(medium size Phillips)
Tape measure or ruler
Knife or scissors
Saw (If the window panel needs to be cut down in size because the window is too narrow for direct installation.)

PART NAMES

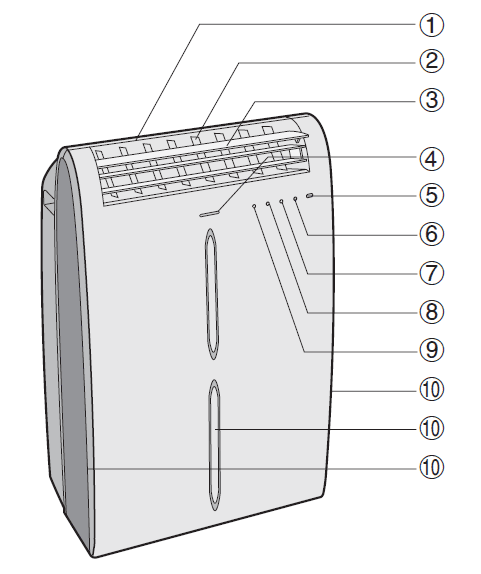

FRONT VIEW

Air Outlet
Vertical louvers
Horizontal louvers
PLASMACLUSTER Lamp (blue)
Remote control signal receiver window
POWER Button
OPERATION Lamp (red)
TIMER Lamp (orange)
MEGA COOL Lamp (green)
Air inlet

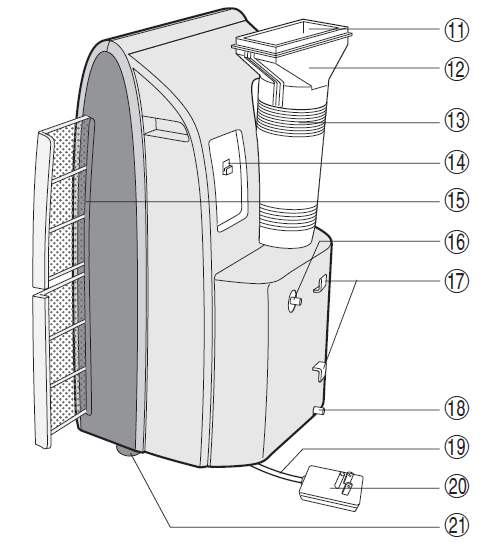

REAR VIEW

Exhaust air outlet
Window exhaust adapter
Exhaust hose
Remote control hook
Air filters
Drainage nozzle and stopcock
Power supply cord hooks
Drainpipe nozzle and stopcock
Power supply cord
Power plug
Casters(4)

NOTE: The Actual unit might vary slightly from the above illustration.

REMOTE CONTROL

Transmitter
Display
POWER Button
LIGHTS Button
TEMPERATURE Button
PLASMACLUSTER Button
1 hr OFF Button
MODE Button
ON TIMER Button
FAN Button
OFF TIMER Button
CANCEL Button
LOUVERS Button
RESET Button
MEGA COOL Button

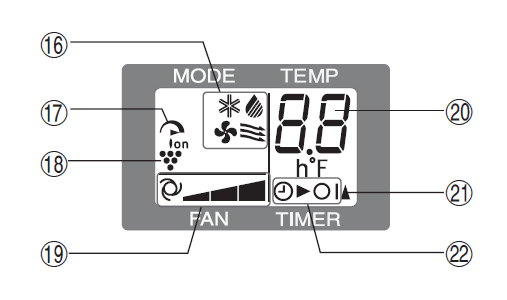

REMOTE CONTROL DISPLAY

MODE SYMBOLS
- : COOL
- : DEHUMIDIFICATION
- : FAN
- : VENTILATION
MEGA COOL SYMBOL
PLASMACLUSTER SYMBOL
FAN SPEED SYMBOLS
- : AUTO
- : Manual setting
TEMPERATURE AND TIMER COUNTDOWN INDICATOR
TRANSMITTING SYMBOL
ON TIMER / OFF TIMER SYMBOL

INSTALL WINDOW PANEL

Installation in a double-hung sash window

(See page 12 for installation in a sliding sash window. )

Connect the rain guards to the insect guard net.

Insert all three projections on each rain guard into the holes in the insect guard net. Side “A” will now be at the top, as indicated in the diagram.

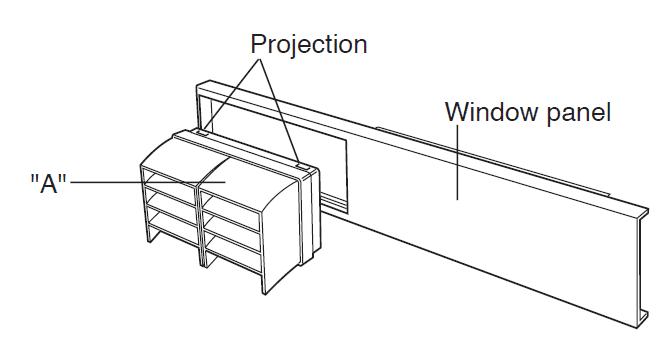

Attach the guard combined above to the window panel

Push the insect guard net firmly to ensure that its four projections fit into the holes in the window panel. Side “A” will now be at the top, as indicated in the diagram.

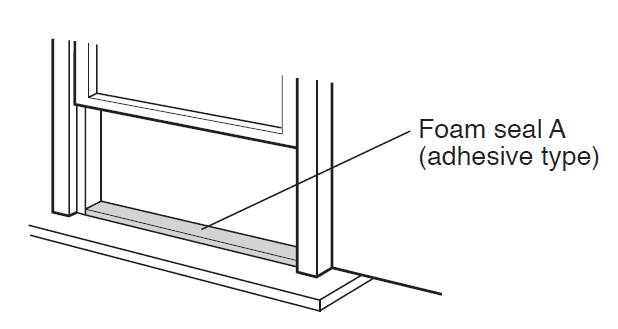

Cut the foam seal A (adhesive type) to the proper length and attach it to the window stool.

Attach the window panel to the window stool.

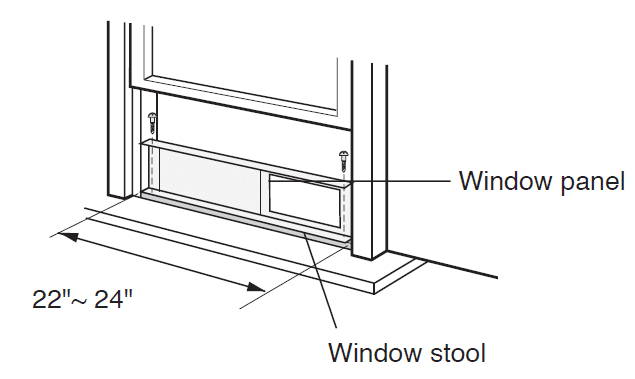

If the inner width of the window is between 22″ (559mm) and 24″ (609mm) inclusive.

The window panel cannot be installed in windows less than 22″ (559mm) wide, as you will be unable to shut the exhaust cover.

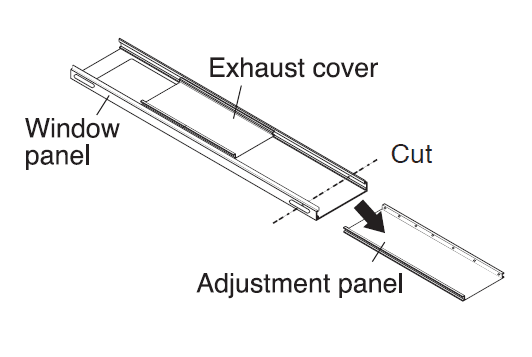

Remove the adjustment panel from the window panel, and cut the window panel to the same width as the window.
Open the window sash and place the window panel on the window stool
Secure the window panel to the window stool with 2 screws.

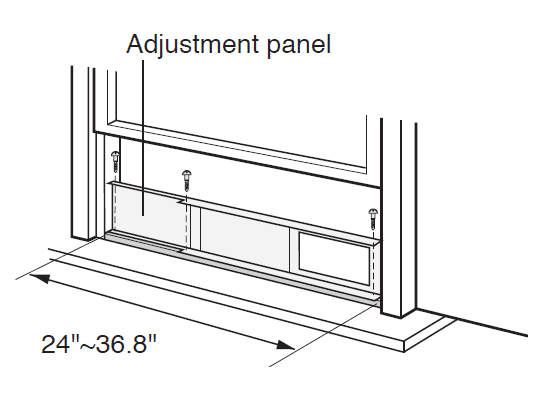

If the inner width of the window is between 24″ (609mm) and 36.8″ (934mm) inclusive.

Open the window sash and place the window panel on the window stool.
Slide the adjustment panel to fit the window frame width.
Secure the window panel to the stool with 3 screws.

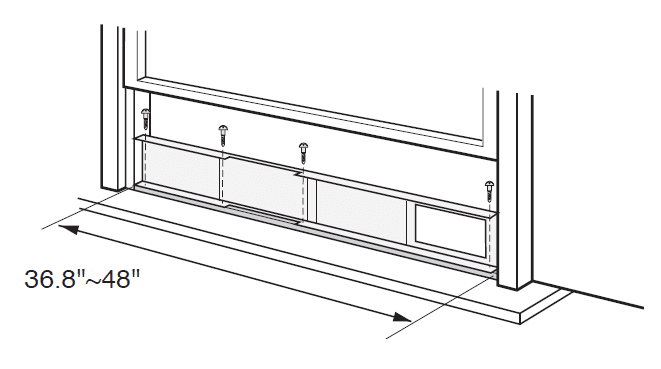

If the inner width of the window is between 36.8″ (934mm) and 48″ (1219mm) inclusive.

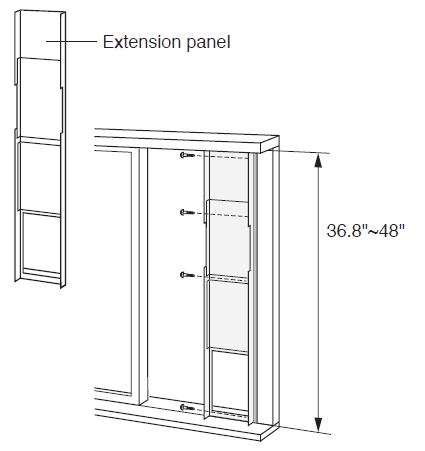

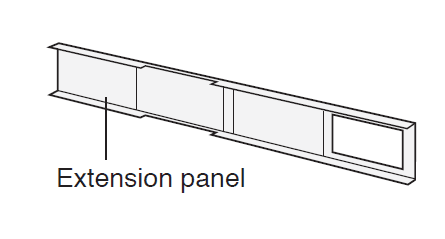

Attach the extension panel to the adjustment panel.
Open the window sash and place the window panel on the window stool.
Slide the adjustment and extension panels to fit the window frame width.
Secure the window panel to the window stool with 4 screws.

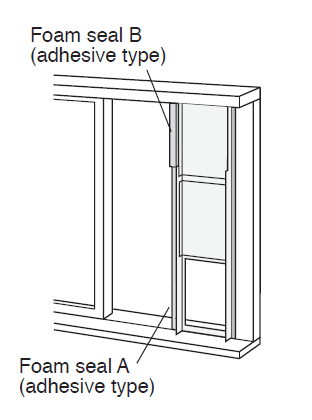

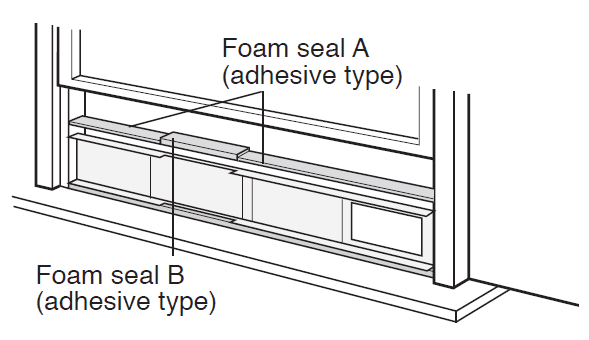

Cut the foam seals (adhesive type) A and B to the proper length and attach them to the window panel.

Attach foam seal A to the window panel and extension panel, and attach foam seal B to the adjustment panel.

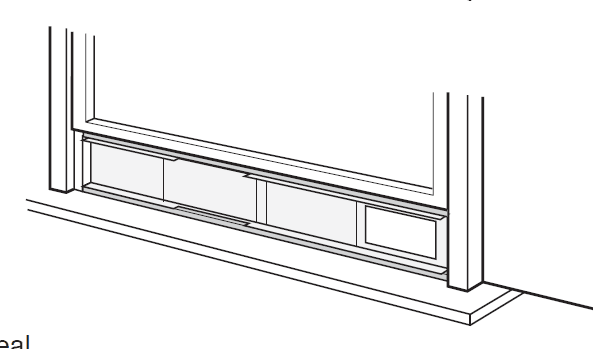

Close the window sash securely against the Window panel.

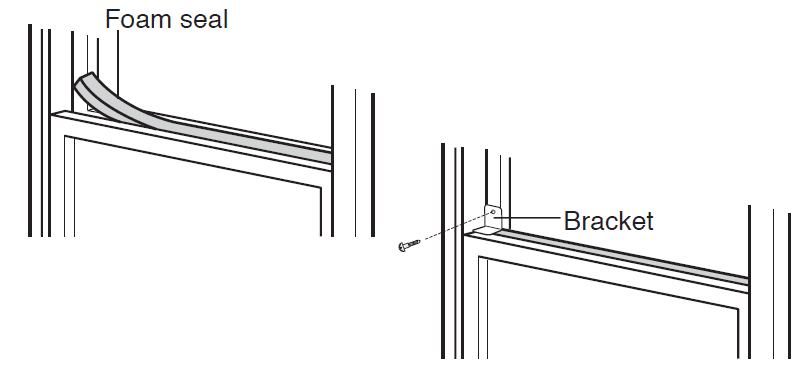

Cut the foam seal to an appropriate length and seal the opening between the top of the inner window sash and the outer window sash.

Attach the bracket with a screw.

INSTALL WINDOW PANEL

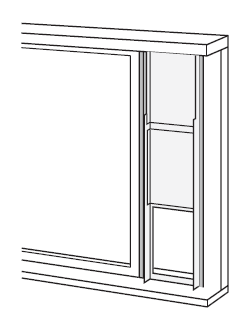

Installation in a sliding sash window

(See page 10 for installation in a double-hung window.)

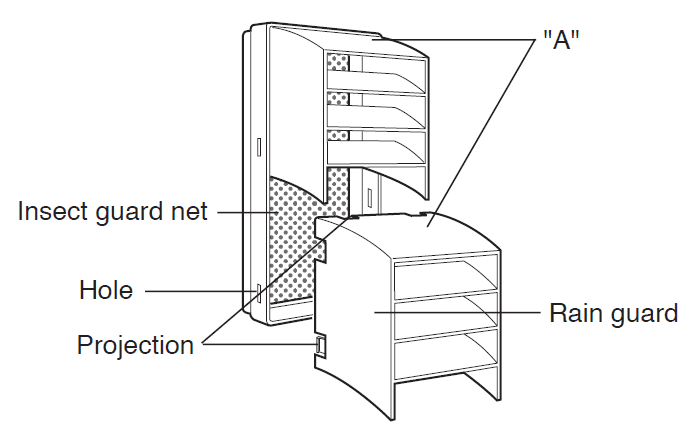

Connect the rain guards to the insect guard net.

Insert all three projections on each rain guard into the holes in the insect guard net.

Side “A” will now be at the top, as indicated in the diagram.

Attach the guard combined above to the window panel.

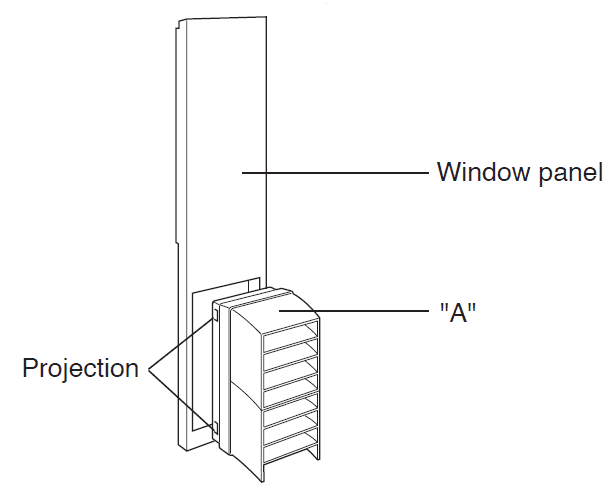

Push the insect guard net fi rmly to ensure that its four projections fi t into the holes in the window panel.

Side “A” will now be at the top, as indicated in the diagram, when it is installed in the window.

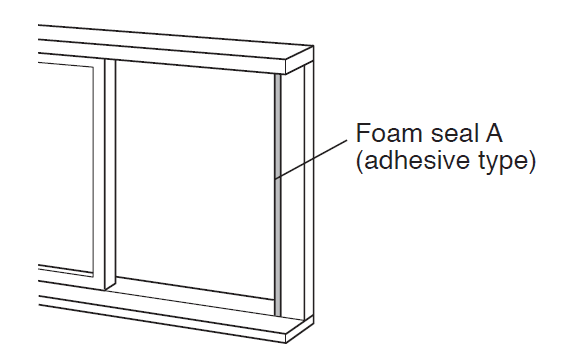

Cut the foam seal A (adhesive type) to the proper length and attach it to the window frame.

Install the window panel into the window frame.

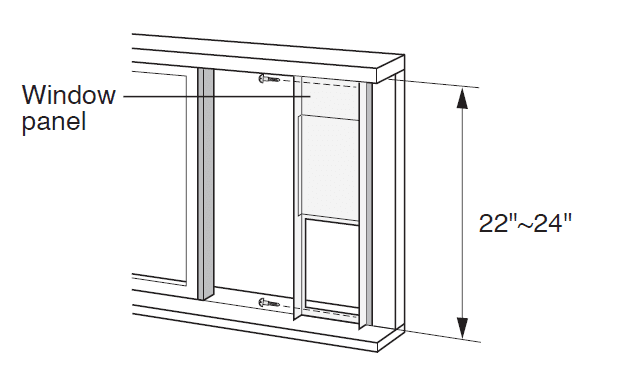

If the inner height of the window is between 22″ (559mm) and 24″ (609mm) inclusive.

The window panel cannot be installed in windows less than 22″ (559mm) high, as you will be unable to shut the exhaust cover.

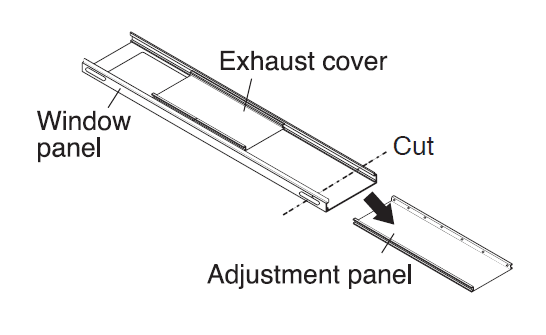

Remove the adjustment panel from the window panel, and cut the window panel to the same height as the window.
Open the window sash and place the window panel on the window frame.
Secure the window panel to the window frame with 2 screws.

If the inner height of the window is between 24″ (609mm) and 36.8″ (934mm) inclusive.

Open the window sash and place the window panel on the window frame.
Slide the adjustment panel to fit the window frame height.
Secure the window panel to the window frame with 3 screws.

If the inner height of the window is between 36.8″ (934mm) and 48″ (1219mm) inclusive.

Attach the extension panel to the adjustment panel.
Open the window sash and place the window panel on the window frame.
Slide the adjustment and extension panels to fit the window frame height.
Secure the window panel to the window frame with 4 screws.

Cut the foam seals (adhesive type) A and B to the proper length and attach them to the window panel.

Attach foam seal A to the window panel and extension panel, and attach foam seal B to the adjustment panel.

Close the window sash securely against the Window panel.

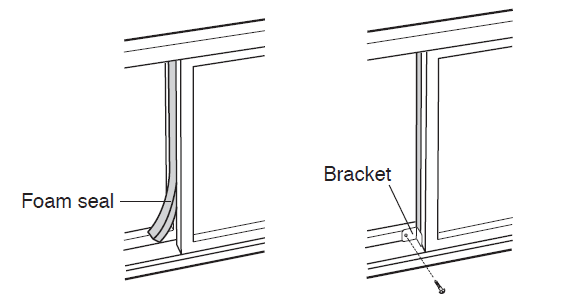

Cut the foam seal to an appropriate length and seal the opening between the side of the inner window sash and the outer window sash.

Attach the bracket with a screw.

MAINTENANCE

Be sure to disconnect the power from the wall socket before performing any maintenance.

CLEANING THE FILTERS

If the fi lter is clogged with dust, the airfl ow will be reduced, resulting in poor cooling performance. The filter should be cleaned every two weeks.

REMOVE THE FILTERS

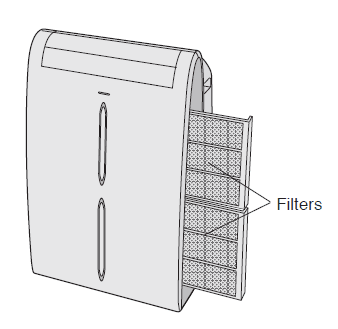

- Gently pull the filter handle to the right and slide the filter out of the unit.
CLEAN THE FILTERS
- Use a vacuum cleaner to remove any dust. If the fi lters are very dirty, wash them with detergent and rinse carefully with clean water. Dry the fi lters in the shade before reinstalling them.
REINSTALL THE FILTERS
- Hold the filter handle and gently push the filter back into place.
- Never operate the unit without the fifilterDoing so may result in serious damage to the unit.

CLEANING THE UNIT AND THE REMOTE CONTROL

Wipe them with a soft, dry cloth or with a cloth moistened with a mild soap. Carefully remove any residue by wiping with a damp cloth and drying completely.
Avoid splashing water onto the unit. Water can dangerously damage the electrical insulation.
Never use harsh chemicals or abrasive cleaners on any part of the unit. To avoid damaging the unit, do not use hot water (120°F/50°C or hotter) when cleaning.

CLEANING THE INSECT GUARD NET

The cooling performance may be reduced or stop completely if the insect guard net becomes clogged with dust.

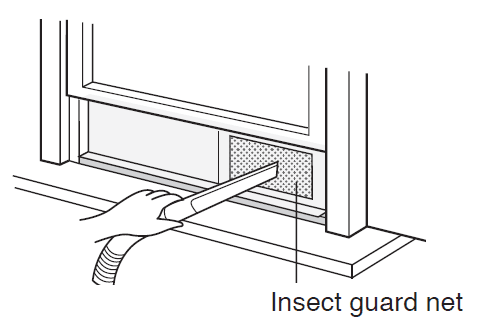

Periodically remove the window exhaust adapter from the window panel and clean the insect guard net with a vacuum cleaner.
