SHARP SPC585 Digital Alarm Clock User Manual

SHARP SPC585 Digital Alarm Clock

Table of Contents

Features

The display shows TIME, ALARM TIME 1 & 2, and SLEEP SOUND
Alarm & 5 minutes Snooze • 8 Soothing Sleep Sounds & Dual Alarm
Four steps: Ascending Alarm Sound
Display Backlight has 4 Stages of Brightness
Time Projection
Battery Backup Requires 2 x AAA batteries (not included, alkaline recommended)

POWER SUPPLY

Insert the AC adaptor into a 120V AC ~ 60Hz mains outlet and the other end of the cord into the DC 5V Jack on the back of the unit.

TIME SETUP

Press and hold the TIME button for 2 seconds to activate the time setting; the HOUR will flash.
Press the “-” or “+” buttons to the correct HOUR, the PM indicator will light when the HOUR is advanced into PM time.
Press the TIME button to confirm HOUR, MINUTES will begin to flash.
Press the “–” or “+” buttons to the correct MINUTE.
Press the TIME button to confirm and save the time setting. Display will stop flashing.

NOTE: To switch between 12 or 24-HOUR TIME display press the TIME button after time setup is complete, the default is 12 hour standard.

DUAL ALARM SETUP

Press and hold the ALARM 1 or 2 button for 2 seconds to activate the ALARM 1 or 2 setting, HOUR & or will flash.
Press the “-” Or “*” buttons to the correct HOUR, the PM indicator will light when the HOUR is advanced into PM time.
Press the ALARM 1 or 2 button to confirm HOUR, MINUTES will begin to flash.
Press the “-” or “*” buttons to the correct MINUTE.
Press the ALARM 1 or 2 button to confirm the time.
Select BEEP or SOUND using the “_” or “+” buttons and press the ALARM 1 or 2 button to confirm alarm type. Display will stop flashing.

NOTE: If SOUND is confirmed, the last played sound and max volume will be used for the alarm.

USING THE DUAL ALARM

Press the ALARM 1 or 2 button to activate ALARM 1 or 2, and the red indicator will appear.
Press the ALARM 1 or 2 button again to deactivate ALARM 1 or 2, and the red indicator will disappear.

NOTE: The default is OFF setting. When alarm sounds, it will continue for 1 minute. Then the alarm will switch off automatically to conserve power if battery backup is use.

12 OR 24-HOUR DISPLAY

In time mode, press the TIME button to select 12 or 24-HOUR TIME mode.

NOTE: The default is the 12-hour display mode.

USING THE SNOOZE

Pressing the SNOOZE/DIMMER/SLEEP button after the alarm sounds will cause the alarm to pause, and the alarm will sound again in 5 minutes. This will repeat each time the SNOOZE/DIMMER/SLEEP button is pressed. The snooze indicator “zZ” will flash when snooze is activated.

USING THE BACKLIGHT

While the alarm is not sounding, press the SNOOZE/DIMMER/SLEEP button to control the brightness of the backlight. • There are 4 stages of brightness (100% / 70% / 30% and OFF).

NOTE: The default display brightness is 100%.

PLAYING SOOTHING SOUNDS

Press the SOUND button to play a soothing sleep sound.
Press the SOUND button again to cycle through other sounds. (Rain / Ocean / Brook / White Noise / Thunderstorm / Rainforest / Fan / Campfire)
While sound is playing, you can use the “-” or “+” buttons to adjust sound volume.
To turn off, press and hold the SOUND button for 2 seconds.

NOTE: Your last played sound and max volume level will be used if the alarm is set to wake to sound. A soothing sound will be playing nonstop if the user does not set a Sleep timer.

SETTING SLEEP FUNCTION: SOOTHING SOUNDS

While sound is playing, press and hold the SNOOZE/DIMMER/SLEEP button for 2 seconds to enter sleep mode at 60 60-minute countdown.
Press the SNOOZE/DIMMER/SLEEP button again to select countdown time (60 – 45 -30 – 15 – OFF, mins).
To stop SLEEP mode, press the SNOOZE/ DIMMER/ SLEEP button again.

NOTE: When sleep time is done being adjusted, it will jump back to the time after 5 seconds.

USING THE PROJECTOR FEATURE

While the projector is OFF, press the PROJECTOR button to activate the projection time for 5 seconds. This offers a glance at the time on the ceiling; the room must be dark to see the projected image.
Press and hold the PROJECTOR button for 2 seconds to switch on this function continuously.
Press and hold the PROJECTOR button again for 2 seconds to switch off.

NOTE: The default is the OFF setting.

BATTERY BACKUP

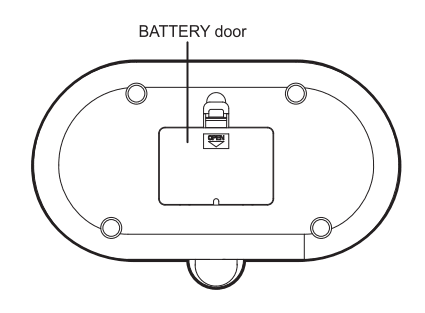

Remove the BATTERY door and insert 2 new “AAA” batteries (not included) in the direction of the polarity symbols. Please make sure the batteries are new and inserted correctly.
Backup battery power only supports the storing of TIME, ALARM 1, ALARM 2 and PROJECTION (5 seconds).
If there is no battery and the power is interrupted, the display will show noon, and the ALARM / TIME will need to be reset.

NOTE: The display will not be lit under battery backup. However, the alarm will continue to function at its set time.

BATTERY WARNING

Clean the battery contacts and also those of the device before battery installation. Follow the polarity (+) and (-) to place the battery.
Do not mix old and new batteries.
Do not mix Alkaline, Standard (Carbon – Zinc), or Rechargeable (Nickel – Cadmium) batteries.
Incorrect battery placement will damage the clock movement, and the battery may leak.
The exhausted battery is to be removed from the product.
Remove batteries from equipment that is not to be used for an extended period
Do not dispose of batteries in a fire. Batteries may explode or leak.

CARE OF YOUR CLOCK

Replace the back up battery annually, or store the clock without a battery when not in use. A soft cloth or a paper towel may be uesd to clean your clock. Do not use any corrosive cleaner or chemical solutions on the clock. Keep the clock clean and dry to avoid any problems.

FCC Rules

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, under part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used according to the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by HDMX could void the user’s authority to operate the equipment.

If customer service is needed, please email custserv_clocks@mzb.com or call toll-free at 1-800-221-0131 and ask for Customer Service. Monday-Friday 9:00 AM – 4:00 PM EST

One-Year Limited Warranty

M.Z. Berger & Company warrants the original consumer purchaser of this product that it shall be free of defects in materials and workmanship for one year from the purchase date of this product. Defects caused by tampering, improper use, unauthorized modifications or repairs, water immersion, or abuse are not covered by this warranty. If a defect covered by this warranty occurs during the warranty period, wrap your clock carefully and send it to the following address:

M.Z. Berger & Co., Inc. 353 Lexington Ave – 14th Fl. New York, NY 10016

You must include a Proof of Purchase, either the original receipt or a photocopy, and a check or money order for USD 6.00 to cover the cost of handling. Also, include your return address inside the package. M.Z. Berger will repair or replace the clock and return it to you. M.Z. Berger will not be liable for any loss or damage, including incidental or consequential damages of any kind, from any breach of warranty, either expressed or implied,d relating to the product. Since some states do ot allow the exclusion or limitation of incidental or consequential damages, this limitation may not apply to you.

Printed in China

Model: SPC585
