Sharper Image UHT1-SI Ultrasonic Cool Mist Humidifier User Guide

Sharper Image UHT1-SI Ultrasonic Cool Mist Humidifier

READ AND SAVE THESE INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

This owner’s guide and any additional inserts are considered part of the product. They contain important information about safety, use, and disposal. Before using the product, please familiarize yourself with all
operating and safety instructions. Please keep all documents for future reference and pass these documents on, together with the product, to any future owner. See sihomecomfort.com to view, download, and print the most current version of these instructions.

INTENDED USE: This product is intended to humidify and circulate the air in indoor living spaces only in the United States and Canada. This product is not intended for commercial or industrial use. The
manufacturer assumes no responsibility for damage or injury due to unauthorized use or product modification. Failure to follow these directions will void the product warranty.

WARNING: Risk to Children and Impaired Persons

• Supervision is required during the installation, operation, cleaning, and maintenance of this product by children under age 12 and anyone with reduced physical, sensory, or mental capabilities. Children should be supervised to ensure that they do not play with the appliance, its parts, and packaging material.

INSTALLATION WARNING—To reduce the risk of fire, electrical shock, and injury to persons, observe the following:

• No part of this product (the appliance, power cord, plug, packaging, etc.) should be placed near furnaces, fireplaces, stoves, or other high-temperature heat sources. Do not use it in a window, on an uneven or unstable surface, or near water.
• The appliance, power supply, power cord, and plug cannot come into contact with water. Do not use this product on wet surfaces. Do not use this product in a bathtub or shower or position product where it may fall into a bathtub, laundry, swimming pool, or other water container. Do not use this product outdoors or expose it to weather or elements.
• Do not run a cord under the carpeting. Do not cover the cord with throw rugs, runners, or similar coverings. Do not route under furniture or appliances. Arrange the cord away from the traffic area so that it will not be tripped over. The cord should not hang over the edges of counters or be placed where it can be crimped or closed indoors. Place the appliance near an easily accessible outlet so the product can be unplugged quickly during an emergency.
  SAFE USE WARNING—To reduce the risk of fire, electrical shock, and injury to persons, observe the following:
• WARNING: To reduce the likelihood of circuit overload, fire, and electric shock, do not operate with a solid-state speed device, such as a dimmer control switch.
• Do not operate the unit if the unit has been dropped or damaged. Do not use this product if it has a damaged power cord or plug. To avoid the risk of electrical shock, do not attempt to repair or replace parts. Only original replacement parts may be used. If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact (833.800.8669) or (help@sihomecomfort.com) for further instructions about replacement and repair.
• Risk of fire. Your appliance may be equipped with a detachable power supply. The detachable external power supply and cord have no user-replaceable parts. If the power supply or cord is damaged, it must be replaced by the manufacturer its service agent, or a similarly qualified person in order to avoid a hazard. Use only the detachable [GQ24-240100-AU] external power supply and cord that comes with Before plugging the power cord into an electrical outlet, be sure that all electrical information on the rating label, including voltage, is compatible with your outlet’s power supply.
• Never use the cord as a handle or otherwise yank, strain, or stretch the power cord.
• While the product is plugged in, do not insert or allow foreign objects to enter any input or output opening as this may cause a risk of electric shock or fire, or damage the product.
• A loose fit between the wall outlet (receptacle) and the plug may cause overheating and distortion of the plug. Discontinue use of the product in this outlet. Contact a qualified electrician to replace loose or worn outlets.
• This appliance has a polarized plug (one blade is wider than the other.) To reduce the risk of electrical shock, this plug is intended to fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this safety feature.
• The product may be hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Always allow the appliance to cool for at least 30 minutes before moving, refilling, or emptying it. Empty all water and dry the unit before storing.
• Before filling with water, moving, repositioning, servicing, cleaning, and when not in use, use the product controls to turn off the power and then unplug. To disconnect from the outlet, grasp and pull only the plug. Also, power off and unplug if the product will be left unattended for an extended period of time or during electrical storms.
• Electric shock can occur when liquid comes in contact with electricity. Be careful when removing the water tank and refilling it to avoid electric shock.
• Turn the humidifier off if the relative humidity exceeds 60%. Humidity levels above 60% may allow moisture to build up indoors and condense on surfaces, where microorganisms can settle and grow. For accurate readings, use a hygrometer which is available at most hardware stores and home centers.

SERVICING WARNING—To reduce the risk of fire, electrical shock, and injury to persons, observe the following:

• Clean your product regularly, only as instructed in this manual. Prior to cleaning, turn off the power on your product and unplug it. Do not use gasoline, thinners, solvents, ammonia, or other chemicals for cleaning. Refer to the CLEANING instructions provided.
• Do not open the appliance housing while the product is plugged in. To avoid the risk of shock, all service and/or repairs must be done by contacting (833.800.8669) or (help@sihomecomfort.com).
• Protect against the growth of mold, mildew, and other microorganisms by emptying the water tank immediately after each use. If water is left in the tank for longer than 8 hours, thoroughly clean and disinfect the unit as described in the section of this Owner’s Guide referenced as CLEANING.
  NOTE: This equipment has been tested and complies with the CFR 47 Part 18 FCC Rules. Operation is subject to the following two conditions:
  1. This device may not cause harmful interference, and
  2. this device must accept any interference received, including interference that may
     cause undesired operation.

This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This product generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning
the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Contact Vornado Consumer Service or the dealer or an experienced radio/TV technician for help.
  Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

DISPOSAL WARNING

To reduce waste and environmental harm, observe the following:
PACKAGE RECYCLING: The packaging protects the appliance from transport damage. The packaging materials are selected from the point of view of their environmental friendliness and disposal technology and are therefore recyclable. Dispose of all packaging materials in an environmentally responsible manner.

FEATURES

1. NIGHT LIGHT
   Optional night light can be turned on and off with a power button
2. ROTATING MIST NOZZLE
   Manually rotate the nozzle 360° for mist where you need it most. Nozzle is removable
3. MIST TUBE
   Guides the mist from inside the humidifier to the mist nozzle
4. WATER TANK
   Easy to fill, install, clean, and view water level. 0.4-gallon capacity
5. CARRY HANDLE
   Integrated carry handle on top of water tank for lifting and carrying
6. CAP
   Easy-to-remove cap for refilling water tank
7. BASE
   Durable and easy to clean
8. CLEANING BRUSH
   Used for cleaning base and ultrasonic disk
9. ADAPTER
   Powers humidifier; attaches on the underside of base
10. ULTRASONIC DISK (INTERNAL)
    Shatters water into a fine visible mist.

HOW TO USE

Before use, check the humidifier for leaks and visible damage that may have occurred during shipping. DO NOT USE if there is evidence of damage.

FILLING WATER TANK

1. Unplug the humidifier and place it on a level surface.
   Note: Spills can occur during cleaning, moving, or refilling the water tank, so be careful to avoid spills.
2.  Remove the water tank by grasping the water tank handle and pulling it toward you.
3. Turn the water tank upside down and remove the cap (turn the cap counterclockwise to open).
4. Fill the water tank with cool tap water and replace the cap (turn clockwise to close).
   TIP: If you have hard water or water with excessive minerals, we recommend using distilled water to help reduce white dust and mineral buildup.
5. Lower the water tank into the base, positioning the water tank cap outlet valve over the raised post in the base. Once in the nested position, the outlet valve inside the cap opens, releasing water into the base.
   Note: Any additives, such as aroma fragrances should not be used in the water tank or base. These additives can cause cracks in the plastic of the humidifier and may affect performance. Any use of such additives voids the manufacturer’s warranty.

Easily operate and control mist settings and nightlight function with the illuminated touch power button. Touch POWER ICON to cycle through settings as follows:

• MODE 1 – Powers humidifier on and high mist setting without a nightlight
• MODE 2 – High mist setting with nightlight
• MODE 3 – Low mist setting without nightlight
• MODE 4 – Low mist setting with nightlight
• MODE 5 – Powers humidifier off.
  The illuminated LED around the power icon will illuminate when the unit is powered on. When selected the LED nightlight will illuminate in the base and is located near the mist tube.

HIGH MIST SETTING

Operation for fast humidification of small to medium-sized rooms. High-speed operation will evaporate 1.2 gallons of water (+/- 10%) in 24 hours of continuous operation. (This assumes room conditions of 70º F and 30% relative humidity.)

LOW MIST SETTING

Operation for quiet, nighttime use or smaller rooms. On Low operation, your humidifier may run without refilling for extended periods.
TIP: Lower the mist setting or turn off the humidifier if moisture forms on walls or windows.

LOW WATER INDICATOR & AUTO SHUTOFF

When the humidifier detects a low water level the LED around the power icon will briefly flash red to indicate the water tank needs refilled before automatically powering off. Refill the tank and power the humidifier back on to resume operation.

CLEANING

Proper cleaning is essential to the air quality and performance of your humidifier. The frequency in which your humidifier will need to be cleaned will vary depending on use, water hardness, and outside environmental factors. It is recommended, assuming average use, to thoroughly clean weekly or when
algae, mineral deposits or other particles begin to form. If the humidifier is turned off with water in the base and not turned back on for 8 hours or longer, or if the humidifier is not cleaned as recommended, you may experience some growth of algae or bacteria. These microorganisms may become airborne.

NOTE: Do not use gasoline, thinners, solvents, or other chemicals for cleaning.

CLEANING INSTRUCTIONS

1. Turn the humidifier off, unplug it from the wall, and disconnect the adapter from the base.
2. Remove the water tank and empty the tank and any remaining water in the base.
3. Rinse the mist tube located inside the water tank with clean tap water. Remove the mist nozzle prior to cleaning the mist tube.
4. On occasion, the water tank may need to be gently wiped down or cleaned to remove the buildup of impurities. Clean with a mild detergent and rinse with clean tap water.
5. Clean the base using a soft cloth or the cleaning brush (included) with a mild
   detergent and rinse with clean tap water. Do not submerge the base in water.
6. Locate the ultrasonic disk on the inside center of the base. Use the cleaning brush to gently clean the disk. Do not scrub or scrape the ultrasonic disk. Do not clean the ultrasonic disk with any other tool than the provided cleaning brush.
7. Wipe the outer surface of the unit with a soft, damp cloth if needed.

STORAGE

STORAGE

During the off-season or after extended periods of non-use, you may choose to store your humidifier. To ensure the long life of the product, it is recommended to store your humidifier by following these instructions:
TIP: Cleaning is recommended before storage.

1. Unplug the power cord and bundle it loosely.
2. Let the humidifier dry completely before storing. Do not store water inside water tank or base.
3. Cover, or place back in retail carton if available. This will prevent the humidifier from accumulating dust over time.
4. Store the humidifier in a cool and dry location.

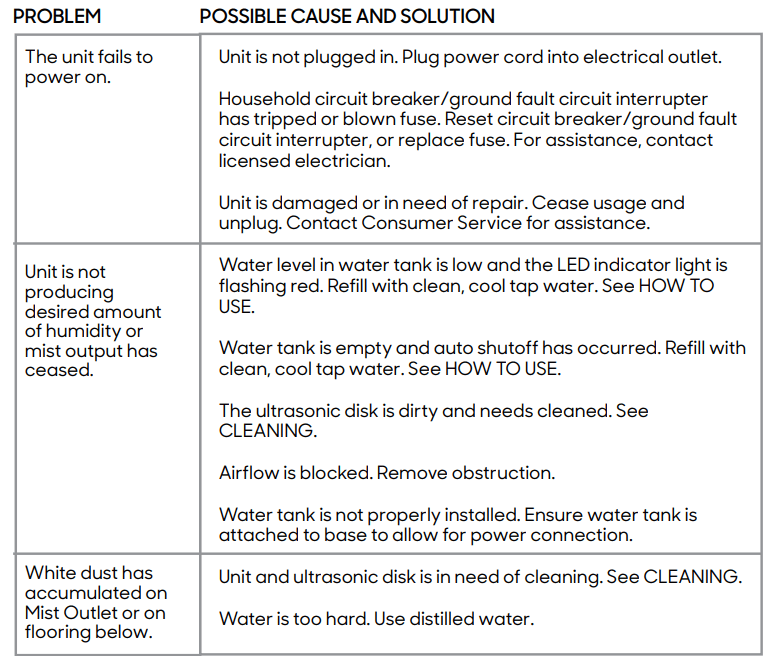

TROUBLESHOOTING

WARRANTY

If you’re not satisfied with this product, let us know

Vornado Air, LLC warrants to the original consumer or purchaser that this Sharper Image® Humidifier (“Product”) is free from defects in material or workmanship for a period of one (1) year from the date of purchase. If any such defect is discovered within the warranty period, Vornado, at its discretion, will repair or replace the Product at no cost.

For warranty or repair service: Call 833-800-8669 or email help@sihomecomfort.com to obtain a Return Authorization (“RA”) form. Please have or include your Product’s model number and serial number, as well as your name, address, city, state, zip code, and phone number when contacting Vornado for warranty service.

After receiving the RA form, ship your Product to: Vornado Air LLC Attn: Warranty & Repair 415 East 13th Street Andover, KS 67002. For your convenience, please have your model number and serial number when contacting Vornado with service inquiries.

To ensure proper handling, packages must be clearly marked with the RA number. Packages not clearly marked with the RA number may be refused at the receiving dock. Please allow 1-2 weeks for repair and return of your Product after the Product is received.

Repairs not covered by the warranty or outside the warranty period will require a fee to cover the cost of materials, labor, handling, and shipping. This warranty does not apply to defects resulting from abuse of the Product, modification, alteration, mishandling, improper maintenance, commercial use, or repair
or service of the Product by anyone other than Vornado; damages which occur in shipment or are attributed to acts of God. Improper product use, which includes using an external device that alters or converts the voltage or frequency of electricity, or Any unauthorized product modification, repair by an unauthorized repair center, or use of non-approved replacement parts is not recommended and any consequences
will not be covered by support services or product warranties. The product warranty will be honored only on models that are being used in the country intended. REPAIR OR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER. VORNADO SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE ON THIS PRODUCT IS LIMITED IN DURATION TO THE DURATION OF THIS WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may have other rights that vary from state to state. The manufacturer assumes no responsibility for damage caused by failure to follow these instructions or improper product use. Any such actions will invalidate the product warranty

All company names and product names are trademarks of their respective owners. © All rights reserved. All technical information, data, and instructions for the installation, connection, and operation contained in these instructions for use correspond to the latest available information at the time of printing. The contents of this manual may differ slightly from the actual product. Observe any additional supplements.

©2019 Vornado Air LLC, Andover, Kansas 67002 USA. Specifications are subject to change without notice. Sharper Image® name and logo are registered trademarks. Manufactured, marketed, and distributed under license by Vornado Air LLC, Andover, Kansas 67002. Manufactured in China. U.S. Patents Pending. Sharper Image® Distributed under license by Vornado Air LLC, Andover, Kansas 67002.
