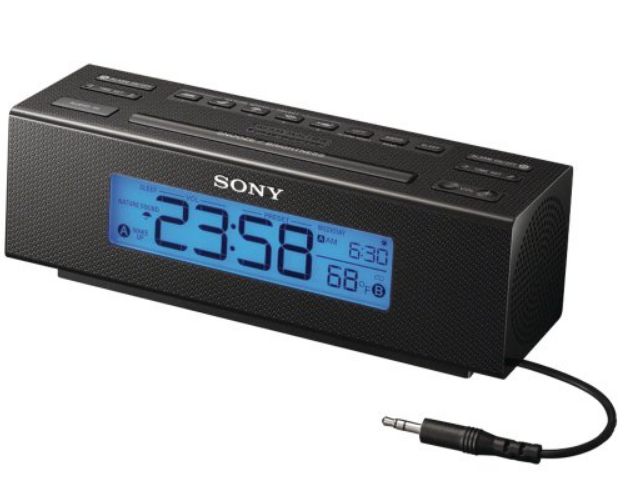

Sony ICF-C707 AM-FM Clock Radio User Manual

Sony ICF-C707 AM-FM Clock Radio

WARNING

• To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
• To reduce the risk of fire, do not cover the ventilation of the apparatus with newspapers, tablecloths, curtains, etc. And do not place lighted candles on the apparatus.
• To reduce the risk of fire or electric shock, do not expose this apparatus to dripping or splashing, and do not place objects filled with liquids, such as vases, on the apparatus.
• Do not install the appliance in a confined space, such as a bookcase or built-in cabinet.
• Do not expose the batteries (battery pack or batteries installed) to excessive heat such as sunshine, fire, or the like for a long time.
• As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible AC outlet. Should you notice an abnormality in the unit, disconnect the main plug from the AC outlet immediately.

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Features

• Dual alarm FM/AM synthesized clock radio
• Nature Sound (Sea Waves, Birds, Rain, Brook, Under the Sea)
• Temperature display (Fahrenheit / Centigrade) 5°F – 122°F (–15°C – 50°C)
• Built-in audio cable for Digital Music Player
• 10 Station Presets (5 FM/5 AM)
• Various types of alarms – radio, buzzer and Nature Sounds (5)
• Automatic time set: when you plug the clock in for the first time, the current time will be shown in the display
• Automatic Daylight Saving Time Set/Summer time adjustment
• 100-year calendar and DATE/TIME ZONE button to display year, month, and date
• Brightness Control (High/Low/Off)
• No Power No Problem alarm system to keep the clock and the alarm operating during a power interruption with a CR2032 battery installed
• Extendable Snooze system – Snooze time can be set from 10 to 60 minutes
• Progressive Alarm Speed (buzzer only)

Precautions

• Play the unit on the power source specified in “Specifications.”
• To disconnect the power cord (mains lead), pull it out by the plug, not the cord.
• Since a strong magnet is used for the speaker, keep personal credit cards using magnetic coding or spring-wound watches away from the unit to prevent possible damage from the magnet.
• Do not leave the unit in a location near a heat source such as a radiator or air duct, or in a place subject to direct sunlight, excessive dust, mechanical vibration, or shock.

Connecting the antenna

To connect the AM loop antenna

The shape and the length of the antenna is designed to receive AM signals. Do not dismantle or roll up the antenna.

• Remove only the loop part from the plastic stand.
• Set up the AM loop antenna.
• Connect the cords to the AM antenna terminals.

Cord (A) or cord (B) can be connected either way round.

Insert the cord while pushing down the terminal clamp.

• Make sure the AM loop antenna is connected firmly by pulling softly.

Adjusting the AM loop antenna

Find a place and an orientation that provides good reception.

• Do not place the AM loop antenna near the unit or other AV equipment, as noise may result.

Tip

Adjust the direction of the AM loop antenna for best AM broadcast sound.

About the backup battery

To maintain accurate time, this unit includes an internal CR2032 battery as a backup power source in the event of a power interruption.

Knowing when to replace the battery

When the battery becomes weak, icon will appear in the display.

If a power interruption occurs while the battery is weak, the current time and alarm will be initialized.

Replace the battery with a Sony CR2032 lithium battery. Use of another battery may cause a fire or explosion.

Note

If “AM 12:00” flashes in the display when the unit is connected to an AC outlet for the first time, the battery may be weak. In this case, consult your Sony dealer.

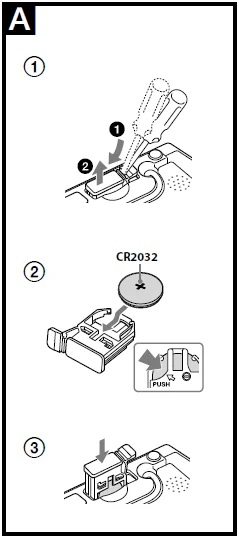

Installing and replacing the backup battery

1. Keep the AC plug connected to the AC outlet, and pry out the battery holder at the bottom of the unit using a slender rod, such as a screwdriver. (See fig. A-1)
2. Insert a new battery in the battery holder with the + side facing up. To remove the battery from the battery compartment, push it out from the side marked PUSH. (See fig. A-2)
3. Insert the battery compartment back into the unit. (See fig. A-3)
4. When you are replacing the battery, press any of the following buttons: RADIO BAND, AUDIO IN, or NATURE SOUND / PRESET to turn low battery icon off in the display.

Note

When you replace the battery, do not disconnect the AC plug from AC outlet. Otherwise, the 100 year calendar, current time, alarm and station presets will be initialized.

Setting the clock for the first time

This unit is preset to current EST (Eastern Standard Time) at the factory, and is powere by a backup battery. All you need to do the first time is just plug it in and select your time zone.

• Plug in the unit.

“year” (about 4 seconds) → “month and date” (about 4 seconds) → “current EST (Eastern Standard Time)” appears in the display in turn.

• Press and hold DATE/TIME ZONE for at least 2 seconds. Area number “2” flashes in the display.
• Press TIME SET + or – repeatedly to select the time zone as follows:
• Press DATE/TIME ZONE to set.

Notes

• Though the clock is correctly set at the factory, discrepancies may arise during transport or storage. If necessary, set the clock to the correct time by referring to “Setting the clock.”
• While setting the time zone, you must perform each step within 65 seconds, or the time zone setting mode will be cancelled.

When daylight saving time (summer time) begins

This model automatically adjusts for daylight saving time (summer time).

Icon is displayed from the beginning of daylight saving time (summer time), and disappears at the end of daylight saving time (summer time) automatically.

• Daylight saving time (summer time) begins at: 2:00 AM on the second Sunday of March.
• Standard time begins at: 2:00 AM on the first Sunday of November.

To cancel Automatic DST/Summer Time adjustment during the daylight saving time (summer time) period

Automatic DST/Summer Time adjustment can be canceled.

Press and hold DISPLAY/CLOCK and SNOOZE / BRIGHTNESS at the same time for at least 2 seconds while the clock is displayed.

Icon and “OFF” appear in the display to show that Automatic DST/Summer Time adjustment has been canceled. The display returns to the clock.

Notes

• Time change of Automatic DST/Summer Time adjustment (see above) is subject to variations in circumstances and laws of each country/region. Cancel Automatic DST/Summer Time adjustment and set the DST display manually as necessary. Customers living in a country/region that does not use daylight saving time (summer time) must cancel Automatic DST/Summer Time adjustment before using the unit.
• To activate Automatic DST/Summer Time adjustment again, press and hold DISPLAY/ CLOCK and SNOOZE / BRIGHTNESS at the same time for at least 2 seconds. Icon and “On” appear in the display to show that Automatic DST/Summer Time adjustment has been activated. The display returns to the clock.

Setting the clock

1. Plug in the unit.
2. Press and hold DISPLAY/CLOCK for at least 2 seconds. The year starts to flash in the display.
3. Press TIME SET + or – repeatedly to set the year.
4. Press DISPLAY/CLOCK.
5. Repeat steps 3 and 4 to set the month, day, hour and minute, and then press DISPLAY/CLOCK. The seconds start incrementing from zero.

Notes

• While setting the clock, you must perform each step within 65 seconds, or the clock setting mode will be cancelled.
• When pressing any of the rear buttons, hold the unit firmly to prevent slippage.

To display the year and date

Press DATE/TIME ZONE once for the year, and press again for the date.

After a while, the display will change back to the current time automatically.

Setting the brightness of the display

Three levels of brightness are available by pressing SNOOZE / BRIGHTNESS.

Note

When the alarm is sounding, the brightness function cannot be used.

Playing the radio

Manual tuning

1. Press RADIO BAND to turn on the radio and select the AM or FM band.
2. Press TUNING + or – to tune in to a desired frequency.
3. Adjust the volume using VOL + or –.

Tuning in to a station

The unit automatically scans AM or FM stations.

1. Press RADIO BAND to turn on the radio to select the AM or FM band.
2. Press and hold TUNING + or –. + : scans upward through the frequency bands. – : scans downwards through the frequency bands. Scanning starts from the currently-tuned frequency. When a station is received, scanning stops.
3. Adjust the volume using VOL + or –.

Preset tuning

You can preset 5 stations for FM and 5 stations for AM.

Presetting a station

1. Follow steps 1 and 2 in “Manual tuning” to tune the frequency you wish to preset.
2. Hold down the desired NATURE SOUND / PRESET 1 to 5 button until you hear two beeps.

Example: The following display appears when you preset FM 105.7 MHz to preset number 3 for FM.

The display shows the frequency for a few seconds and then changes back to the current time.

To change the preset station, tune into the desired station and hold down the NATURE SOUND / PRESET 1 to 5 button until you hear two beeps.

To preset another station, repeat these steps.

Note

If you try to store another station with the same preset number, the previously stored station will be replaced.

Tuning in to a preset station

1. Press RADIO BAND to turn on the radio and select the AM or FM band.
2. Press NATURE SOUND / PRESET 1 to 5 where the desired station is stored.
3. Adjust the volume using VOL + or –.

Improving the reception

FM: Extend the FM wire antenna fully to increase reception sensitivity.

AM: Connect the supplied AM loop antenna to the unit. Rotate the antenna horizontally for optimum reception.

Note on radio reception

Keep digital music players or mobile phones away from the AM loop antenna or the FM antenna, as this may lead to reception interference.

Selecting a Nature Sound

This unit includes 5 types of Nature Sounds: (Sea Waves, Birds, Rain, Brook and Under the Sea.)

You can choose any one of these by pressing the corresponding button.

Note

When other functions are in use, Nature Sound is not available.

Setting the alarm

The dual alarm function allows you to set two alarm programs (ALARM ON/OFF A and ALARM ON/OFF B).

The alarm time can be set for each program and the alarm sound is selectable from “NATURE SOUND,” “RADIO,” or “BUZZER.”

Notes

• Before setting the alarm, make sure to set the clock. (See “Setting the clock”)
• The factory setting alarm time is “PM 12:00.”
• To set the radio alarm, first preset your favourite station. (See “Presetting a station”)
• While setting the alarm, you must perform each step within 65 seconds, or the alarm setting mode will be cancelled.

To set the alarm

1. Press and hold ALARM ON/OFF A or B for a few seconds.
2. Press TIME SET + or – to set the desired hour, and press ALARM ON/OFF A or B.
3. Press TIME SET + or – to set the desired minute, and press ALARM ON/OFF A or B.
4. Press TIME SET + or – to set the desired alarm period (“WEEKDAY,” “WEEKEND” or everyday*), and press ALARM ON/OFF A or B. In the case of everyday, both “WEEKDAY” and “WEEKEND” are displayed.
5. Press TIME SET + or – to set the desired alarm mode (“NATURE SOUND,” “RADIO,” or “BUZZER”), and press ALARM ON/OFF A or B. You can choose one of 3 settings: “NATURE SOUND,” “RADIO,” or “BUZZER.” Set the alarm mode as follows:

• NATURE SOUND: see “(A) Setting the Nature Sound alarm.”
• RADIO: see “(B) Setting the radio alarm.”
• BUZZER: see “(C) Setting the buzzer alarm.”

Setting the Nature Sound alarm

1. Perform steps 1 to 5 in “To set the alarm.”
2. Press TIME SET + or – to select “NATURE SOUND” alarm mode, and press ALARM ON/OFF A or B. “NATURE SOUND” appears in the display.
3. Press TIME SET + or – to select the NATURE SOUND / PRESET 1 to 5, and press ALARM ON/OFF A or B.
4. Press TIME SET + or – to adjust the volume, and press ALARM ON/OFF A or B. The setting is entered.
5. Press ALARM ON/OFF A or B. “A” or “B” appears in the display after about 4 seconds. Nature sound will sound at the set time.

Setting the radio alarm

1. Perform steps 1 to 5 in “To set the alarm.”
2. Press TIME SET + or – to select “RADIO” alarm mode, and press ALARM ON/OFF A or B. “RADIO” appears in the display.
3. Press TIME SET + or – to select the AM band, FM band or the last station, and press ALARM ON/OFF A or B. If you select the last station, jump to step 5.
4. Press TIME SET + or – to select the station, and press ALARM ON/OFF A or B.
5. Press TIME SET + or – to adjust the volume, and press ALARM ON/OFF A or B. The setting is entered.
6. Press ALARM ON/OFF A or B. “A” or “B” appears in the display after about 4 seconds. The radio will turn on at the set time.

Setting the Buzzer alarm

1. Perform steps 1 to 5 in “To set the alarm.”
2. Press TIME SET + or – to select “BUZZER” alarm mode, and press ALARM ON/OFF A or B. The setting is entered.
3. Press ALARM ON/OFF A or B. “A” or “B” appears in the display after about 4 seconds. The buzzer will sound at the set time.

When the alarm setting is completed, the alarm time setting is displayed.

When both ALARM “A” and ALARM “B” are turned on, you can switch the ALARM A and ALARM B display by pressing DISPLAY/ CLOCK.

Notes

• When you use the radio alarm, the timed alarm sounds with the last broadcasting station tuned to before the power went off. When you set the radio alarm, select the desired broadcasting station before turning the power off.
• The ALARM “A” (or “B”) indicator flashes in the display when the alarm sounds.
• If a second alarm sounds during a first (or the SNOOZE function is active), the second alarm takes priority.
• The alarm function works as usual at the beginning and end of daylight saving time (summer time). While Automatic DST/ Summer Time adjustment is set, as a result, if the alarm is set at a time skipped when the daylight saving time (summer time) begins, the alarm is skipped, or if the alarm is set at a time overlapped when the daylight saving time (summer time) ends, the alarm sounds twice.
• If the same alarm time is set for both alarms (ALARM A and B), ALARM A takes priority.

To confirm an alarm time setting

Turn off the ALARM ON/OFF “A” or “B” indicator in the display, and press the ALARM ON/OFF A or B button again.

You can confirm the alarm time by pressing TIME SET + or – after the alarm time is set.

Troubleshooting

Should any problem persist after you have made the following checks, consult your nearest Sony dealer.

The clock flashes “AM 12:00” due to a power interruption.

The battery is low. Replace the battery. Remove the old battery and install a new one.

The alarm settings do not sound at the preset alarm time.

Check that alarm “A” or alarm “B” is properly set/displayed.

The alarm settings are activated but there is no sound at the preset alarm time.

Check the alarm volume setting.

When daylight saving time begins, the clock does not employ the daylight saving time automatically.

• Make sure the clock is set correctly.
• Press and hold DISPLAY/CLOCK and SNOOZE / BRIGHTNESS simultaneously for at least 2 seconds to activate the Automatic DST function.
