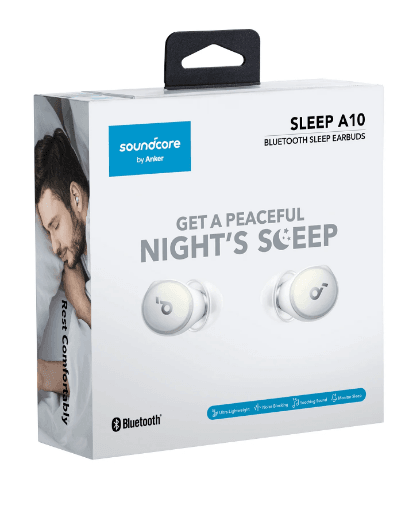

Soundcore A10 True Wireless Earbuds User Manual

Soundcore A10 True Wireless Earbuds

COMPONENT LIST

• Charging case*1
• Right earphone *1
• Left earphone *1
• Large silicone ear-tips *2
• Small silicone ear-tips *2
• Charging cable *1
• User manual *1

WEARING METHOD

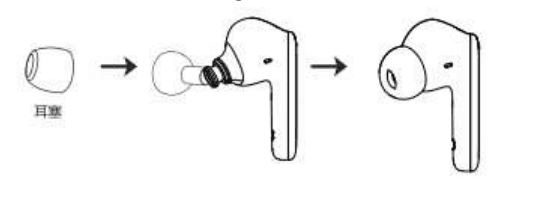

1. Choosing the suitable size ear-tips is critical for maximum external noise isolation and a snug, secure fit.

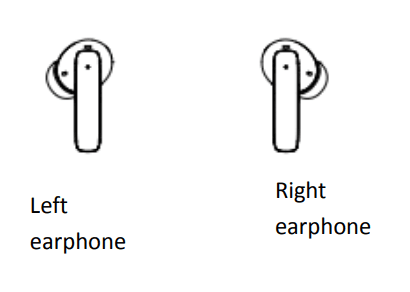

2. Wear the earphones into your ears
   Classify the left and right earphones, then tuck the ear-tip into the front ear fold facing up. Adjust the earbuds to a suitable angle until you have a tight and snug fit.

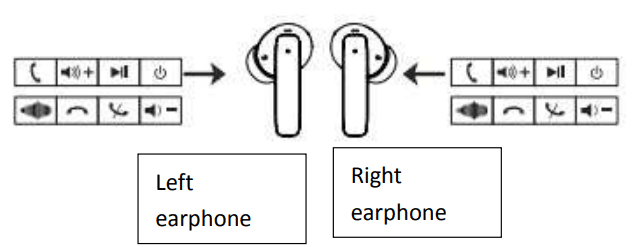

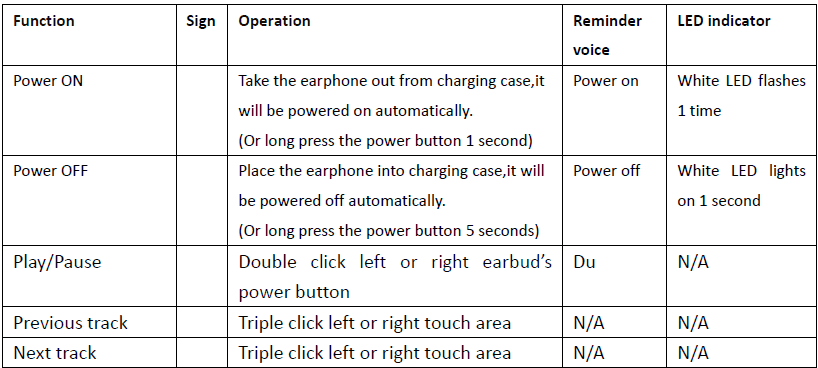

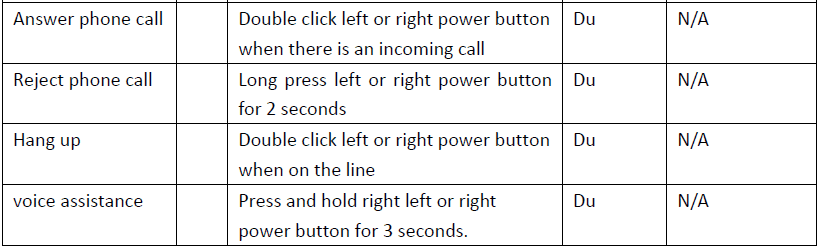

EARPHONE FUNCTION DESCRIPTION

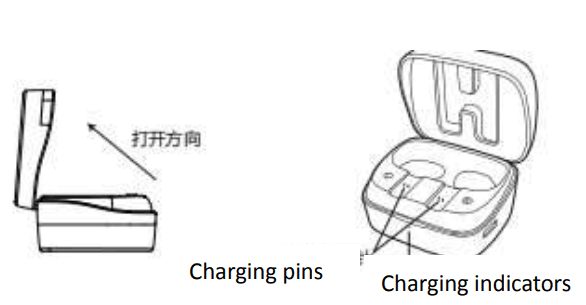

USING THE CHARGING CASE

Open the charging case and take the earphones out. The earphones will enter pairing mode automatically.

EARPHONE AND CHARGING CASE LED INDICATOR

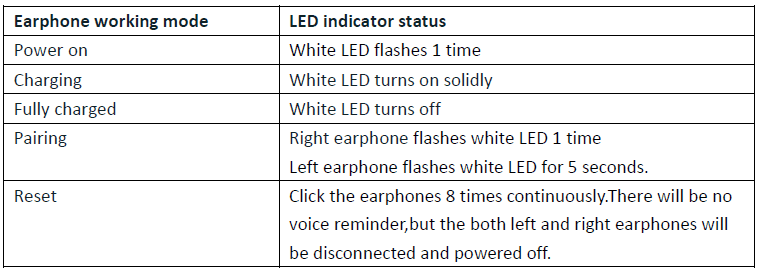

1. EARPHONE LED INDICATOR

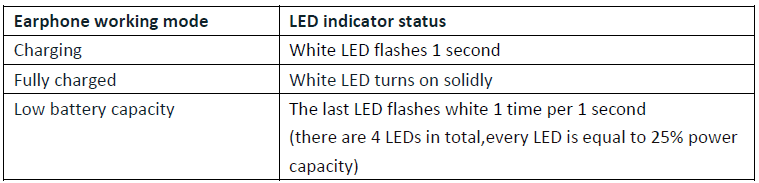

2. CHARGING CASE LED INDICATOR



PAIRING

1. Long press the earphone’s power button for 3 seconds until hearing the “power on” voice reminder, then release it .Both right and left earphones are re-connected and enter into pairing mode for access Bluetooth device.
2. Turn on your smartphone’s Bluetooth function, and it will search for the earphone’s pairing name” A10” automatically. Click the pairing name on the phone’s screen, and you will hear ” Connected” from the right earbud. Connected successfully.
3. The right and left earphones re-connection After the right earphone is powered on, long press left earphone’s power button for 3 seconds until you hear the “power on” sound to release your finger, the left and right are connected. After that, you will hear the “Du” voice. Both earphones are entering pairing mode. (If the right earbud has been connected to the smartphone, please pause the music to speed up the re-connection)
4. The right and left earphones are pairing
   Take the earphones out of the charging case; both earbuds are powered on. Double-click the left earphone and wait for the earphones are pair automatically.(After connection successfully, the left earphone’s LED will flash 1 time per 1 second, the right earphone’s LED flash 1 time per 5 seconds.)

EARPHONE SPECIFICATION

• Model number:  A10
• Chipset solution: JL 6973D
• Bluetooth version: Bluetooth 5.1
• Support Agreement: HFP/HSP/A2DP/AVRCP
• Compatibility system: iOS/Android/Windows
• Operation distance: 10M(no obstacle)
• Waterproof level: IPX4
• Speaker’s Spec: φ8MM,32Ω Moving coil unit
• Battery’s Spec: Earphone: 3.7V/30mAh
• Charging case: 3.7V/300mAh
• Earphone working time: 4 hours
• Charging case supplement working time: 24 hours
• Charging time Earphone: 1.5 hours
• Charging case: 1.5 hours
• Dimensions Earphone: 24*17
• Charging case: 63*32*42mm

SAFTY RULES

1. Do not place your device at wet environment.Avoid the oil,water or the other liquid damage to your device,or it will affect the device’s function.
2. Avoid using an Irritating organic solution to clean the device.
3. Ensure the correct earphone usage requirement, and also need to think about the effects from the environment.To keep the fluent and stable connection,please place the smartphone and earphones within 10m distance.
4. If there is any connection or cut-out problem, please do not disassemble the earphones or accessories by yourself, or it will affect your warranty service.
5. When charging the earphones, please use the standard charging resource.
   For your normal use, please make sure the earphones are fully charged.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
