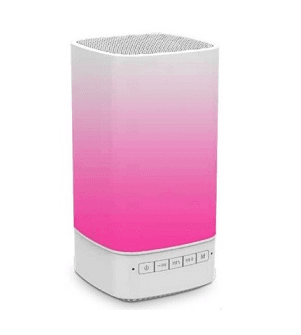

SoundLogic XT TOUCH-SP Bluetooth Speaker Instruction Manual

SoundLogic XT TOUCH-SP Bluetooth Speaker

Getting Started

• Remove the device from the box.
• Please retain all packaging until you have checked and counted all the parts and the contents against the parts list.

Package Contents

• LED Touch Bluetooth Speaker
• USB Charging Cable
• 3.5mm Auxiliary Cable
• Instruction Manual

Key Features

• LED Touch-Controlled Bluetooth Speaker
• Wireless connection through Bluetooth device and LED lights make it easy to spot at night
• Multi-colored LED lights
• Built-in 5W speaker output
• Long-lasting rechargeable battery
• Built-in Mic for hands-free calls
• Multi-function: Bluetooth, USB slot, Micro SD (TF) card slot, Aux jack
• White USB charging cable, white Aux cable included

SAFETY INSTRUCTIONS

• Read all instructions before using this product
• Do not leave this product unattended while connected to the power supply.
• Do not immerse in water or any other liquids.
• Do not use the unit if it has been dropped or damaged in any way.
• Repairs to electrical equipment should only be performed by qualified personnel. Improper repairs may place the user at serious risk.
• Place unit on sound, even surface, free of vibrations and away from sources of heat.
• Do not use with wet hands.
• Do not put objects into openings.
• Keep the unit free from dust, lint, hair etc.
• Do not use this unit for anything other than its intended use.
• Keep the unit out of reach of children.
• This product is not a toy.
• Do not play music at excessive levels especially near children, as damage to hearing may occur.

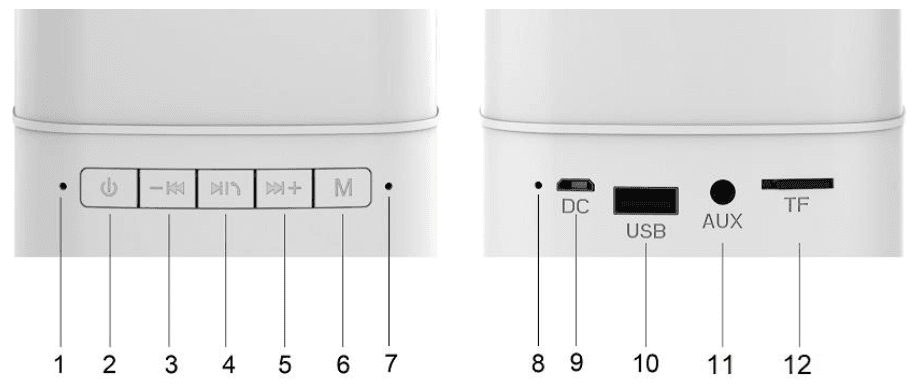

Description of Parts

INSTRUCTIONS FOR USE

Charging the speaker

For best results, fully charge the speaker before its first use.

1. Connect the USB charging cord (included) to the DC 5V charging port of the speaker and insert the other end into a port on your computer or similar power source.
2. Red LED glows indicating that the battery is being charged. Once it is fully charged, the Red LED will turn off. It will take around 2-3 hours to fully charge the battery.

Turn On/Off the Speaker with LED Lantern

Press and hold the “Power” button for 1-2 seconds until you hear the indication tone. Blue LED indicator light will blink, your speaker is now ON and is entering “pairing” mode. Press and hold the “Power” button for 1-2 seconds to turn off the speaker.

Turn the speaker to Bluetooth pairing mode –

1. Press and hold the “Power” button for 1-2 seconds until you hear the indication tone.
2. Blue LED indicator light will blink, your speaker is now ON and is entering “pairing” mode.

Pairing your device with Bluetooth Speaker –

Your Bluetooth Speaker can wirelessly stream audio from any Bluetooth enabled device within the distance of 27-33 Feet. Simply follow the below steps.

1. Press and hold the “Power” button for 1-2 seconds until you hear the indication tone.
2. Blue LED indicator light will blink, your speaker is now ON and is entering “pairing” mode.
3. Turn on the Bluetooth on your Mobile Phone or Tablet or Computer.
4. It will search for various devices.
5. The pairing name of our Bluetooth Speaker is “Sound Touch”, pair it with this device.
6. You might be prompted with “Pair with Sound Touch?” message on your source device, with “Cancel” and “OK” options. Please click “OK”.
7. If required, enter the password ‘0000’ to confirm the finalized pairing.
8. Once paired successfully, you would hear an indication tone and the blue LED indicator light will stay on.
9. If you fail to pair it within the time frame or you want to pair it with a new device please follows the steps outlined above. Select your favorite song on your Bluetooth device and the music should then stream through the Bluetooth speaker.

Talking using the Bluetooth Speaker

Please ensure that your mobile phone is paired with the Bluetooth Speaker to use the below functions.

Listening to Music Wirelessly

Please ensure that your device (iPhone, Tablet or Other Smart Phone) is paired with the Bluetooth Speaker to stream music wirelessly. Once it is paired, play music from your device.

Function	Operation	Button
Increase / Decrease Volume	Playing music	Long press + to increase the volume or long press – to decrease the volume
Pause	Playing music	Press  once to pause the music
Play	Pause	Press   once resume the music
Skip Forward / Skip Backward	Playing music	Short press + to skip forward the track. Short press – to skip backward the track.

Listening to Music using USB / Micro SD (TF) Card Slot –

• Turn ON the device.
• Insert USB flash drive into the USB slot or Micro SD (TF) card into the Micro SD (TF) card slot accordingly, music would play automatically.
• To Skip Track Forward – Short press the + button.
• To Skip Track Backwards – Short press the – button.
• To Pause the Track – Short press the button.
• To Play the Track – Short press the button.
• Long press + to increase the volume or – to decrease the volume.

Play music using “Aux-In” Jack

1. Turn ON the device.
2. Insert the 3.5 mm Aux in cable (included) in the Aux-in jack of the speaker. And, the other end of the cable, to the audio device (such as computer / tablet etc.).
3. The Blue LED indicator light will flash.
4. Select your favorite song at the source device.

Warm White LED light Mode (LEDs are not replaceable)

1. Turn ON the device, the Warm White LED light is in low light mode.
2. Short press the LED light button each time or tap the top of the speaker once to change the brightness. The light level of brightness include: low -> medium -> high -> Off.

Color Changing LED light Mode (LEDs are not replaceable)

1. Turn ON the device.
2. Tap and hold the top of the speaker for about 2 seconds to switch the LED light from Warm White LED light mode to Color Changing LED light mode.
3. When in Color Changing LED Light mode, short press the LED light button each time or tap the top of the speaker once to change the LED Light color. The light modes include: Blue -> Green -> Red -> Cyan -> Purple  > Turquoise -> Color Changing -> Dynamic -> Off. Dynamic mode moves through the LED light colors with playing music beats.
4. While it is on any color light mode, tap and hold the top of the speaker for about 2 seconds to change back to Warm White LED light mode.

Do’s and Don’ts

Do not play music at excessive levels. Damage to hearing and/or equipment may result. Do not use outdoors in  excessive rain or extreme weather conditions.

Specification

• Bluetooth version : 5.0
• Speaker power : 5 Watts
• Unit Size : 3.73”x3.73”x7.26”
• Unit Weight : ~17.5 OZ
• Run time (Music with LED light) : Up to 1.5 hours
• Run time (LED light only) : 7 to 8 hours
• Charge Voltage : DC5V (USB)
• Bluetooth Range : 33 feet
• Built-In Rechargeable Battery : 3.7V / 1200mAh

Troubleshooting

Care and Maintenance

Clean the unit with a soft, damp cloth. Never use chemicals or hard abrasives. Store in cool dry conditions away from wet or damp surroundings.

FCC Caution

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause undesired operation.

Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s  authority to operate the equipment. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Imported by Osiris Inc. L6T 4M6/
Osiris America Inc. 14020
