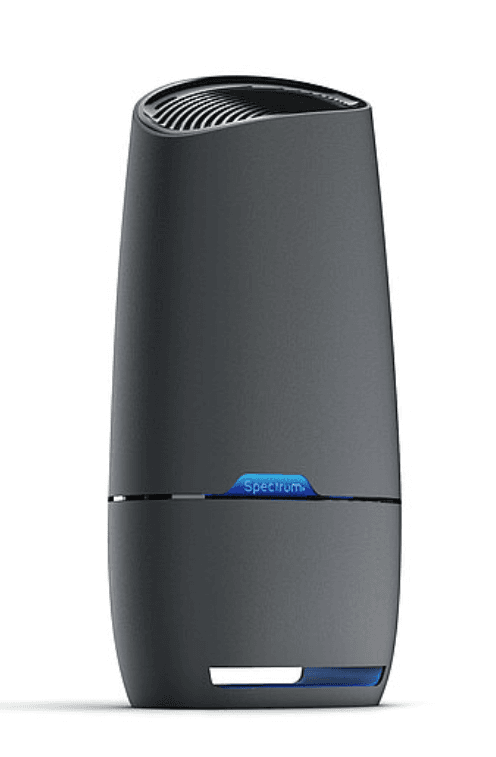

Spectrum WiFi 6 Router
Advanced In-Home WiFi
Advanced In-Home WiFi is included on your Spectrum WiFi 6 router delivering internet, network security and personalization, conveniently managed with the My Spectrum App. Your router will have a QR code on the back label to indicate support of this service.
With Advanced In-Home WiFi, you can:
- Personalize your WiFi network name (SSID) and password

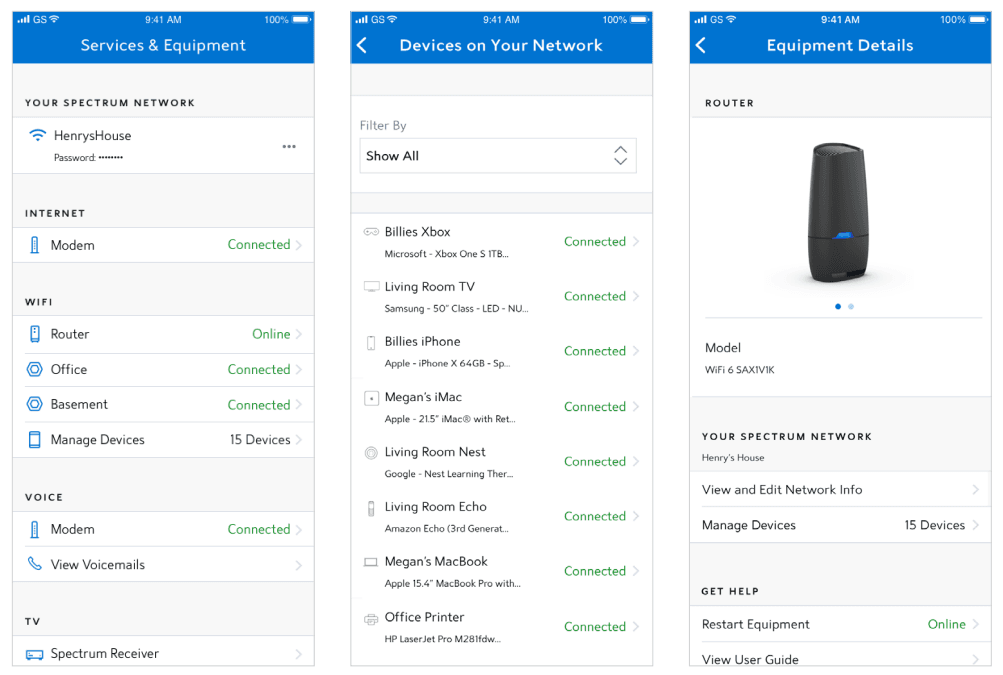

- View and manage devices connected to your WiFi network
- Pause or resume WiFi access for a device, or group of devices, connected to your WiFi network
- Get port forwarding support for improved gaming performance
- Have peace of mind with a secure WiFi network
- Use both wireless and Ethernet connectivity
Get Started with My Spectrum App
To get started, download My Spectrum App on Google Play or the App Store. Another method to download My Spectrum App is to scan the QR code on the router label with your smartphone camera or go to spectrum.net/getapp

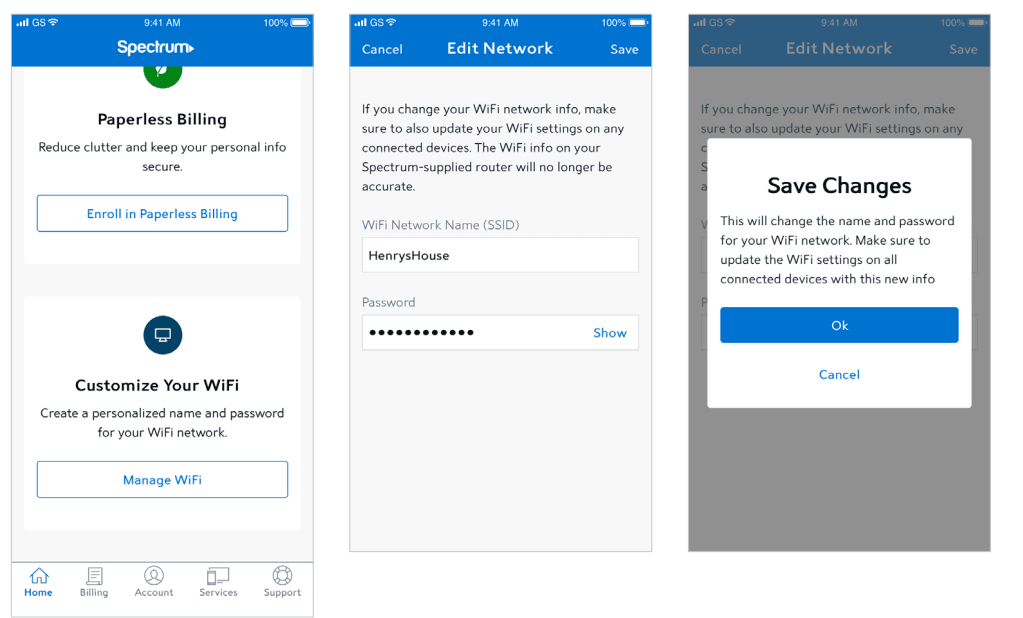

Personalize Your WiFi Network Name and Password
To secure your home network, we recommend creating a unique network name and an alphanumeric password. You can do this in the My Spectrum App or at Spectrum.net

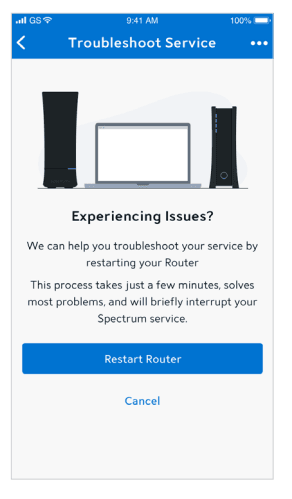

Troubleshooting Your Internet Service
If you’re experiencing slow speeds or if you lose connection to your WiFi network, check the following: Distance from the WiFi router: The farther away you are, the weaker the signal will be. Try moving closer. Router location: Your router should be placed in a central location for best coverage.
Where to place your router for the best coverage
- Do place it in a central location
- Place on a raised surface
- Do place it in an open space
- Don’t place it in a media center or closet
- Don’t place near devices like cordless phones that emit wireless radio signals
- Don’t place it behind a TV

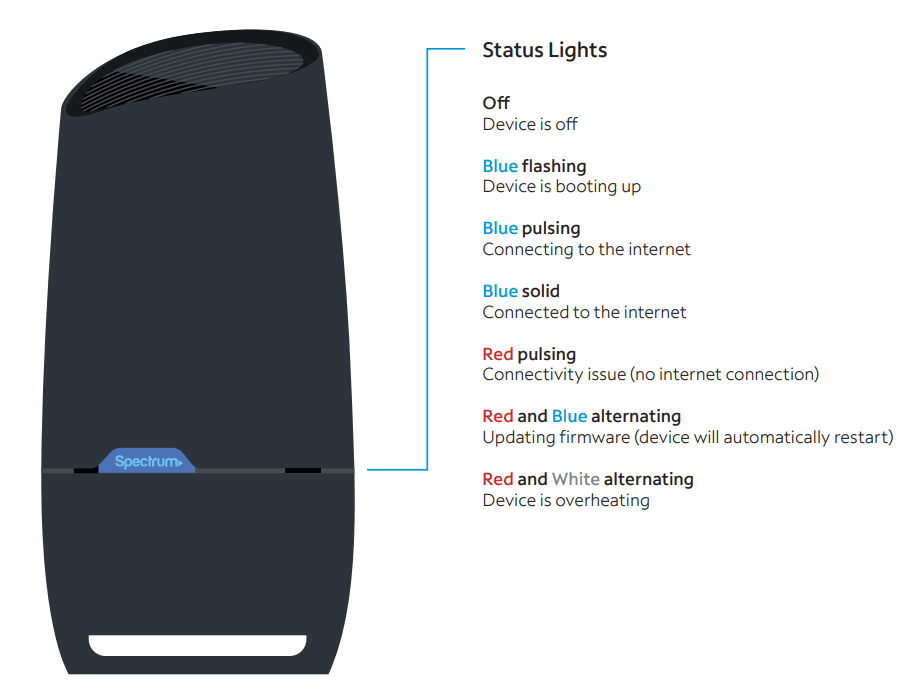

Spectrum WiFi 6 Router with Advanced In-Home WiFi
The router’s front panel features the status LED (light) which indicates the process the router is going through while establishing your home network. LED status light colors:

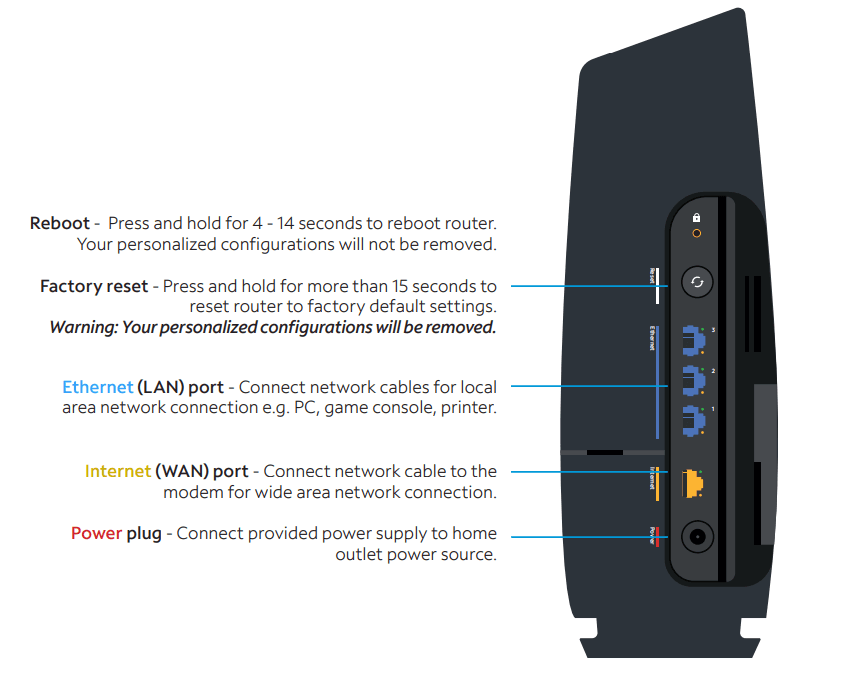

Spectrum WiFi 6 Router with Advanced In-Home WiFi
The router’s side panel features:

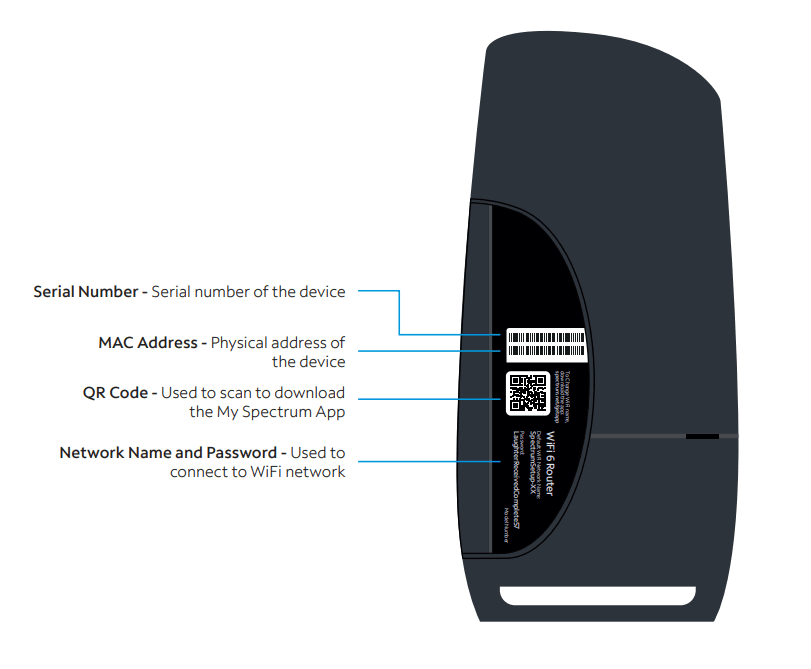

Spectrum WiFi 6 Router with Advanced In-Home WiFi
The router’s label callouts:
Spectrum WiFi 6 Router Technical Specs
| Features | Benefits |
| Concurrent 2.4 GHz and 5 GHz frequency bands | Supports existing client devices in the home, and all newer devices using higher frequencies. Provides flexibility in range for WiFi signal to cover the home. |
| 2.4GHz WiFi Radio – 802.11ax 4×4:4 5GHz WiFi Radio – 802.11ax 4×4:4 | • More data per packet transition provides higher throughput and increased range improving experience, especially in client dense environments
• Delivers higher data rates and bandwidth for the 2.4 GHz and 5 GHz frequencies
• Client steering – optimizes client device connectivity to best frequency band, channel, and access point. Prevents client devices from ”sticking” to a specific band. • Band steering with multiple access points |
| Bandwidths | 2.4GHz – 20/40MHz 5GHz – 20/40/80/160 |
| 802.11ax WiFi 6 chipsets with higher processing power | Supports consistent performance where there is a higher density of WiFi devices connecting to the network. Powerful chips encode/ decode signals allowing better network and device management. |
| Industry-standard security (WPA2 personal) | Supports the industry security standard to protect devices on the WiFi network. |
| Three GigE LAN ports | Connect stationary computers, game consoles, printers, media sources and other devices on the private network for high-speed service. |
| More specs | • Fan to provide optimum temperature regulating and stability • Ethernet standard: 10/100/1000 • IPv4 and IPv6 support • Power supply: 12VDC/3A – provides power management • Wall mounting bracket • Dimensions: 10.27” x 5” x 3,42” |
Need Help or Have Questions?
We’re here for you. To learn more about your services or get support,
visit spectrum.net/support or call us at (855) 632-7020.
For more manuals by Spectrum, visit ManualsLibrayy
Spectrum WiFi 6 Router-FAQs
How many devices can the Spectrum WiFi 6 router support?
The router can handle more than 250 connected devices, ensuring seamless connectivity for multiple users.
How does a WiFi 6 router improve performance?
WiFi 6 increases bandwidth from 80 MHz to 160 MHz, doubling channel width for faster speeds. This enables smooth 8K streaming, quick file transfers, and efficient smart home device management.
How do I change my Spectrum WiFi 6 router settings?
You can update your WiFi name (SSID), password, and other settings by logging into the router’s web interface. Connect via Ethernet, open a browser, and enter http://192.168.0.1 in the address bar.
What type of security does the Spectrum WiFi 6 router offer?
The router supports WPA2 personal security, ensuring encrypted protection for all connected devices.
How many simultaneous connections can WiFi 6 handle?
WiFi 6 allows communication with up to eight devices at once and can theoretically support up to 255 connected devices.
How many streaming devices does Spectrum allow?
You can stream unlimited channels via TV apps when connected to your home Spectrum WiFi.
Does WiFi 6 provide better wall penetration?
Yes, WiFi 6 offers better range and penetration than WiFi 5, reducing signal interference through walls.
What is the default IP address for Spectrum routers?
Spectrum routers typically use 192.168.0.1 or 192.168.1.1 as their default IP addresses.
How can I disable IPv6 on my Spectrum router?
Log into the router’s settings, go to Advanced > IPv6, select Disable, and click Apply to save the changes.
