SteelSeries Rival 3 Wireless Gaming Mouse User Manual

SteelSeries Rival 3 Wireless Gaming Mouse

Table of Contents

STEELSERIES ENGINE

To enjoy GameSense integration, program macros, and customize lighting effects and other mouse settings on your new Rival 3 Wireless mouse, download SteelSeries Engine at steelseries.com/engine

PACKAGE CONTENTS

Rival 3 Wireless Mouse
Nano Dongle
2x AAA Batteries
Product Information Guide

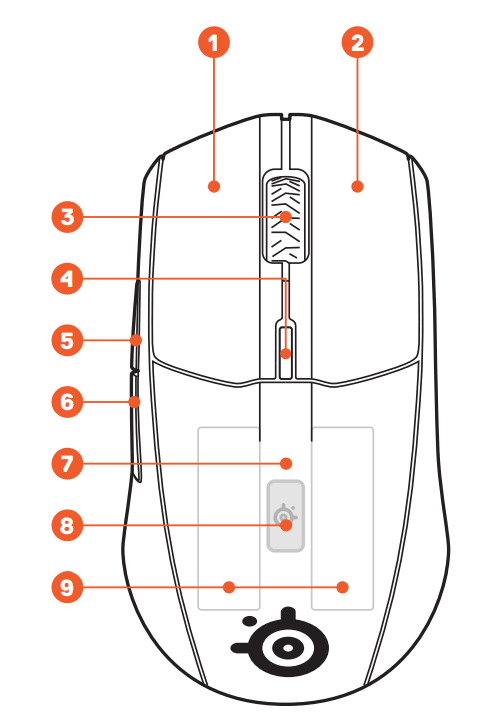

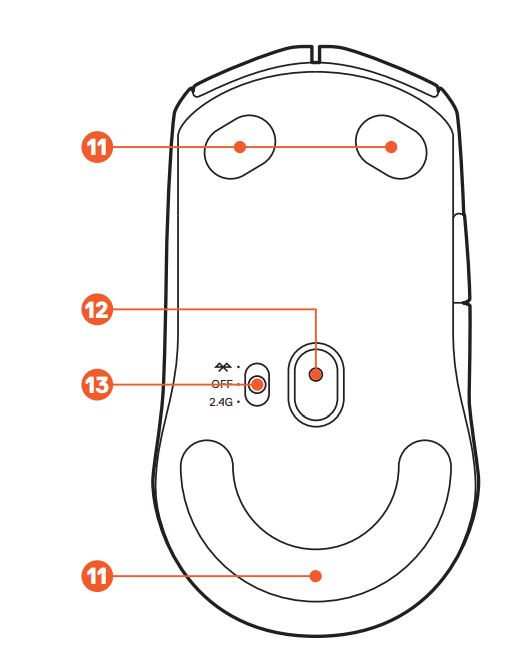

PRODUCT OVERVIEW

Left Trigger
Right Trigger
Scroll Wheel
CPI Button
Side Button 1
Side Button 2
Battery Cover
Nano Dongle Compartment
Battery Compartments
Nano Dongle
PTFE Feet
TrueMove Air Sensor
Wireless Mode Switch

SETUP

CONNECTING VIA 2.4 GHZ WIRELESS

Connect the Rival 3 Wireless’ Nano Dongle 10 to an available USB port on your device.
Toggle the Wireless Mode Switch 13 to the “2.4 GHz” position.
The Scroll Wheel 3 will glow orange when connected.
To further customize your mouse, or re-pair a Nano Dongle 10, download the SteelSeries Engine software from steelseries.com/engine

PAIRING VIA BLUETOOTH

Initiate Bluetooth pairing mode on your Bluetooth 5.0 or higher enabled device.
Hold the CPI Button 4 and toggle the Wireless Mode Switch 13 to the Bluetooth position to
turn on your mouse.
The Scroll Wheel 3 will start blinking blue when searching for a connection.
Select “Rival 3 Wireless” on your Bluetooth-enabled device. The Scroll Wheel 3 will glow orange when connected.

POWER

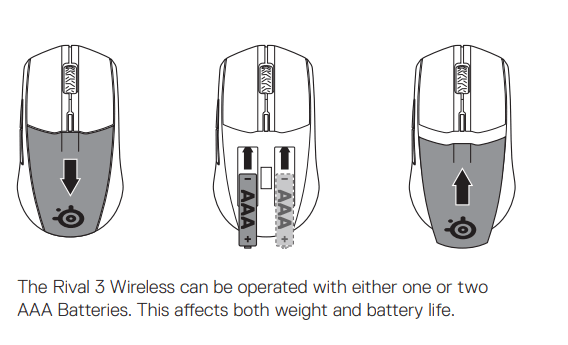

INSERT / CHANGE BATTERIES

Slide the Battery Cover 7 down to remove it.
Insert either one or two AAA Batteries (included) into the Battery Compartment(s) 9 with the minus side first.
Slide the Battery Cover 7 back onto the mouse.

BATTERY LEVEL INDICATOR

The Scroll Wheel 3 will flash orange to notify you about battery life:

Flashing every 5 minutes ~ 10 hours of use left
Flashing every 2 minutes ~ 5 hours of use left
Flashing every minute ~ 2 hours of use left

REGULATORY

Europe – EU Declaration of Conformity

Hereby, SteelSeries ApS. declares that the equipment is in compliance with Directive RoHS 2.0 (2015/863/EU), R.E.D (2014/53/EU), EMC Directive (2014/30/EU), and LVD (2014/35/EU), which are issued by the Commission of the European Community. The full text of the EU declaration of conformity is available at the following internet address: steelseries.com. SteelSeries ApS. Hereby confirms, to date, based on the feedback from our suppliers indicates that our products shipping to the EU territory comply with REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals – (EC) 1907/2006)
compliance program. We are fully committed to offering REACH compliance on the products and posting accurate REACH compliance status for the all of products.

Operating Temperature: 0 to + 40°C.

Frequency bands and Powers (Mouse and Transceiver)

a. Frequency band(s) in which the radio equipment operates:
- WIFI: 2.400 – 2.4835 GHz
b. Maximum radio-frequency power transmitted in thefrequency band(s) in which the radio equipment operates:
- EIRP/GFSK: 4.53 dBm (Mouse)
- EIRP/GFSK: 4.60 dBm (Mouse/Bluetooth)
- EIRP/GFSK: 4.34 dBm (Transceiver)

Software Version: V0020

WEEE

This product must not be disposed of with your other household waste or treated in compliance with the local regulations Contact your local city office, your household waste disposal service or the shop where you purchased the product.
“CAUTION!” Risk of explosion if the battery pack is not replaced by the same type as specified by the manufacturer.

Safety Guidelines for the Battery

This battery must not be disposed of with your other household waste or treat them in compliance with the local regulations or contact your local city office, your household waste disposal service or the shop where you purchased the product.

Federal Communication Commission Interference Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

Remedies for major failure with goods
Return the product and ask for a refund, return the product and ask for an identical replacement, or one of similar value if reasonably available, keep the product and ask for compensation for the drop in value caused by the problem.

Remedies for major failure with services
Cancel the contract and pay a reasonable amount for the work done, or seek a refund. For money already paid, keep the contract and negotiate a reduced price for the drop in value of the service — this may mean asking for some of your money back if you have already paid. For goods, there is a major failure to comply with a consumer guarantee when:

You would not have purchased the product if you had known about the problem.
The product is significantly different from the description, sample or demonstration model you were shown.
The product is substantially unfit for its normal purpose and cannot easily be made fit within a reasonable time.
The product is substantially unfit for a purpose that you told the supplier about, and cannot easily be made fit within a reasonable time.
The product is unsafe.

For services, there is a major failure to comply with a consumer guarantee when:

You would not have engaged the service if you had known the nature and extent of the problem.
The service does not meet the reasonable expectations for that type of service, and the problem cannot be rectified within a reasonable time.
You told the supplier that you wanted the service for a specific purpose, which was not fulfilled, and the problem could not be easily rectified within a reasonable time.
You told the supplier that you wanted a specific result, yet the service and end result failed to meet your specifications and could not be easily rectified within a reasonable time.
The supply of the service has created an unsafe situation.

For information on Australian consumer laws, please visit the Australian consumer law website at www.consumerlaw.gov.au.

Importer Name and Address: Ingram Micro Pty LTD / Level 1, 61 Dunning Avenue. Rosebery NSW 2018
Telephone technical support: +61-2-9381-6000
