Sylvania SRCD822 Phonograph with Cassette CD Player User Manual

Sylvania SRCD822 Phonograph with Cassette CD Player

IMPORTANT SAFETY INSTRUCTIONS FOR AUDIO PRODUCTS-READ CAREFULLY ALL THE FOLLOWING IMPORTANT SAFEGUARDS

When using electrical products, basic precautions should always be followed, including:

1. Read these instructions- All the safety and operating instructions should be read before the product is operated.
2. Keep these Instructions-The safety and operating instructions should be retained for future reference.
3. Heed All Warnings-All warnings on the product and in the operating instructions should be adhered to.
4. Follow all Instructions. All operating and use instructions should be followed.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings, install in accordance with the manufacturer`s Instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat .
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

Before Use

• Choose unit installation location carefully. Avoid placing it in direct sunlight or close to a source of heat. Also avoid locations subject to vibrations and excessive dust, cold or moisture. Keep away from sources that hum, such as transformers or motors.
• Do not open the cabinet as this might result in damage to the circuitry or electrical shock. If a foreign object should get into the set, contact your dealer. Be sure not to handle discs with dirty fingers. Never insert a disc that has a crack on the surface.
• When removing the power plug from the wall outlet, always pull directly on the plug, never yank the cord.
• To keep the laser pickup clean, do not touch it , and do not forget to close the disc tray.
• Do not attempt to clean the unit with chemical solvents as this might damage the finish. Use a clean, dry cloth. Keep this manual in a safe place for future reference

Beware of Condensation

• When the player (or a compact disc) is moved from a cold to a warm place or is used after a sudden temperature change, there is the danger of condensation. Water vapor in the air could condense on the mechanism or the laser pickup. If droplets of water form on these parts, correct playback will be impossible, the laser cannot read the information from the disc correctly. To prevent this, if you are going to use the player in a condition where condensation could occur, you should leave the player for 1 or 2 hours after plugging it into an AC outlet, depending on the amount of condensation. If this is done, the player will stabilize at the temperature of its surroundings

Listening to a Tape or Compact Disc

Cassette Tape

Tape Handling :

Do not store tapes in the following places :

• On top of heaters, exposed to direct sunlight or in other places with high temperatures.
• Near speakers, on TV sets or amplifiers, or where they would be exposed to strong magnetic fields. Where humidity is high and in dirty, dusty places.
• Avoid dropping or subjecting cassettes to excessive shocks.
• As C-120 tapes are physically weak and could become entangled in the transport mechanism, do not use them.

Loading a Cassette Tape :

1. Use your finger or a pencil to turn the cassette hub, take up any slack tape.
   Note: Avoid touching the tape. Fingerprints attract dirt.
2. Insert the cassette tape with the correct direction.

Compact Disc

Handing the Discs :
This unit has been designed specifically for sound reproduction from compact discs bearing the mark. No other discs can be used.

• Always place the compact disc in the disc tray with the label facing upward. (Compact discs can be on one side)
• To remove a disc from its storage case, press down the center of the case and lift the disc out, hold by the edge.

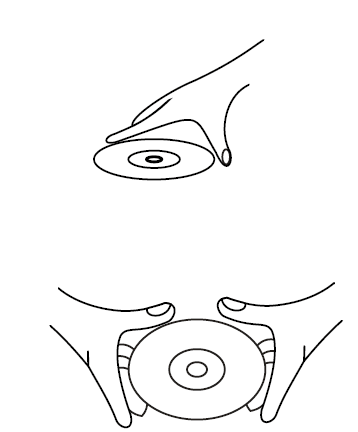

• HANDLE DISC ONLY AS SHOWN
• Fingermarks and dust should be carefully wiped off the disc recorded surface with a soft cloth (not included)
• CLEAN FROM CENTER TO EDGE
• Do not expose discs to direct sunlight or high temperature for extended periods.
• Long exposure to high temperature can warp the disc

Preparation of Use

• Connect the AC power cord

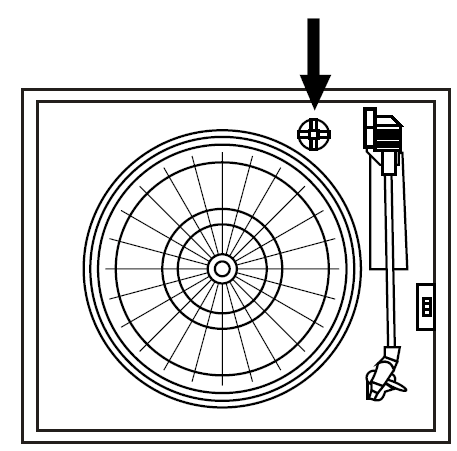

• Loosen the screw used for transportation by turning it clockwise with a coin.

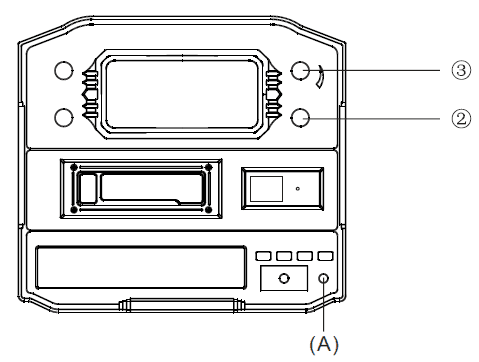

Basic Operation

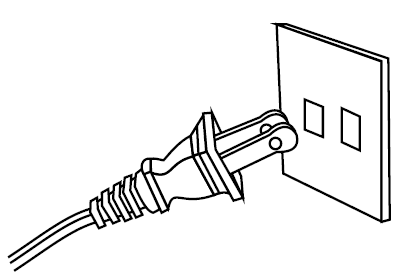

1. Power on. Connect the power plug into the wall outlet
2. Select the source.
3. Power / Volume Adjust the volume

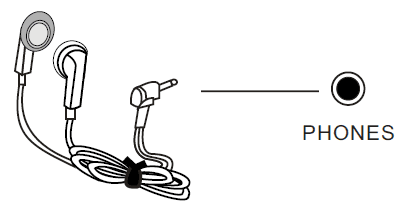

   • (A)Listening through Earphones / Headphones.
   • The sound from all speakers is cut off.

Listening to Radio

(A) FM reception

• Any strong FM station will cause the FM stereo indicator light to illuminate. Weaker stations cannot be received in stereo so the light will not illuminate and the reception will automatically switch to mono.

(B) Antenna

• For optimal FM reception, be sure to stretch the built-in FM antenna wire located at the lower back of the unit and move it around until the station you have tuned in is being received clearly.

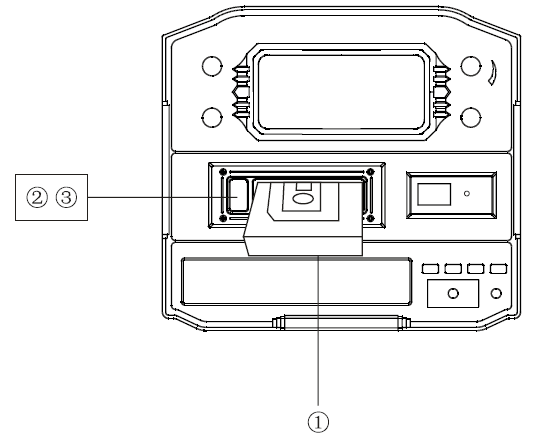

Listening to a Tape

1. Insert the cassette when powering on, the unit will convert to TAPE automatically from PHONO or CD OR TUNER, and start playing. At the end of the cassette tape, the cassette will stop automatically
2. Fast forward. Press the EJ / F.F button approximately a half.
3. Stopping or getting out the cassette. Press the EJ / F.F button into the end thoroughly

Specifications

AMPLIFIER section

• Output Power ……………………………………. 2.5W + 2.5W (U.S.A. / Canada)
• Frequency Response ………………………….. 60 to 20,000Hz

FM Section

• Frequency Range ………………………………. 87.5 to 108.5MHz

AM Section

• Frequency Range ………………………………. 525 to 1710KHz (U.S.A. / Canada)

CD PLAYER section

• Frequency Response ………………………….. 60 to 20,000Hz +/- 4dB
• Signal – to – Noise ratio ………………………… 55dB (1EC – A)

CASSETTE DECK section

• Track System ……………………………………. 4 track , 2 channel stereo
• Tape Speed ……………………………………… 4.8cm/sec
• Wow and Flutter ………………………………… 0.4% (WRMS)
• Frequency Response …………………………. 125 to 6,300Hz +/- 6dB

Troubleshooting guide
