TaoTronics TT-BH097 Soundliberty 97 True Wireless Ear Buds

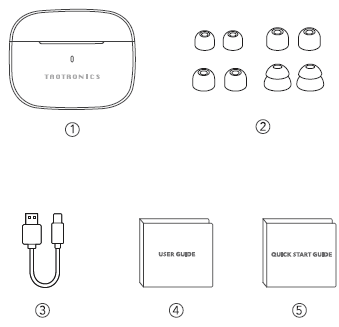

Package Contents
- TaoTronics True Wireless Stereo Earbuds (TT-BH097)
- 8 x Ear Tips (two are equipped on the earbuds)
- 1 x USB-C Charging Cable
- 1 x User Guide
- 1 x Quick Start Guide

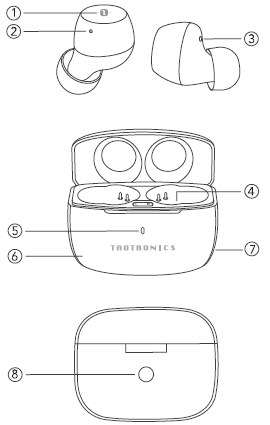

Product Diagram
- Multifunction Touch Control
- LED Indicator
- Charging Contacts
- Charging Slot
- Charging indicator
- Charging Case
- USB-C Charging Port
- Reset Button
Important Safety Instructions
Please read the instructions thoroughly before using this product and retain them for future reference.
Hearing Safety
- Do not wear earbuds with high volume for a long time to avoid damaging your hearing.
- Set the earbuds to low volume before you put them on, then increase the volume gradually as per your preference.
- Do not set the volume too high to stay aware of your surroundings.
- Please refer to local laws and regulations if you want to answer phone calls via this device while driving.
- For your safety, avoid distractions from music or phone calls when you are driving or doing other activities with potential dangers.
Warning: Please set the volume to proper level to avoid hearing damages.
Cautions
- Do not expose this product to high temperatures.
- Do not immerse the earbuds in water or expose them to humidity for a long time.
- Do not clean the product with detergent containing alcohol, ammonia, benzene, or abrasives.
- Avoid dropping.
- Place the earbuds back into the charging case when not in use and keep it away from children and pets to avoid choking hazard.
- Unauthorized disassembly of any parts of this product is forbidden and may cause fire hazard, warranty voidance, and/or property loss.
- Close attention is needed when using near children.
- Keep the charging case away from water, rain, or any other liquid.
This product contains a lithium battery. Never expose it to excessive heat such as direct sunlight or fire to avoid explosion.
Choose the Right Tips
Ear tips with different sizes are included in the package, try all sizes and choose the ones fitting you best.
Bluetooth Cautions
- When the device is connected wirelessly to another device, place the two devices close to each other to achieve their normal functionalities and avoid possible signal interference.
- The maximum effective Bluetooth range may vary with the environmental circumstances.
- When using a wireless connection, make sure there are no obstacles between the two devices. Obstacles, including walls and fences, may shorten the effective range.
Using Your Earbuds
Charging

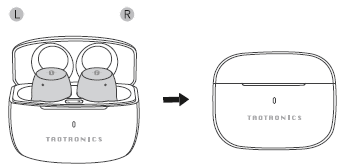

Charging the Earbuds
- Put the earbuds into the charging case as per the L (left) and R (right) marks.
- Cover the lid, and charging will start automatically.
Note:
- Please fully charge the earbuds when using them for the first time.
- When the battery is low, a “Battery low” voice prompt will be heard (if you are wearing the earbuds). Please charge in time, or the earbuds will turn off automatically around 10 minutes later.
- Charge the earbuds at least once every 3 months when not using them for a long time.

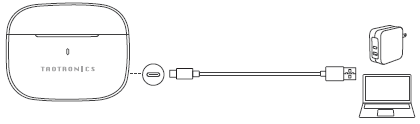

Charging the Charging Case
- Connect the charging port with any USB charging adapter or active computer USB port.
- The charging indicator will stay solid white and turn off once fully charged.
Unplug the charging cable (timely) when fully charged.
Power On
Uncover the lid, and they will power on automatically.
Power Off
Put the earbuds into the charging case and close the lid; they will turn off automatically.
Pairing
- You can use one earbud or both earbuds as per your preference. Please refer to the corresponding pairing instructions.
- Before pairing, please turn off other Bluetooth devices and place the device to be connected close to the earbuds.
- When the earbuds are disconnected from your device for more than 10 minutes, they will turn off automatically.
Binaural Mode
- Uncover the lid to turn on the earbuds, they will connect with each other automatically. The LED indicators on the earbuds will flash blue and white alternately ly indicating the earbuds are in pairing mode now.
- Turn on the Bluetooth function on your device and search for nearby devices. Find “TAOTRONICS Soundliberty 9r in the search results, and tap on the name to connect.
- Once connected, the LED indicators on the earbuds will flash blue slowly.
Mono Mode
Pair both earbuds with your device in binaural mode before using them in mono mode.
Use Primary (Left) Earbud Only
- Take out the primary (left) earbud from the charging case, and make sure the secondary (right) earbud is placed in the charging case and the lid is covered.
- It will try to pair with the last connected device for the first 20 seconds. If re-pairing fails in 20 seconds, the earbud will enter pairing mode with the LED indicator flashing blue and white alternately.
- Turn on the Bluetooth function on your device and search for nearby devices. Find “TAOTRONICS SoundLiberty 97” in the searching results, tap on the name to connect.
Use Secondary (Right) Earbud Only
- Take out the secondary (right) earbud from the charging case, and make sure the primary (left) earbud is placed in the charging case and the lid is covered.
- The secondary earbud will enter pairing mode with an LED indicator flashing blue and white alternately.
- Turn on the Bluetooth function on your device and search for nearby devices. Find “TAOTRONICS SoundLiberty 97 R” in the search results, and tap on the name to connect.
Note:
If you want to change to binaural mode, simply take out the other earbud from the charging case, and they will pair with each other automatically.
Manually Pairing
- Place both earbuds back in the charging case with the lid uncovered.
- Press and hold the Reset Button for 3 seconds to disconnect the currently paired device.
- The earbuds will enter pairing mode with the LED indicator on the earbud flashing blue and white alternately.
- Pair with your new Bluetooth® device as instructed in the “Pairing” section.
Note:
The pairing history will not be cleared under this operation.
Functions and Operations
| Function | Operation | Voice Prompt |
| Play/ Pause | Tap the Touch Control on either of the earbuds twice under music | |
| Volume+ | Tap the Touch Control on the right earbud once | Toots when highest setting is reached |
| Volume- | Tap the Touch Control on the left earbud once | |
| Next Track | Tap the Touch Control on the right earbud three times. | |
| Previous Track | Tap the Touch Control on the left earbud three times. | |
| Answer Phone Call | • Answer via earbuds: Tap the Touch Control on either of the earbuds once • Answer via mobile phone: Tap Answer on the mobile phone | |
| Hang Up a Phone Call | Tap and hold the Touch Control on either of the earbuds for 2 seconds | |
| Decline an Incoming Call | Tap and hold the Touch Control on either of the earbuds for 2 seconds | Call rejected |
| Function | Operation | Voice Prompt |
| Turn On/ Off Voice Control | Tap and hold the Touch Control on either of the earbuds for 2 seconds until a beep is heard. | Toot |
| Clear Pairing List | Refer to the “Clear Pairing List” section | |
| Go into Pairing Mode | Refer to the “Pairing” section | Pairing |
Successfully Paired with Your Device | Connected | |
Bluetooth out of Range/ Failed to Pair with Your Device | Disconnected |
Cleaning and Maintenance
- Clean the earbuds and the charging case regularly.
- Use dry and soft cotton cloth to wipe the unit.
- Keep away from sharp objects to avoid scratches.
- Put the unit in a dry and shady place if it is not in use for a long time.
- Do not clean the product with detergent or chemicals.
Note: Do not insert anything into the product
Troubleshooting
| No. | Problem | Solution |
| Failed to turn on the earbuds | Earbuds low battery, please charge them | |
| 2 | Failed to charge the earbuds | • Place the earbuds into the charging case properly • Make sure the charging case is fully charged |
| Can’t charge the charging case | Make sure the charging cable is intact and plugged in properly | |
| 4 | Can’t find “TAOTRONICS Soundliberty 97” in the Bluetooth device list | The earbuds reconnected with the previously paired device automatically. • Deactivate the Bluetooth function of the previously paired device or clear “TAOTRONICS Soundliberty 97” from its Bluetooth device list, and then search again • Put the device to be connected close to the earbuds |
| Failed to pair the earbuds with your device | • Turn on the device and activate its Bluetooth function before pairing • Bring the earbuds into pairing mode as instructed in the “Pairing” section |
| 6 | No sound in one of the earbuds in couple earbuds mode | Place both earbuds back in the charging case, then take them out; they will pair with each other automatically. If pairing fails, restore them to the factory settings as instructed in the “Clear Pairing Listn section. |
| Poor sound quality | • Wear the earbuds properly and keep them close to each other. • Place the connected device close to the earbuds or remove the obstacles between them • Clear the debris on the earbuds | |
| 8 | Unstable connection | • Keep the earbuds close to your Bluetooth device • The effective distance may be shortened by obstacles in the way • Turn off other Bluetooth devices to decrease the interference |
| 9 | Can’t hear the other party during a phone call | Set the volume to a higher level |
| 10 | The other party can’t hear your voice during a phone call | Free the built-in microphone of any covers |
| 11 | The Multifunction Touch control of the earbuds is unresponsive | Place the two earbuds into the charging case and cover the lid, and disconnect the Bluetooth connection. Uncover the lid to turn on the earbuds and pair again.. |
