Taramps Amplayer 400 Car Stereo Player
Index
- Term of warranty
- Technical assistance
- Introduction
- Safety requirements
- Safety
- Package content
- Functions
- Functions (continuation)
- Output and power connector
- Panel installation
- Installation
- Recommended wire gauge & fuse
- Example of stereo connection
- 2 Ohms per channel
- Bridge connection example
- 4 Ohms per channel
- Bluetooth
- Registering another range distance control
- Technical features
Term of warranty
TARAMPS, located on Abilio Daguano Street 274, Res. Manoel Martins – Alfredo Marcondes, SP – Brazil, ZIP CODE 19180-000, guarantees this product against any defects in terms of project, making, assembling, and/or with solidarity, due to project vices which cause it improper or inadequate to its original use within 12 months from the date of purchase. In case of defect during the warranty period, TARAMPS’ responsibility is limited to the repair or substitution of the device of its own making.
This warranty excludes:
- Damaged products due to improper installation, water infiltration, or violation by unauthorized individuals
- Tamper or torn warranty seal
- Cases in which the product is not used under adequate conditions
- Defects caused by accessories, modifications, or features attached to the product
- The product with damage from falling, bumping, or nature-related problems (flooding, lightning, etc.)
- The warranty card is not properly filled out or torn
- Costs involving uninstallation, reinstallation of equipment, as well as shipment to the factory
- Damage of any kind, due to problems in the product, as well as losses caused by discontinued use of the product
Technical assistance
For international support, check on our website:www.taramps.com.br/en/rede-de-assistencias-tecnicas or contact the factory support directly: Phones: +55 18 3266-4050 / +55 18 99749-33911 E-mail: [email protected]
Introduction
Read this manual before preparing the product. In case of doubt, contact our technical support: (18) 3266-4050 or www.taramps.com.br
Safety requirements
To ensure proper use, please read through this manual before using the amplifier. It is especially important that you know the CAUTIONS contained here.
- The installation of this amplifier must be done by a qualified professional.
- Wear safety glasses, insulated gloves, and the correct tools for installing this product.
- This product is for use with 12V batteries. Always check the voltage before installing.
- Never install the Amplayer in places exposed to dust, humidity, and water. Pay attention to installing it far from the fuel tank, fuel lines, heat sources, and other parts of the vehicle.
- Be sure to install a protection fuse or a circuit breaker near to battery. Follow the ampere rating as indicated in this manual. Use of an improper fuse or circuit breaker could result in overheating, smoke, damage to the product, injury, or burns.
- Avoid running wires over or through sharp edges. Use rubber or plastic grommets to protect any wires routed through the car’s body.
- Before making any connection to Amplayer, disconnect the battery negative terminal.
- When in use, the external surface of the Amplayer becomes hot. Avoid touching the heatsink area and keep children far from the amplifier.
- This product may produce high sound pressure levels. Avoid continuous exposure to levels over 85dB to prevent permanent hearing loss.
- If you want to dispose of this product, don’t throw it in the domestic waste. It must be collected by a used electronic product disposal service for proper recycling.
Package content

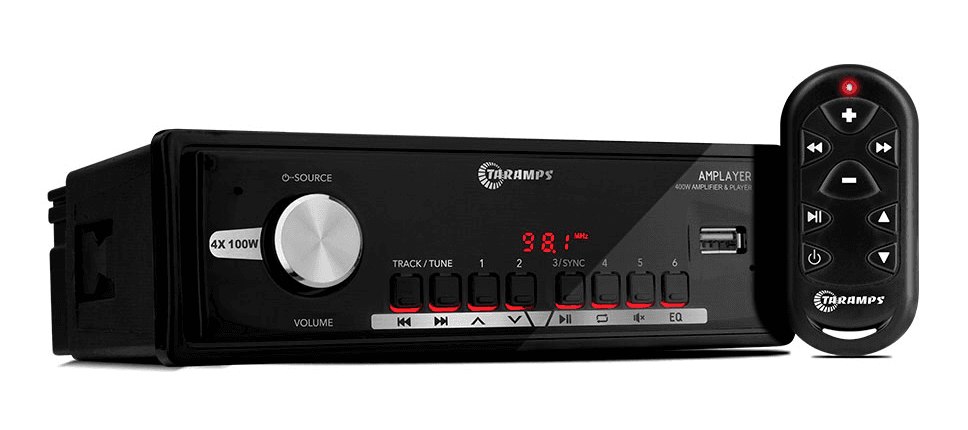

- 01 Amplayer

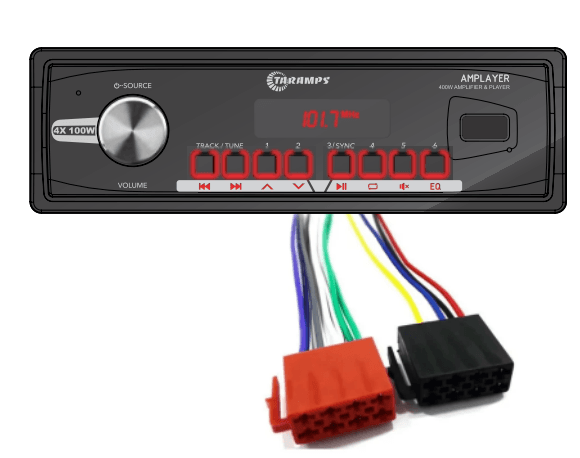

- 02 cable harnesses
- 01 Control long range
- 01 plastic part
- 02 removal keys
- 01 Taramps cord

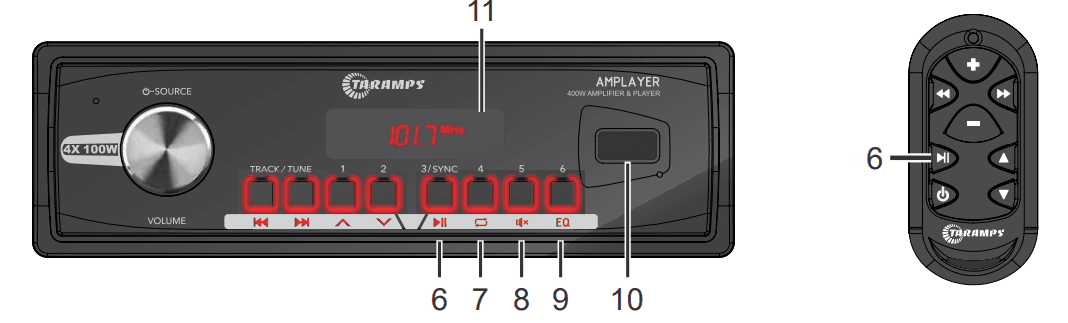

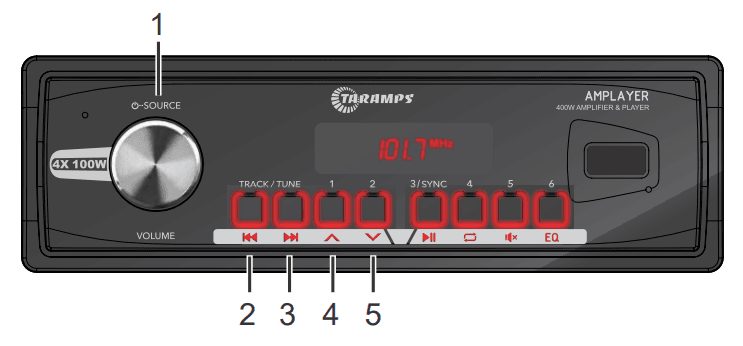

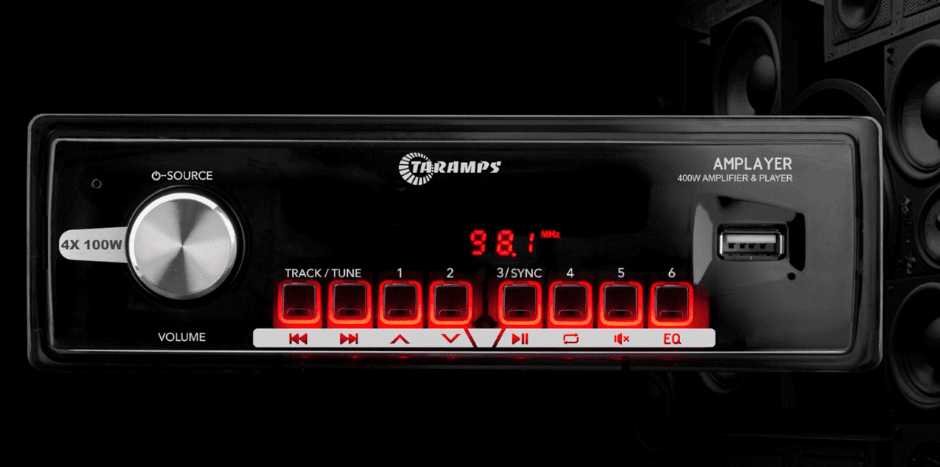

Panel / Control Functions
Source: ON/OFF /Volume/ Mode:
- With the Player turned off, a Short press turns on the device
- With the player turned on:
- Short press: select functions: USB/ BLUETOOTH /FM
- Long press: turns off the device
- Volume: Increases or decreases the audio volume when turning
Track
/Tune:
FM Radio
- Short press: Decreases the FM tuning frequency by 0.1 MHz
- Long press: Automatically search for the previous FM station
Bluetooth
- Short press: Rewinds music tracks
USB
- Short press: Go to the beginning of the current song
- Long press: Rewind within the track (Fast Rewind)
- Double click: Rewind music tracks
Track
/Tune:
FM radio
- Short Touch: Increases the FM tuning frequency by 0.1 MHz
- Long press: Auto search next FM station
Bluetooth /USB
- Short press: Next track
- Long press: Forwards within the track (Fast Forward)
Advance folder
/1:
/1:FM Radio
- Short press: Selects radio from memory position 1
- Long press: Saves the station in position 1
USB
- Short press: Advance folder
Rewind folder
/2:
/2:FM Radio
- Short press: Selects radio from memory position 2
- Long press: Saves the station in position 2
USB
- Short press: Rewind folder
Short press with the device
- turned on: Selects the functions
- Long press: Turn on and off
- Volume +: Increases the volume
- Volume -: Decreases the volume
Track
/Tune:
Track
/Tune:
Avança pasta
:
:- Short press: Advance folder
- Long press: Advance tracks within the folder
Retrocede pasta
:
:- Short press: Rewind folder
- Long press: Rewinds tracks within the folder
Play /Pause /3/Sync:
FM Radio
- Short press: Selects radio from memory location 3
- Long press: Saves the station in position 3
Bluetooth / USB
- Short press: Play/Pause
- Sync: With the player turned off, if pressed for 10 seconds, it allows registering the long-distance control (See page 19).
Repetition /4:
FM Radio
- Short press: Selects radio from memory location 4
- Long press: Saves the station in position 4
USB
- Short press: One/ random/folder / all
Mute /5:
FM Radio
- Short press: Selects radio from memory location 5
- Long press: Saves the station in position 5
Bluetooth/USB
- Short press: Mute
Equalizer /6:
FM Radio
- Short press: Selects radio from memory location 6
- Long press: Saves the station in position 6
Bluetooth/USB
- Short press: Toggles between set EQs (Pop / Rock / Jazz / Country / Normal)
USB:
- Input for Pen Drive and/or USB port to charge electronic devices (eg, cell phone).
- The charging type is Standard mode (max. 1A) and needs more time to complete a full charge compared to fast charging modes. If the message “PC” into AMPLAYER’s display, just turn the volume knob.
LED Display:
- Shows FM radio frequency, track/folder number, signal source, etc.

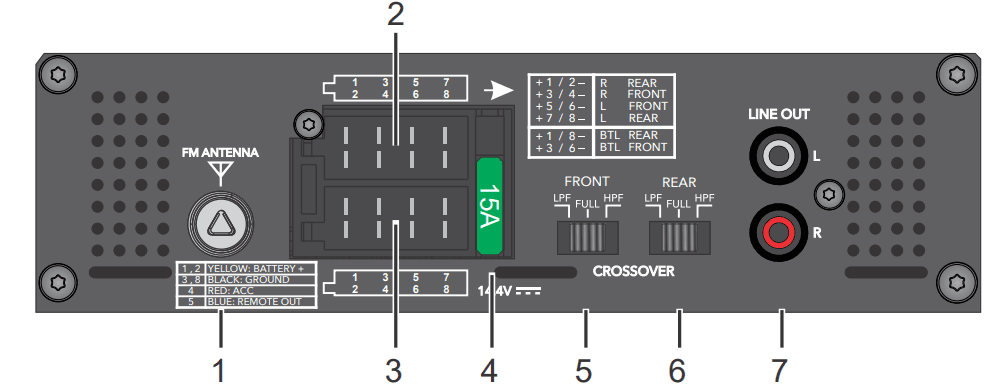

Output and power connector
- FM Antenna: Input to connect the FM antenna. For loudspeaker associations, the impedance to be considered is the resultant impedance.

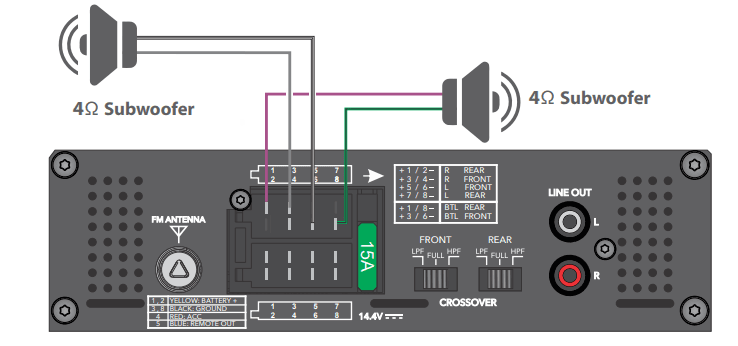

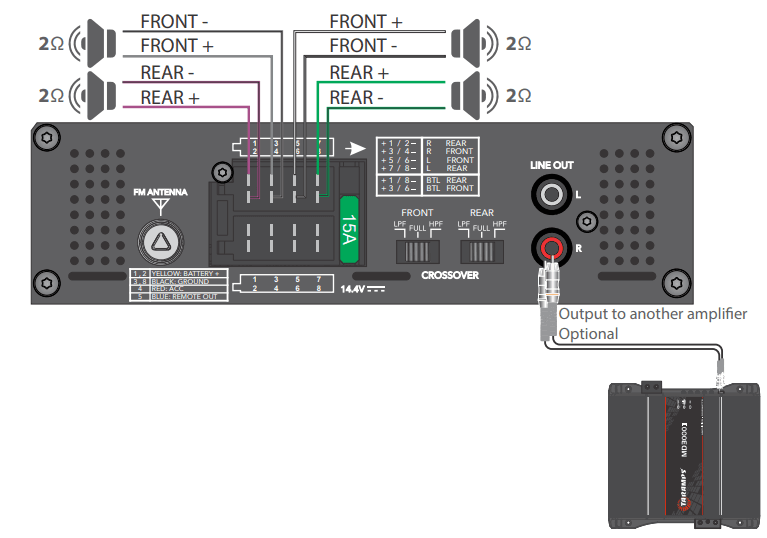

- Connector for speakers: To connect the speakers. See the connection diagram on page 18. For connections in STEREO mode, the minimum impedance is 2 ohms in each channel; in BRIDGE mode, it is 4 ohms.

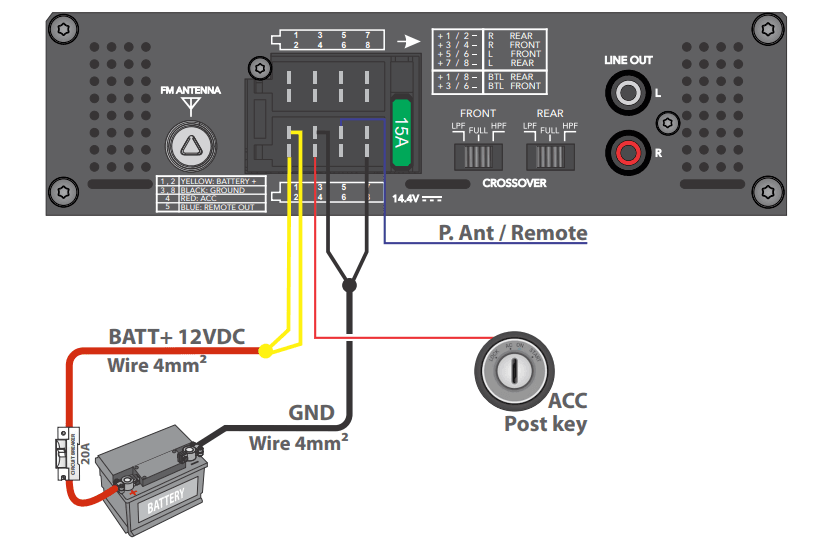

- Power Connector: The (+) wires of the connector must be connected to the positive pole of the battery through a cable with a minimum gauge of 4mm². The wires (-) of the connector must be properly connected to the negative pole of the battery using a cable with the same gauge as the positive cable. See the connection diagram on page 17.
- Low-power mode protection fuse: It has 2 protection fuses, the external 15A (low-power mode) and the internal 20A (high-power mode).
- Crossover Front and Rear
- SELECTOR IN POSITION – FULL: Amplifies the entire audio range, responding from 10Hz to 20KHz. We normally use this function when we have an external crossover in the system.
- SELECTOR IN POSITION – HPF – (HIGH PASS): It amplifies signals from 90Hz; this type of function is used for reproduction in medium bass and medium speakers. A great example is the two-way kits and 6×9 speakers.
- SELECTOR IN POSITION – LPF – (LOW PASS): It amplifies only the sub bass and bass, as the response is limited to 90Hz (-12dB/8th), ideal cutoff for subwoofers.
- LINE OUT: The LINE OUT output allows you to send the audio signal (not amplified) to other equipment, such as an amplifier or active subwoofer.
Panel installation

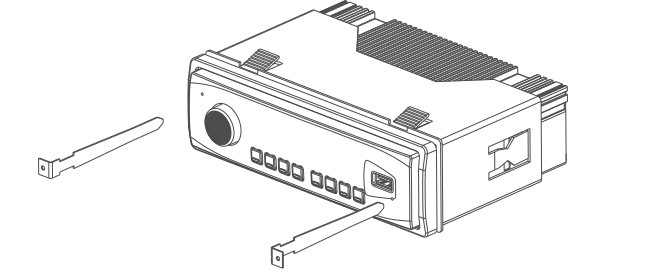

- Position the removal keys as shown in the image below to remove the plastic strap from the product. ATTENTION: The front of the Amplayer is not removable.

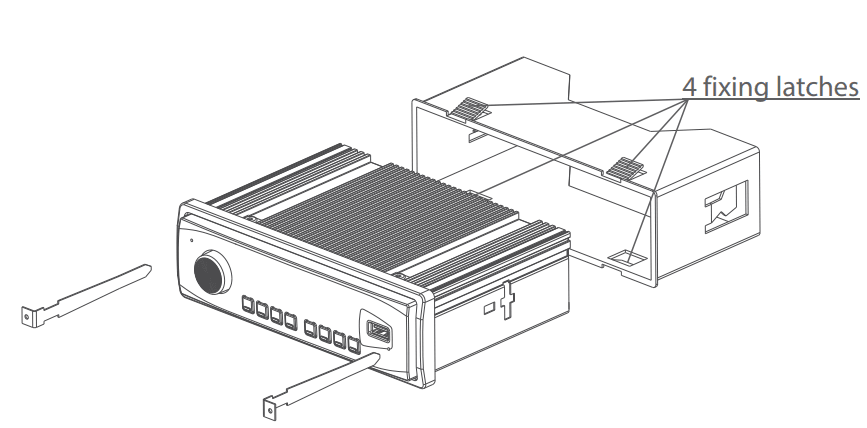

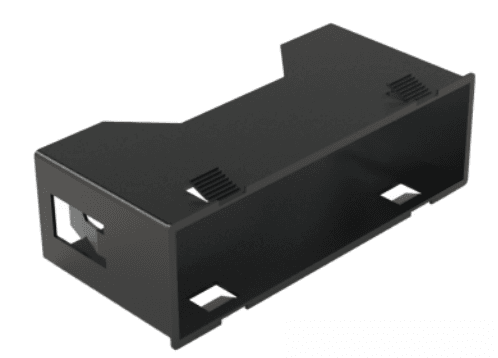

- Install the plastic strap in the space intended for installing the radio on the vehicle’s dashboard.
- Amplayer may not be compatible with other plastic or metal straps. Use the strap provided for correct locking on the panel.
- Having completed the steps above, it is now time to install Amplayer on your vehicle. See on the next page, the correct way for installation.
Amplayer cleaning
- Cleaning the AMPLAYER panel can be done with a soft cloth, to avoid scratches, stains or damage to it.
- NEVER use chemical, abrasive, or cleaning products.
Installation
Recommended wire gauge & fuse
- Positive/negative power supply cable – 4mm²
- ACC cable – 0.75mm²
- Cable P. Antenna / Remote – 0.75mm²
- Fuse or circuit breaker protection – 20A
- Calculated considering a maximum length of 4m. For distances greater than this, you will need to increase the cable gauge.
Example of stereo connection 2 Ohms per channel
Bridge connection example 4 Ohms per channel
Bluetooth

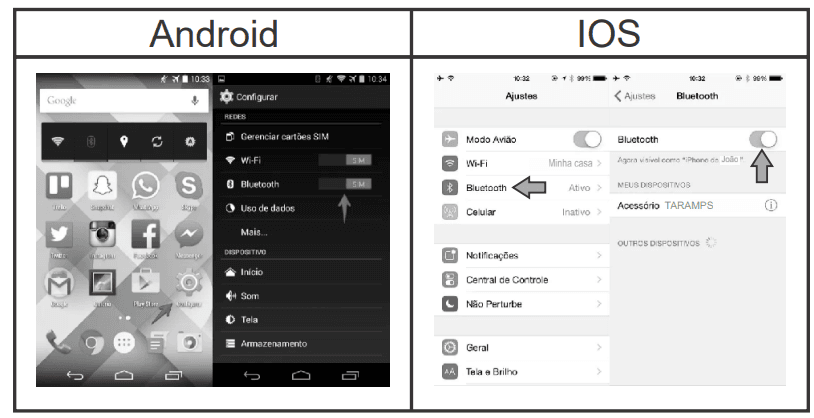

- When selecting the Bluetooth function (identified with “bt” on the display), the Player waits for a Bluetooth connection. Search through your cell phone and make the pairing.
- To connect to a new device, disconnect the current one and re-pair Bluetooth.
- Bluetooth specification: class II with an average range of up to 10m.
Registering another range distance control
It is possible to use up to 3 controllers simultaneously. To sync a new remote, follow the instructions:
- Make sure the AMPLAYER is turned off; however, the ACC must be energized.
- Press and hold the 3/SYNC key for 10 seconds.
- The panel LEDs will start flashing.
- On the long-distance control, press the and
synchronization keys simultaneously until the LEDs turn off (check if the long-distance control is compatible). - The AMPLAYER only works with TARAMPS long-distance control operating at a frequency of 433.5MHz, FSK modulation with its own encryption.
and

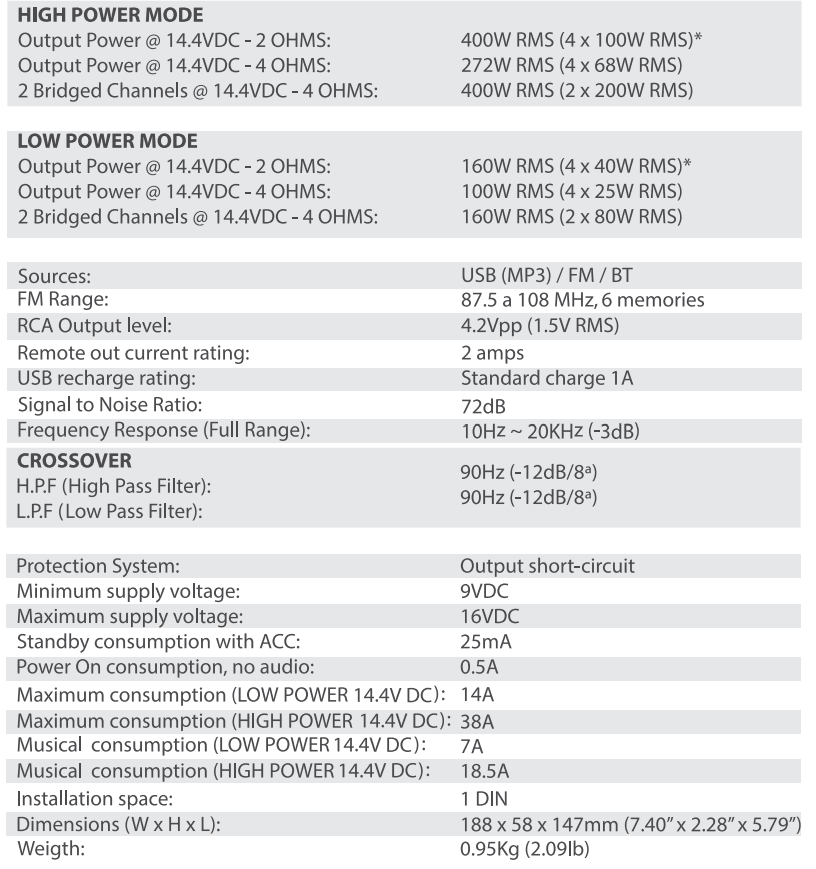

Technical features
