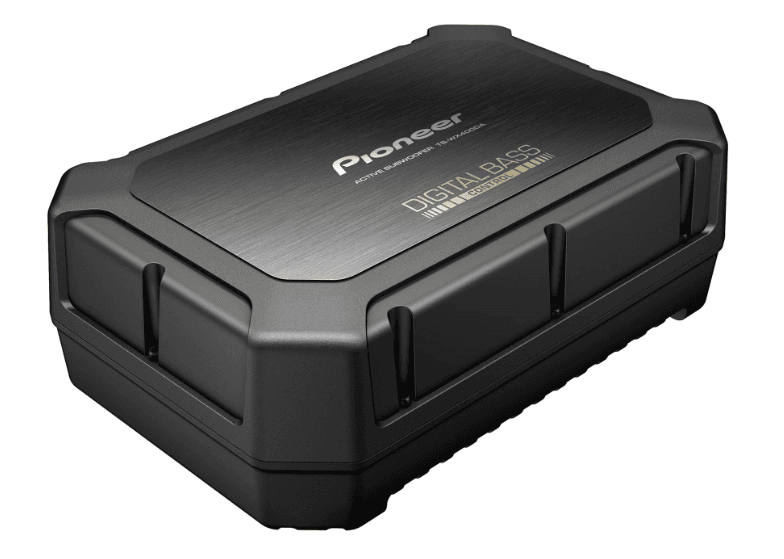

PIONEER TS-WX140DA Compact Active Subwoofer
WARNING
- Before starting the installation make sure to disconnect the vehicle’s negative (- ) battery power cable. This will prevent possible electrical shock.
- When wiring this unit please use the supplied connecting cords. DO NOT remove the fuses. The protection circuit will not work in case of an emergency.
- TS-WX140DA installed in the passenger compartment should be securely anchored in place.
- Before drilling any mounting holes check behind where you want to drill the holes to make sure you DO NOT drill into anything such as the gas lines, brake lines or electrical wiring.
- Do not install the TS-WX140DA anywhere it can get wet.
- Install the TS-WX140DA in a location with good ventilation.
- While driving keep your listening volume at a level that does not mask important outside traffic noises, such as emergency vehicles, etc.
- High sound levels may cause permanent hearing loss.
FEATURES
- New 3-mode selectable bass curve [Digital Bass Control™] to match your listening preference
- Proprietary design CLASS-D amplifier effectively produces high power with low current consumption
- Shallow and compact design for flexible installation options
- Includes cable to easily connect to both aftermarket and factory audio systems

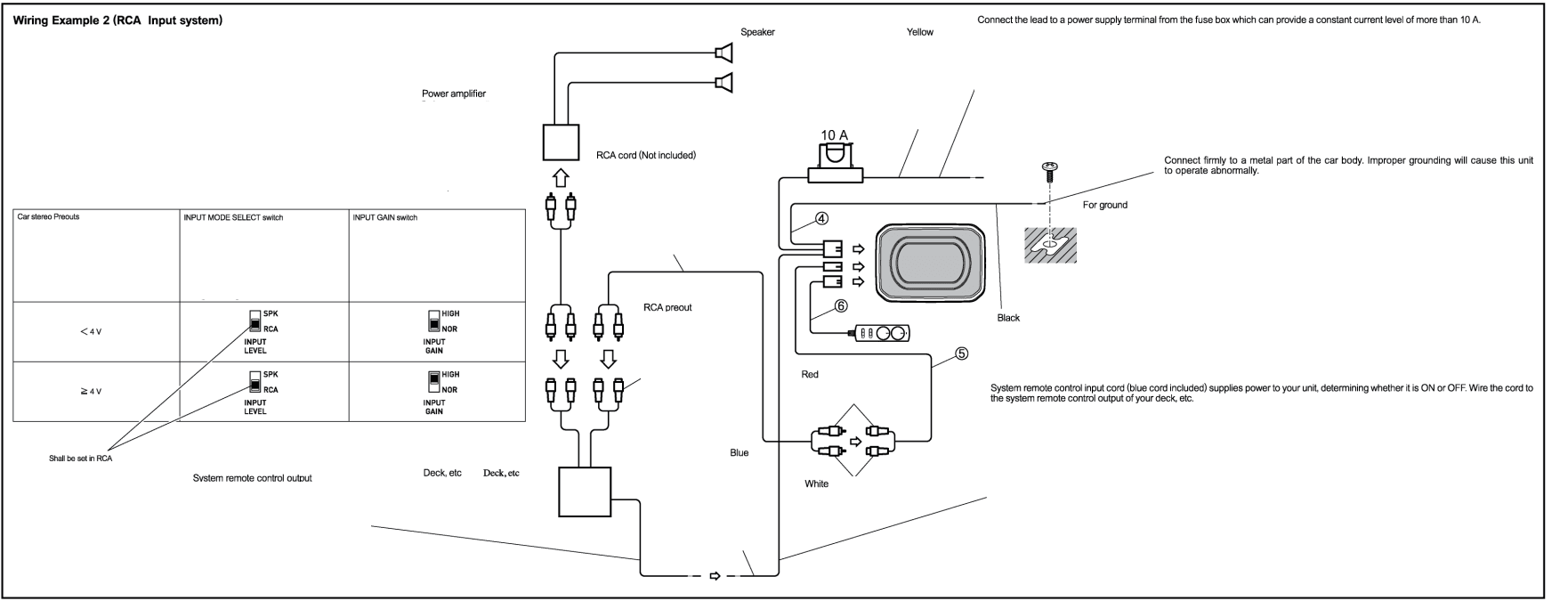

CONNECTIONS
CAUTION
- This device is for 12-volt (- ) negative ground. Please check your automobile to make sure it is this type.
- When routing leads and cords, secure them with cable retainers and electrician’s adhesive tape or shrink tubing wherever they may touch sharp edges. Keep all wiring away from hot surfaces or heater outlets to prevent short circuits.
- Refer to your car stereo’s operation manual as well when installing speakers in your car
- Correctly set the input level switch to match the outputs of your car stereo. If this is not correct you may experience distortion and sound level may not increase.
- Do not leave this remote control in direct sunshine or in a hot place for a long time. Prolonged exposure may cause the unit to deform, change in color, or become faulty.
Note:
If low-frequency noise exists in the head unit, noise may be amplified by TS-WX140DA.
Note

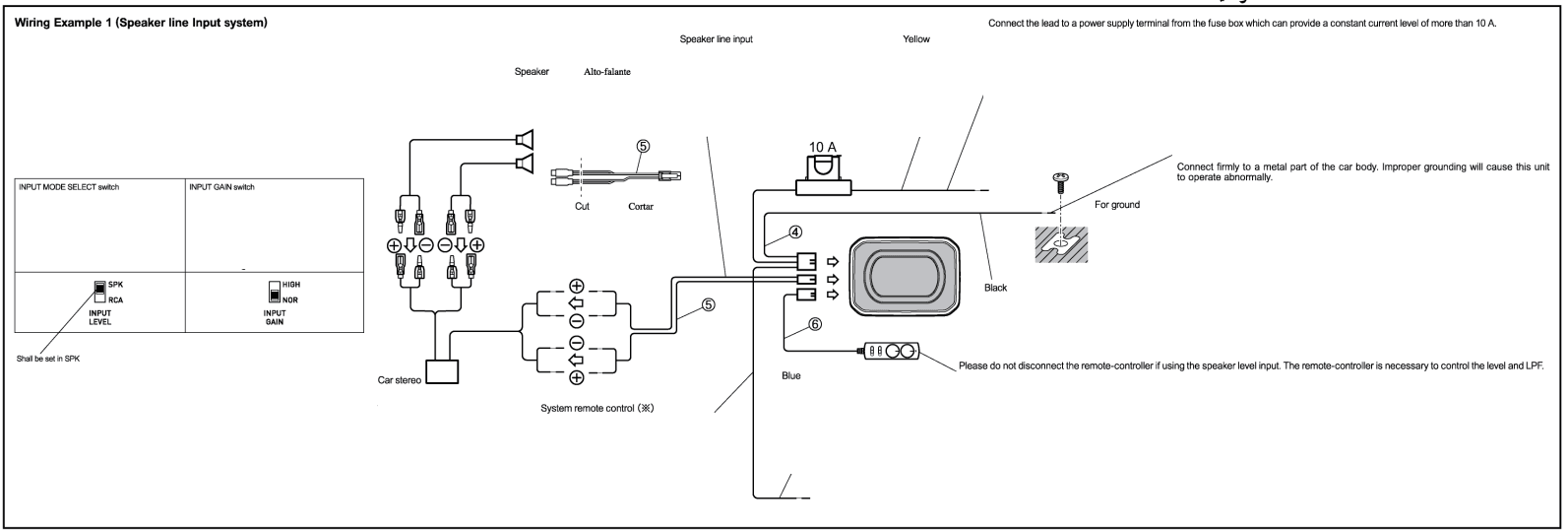

Suppose speaker line input wires from a head unit are connected to this amplifier. the amplifier will automatically turn on when the head unit is turned on. When the head unit is turned off, the amplifier turns off automatically. This function may not work with some units. In such a case, please use a system remote control wire and connect to the accessory connector in the car’s fuse unit from which over 2 A can be supplied.
FINAL STEP OF THE INSTALLATION Finish the installation by reconnecting the vehicle’s negative(- ) battery lead.

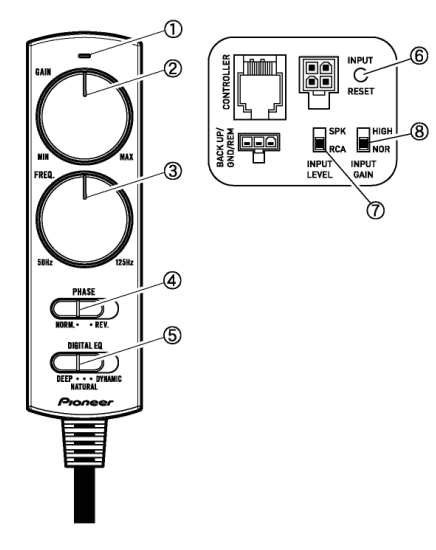

CONTROLS AND THEIR USE
- Power indicator
Lights up when power is turned on. - Gain control
Use this control to set the desired gain level. The GAIN control circuit protects the subwoofer from excessive input and may automatically adjust the level to prevent damage. - Frequency control
Tum this knob to change the frequency during sound reproduction. Set the knob to the bass setting of your choice (selectable frequency from 50 Hz to 125 Hz). - Phase switch
Use the switch to select the phase according to the system. - BASS MODE switch

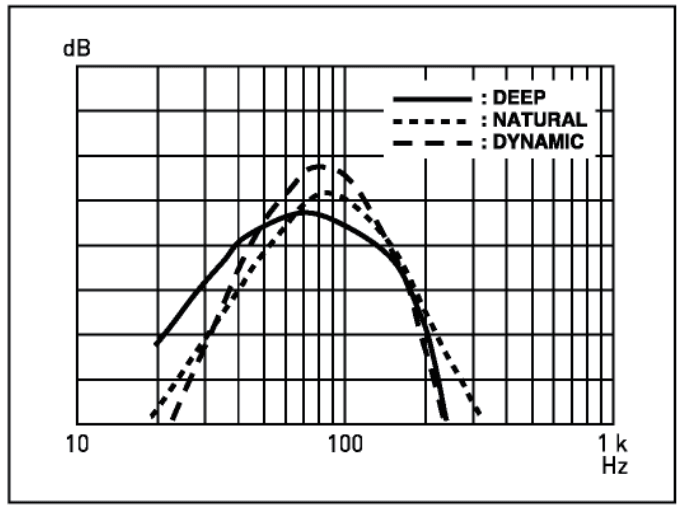

BASS MODE provides selectable bass tuning to suit various music. Output is momentarily reduced when switching between modes. - Resetting the microprocessor
Please reset the microprocessor under the following conditions :- + After installation and before first use.
- – If the unit fails to operate properly.

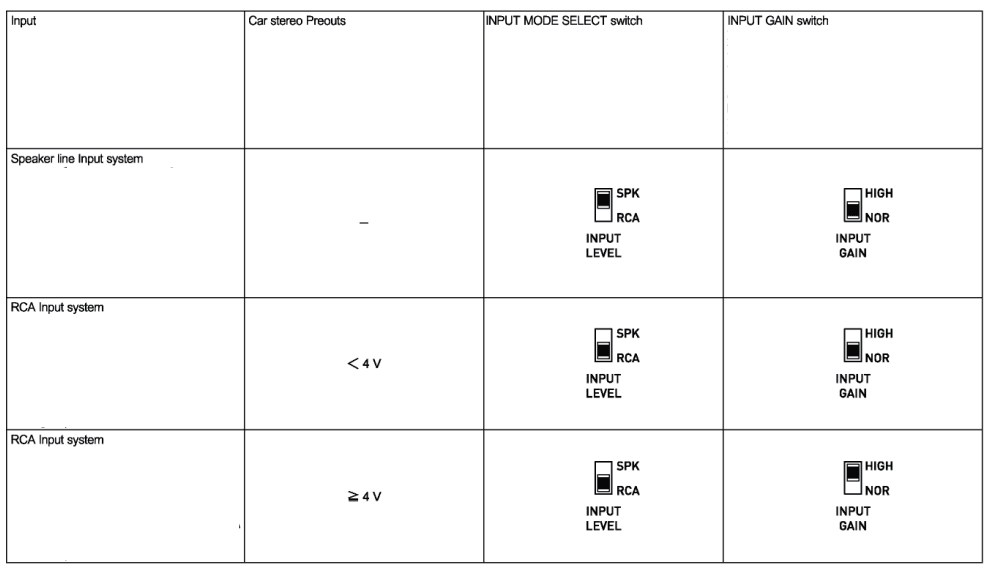

- INPUT MODE SELECT switch
- RCA: When using the RCA input.
- SPK: When using the speaker level input.
- INPUT GAN switch
- HIGH: When using the RCA input with a hi-volt pre-outs car stereo ( 4 V/RCA Preouts)
- NOR: When using the RCA input with a standard preouts car stereo or when using the speaker level input.
HOW TO INSTALL
- Attaching cord clampers
Please ensure you leave enough cable spare at the connector side for flexible and safe installation, to avoid damage to the remote control cable

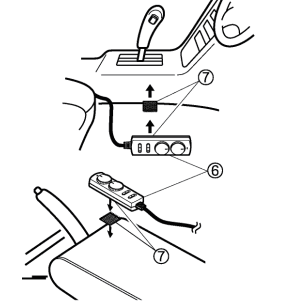

- How to attach the remote control

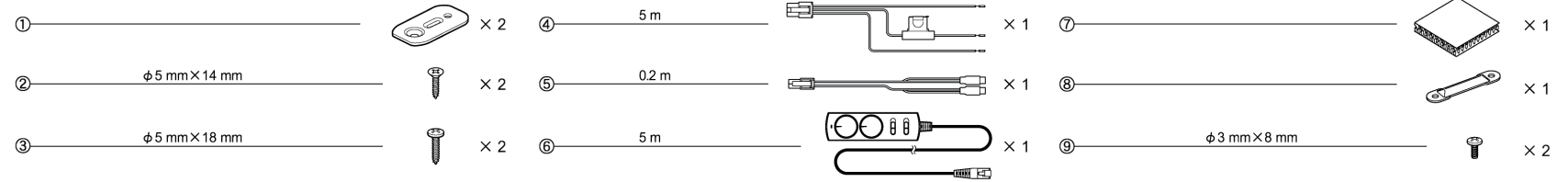

PARTS INCLUDED

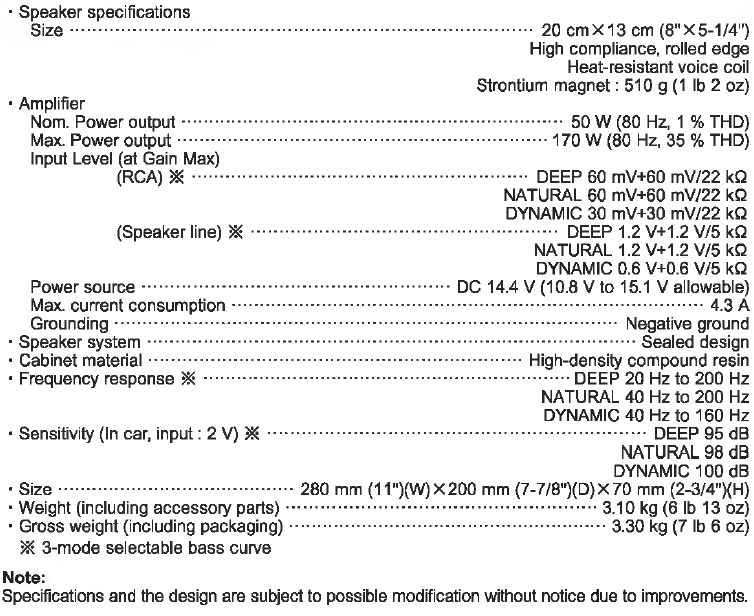

SPECIFICATIONS
For more manuals by PIONEER, visit ManualsLibraryy
PIONEER TS-WX140DA Compact Active Subwoofer-FAQs
What are the dimensions of the Pioneer TS-WX140DA?
The TS-WX140DA is a compact subwoofer measuring 280mm (W) x 200mm (D) x 70mm (H). Its small size allows installation in tight spaces, such as under or behind seats and inside small storage compartments.
What features does the Pioneer TS-WX140DA offer?
This subwoofer includes a built-in 170-watt Class D amplifier and an aluminum cone inside a specialized acoustic suspension enclosure. It also features Digital Bass Control, a Pioneer-developed technology that enhances frequency response and bass performance.
What is a compact subwoofer?
A compact subwoofer is a small-sized subwoofer designed for those who want to enhance bass without occupying much space. It is commonly used in cars, home theaters, and music systems.
Why is the brand called “Pioneer”?
The name “Pioneer” originates from Old French, meaning foot soldier or laborer. Historically, it referred to soldiers who advanced ahead to prepare the way for others.
What is Pioneer Loudness?
Pioneer’s Loudness Control boosts low and high frequencies when listening at lower volumes. This helps maintain a more balanced sound perception, ensuring bass and treble remain clear even at lower volume levels.
Is Pioneer an Indian brand?
No, Pioneer Corporation is a Japanese multinational company based in Tokyo. Founded in 1938 by Nozomu Matsumoto, it specializes in digital entertainment products.
What is the difference between compact and subcompact?
1. Compact vehicles offer 100-109 cubic feet of combined passenger and cargo space.
2. Subcompact vehicles are smaller, with 85-99 cubic feet of combined space.
This concept applies to subwoofers as well—compact models are slightly larger and more powerful than subcompact ones.
What is LFE in a subwoofer?
LFE (Low-Frequency Effects) is an audio track in Dolby and DTS sound systems that delivers deep bass. In Dolby Digital 5.1, the “.1” refers to the LFE channel, which carries about 8-10% of the low frequencies in a movie soundtrack.
What size subwoofer is best?
1. For deep, low-end bass, larger sizes like 15” or 18” are recommended.
2. For better high-frequency response, 8” or 10” subwoofers are ideal.
