Vitamix Propel Series 750 Blender User Manual

Vitamix Propel Series 750 Blender

WARNING: To avoid the risk of serious injury when using your Vitamix® blender, basic safety precautions should be followed, including the following.
READ ALL INSTRUCTIONS, SAFEGUARDS, AND WARNINGS BEFORE OPERATING THE BLENDER.

1. Read all instructions.
2. Not intended for use by or near children or persons with reduced physical, sensory,
   or mental capabilities or lack of experience and knowledge. Close supervision is
   necessary when any appliance is used by or near children or incapacitated persons.
3. To protect against the risk of electrical shock, do not put the blender base in
   water or other liquids.
4. Unplug from the outlet when not in use, before putting on or taking off parts, and before cleaning.
5. Avoid contacting moving parts.
6. Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions, or is dropped or damaged in any manner. Call Vitamix Customer Service at 1-800-848-2649 or 1-440-235-4840 or email service@vitamix.com at once for examination, repair, replacement, or electrical or mechanical adjustment. If purchased outside the U.S.A. or Canada, contact your local Vitamix dealer.
7. Alteration or modification of any part of the blender base or container, including the use of any part or parts that are not genuine authorized Vitamix parts, may
   cause fire, electric shock, or injury.
8. The use of attachments not expressly authorized or sold by Vitamix for use with this blender, including canning jars, may cause fire, electric shock, or injury.
9. Do not use outdoors.
10. Do not let the cord hang over the edge of the table or counter.
11. Do not let the cord contact a hot surface, including the stove.
12. Keep hands and utensils out of the container while blending to reduce the risk of severe injury to persons or damage to the blender. A rubber scraper or spatula
    may be used, but only when the Vitamix blender is not running.
13. The tamper provided must be used only when the main part of the lid is in place.
14. Blades are sharp. Handle or remove the blade and the blade assembly from the container
    with extreme care to avoid injury. To reduce the risk of injury, never place a blade
    assembly on the motor base unless assembled to the Vitamix container.
15. Do not leave foreign objects, such as spoons, forks, knives, or the lid plug, in the
    container, as this will damage the blades and other components when starting the machine and may cause injury.
16. Never attempt to operate with damaged blades.
17. Always operate the lender with the lid and lid plug firmly in place. The lid plug should be removed only when adding ingredients and when using the tamper.
18. When blending hot liquids or ingredients, use caution; spray or escaping steam may cause scalding and burns. Do not fill the container to the maximum capacity. Always begin processing on the lowest speed setting, Variable Speed 1. Keep hands and other exposed skin away from the lid opening to prevent possible burns.
19. When making nut butters or oil-based foods, do not process for more than one minute after the mixture starts to circulate in the container. Processing for longer
    periods can cause dangerous overheating.

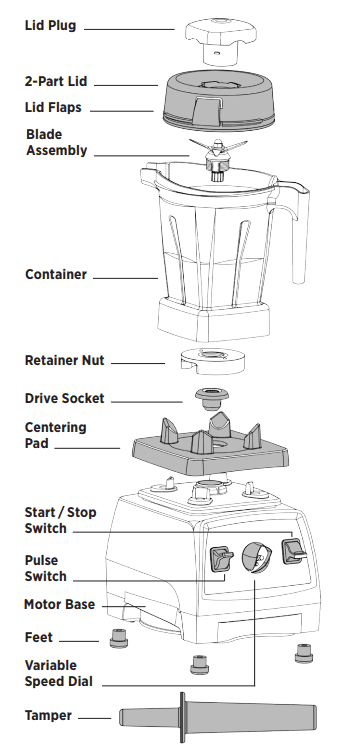

PARTS AND FEATURES

On / Off Switch: The On / Off (or Power) Switch is on the right-hand side of the machine base. The On / Off Switch controls the power to the machine.
Start / Stop Switch: Pressing down on the Start / Stop Switch will initiate the blending process. Pressing down on the Start / Stop Switch again will stop the blending process.
Variable Speed Dial: The center Variable Speed Dial serves two functions: the use of five programs or the use of ten Variable Speed settings.
Pulse Switch: The Pulse Switch can be used when using Variable Speeds or Programs.
Container: Ounces, cups, and milliliters are marked. 2-Part Lid: The 2-part Lid is easy to put on and take off, and easy to clean. Always use the lid and the lid plug when the machine is in operation.

Lid Plug: Insert through the lid and secure by turning clockwise. Remove the lid plug to use the tamper or add ingredients.
Tamper: The tamper allows you to accelerate the process of very thick and/or frozen mixtures that cannot be processed in a regular blender. Using the tamper maintains circulation by preventing air pockets from forming

To Lock the Lid in Place: Position the lid on the container with the lid flaps midway between
the spout and the handle. Push the lid onto the container until it locks in place. The lid must always be secured when processing, especially hot liquids that may scald. Never operate the blender without checking to make sure the lid is securely locked in place.
To Remove the Lid: Lift on one lid flap while holding the container securely. To Remove the Lid Plug: Rotate the lid plug counterclockwise from the “locked” to the “unlocked” position and lift out.

Automatic Overload Protection: Your Vitamix motor is designed to protect itself from overheating. If the motor shuts off, follow these instructions: Turn off the power switch for up to 45 minutes to reset. The resettling time will be extended if high room temperatures exist. To reduce the reset time, unplug the machine, remove the container, and blow air into the center section of the bottom with a hair dryer on the cool setting.
Power Cord: Your machine is equipped with a long power cord. Store the unused
portion neatly underneath.

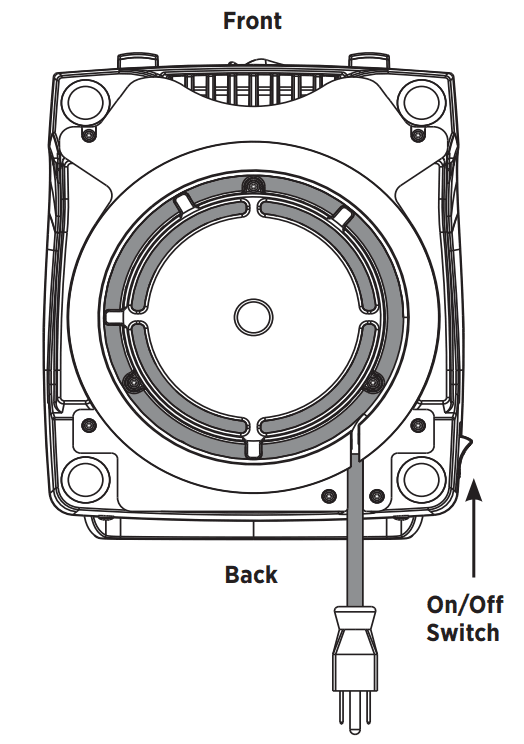

Bottom View / Cord Wrap: Plastic cord retainers hold the cord securely. They are
flexible, and return to position after the cord is lifted out.

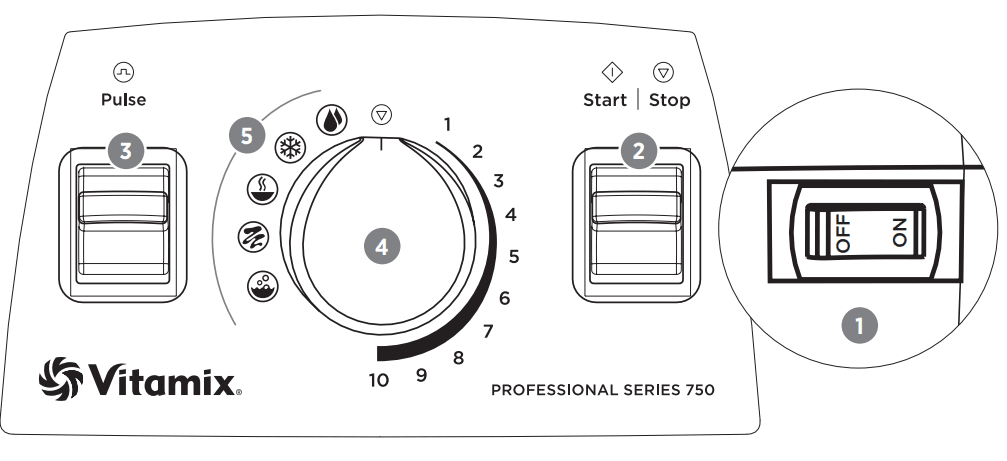

CONTROL PANEL

1. On / Off Switch: The On / Off (or Power) Switch is located on the lower right-hand side of the machine. The On / Off Switch controls the power to the machine. BEFORE moving the On / Off Switch to the On (I) position, make sure the marker on the Variable Speed Dial is pointed at the Stop Symbol at the top of the dial. After plugging in the unit, move the On / Off Switch to the On position to ready the machine for blending. Move the On / Off Switch to the Off position at night and whenever the machine will be left unattended. If the On / Off switch is moved to the Off position to stop a program mid-cycle, wait 30 seconds for power to recycle and the timer to reset before moving the On / Off switch to the On position. When the Pulse, Start / Stop, and Program Symbols brighten, the On / Off Switch is in the On position, and power is flowing.
2. Start / Stop Switch: After the marker on the Variable Speed Dial is rotated off of the Stop Symbol to either Variable Speed 1 or a Program setting, press the Start / Stop Switch to start the machine and initiate the blending process. Pressing the Start / Stop Switch again will stop the blending process. Programs can be interrupted by pushing down the Start / Stop switch at any time. If reactivated by pushing down the Start / Stop switch, the program will start at the beginning.
3. Pulse Switch: Variable Speed: Pressing down on the Pulse Switch will cause the machine to blend at the speed setting shown on the Variable Speed Dial for as long as the Pulse Switch is held down. Programs: The Pulse function can be used when a program is selected. Pushing down the Pulse switch when a program is selected will cause the machine to run at 50% of high power for as long as the Pulse switch is pushed down.
4. Variable Speed Dial: The Variable Speed Dial serves two functions: the use of five program settings or ten Variable Speed settings.
   • To use programs: rotate the Variable Speed Dial to the left to the desired program.
   • To use Variable Speed:
     • a. Rotate the Variable Speed dial right to 1.
     • b. Press down on the Start / Stop switch.
     • c. Rotate the Variable Speed dial to the right or left during blending
       to increase or decrease the speed of the blades.
     • d. At the end of the blending cycle, rotate the marker on the Variable
       Speed dial back to the Stop Symbol ( ) at the top of the dial.
5. Programs: Your Professional Series 750 is equipped with five program settings for the most commonly used recipes. Rotating the Variable Speed Dial left of center
   allows you to select a program for Smoothies, Frozen Desserts, Soups, Purées, and a Cleaning cycle. These programs are optimized for these recipe categories, but may also work well with other recipe choices.

ABOUT THE BLADES

The Vitamix machine comes standard with the wet blade container. The blade is identified by a “W” for wet. This blade is used for most of your recipes. Additional containers with wet or dry blades may be purchased separately..

Wet Blade Container: Designed for processing liquids, including juice, frozen mixtures, sauces, soups, purees, batters, and for wet chopping. The wet blades can also grind grain and knead dough, but they are not quite as efficient as the dry blades in this application. If used for grinding, your container will mar and become cloudy; see instructions for dry container use.

Dry Blade Container: These blades are clearly marked “D” and are designed specifically for grinding dry materials such as grains, cereal, and coffee, and are also used for kneading bread dough. The dry blades can NOT process liquids efficiently. If you grind herbs regularly, you may wish to purchase a separate dry blade container and replace blades as needed.

TAMPER

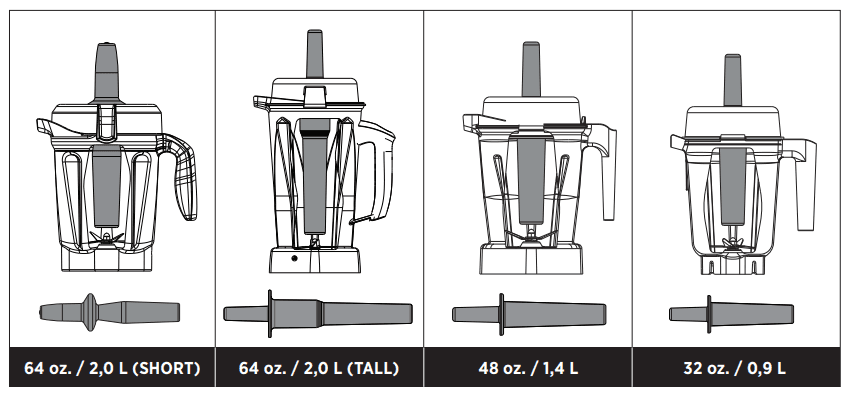

How to Determine the Tamper that Can Be Used with Your Container:
Each type of tamper is designed to be used safely and effectively with a particular container. If a tamper came with your container, it is the correct tamper for the container. If a tamper did not come with your container, or you want to determine if a tamper that you already have can be used with your new container, please compare your container with the containers and matching tampers in the illustration below.

Before using the tamper during the blending process, verify that it is the correct tamper.

• 64 oz. Short Containers use Tamper P / N 016041 that is approximately 9 ¾ inches long.
• 64 oz. Tall Containers uses Tamper P / N 000760 that is approximately 12 ½ inches long.
• 32 oz. and 48 oz. Containers use Tamper P / N 015033 that is approximately 11 inches long.

To verify that you are using the correct tamper, place the lid on an empty container,
Remove the lid plug and insert the tamper. If it is the correct tamper, it should easily fit into the opening but will not come in contact with the blade, so no matter how you move the tamper inside the container. IF THE TAMPER TOUCHES THE BLADES AT ANY ANGLE–DO NOT USE THE TAMPER WITH YOUR CONTAINER. If you do not have the correct tamper for your container, call Vitamix Customer Services at 1-800-848-2649 or 1-440-235-4840 or e-mail service@vitamix.com to order a new tamper. If purchased outside the United States or Canada, contact your local Vitamix Dealer.

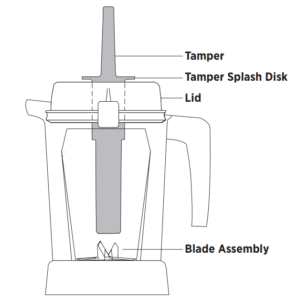

HOW TO USE THE TAMPER

IMPORTANT!

• The splash disk (near the top of the tamper) and lid prevent the tamper from hitting the blades when the lid is secured properly in the locked position.
• The container should not be more than two-thirds full when the tamper is used.
  During blending.
• To avoid overheating during blending, DO NOT use the tamper for more than 30 consecutive seconds.
• If the food does not circulate, the machine may have trapped an air bubble. Carefully remove the lid plug while making sure the lid stays firmly in place. Release the air bubble by inserting the tamper through the lid plug opening.
• Holding the tamper straight down may not help the ingredients circulate. If necessary, point the tamper toward the sides or corners of the container. DO NOT try to force the tamper deeper into the container.

HINTS FOR SETTING SPEEDS

Variable Speed
Before using the Variable Speed option, always begin with the Variable Speed Dial marker pointed at the Stop Symbol at the top of the dial.

• Rotate the dial right to Variable Speed 1.
• To activate the blending process, press down on the Start / Stop Switch.
• Slowly turn the Variable Speed Dial to the desired speed depending on the recipe used.
• At the end of the blending cycle, rotate the Variable Speed dial back to the Stop Symbol at the top of the dial.

Use the highest setting called out in the recipe for as much of the processing time as
possible to make whole-food juices, soups, shakes, frozen mixtures, purées, nut butters,
and for grinding grains. Processing times will generally be less than one minute (most
take less than 30 seconds). Higher speed provides the best quality of refinement. Blending too long at too low of a speed setting will overheat the machine and cause the Automatic Overload Protection to turn off the machine. Blending at a higher speed maximizes the motor’s cooling fan to avoid overheating. If the mixture stops circulating, you may have trapped an air bubble. To resolve, insert the tamper through the lid plug and stir until it “burps.” If this does not work, press the On / Off switch to stop the motor. Remove the container from the motor base, and use a rubber spatula to press the air bubble away from the blades. Return the container to the motor base, replace the lid, and continue blending.

Programs
Programs vary in blending speed and duration and will automatically stop at the end of the program.

• The Smoothie program runs for approximately 45 seconds.
• The Frozen Dessert program runs for approximately 55 seconds.
• The Hot Soup program runs for approximately 5 minutes and 45 seconds.
• The Purée program runs for approximately 1 minute.
• The Cleaning program runs for approximately 1 minute.

OPERATING INSTRUCTIONS

Wet Blade Container
The Wet Blade Container is designed for processing liquids, including juice, frozen mixtures, sauces, soups, purées, batters, and for wet chopping. Before using this container for Programs or the Variable Speed option, always begin with the Variable Speed Dial pointed at the Stop Symbol at the top of the dial.

1. Move the On / Off switch to the On position.
2. Load the container before placing it on the motor base. Place liquids and soft foods
   in the container first, solid items and ice last. Although not necessary for blending,
   you may want to cut or break food into smaller pieces for more precise measuring
   of ingredients.
3. Securely fasten the 2-part lid. Always use the complete 2-part lid when blending
   (unless the tamper is inserted through the lid plug opening). Especially when
   blending hot ingredients, make sure that the lid is securely latched.
4. With the motor off, set the wet blade container on the motor base by aligning it
   over the centering pad. Do not ever attempt to put a container on an operating
   motor base or to operate a motor base without a container properly in place.
5. Use the Variable Speed dial to select a function.
   • Variable Speed: Rotate the dial right of center to Variable Speed 1.
   • Programs: Rotate the dial left of center to the desired program.
6. Activate the blades by pressing the Start / Stop Switch. Your container may shift as it gets into an aligned position.
   • Variable Speed: Slowly rotate the Variable Speed dial to the right to the desired speed.
   • Programs: The programs vary in blending speed and duration and will
     automatically stop at the end of the program. Programs can be interrupted
     by pushing down the Start / Stop switch at any time. If reactivated by pushing down the Start / Stop switch, the program will start at the beginning.
7. If the mixture stops circulating, you may have trapped an air bubble. To resolve
   Insert the tamper through the lid plug and stir until it “burps.” If this does not work, press the On / Off switch to stop the motor. Remove the container from the motor base, and use a rubber spatula to press the air bubble away from the blades. Return the container to the motor base, replace the lid, and continue blending
8. Take proper care when handling and processing hot ingredients and making hot soups and sauces.
9. Due to the machine’s speed, processing times are much quicker than standard
   appliances. Until you are accustomed to the machine, count your time carefully
   to avoid over-processing.
10. After pressing the Start / Stop switch to stop the cycle, wait until the blades stop completely before removing the lid or container from the motor base.

Dry Blade Container
Before using this container for programs or the Variable Speed option, always begin with the Variable Speed Dial pointed at the Stop Symbol at the top of the dial. If purchased, your dry blade container should be used only for hard, dry materials, such as grain, and for kneading dough.

1. Load the container before placing it on the motor base.
2. Securely fasten the 2-part lid. Always use the complete 2-part lid when blending (unless the tamper is inserted through the lid plug opening).
3. With the motor off, set the dry blade container on the motor base by aligning it over the centering pad. Do not ever attempt to put a container on an operating
   motor base or to operate a motor base without a container properly in place.
4. To begin, make sure the On / Off switch is in the On position.
5. Use the Variable Speed dial to select a function.
   • Variable Speed: Rotate the dial right of center to Variable Speed 1.
   • Programs: Rotate the dial left of center to the desired program.
6. Activate the machine by pressing the Start / Stop Switch. Your container will shift and get into an aligned position.
   • Variable Speed: Slowly increase the Variable Speed to the desired speed.
   • Programs: The programs vary in blending speed and duration and will
     automatically stop at the end of the program. Programs can be interrupted
     by pushing down the Start / Stop switch at any time. If reactivated by pushing down the Start / Stop switch, the program will start at the beginning.

CARE AND CLEANING

Container

To prepare your new machine for initial use, follow the steps under Normal Cleaning below. This will clean the unit and break in the motor.
Normal Cleaning
Before using the Variable Speed or Program options, always begin with the Variable Speed Dial pointed at the Stop Symbol at the top of the dial.

1. Fill the container half full with warm water and add a couple of drops of liquid dishwashing detergent to the container.
2. Snap or push the complete 2-part lid into the locked position.
3. Perform one of the following procedures:
   • Variable Speed:
     • a. Rotate the Variable Speed dial to 1.
     • b. Press the Start / Stop switch.
     • c. Slowly increase Variable Speed to 10.
     • d. Run the machine for 30 to 60 seconds.
     • e. Rotate the Variable Speed dial to the Stop Symbol at the top of the dial.
   • Program:
     • • a. Rotate the Variable Speed dial to the Cleaning ( ) program icon. The Cleaning program will run for approximately 1 minute
       • b. After the program stops, rotate the Variable Speed dial to the Stop Symbol ( ) at the top of the dial.
4. Rinse and drain the container.

To Sanitize
Before using the Variable Speed or Program options, always begin with the Variable Speed Dial pointed at the Stop Symbol at the top of the dial.

1. Follow the cleaning instructions above.
2. Fill the container half full with water and 1 ½ teaspoons of liquid bleach.
3. Snap or push the complete 2-part lid into the locked position.
4. Perform one of the following procedures:
   • Variable Speed:
     • a. Rotate the Variable Speed dial to 1.
     • b. Press the Start / Stop switch.
     • c. Slowly increase Variable Speed to 10.
     • d. Run the machine for 30 to 60 seconds.
     • e. Rotate the Variable Speed dial to the Stop Symbol at the top of the dial.
   • Program:
     1. a. Rotate the Variable Speed dial to the Cleaning ( ) program icon. The Cleaning program will run for approximately 1 minute.
     2. b. After the program stops, rotate the Variable Speed dial to the Stop Symbol ( ) at the top of the dial
5. Allow mixture to stand in the container for an additional 1 ½ minutes.
6. Pour the bleach mixture out. Allow the container to air dry.
7. Do not rinse after sanitizing

TROUBLESHOOTING

Automatic Overload Protection
Your Vitamix machine is equipped with a special feature: Automatic Overload Protection. This built-in feature is designed to protect the motor and prevent your machine from overheating. When engaged, this Automatic Overload Protection will
cause the motor to shut off and possibly emit a light odor. If your Automatic Overload Protection should ever be activated, refer to page 8 in this manual to easily reset your machine. Tips to prevent “overloading” your Vitamix machine:

• Process only Vitamix recipes when learning to use the machine
• Do not process recipes at lower speeds than recommended
• Do not process recipes at higher speeds than recommended
• Do not process recipes longer than recommended
• Use your tamper to process thicker mixtures and keep ingredients moving around and through the blades

Retainer Nut Loosening
If the retainer nut at the bottom of your container loosens and no longer securely holds the blade assembly in place, DO NOT CONTINUE TO USE THE CONTAINER. Call Vitamix Customer Service at 1-800-848-2649 or 1-440-235-4840,
Or call your local dealer immediately for instructions.

SPECIFICATIONS

Professional Series 750™

Motor: ≈ 2.2 peak output horsepower motor
Electrical: 120 V, 50 / 60 Hz, 12 A. Uses a U.S.A. three–prong grounded cord.
Dimensions:

• Height: 17.4 in. / 44,2 cm
• Width: 7.7 in. / 19,6 cm
• Depth: 9.4 in. / 23,9 cm

FOR MORE MANUALS BY VITAMIX, VISIT MANUALSLIBRARYY

Vitamix Propel Series 750 Blender-FAQs
