VivoHome VH789 Electric Countertop Ice Maker User Manual

VivoHome VH789 Electric Countertop Ice Maker

IMPORTANT NOTICES

When using an electrical appliance, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury, including the following:

1. Read all instructions before using.
2. Remove all packing material and carefully check your ice maker to ensure it is in good condition and that there is no damage to the ice maker or power cord and plug.
3. Before using the Ice maker for the first time, please wait 2 hours after positioning it, and keep the transparent lid open for at least 2 hours
4. Pure water is not allowed to be used on this unit; spring water is recommended.
5. Ensure the voltage is compliant with the voltage range stated on the rating label, and ensure the earthing of the socket is in good condition.
6. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
7. Do not upend this product or incline it over a 45°C angle.
8. To protect against the risk of electric shock, do not pour water on the cord, plug, or ventilation, or immerse the appliance in water or any other liquid.
9. Unplug the appliance after using or before cleaning.
10. Keep the appliance 8cm from other objects to ensure good heat release.
11. Do not use the appliance close to flames, hot plates, or stoves.
12. Do not switch on the power button frequently (ensure 5min. interval at least) to avoid damage to the compressor.
13. Metal sheets or other electric objects are not allowed to be inserted into the appliance to avoid fire and short circuit.
14. Do not use outdoors.
15. Never clean with scouring powders or hard implements.
16. Please keep the instruction manual.
17. Warning: Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
18. This appliance is intended to be used in a household and similar applications, such as
    • staff kitchen areas in shops, offices, and other workin environments
    • farm houses and by clients in hotels, motels, and other residential-type environments;
    • bed and breakfast type environments;
    • catering and similar non-retail applications
19. When positioning the appliance, ensure the supply cord is not torn or damaged.

SPECIFICATIONS

• Model Number: ICM2005
• Voltage: 110V
• Power Consumption: 150 W
• Daily Ice Output: 20kg / 24 hours
• Ice Storage Capacity: 2.0L/900 g
• Water Reservoir Capacity: 2.6 L
• N.W: 11KG
• G.W: 12KG
• Ice making mode: big and small compression-type refrigeration:110/60Hz
• Cooling agent: R600a environmentally friendly refrigerant
• Max overall dimensions(W XD XH): 365X 270X327mm
• Packing Dimensions: 435X 330X 380mm

DESCRIPTION

1. Front housing
2. Ice Shovel
3. Water tray
4. Bullet evaporator
5. Microswitch bracket
6. Transparent lid
7. Stainless steel panel
8. Display screen
9. Buttons
10. Motor Mount
11. Rear housing
12. Air Vent
13. Ice scoop

FEATURE§

• Quick ice making
• Two different sizes of ice can be made
• Prompt when the ice is full and water is insufficient
• Bullet ice
• 9 pieces of ice can be made in 9 minutes and 30 seconds.
• Automatic cleaning function

WARNING

1. During transportation, do not tilt the machine more than 45 degrees, do not reverse the machine. This may damage the compressor and the sealing system.
2. Remove all packing materials, check the machine carefully, and make sure that the machine, power cord, and plug are normal.

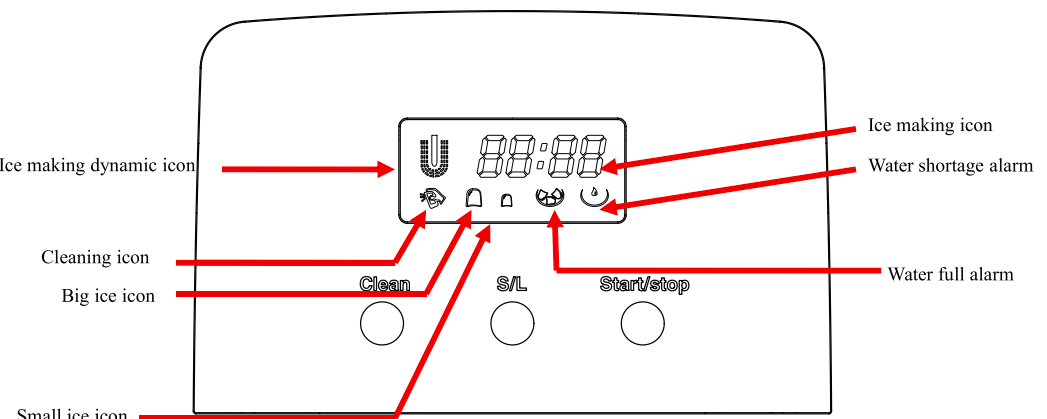

CONTROL PANEL OPERATION

• Start/Stop: Start/Stop button
• CLEAN: CLEAN button
• S/L: Mode selection

1. Plug in the power supply, and the display will be on. The machine will start the deicing function first. After no operation, the machine will automatically enter the standby mode.
2. CLEAN: Cleaning function. Press the CLEAN button, and then press the Start / Stop button. The machine will automatically enter the cleaning function for about 150 seconds. Please do not turn off the power during the cleaning. After the cleaning, the machine will automatically enter the standby mode.
3. S/L: select the ice size mode, and the default mode is the big ice making mode for each startup, icon display for the selected mode. The production time of small ice is 8 minutes and 30 seconds., And that of large ice is 9 minutes and 30 seconds.
4. Start/Stop: After the power is plugged in, press the Start / Stop button, and the machine will start the ice-making function. The default mode is big ice-making mode.
5. Time display: after the machine starts to make ice, the time starts to count. The calculation time starts in minutes. The time displayed by the machine does not stop during the working period of the machine. When 99:99 is displayed, the time will be reset to zero again, and so on.
6. Water shortage alarm: During pumping, if no water flow is sensed within 5 seconds, the water shortage icon will be displayed, and the machine will stop working.
7. ICE FULL: When the compressor of the machine is not working and the infrared indicator is blocked for more than 5 seconds, the ice full icon will be displayed. At the same time, the machine will stop working, and the ice full icon will flash for 1 / 4 second. Infrared detection continues when the detection is not blocked, The machine continues to work.

OPERATION INSTRUCTIONS

• Step 1
  Open the lid and take out the basket, and add water to the reservoir.
  Note: There is a maximum scale, MAX in the reservoir. The water should not exceed the MAX position. If the water exceeds the maximum scale MAX, you need to open the bottom drain plug, release the excess water, and cover it with a transparent cover.
• Step 2
  Plug in the power and press the Start/Stop button to start the machine.
• Step 3
  Select the size of the ice you want to make, the default is big ice

CLEANING & USE GUIDANCE

1. Clean the inner liner, ice collecting tray, water box, ice shovel, and evaporator frequently. When cleaning, unplug the unit and remove the ice cubes. Use a diluted solution of water and vinegar to clean the inside and the outside surface of the Ice maker. Do not spray the Ice maker with chemicals or diluted agents such as acids, gasoline, or oil. Rinse thoroughly before starting.
2. Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
3. Reuse the machine after being idled for a period of time, it may not have enough water to pump for air retard, in this case, the water shortage indicator “ADD WATER” will be on. Press the POWER button to restart the ice maker.
4. To ensure the cleanness of ice, please change the water in the water reservoir at least once a day. If you do not use it for a long time, please drain the water out and clean it up.
5. If the compressor takes a strike action for a shortage of water, full water or interruption of power supply, it will delay for 3 minutes to start up after restarting.
6. Always use fresh water before starting ice production, either at initial installation or after a long shut-off period.

TROUBLESHOOTING

1. Please note, if a power failure occurs due to the disconnection of the power cord or the power button has been pushed off during an ice-making cycle, small ice chips may form and lodge in the automatic shovel, causing it to jam. If this occurs, the ice chips may be removed by disconnecting the power cord and gently pushing the shovel to the rear of the cabinet and removing the ice chips, then restarting.
2. Please check if the water reservoir is flat when the ice shovel can not remove the ice into the ice basket. If not, please push the ice shovel gently with your finger, then press the POWER button to restart.


   PROBLEM	POSSIBLE CAUSE	SUGGESTED SOLUTIONS
   The compressor works abnormally with a Buzzing noise	The voltage is lower than recommended	Stop the Ice maker and do not restart until the voltage is normal.
   The water shortage indicator light is on	1. There is no water 2. The pump is full of air	1. Add some water until it reaches the MAX position 2. Press the POWER button to restart
   The indicator lights on display are not on	Blown fuse/ No power	Replace the fuse, / Turn power on
   The ice is too large and with pieces sticking together.	1. Wrong ice size selected 2. Ice of previous cycles left in the water tray	1. Select a small size 2. Take out the ice from the standby state

   The ice-making process was correct, but no ice came out?	1.      The compressor has no refrigerant 2.      Compressor damaged 3.      Fan motor damaged	Call the service hotline
   All indicators flash at the same time.	1.  The water box is blocked by ice. 2.   The motor is stuck, or the motor falls off, or the motor is damaged 3.    Micro switch damaged	1.    Take out the ice under the ice shovel, plug in the power again, and press the POWER button. After 3 minutes, the machine will restart automatically. 2.  Call the service hotline
   The machine has been working, but the water has been warming	The solenoid broke down	Replace the solenoid valve
   When the ice is full, the machine does not display the ice full Icon	The ice full sensor is damaged, Solar light interference	1.      Replace the ice full sensor 2.      Move indoors to make ice 3.      Call the service hotline

WARNING

1. If the power cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.
2. Fill with potable water only.
3. It is normal for the compressor and condenser surface to reach temperatures between 70°C and 90°C during operation, and the surrounding areas may be very hot.
4. Due to fast freezing, ice cubes may appear “Cloudy”. This is air trapped in the water and will not affect the quality or taste of the ice
