Waterpik Sensonic Water Flosser-Electric Toothbrush Manual

Waterpik Sensonic Water Flosser-Electric Toothbrush

SAFEGUARD STATEMENTS

READ ALL INSTRUCTIONS BEFORE USING.

• This product is for household use. When using electrical products, especially when children are present, basic safety precautions should always be followed, including the following:
  DANGER:
  To reduce the risk of electrocution:
• Always unplug the product after using.
• Do not use while bathing.
• Do not place or store the product where it can fall or be pulled into a tub or sink.
• Do not place in or drop into water or other liquid.
• Do not reach for a product that has fallen into water. Unplug immediately.
• Do not handle the plug with wet hands.
• Check the supply cord and plug for damage before the first use and during the life of the product.
  WARNING:
  To reduce the risk of burns, electrocution, fire, or injury to persons:
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or a lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Use this product only for its intended use as described in this Instruction Manual or as recommended by your dental professional.
• Never operate this product if it has a damaged cord or power supply, if it is not working properly, if it has been dropped or damaged, or if it has been dropped into any liquid. Contact Water Pik, Inc. at 1-800-525-2774 (US) 1-888-226-3042 (Canada) or visit www.waterpik.com
  (US) www.waterpik.ca (Canada).
• Do not plug this device into a voltage system that is different from the voltage system specified on the device or power supply.
• Keep the electrical cord away from heated surfaces.
• Never drop or insert any object into any hose or opening.
• Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.
• Remove the Waterpik Water Flosser reservoir to fill. Fill the reservoir with warm water or other dental professional-recommended solutions only.
• Only use tips and accessories recommended by Water Pik, Inc. as identified in the instruction manual.
• The supply cord cannot be replaced. If the cord is damaged, the appliance must be scrapped.
• Do not use iodine, saline (salt solution), or water-insoluble concentrated essential oils in this product. Use of these can reduce product performance and will shorten the life of the product.
• Do not direct water from the Water Flosser under the tongue, into the ear, nose, or other delicate areas. This product is capable of producing pressures that may cause serious damage in these areas.
• Do not direct water into the nose or ear. The potentially deadly amoeba, Naegleria fowleri, may be present in some tap water or unchlorinated well water and may be fatal if directed into these areas.
• If your physician advised you to receive antibiotic premedication before dental procedures, you should consult your dental professional before using this product or any other oral hygiene aid.
• Remove any oral jewelry before using this product.
• Do not use if you have an open wound on your tongue or in your mouth.
• Do not use this product for more than five minutes every two hours.
• If the Pik Pocket™ tip (not included in all models) separates from the shaft for any reason, discard the tip and shaft and replace with a new Pik Pocket™ tip.
• This product does not contain any user-serviceable electrical parts, and it does not require maintenance.
• This product complies with the safety standards for electromagnetic devices. If you have a pacemaker or other implanted device containing magnets or electronics, contact your physician or the device manufacturer before using the appliance.
• Do not expose the battery or appliance to excessive temperatures.
• Magnetic field: Pacemakers and similar implanted medical devices may be affected by a magnet. Contact your doctor with any questions.

SAVE THESE INSTRUCTIONS

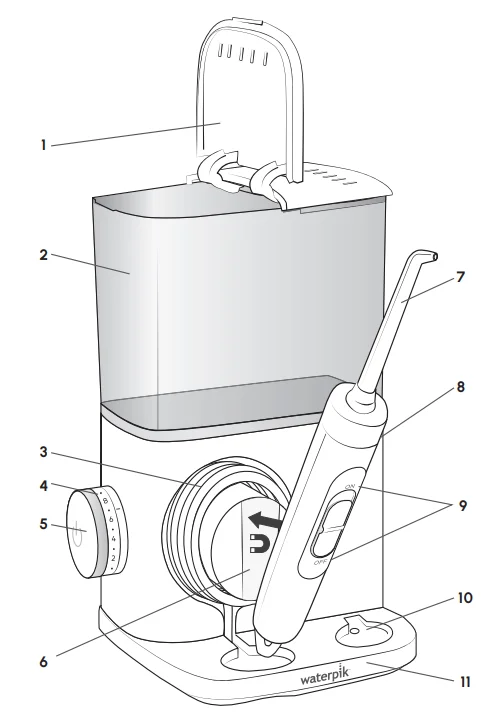

PRODUCT DESCRIPTION

Water Flosser

1. Hinged reservoir lid
2. Reservoir
3. Hose
4. Water flosser pressure control dial
5. Power button
   (push to turn unit ON/OFF)
6. Magnetic handle cradle
7. Tip
8. Tip eject switch
9. Water ON/OFF switch
10. Charger pocket
11. Base
12. Standard Sensonic™ Brush Head
13. LED charge indicator
14. Toothbrush power button
15. Toothbrush mode button
16. LED mode indicator
    1. A. Clean
    2. B. Stain Removal
    3. C. Gum Care

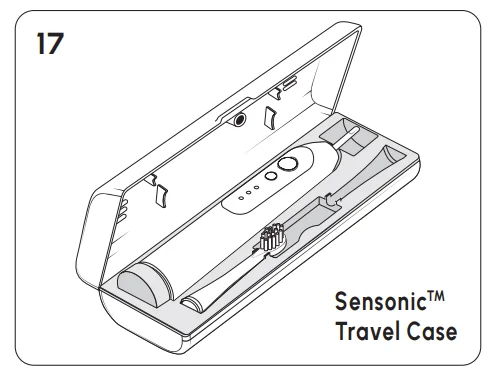

17. Sensonic™ Travel Case

NOT ALL TIPS ARE INCLUDED IN ALL MODELS

*Replace Every 3 months ** Replace Every 6 months

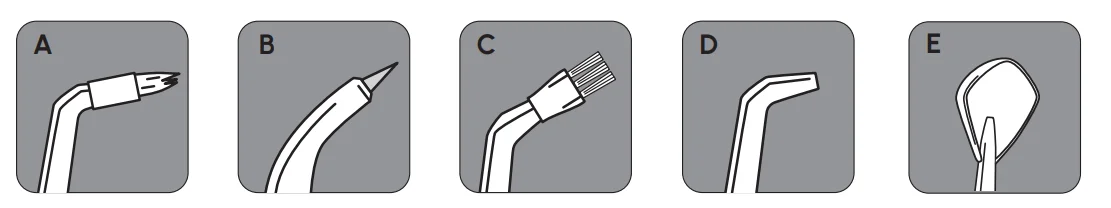

TIPS

• A. Orthodontic Tip*
  • Braces
  • General use
• B. Pik Pocket™ Tip*
  • Periodontal pockets
  • Furcations
• C. Plaque Seeker™ Tip*
  • Implants
  • Crowns
  • Bridges
  • Retainers
  • General use
• D. Classic Jet Tip**
  • General use
• E. Tongue Cleaner**
  • Fresher breath
• F. Sensonic™ Toothbrush Brush Head*
  • Plaque removal
  • Whitening

*Replace every 3 months
Replacement brush heads and accessories may be purchased online at www.waterpik.com (US), www.waterpik.ca (Canada), or by phone from Water Pik, Inc. at 1-800-525-2774 (US) or 1-888-226-3042 (Canada). To find detailed information about tips, other accessories, and product usage, please visit our website at www.waterpik.com (US) or www.waterpik.ca (Canada).

GETTING STARTED

PREPARING THE UNIT

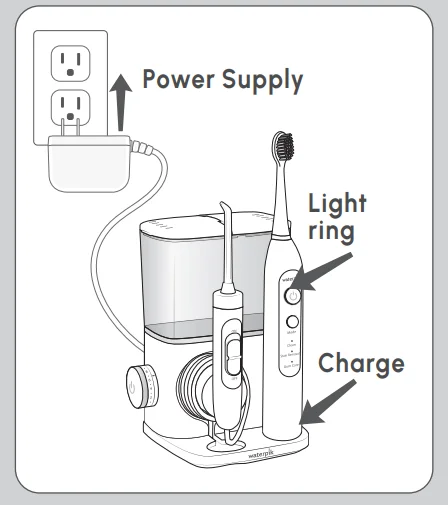

Powering the Unit

Plug the power supply into an electrical outlet. If the outlet is controlled by a wall switch, be sure it is turned on.

Charging the Sensonic™ Toothbrush

Charge for 8 hours before first use. The light ring will glow white on the handle while charging. When fully charged, all lights will shut off. The light ring will be solid red when the battery is running low. The light ring will blink red when the battery is fully depleted and needs to be recharged. A full charge will last for approximately 2 weeks of typical use (2 minutes of brushing twice a day).

Note: Charging of the toothbrush will pause temporarily when the flosser is operating. Toothbrush charging will resume automatically when the flosser turns off.

Modes

• A. Clean: Outstanding everyday cleaning performance.
• B. Stain Removal: Gently removes surface stains.
• C. Gum Care: Gently enhances gum stimulation.

Note: Modes can only be changed when in operation.

Sensonic™ Brushing

• Slide the brush head onto the handle and push it down firmly.
• Place the brush head into your mouth before turning the unit on.
• Select the mode by pressing the mode button.
• For best results, position the brush along the gumline at a 45-degree angle.
• Use light pressure with a small, slow back-and-forth motion covering one or two teeth at a time.

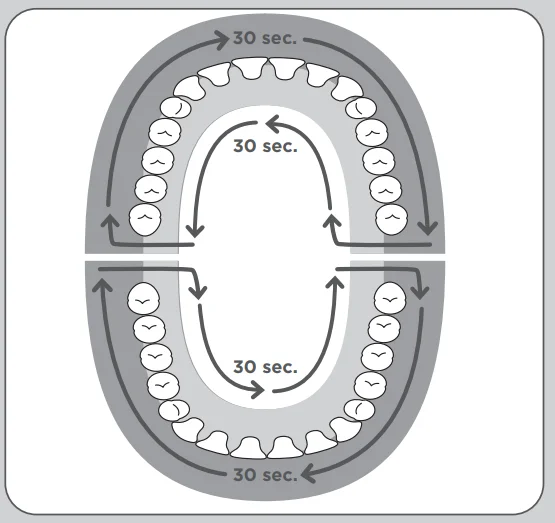

• Quad Timer: The Toothbrush will create a short pause every 30 seconds, to remind you to move to the next quadrant of your mouth.

• 2-Minute Timer: The brush will automatically shut off after 2 minutes of run time.

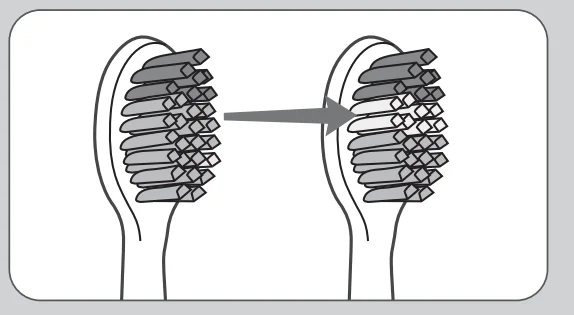

Bristles change from green to yellow when time to replace. (For optimal performance, replace brush heads every 3 months.)

CARE OF YOUR WATERPIK™ TOOTHBRUSH

Cleaning

1. After each use, turn off the unit, remove the brush head from the handle, and rinse the brush head under running water.
2. Wipe the handle dry after each use.
3. Periodically, clean the charger puck, first unplugging the unit and then wiping with a damp cloth.

Service Maintenance

Waterpik™ Water Flossers have no consumer serviceable electrical items and do not require routine service maintenance. For all parts and accessories, go to www.waterpik.com (US) or www.waterpik.ca (Canada). You may also call our toll-free customer service number at 1-800-525-2774 (US) or 1-888-226-3042 (Canada). Refer to the serial and model numbers in all correspondence. These numbers are located on the bottom of your unit. Still have questions? Go to www.waterpik.com (US) or www.waterpik.ca (Canada).

Preparing the Reservoir

Remove the reservoir, lift the reservoir lid, and fill with lukewarm water. Replace the reservoir over the base, press down firmly, and close the lid.

Inserting and Removing Tips

Insert the tip into the center of the Water Flosser handle, pressing down firmly until the tip clicks into place. The colored ring will be flush with the top of the handle if the tip is correctly locked into place. To remove the tip from the handle, slide the tip eject button on the handle.

Caution: Do not use the tip eject slide while the unit is running.

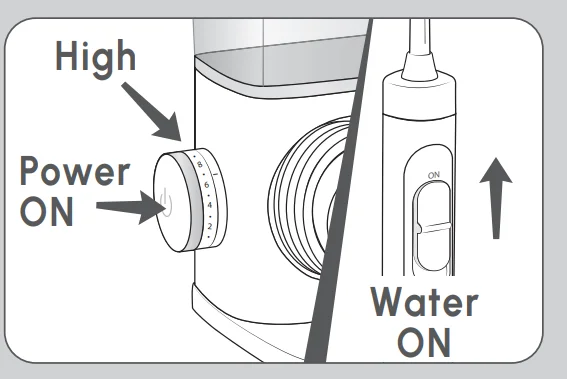

Prime Unit (First Time Use Only)

Set the pressure control dial on the base to high (pressure setting No. 10), point the handle and tip into the sink. Turn the unit ON and water ON until water flows from the tip. Turn Power OFF.

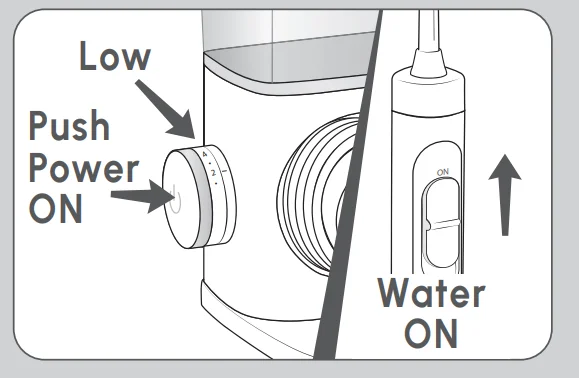

Adjusting the Pressure Setting

Turn the pressure control dial on the base of the unit to the lowest setting (pressure setting No. 1) for first-time use. Gradually increase pressure over time to the setting you prefer — or as instructed by your dental professional.

Using the Water Flosser

Always place the tip in your mouth before turning the water ON. With the water switch in the OFF position, turn the power on. Lean over the sink and slightly close your lips enough to prevent splashing while still allowing water to flow from your mouth into the sink. Turn the water switch ON. When finished, turn the water switch and power OFF. During use, you can stop the flow of water by sliding the water switch on the handle to the OFF position.

NOTE: Motor will continue to run.

Recommended Technique

For best results, start with the back teeth and work toward the front teeth. Glide the tip along the gumline and pause briefly between teeth. Continue until you have cleaned the inside and outside of both the upper and lower teeth.

When Finished

Turn the unit OFF. Empty any liquid left in the reservoir. Unplug the unit.

Note: If you used mouthwash or other solutions besides water, see the “Using Mouthwash and Other Solutions” section.

NOTE: NOT ALL TIPS ARE INCLUDED WITH ALL MODELS.

TIP USAGE

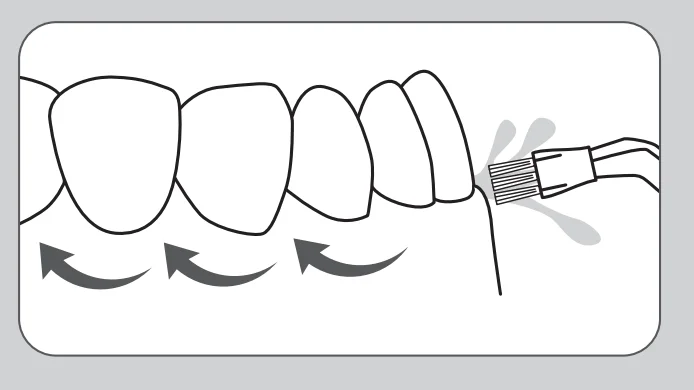

Plaque Seeker™ Tip

To use the Plaque Seeker™ tip, place the tip close to the teeth so that the bristles are gently touching the teeth. Gently glide tip along the gumline, pausing briefly between teeth to gently brush and allow the water to flow between the teeth.

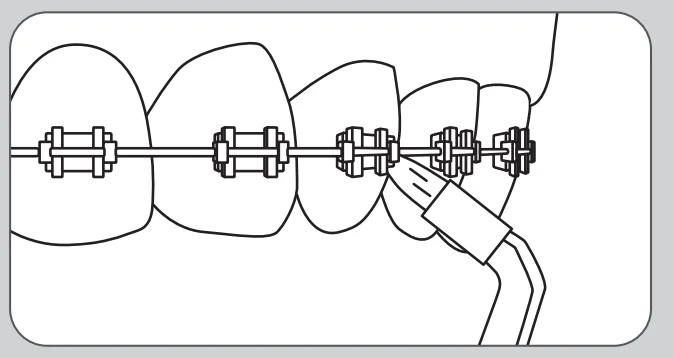

Orthodontic Tip

To use the orthodontic tip, gently glide the tip along the gumline, pausing briefly to lightly brush the area between teeth and all around the orthodontic bracket, before proceeding to the next tooth.

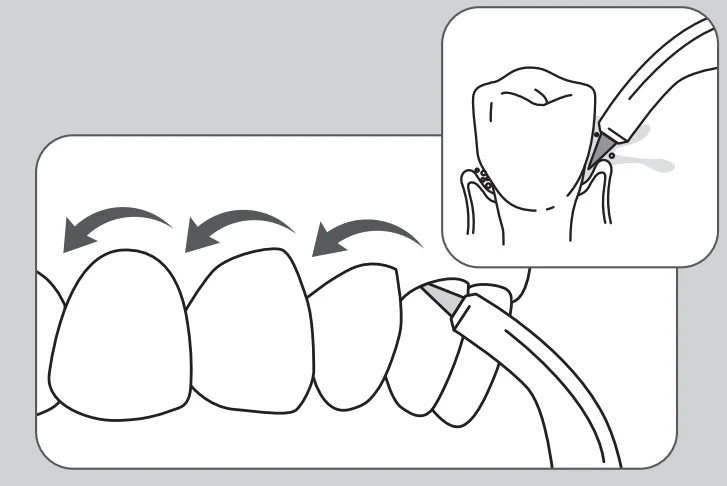

Pik Pocket™ Tip

The Pik Pocket™ tip is specifically designed to deliver water or anti-bacterial solutions deep into periodontal pockets. To use the Pik Pocket™ tip, set the unit to the lowest pressure setting. Place the soft tip against a tooth at a 45-degree angle and gently place the tip under the gumline, into the pocket.

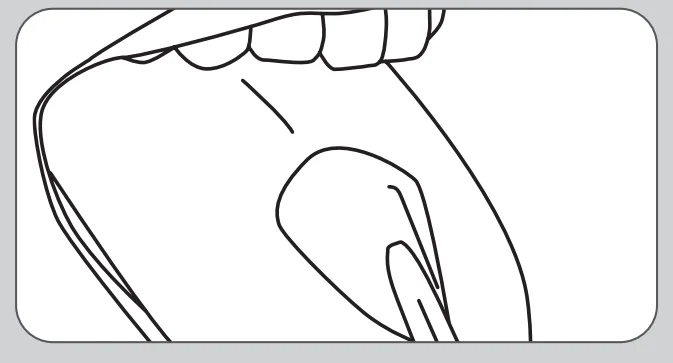

Tongue Cleaner Tip

Set to the lowest pressure setting, place tip in the center/middle of your tongue about halfway back. Pull forward with light pressure. Increase pressure as you prefer.

CLEANING AND TROUBLESHOOTING YOUR WATERPIK™ WATER FLOSSER

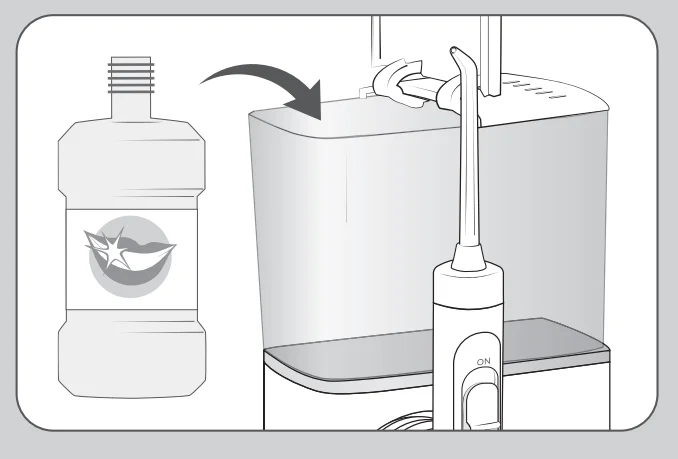

Using Mouthwash and Other Solutions

Your Waterpik™ Water Flosser can be used to deliver mouthwash and antibacterial solutions. After using any special solution, rinse the unit to prevent clogging by partially filling the reservoir with warm water and running the unit with the tip pointed into the sink until the unit is empty. Never immerse in water or any other liquid.

Cleaning

Never immerse the unit in water. Before cleaning, unplug from the electrical outlet. Clean the product when necessary by using a soft cloth and mild non-abrasive cleanser to wipe the exterior. It is recommended that the reservoir is removed and cleaned weekly. The water reservoir is removable for easy cleaning and is top rack dishwasher safe, with heat cycle off. Using toothpastes containing peroxide may damage the plastic housing of this product. Using abrasive or chemical cleaners may damage the plastic housing of this product.

Removing Hard Water Deposits/General Cleaning

Hard water deposits may build up in your unit, depending on the mineral content of your water. If left unattended, it can hinder performance. Cleaning internal parts: Add 2 tablespoons of white vinegar to a full reservoir of warm water. Point the handle and tip into the sink. Run the unit until the reservoir is empty. Rinse by repeating with a full reservoir of clean warm water. This process should be done every 1 to 3 months to ensure optimal performance. If using mouthwash or other solutions, more frequent cleaning is recommended.

Leakage

If leaking due to a damaged hose, replacement hoses and handles can be purchased at www.waterpik.com (US) or www.waterpik.ca (Canada) or contact Water Pik Inc. customer service for a self-service repair kit.
Service Maintenance Waterpik™ Water Flossers have no consumer serviceable electrical items and do not require routine service maintenance. For all parts and accessories, go to www.waterpik.com (US) or www.waterpik.ca (Canada). You may also call our toll-free customer service number at 1-800-525-2774 (US) or 1-888-226-3042 (Canada). Refer to the serial and model numbers in all correspondence. These numbers are located at the bottom of your unit.
Still have questions? Go to www.waterpik.com (US) or www.waterpik.ca (Canada).

BATTERY REMOVAL

To remove the rechargeable battery for recycling, please discharge the battery fully before removing. Observe basic safety precautions when you follow the procedure below. Be sure to protect your eyes, hands, fingers, and the surface on which you work.

1. Run down the battery by operating the Toothbrush Power Button until the motor does not run.
2. Obtain a towel or cloth, hammer, flat-head screwdriver, and wire cutters.
3. Remove and discard the brush head. Cover the handle entirely with the towel or cloth.
4. Clamp the top of the handle against your work surface with one hand and strike the handle housing around the bottom perimeter on all sides to release the end cap latch. Continue striking and rotating the handle until the end cap releases.
5. Remove the internal components by turning the handle upside down, then unlatch the plastic tabs and slide the chassis from the outer housing.

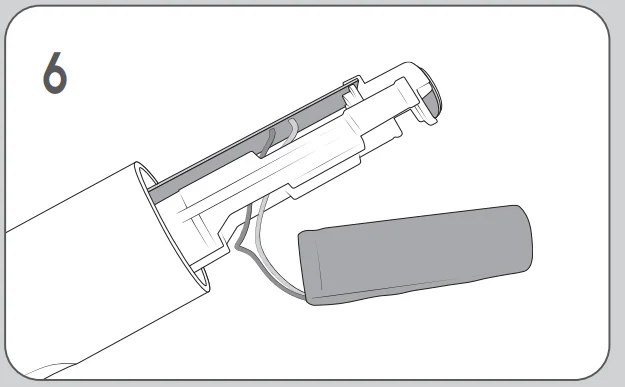

6. The internal components should slide out when the handle is positioned upside-down. If this does not occur, repeat steps 5 and 6 until the components release.

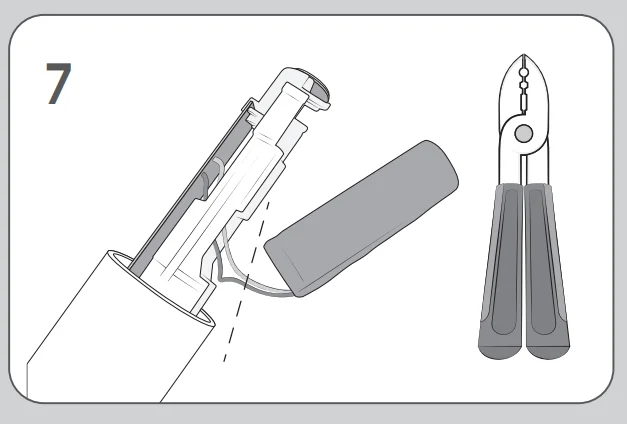

7. Remove the battery from the chassis. Cut the battery wires one at a time with the wire cutters.
8. Recycle and dispose of the battery properly. The remaining product pieces should be discarded appropriately.

Recycle/dispose of the battery at your nearest recycling center or take it to a hazardous waste collection facility to comply with local and state regulations.

WARNING: DO NOT cut both battery wires at the same time. DO NOT disassemble, puncture, hit, squeeze, or throw the battery
into fire.

LIMITED TWO-YEAR WARRANTY

Water Pik, Inc. warrants to the original consumer of this product that it is free from defects in materials and workmanship for 2 years from the date of purchase. Consumer will be required to submit the original purchase receipt as proof of purchase date and if requested, the entire product, to support a warranty claim. Water Pik, Inc. will replace at its discretion any part of the product, which in its opinion is defective, provided the product has not been abused, misused, altered or damaged after purchase, was used according to instructions, and was used only with accessories or consumable parts approved by Water Pik, Inc. Installation is the responsibility of the consumer and is not covered by the warranty. This limited warranty excludes accessories or consumable parts such as tips and brush heads. Use with improper voltage will damage the product and VOID warranty. This warranty gives you specific legal rights. You may also have other rights that vary, depending on the law in your place of residence. WATER PIK DISCLAIMS ALL OTHER EXPRESS OR IMPLIED WARRANTIES TO THE EXTENT PERMITTED BY LAW, INCLUDING, BUT NOT LIMITED TO, ALL WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. ALL IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THIS LIMITED WARRANTY. SOME STATES OR PROVINCES MAY NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE MAY NOT APPLY TO YOU.

Limitation of Liability

This limited warranty is your sole remedy against Water Pik, Inc., and it shall not be liable for any damages, whether direct, indirect, incidental, special, consequential, exemplary, or otherwise, including but not limited to property damage, arising out of any theory of recovery, including statutory, contract, or tort.

Arbitration

BINDING ARBITRATION AND WAIVER OF RIGHT TO ASSERT MATTERS IN COURT AND RIGHT TO JURY TRIAL.

By purchasing, installing, or using this product, you agree that any controversy or claim arising out of or relating to your purchase, use, modification, installation, or removal of this product shall be settled by binding arbitration. The arbitrator’s decision will be final and binding. Judgment on the award rendered by the arbitrator may be entered in any court having jurisdiction over the matter. Further, you agree that you will not have the right to litigate any claim arising out of or in relation to your purchase, use, modification, installation, or removal of this product in any court or to have a jury trial on that claim. Arbitration of any matters shall be administered by the American Arbitration Association and conducted by one arbitrator in accordance with the consumer arbitration rules of the American Arbitration Association in effect at the time of filing of the demand. The venue for all such arbitrations shall be Colorado and any such arbitration shall be subject to the Federal Arbitration Act and Colorado law.

WAIVER OF RIGHT TO PARTICIPATE IN CLASS ACTIONS OR PURSUE CLAIMS IN A REPRESENTATIVE CAPACITY.

Further, by purchasing, installing, or using this product, you agree that arbitration must be on an individual basis. This means neither you nor we may join or consolidate claims in arbitration by or against other purchasers or users of Water Pik products or the general public. Additionally, you may not litigate in court or arbitrate any claims as a representative or member of a class or in a purported representative capacity on behalf of the general public, other purchasers or users of this product, other persons or entities similarly situated, or in a private attorney general capacity.

FCC Statement (USA)

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications not expressly approved by Water Pik, Inc. could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

IC Statement (Canada)

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). The operation is subject to the following two
conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.
