West Bend Coffee Maker User Manual

West Bend Coffee Maker

IMPORTANT SAFEGUARDS

To prevent personal injury or property damage, read and follow all instructions and warnings.

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions, including these important safeguards and the care and use instructions in this manual.
• Do not use the appliance for anything other than its intended use.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Do not operate when the appliance is not working properly or when it has been damaged in any manner. For service information, see the warranty page.
• The use of accessory attachments not recommended by West Bend® Housewares may result in fire, electric shock, or injury to persons.
• Do not attempt to repair this appliance yourself.
• Do not use this appliance on the stovetop, under a broiler, in the oven, or in the refrigerator or freezer.
• For household use only.

To prevent burns, personal injury, or property damage, read and follow all instructions and warnings.

HEAT PRECAUTIONS

• Do not touch hot surfaces. Use handles and knobs where provided. Use hot pads or oven mittens when handling hot surfaces.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Make sure the cover, basket, stem, and cord are properly attached before the coffeemaker is plugged in. No part of the coffeemaker should be removed during the brewing cycle, as scalding may occur.

To prevent electrical shock, personal injury, or property damage, read and follow all instructions and warnings.

ELECTRICITY PRECAUTIONS

• To protect against fire, electric shock, and injury to persons, do not immerse the cord, plugs, or other electric parts in water or other liquids.
• Do not operate any appliance with a damaged cord or plug.
• Do not use this appliance outdoors.
• Always attach the plug to the appliance first, then plug the cord into the wall outlet. To disconnect, turn any control to “off”, then remove the plug from the wall outlet.
• Always unplug from the outlet when not in use and before cleaning, and allow to cool before putting on or taking off parts.
• Your appliance has a short cord as a safety precaution to avoid pulling, tripping, or entanglement. Position the cord so that it does not hang over the edge of the counter, table, or other area or touch hot surfaces.
• While use of an extension cord is not recommended, if you must use one, make sure the cord has the same or higher wattage as the coffeemaker (wattage is stamped on the underside of the base). To avoid pulling, tripping, or entanglement, position the extension cord so that it does not hang over the edge of the counter, table, or other area.
• Use an electrical outlet that accommodates the polarized plug on the appliance. On a polarized plug, one blade of the plug is wider than the other. If the plug does not fit fully into the outlet or extension cord, reverse the plug. If the plug still does not fit, contact a qualified electrician. Do not attempt to modify the plug in any way.
• Do not use an outlet or extension cord if the plug fits loosely or if the outlet or extension cord feels hot.
• Keep the cord away from hot parts of the appliance and hot surfaces during operation.

To prevent burns or other personal injuries to children, read and follow all instructions and warnings.

PRECAUTIONS FOR USE AROUND CHILDREN

• Always supervise children.
• Do not allow children to operate or be near the appliance, as the outside surfaces are hot during use.
• Do not allow the cord to hang over any edge where a child can reach it. Arrange the cord to avoid pulling, tripping, or entanglement.

SAVE THESE INSTRUCTIONS

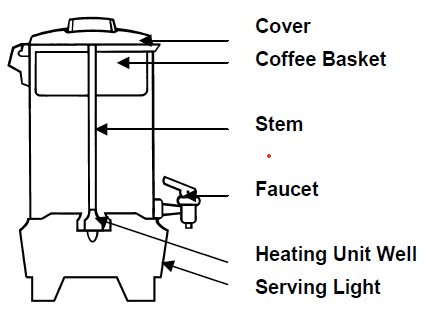

USING YOUR COFFEEMAKER

Before using the coffeemaker for the first time, clean it thoroughly. Refer to the Cleaning Your Coffeemaker section.SPECIAL NOTE ON GRINDING COFFEE BEANS: If grinding your own coffee beans, grind to medium coarseness for best results. DO NOT grind too fine (powder-like) as this can cause the basket to flood. Use standard measuring cups to measure coffee. Do not allow ground coffee to fall into the stem. The amount of coffee recommended will produce mild coffee, which most people prefer.

1. With basket and stem removed, fill coffeemaker with COLD water to desired level using the cup markings on inside of the coffeemaker as a guide. Do not make less than 12 or more than maximum capacity of the coffeemaker at one time.

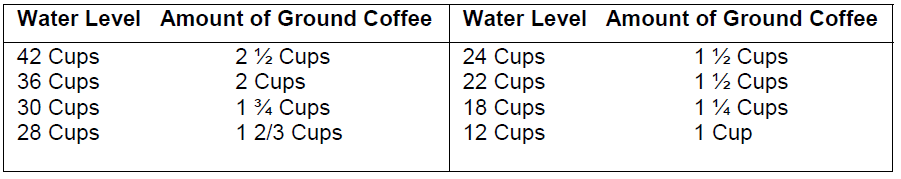

2. Place the stem into the heating unit at the bottom of the coffeemaker, then put the basket on the stem. Spread the recommended amount of ground coffee evenly into the basket. See the chart. Use regular electric perk ground coffee or coffee grounds for all coffeemakers. Do not use drip or finely ground coffee, as flooding of the basket can occur.
3. Turn the cover in place on the coffeemaker. To reduce coffee spills, especially if the coffeemaker is tipped over, make sure the cover has been turned clockwise until it is completely secured in the handle slots. (Note the arrows on the cover for correct turning.) The cover temporarily reduces coffee spilling if the coffeemaker is tipped over, so care should be used when moving the coffeemaker.
4. Place the coffeemaker on a dry, level surface. Attach the cord to the coffeemaker and plug it into a 120-volt AC electrical outlet ONLY.
5. Coffeemaker stops perking automatically. (Each cup of coffee requires about 1 minute brewing time) Serving light will glow when the coffee is ready. Before serving, use a hot pad to remove the cover, then carefully remove the stem and basket from the coffeemaker as coffee and grounds are HOT. If not removed, bitter oils from the coffee grounds will drip into the coffee. Replace the cover, making sure it is completely secured into the handle slots.
6. Coffee will remain at serving temperature as long as the coffeemaker is connected to an outlet. (If you have an insulated coffeemaker, the sealed-air insulation will keep coffee hot for up to two hours without electricity.) To serve, place the cup and saucer under the faucet and press down on the handle. If a continuous flow is desired to fill a carafe, lift the handle straight up until it locks into the open position. When approximately one cup of coffee remains in the coffeemaker, disconnect it from the outlet.

TO MAKE MORE COFFEE:

If another pot of coffee is desired right away, partially fill coffeemaker with cold water to reset the thermostat. Pour out water, refill with cold water, and repeat steps 1-6.

TO HEAT WATER FOR INSTANT BEVERAGES:

Plain water may be heated in your coffeemaker for use with instant beverages. Simply fill the clean coffeemaker with cold water to the desired cup level, and then place the stem and empty coffee basket in place. Using the stem and an empty basket will heat the water more uniformly. Secure the cover in place and plug the coffeemaker in. Heat water until the perking stops and the serving light comes on. Unplug the coffeemaker when less than 1 cup remains. Other than making coffee or heating water, no other liquid should be
heated in a coffeemaker, as damage to the heating unit can occur. When a coffeemaker is used to heat water only, the metal inside will discolor, which is normal and does not affect performance or the water heated in the coffeemaker.

Refer to Special Cleaning Instructions in this manual for removing discoloration as well as mineral deposits, which form inside the coffeemaker when heating water. If these deposits are not removed, pitting of the metal inside may occur and result in damage to the coffeemaker. Refer to the cleaning your coffeemaker section.

CLEANING YOUR COFFEEMAKER

Improper cleaning of the coffeemaker, especially the heating unit well will affect performance of the coffeemaker, resulting in weak, lukewarm coffee and may even cause the coffeemaker to stop perking. To keep your coffeemaker working properly, it is important to follow all cleaning instructions after each use.

1. Unplug the coffeemaker and allow it to cool before cleaning.
2. Clean the basket, stem, and cover in hot soapy water with a dishcloth, rinse, and dry. Coffee stains on the underside of the cover or stem may be removed by scouring with a damp cloth and a non-abrasive cleanser.
3. Clean inside of coffeemaker by filling with hot water until about one-third full. Add a small amount of liquid dishwasher detergent and wash with a dishcloth or sponge. Then clean the heating unit well (where the stem fits) with a scouring pad to remove coffee residue. Twist the pad inside the heating unit well to clean thoroughly. IMPORTANT: If the heating unit well is not kept clean, the coffeemaker will not perform properly.
4. After cleaning the inside of the coffeemaker, drain and rinse the inside. Clean the faucet by letting clear water run through it into the sink, while moving the faucet handle up and down. Drain water from inside of coffeemaker and dry.
5. Clean outside of coffeemaker with a damp cloth and dry with a soft cloth. Do not use abrasive metal scouring pads or cleansers on the outside of the coffeemaker as scratching will occur.

DO NOT WASH COFFEEMAKER PARTS IN AN AUTOMATIC DISHWASHER.

SPECIAL CLEANING INSTRUCTIONS

To Remove Mineral Deposits:

If the coffeemaker is used daily, a special cleaning every 2 weeks, OR every week if used for heating water, is necessary. Fill the coffeemaker with 1 quart each of water and white distilled vinegar. (If a white mineral buildup has formed on the inside of the coffeemaker, use an additional 2 cups of vinegar.) Place the stem and empty coffee basket in place, secure the cover onto the coffeemaker, and plug in. Allow the coffeemaker to complete the perking cycle, then let it stand for 10 to 15 minutes. Unplug and drain the coffeemaker. Allow to cool and follow the general cleaning instructions.

To Remove Discoloration:

Inside the coffeemaker can discolor when used for heating water, which is normal. To remove/lighten discoloration, fill the coffeemaker with water to the level of discoloration (at least to the 12-cup level, but not past the maximum cup level). Place the stem and empty basket in place. For every 12 cups of water added to the coffeemaker, add 2 teaspoons cream of tartar to the basket. Secure the cover onto the coffeemaker, plug the cord into the coffeemaker and then into an outlet, and allow the coffeemaker to complete the perk cycle. Let stand for 15 to 20 minutes or until discoloration is lightened. Unplug the cord and drain the coffeemaker. Allow to cool and follow the general cleaning instructions.

Do not use baking soda to clean the coffeemaker, as it will discolor the inside metal.

After frequent use, coffee residue may collect inside the faucet. To clean, unscrew the top half of the faucet. Move a small brush up and down through the faucet. Insert the brush through the opening inside the coffeemaker to clean the faucet connection. Rinse and replace the top half of the faucet.

REPLACEMENT PARTS

Replacement parts may be ordered directly from West Bend® Housewares, LLC by ordering online at www.westbend.com: Replacement Parts. Or you may call or e-mail the service department at the number/e-mail address listed above, or by writing to us at:

West Bend Housewares, LLC

Attn: Customer Service

P.O. Box 2780

West Bend, WI 53095

Be sure to include the catalog/model number of your appliance (located on the bottom/back of the unit) and a description and quantity of the part you wish to order. Along with this, include your name, mailing address, Visa/MasterCard number, expiration date, and the name as it appears on the card. Checks can be made payable to West Bend Housewares, LLC Call Customer Service to obtain the purchase amount. Your state’s sales tax and a shipping/processing fee will be added to your total charge. Please allow two (2) weeks for delivery.
