Wholesun WS-3000 Electric Pressure Washer User Manual

Wholesun WS-3000 Electric Pressure Washer

Important Safety Tips

• Never point the high-pressure nozzle at people or animals.
• Never drink alcohol or use drugs while operating the pressure cleaner.
• Never operate the pressure cleaner while standing in water.
• Never touch the electrical plug with wet hands.
• Never let electrical connections rest in water.
• Never operate a pressure cleaner without the water turned on.
• Never use hot water with this pressure cleaner.

IMPORTANT SAFETY PRECAUTIONS

WARNING: When using this product, basic precautions should always be followed, including the following:

1. Read all instructions before using the product. Save all safety instructions.
2. Do not operate the pressure cleaner when fatigued or under the influence of alcohol or drugs.
3. Risk of injection or injury- do not direct the high-pressure water stream at any people or animals.
4. Do not allow children to operate the pressure cleaner at any time.
5. To reduce the risk of injury, close supervision is necessary when the pressure cleaner is used near children.
6. Know how to stop the unit and reduce pressure immediately. Be completely familiar with the controls.
7. Stay alert- always be aware of where you are directing the high-pressure spray.
8. Keep the cleaning area clear of all people.
9. Keep good footing and balance at all times – do not overreach or stand on an unstable support.
10. The work area should have adequate drainage to reduce the possibility of a fall due to slippery surfaces.
11. Follow the maintenance instructions specified in the manual.
12. To reduce the risk of electrocution, keep all connections dry and off the ground. Do not touch the plug with wet hands.
13. The power washer is equipped with a Ground Fault Circuit Interrupter (GFCI) Built Into The Power Cord Plug, which greatly reduces the chance of electric shock while the unit is in use. If Replacement Of The Plug Or Cord Is Needed, Use Only Identical Replacement Parts.
14. This power washer conforms to CSA and other safety and consumer standards. Do not modify or rebuild any part of your power washer.
15. Never use an extension power cord since it defeats the effectiveness of the GFCI and increases the chance of electrocuting the operator.

GENERAL SAFETY PRECAUTIONS

1. Intended for outdoor household use only.
2. High-pressure hose can develop leaks from wear, abuse, kinking, etc. Do not use a damaged hose.
3. Do not use the pressure cleaner in areas near combustible materials, combustible fumes, or dust.
4. Some chemicals or detergents may be harmful if inhaled or ingested, causing severe injury. Use a respirator or mask whenever there is a chance that vapors may be inhaled. Read all instructions included with the mask so you are certain the mask will provide the necessary protection against inhaling harmful vapors.
5. Before starting the pressure cleaner in cold weather, check all of the parts of the equipment and be sure that ice has not formed. Do not store the unit anywhere where the temperature will fall below 0°C(32°F ).
6. DO NOT MAKE ANY MODIFICATIONS TO ANY OF THE COMPONENTS! Units with broken or missing parts, or without the protective housing or cover, should NEVER be operated.
7. Keep the high-pressure hose connected to the pressure cleaner and the spray gun while the system is pressurized. Disconnecting the hose while the unit is pressurized is dangerous and may cause injury.
8. Do not leave the pressure cleaner unattended while the power switch is ON.
9. Keep water spray away from electrical wiring, or fatal electric shock may result.

Proper Use of the Pressure Cleaner

1. Operate the pressure cleaner at no more than the fluid pressure rated for the pressure cleaner. Never run the pressure cleaner without a water supply. Running the unit without a water supply will cause irreparable damage to the unit.
2. Make sure that the water supply you use for the pressure cleaner is not dirty, sandy, or holds any corrosive chemical products. Using a dirty water supply will compromise the long life of the pressure cleaner.
3. CAUTION: The pressure cleaner can be used for a variety of applications, including washing cars, boats, patios, decks, garages etc. where high pressure is necessary to remove dirt and debris. High-pressure water flow can damage the work surface if not used properly! See the section titled “Operating Instructions” for more details. Always test the spray in an open area first.
4. NEVER move the unit by pulling on the high-pressure hose. Use the handle provided on the top of the unit.
5. Always hold the high-pressure gun and wand with two hands. Keep one hand on the gun/trigger, while supporting the wand with the other hand.
6. When dispensing detergent, the pressure cleaner applies detergent to the cleaning area at low pressure only. Once the detergent has been applied, spray the detergent off the work area by using the adjustable nozzle.

ASSEMBLY INSTRUCTIONS

Unpacking The Carton

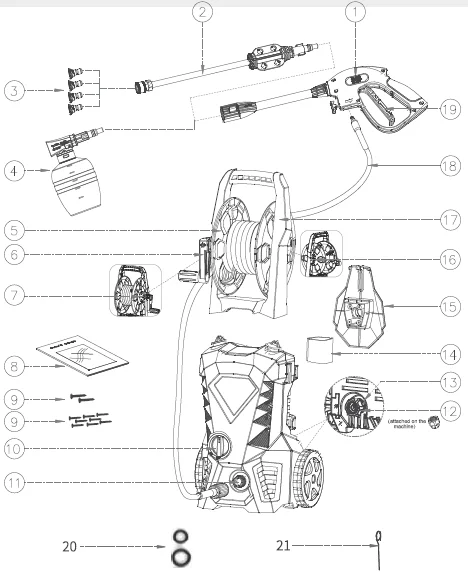

After opening the carton, please remove all parts and check them against the following list of components that are included:

1. Gun
2. Quick lance
3. Metal nozzles (0’/15’/25’/40′)
4. Detergent Bottle
5. Reel handle shaft
6. Reel handle bracket shaft
7. Handle bracket shaft(L)
8. Manual
9. Screws package 4*16(8pcs)+4*22(2pcs)
10. ON/OFF switch
11. Water outlet
12. Water inlet connector
13. Water in let
14. Gun holder
15. Power cord holder
16. Handle bracket shaft(R)
17. Handle
18. High-pressure hose
19. Lock-off switch
20. O-rings
21. Cleaning pin

Note:

• (No:20) Do not lose this accessory at will, it can be used as an after-sales part!!!!!!
• O-ring(S.6*1.8) is used to connect the high pressure tube to the gun section
• O-ring(9*2.65) for quick lance

Due to transportation and packaging, some of the accessories may be supplied disassembled. Please follow the assembly instructions.

Step 1

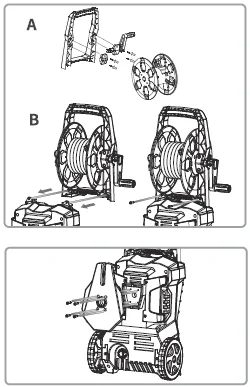

• (A) Fix the handle bracket fhaft and reel handle shaft fixed mount on the two sides of the reel, then fix the reel handle bracket shaft into the handle bracket shaft fixed mount on the right of the machine. Put the reel on the long handle and fix four screws to connect the reel and the long handle. (4 screws, 4*16)
• (B) Slide the reel’s long handle to the machine, and fix the two screws. (2 screws, 4*22mm).

Step 2

• Mounting the power cord holder
• Screw the power cord holder tight to the main unit ( 4 screws, 4*16).

Note: All screws will be packed together with the manual. Pls kindly check and find it when unpacked.

Step 3

Install the gun holder on the main unit.

Step 4

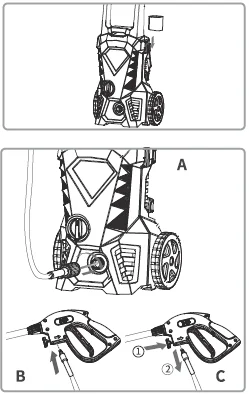

• (A) Screw the high-pressure hose onto the water outlet pipe. Push and turn (clockwise) it tight to avoid leakage. When the pieces are joined properly, you cannot separate the two components by pulling straight out from the water outlet.

CAUTION: Prior to operating the machine, please ensure that the high pressure hose has been completely uncoiled.

• (B) Attach the other high pressure hose to the gun.

Note: After the high pressure hose is connected, check the connection by gently pulling on the hose to ensure it stays connected.

• (C) Push the lock button and pull to detach the high pressure hose. For detaching the hose easily, please pull the trigger to drain water from the wand when operation is completed and the switch is in “OFF/0” position.

Step 5

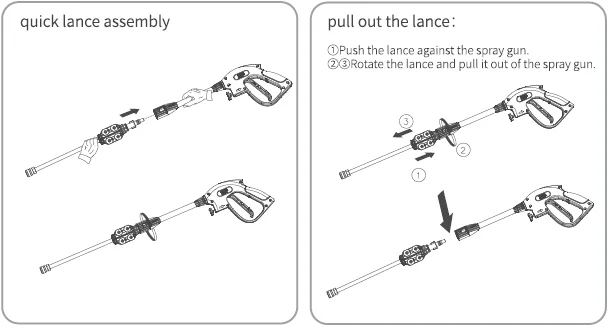

• (A) Insert the quick lance into the gun. Push and turn the adjustable nozzle clockwise onto the gun until hand tightened to lock it in place. When the pieces are joined properly, you cannot separate the two components by pulling straight out on the adjustable nozzle. All attachments must be inserted into the gun for proper use.
• (B) Grasp the top metal ring with your left hand and pull it downwards without releasing it. Insert the nozzle directly into the wand. Release the metal ring with your left hand to lock it in place. Grasp the top metal ring of the wand with your left hand, squeeze it down, and without releasing the ring, continue pulling the nozzle out of the wand with force.

Step 6

Connect the garden hose adaptor (female coupler) to the water inlet of the pressure washer, then thread your garden hose (male end) into the garden hose adaptor. The garden hose must have an internal diameter of at least 13 mm (1/2 in.) and must be reinforced. The water supply must be at least equal to the washer delivery capacity.

Step 7

Attach the hose connector to the pressure washer. Before attaching the connector to the male fitting, remove the plastic cap, which is inserted onto the male fitting on the pressure washer before shipping. This plastic cap can be discarded once removed. After both components have been installed, attach the garden hose with the connector screw on the pressure washer. Connect the garden hose to the waterspout. Finally, connect the hose connector to the faucet.

Step 8

Connect to the power supplier

1. Plug the pressure washer into the power outlet.
2. Press the TEST button, the power will be cut, and the indicator will fade. Do not use if this test fails. We recommend that you press the test button every time before using the pressure washer to ensure the protector works.
3. Press the RESET button, the indicator will illuminate, and power on for use.

OPERATING INSTRUCTIONS

THIS UNIT IS INTENDED TO BE USED WITH COLD WATER ONLY! DO NOT USE HOT WATER IN THIS PRESSURE CLEANER!

Starting Up

After connecting the pressure cleaner to your cold water supply, proceed as follows:

• Make sure that the on/off switch is in the off position.
• Attach the hose to the gun as per the assembly instruction step #4.
• Connect the high-pressure hose to the high-pressure outlet fitting as per the assembly step #4.
• Connect the garden hose to the high pressure washer inlet fitting as per assembly step #6.
• Open the water supply valve completely.
• Before turning the unit on, press the gun trigger to bleed all the remaining air out of the pump and hose.
• Insert the adjustable spray nozzle into the gun as per assembly step #5.
• Start the pressure cleaner by turning the on/off switch to the on position and squeezing the trigger.

REMINDER: The Motor does not run continuously, only when the trigger is squeezed.

Note: Leakage switch operation: light on means power on, no light means no power.

WARNING: RISK OF INJECTION! The unit will start spraying when the trigger is squeezed. When turning the unit off after use, high pressure still exists inside the hose and unit. Point the gun in a safe direction and discharge the excess pressure. NEVER direct the high pressure water stream at people or animals.

Automatic On/Off

The pressure cleaner is equipped with an automatic on/off switch. The pressure cleaner will only run when the power switch is in the ON position and the trigger on the gun is squeezed. When you release the trigger to stop spraying water through the gun, the motor on the pressure cleaner will automatically shut off. Simply squeeze the trigger again to resume using the cleaner. To stop using the pressure cleaner, release the trigger and switch the unit to the OFF position. The unit should be turned completely OFF while not in use or while unattended.

Bleeding the Gun

It is very important to bleed the gun before using the pressure cleaner. Refer to the “Assembly Instructions” to assemble the pressure cleaner. To bleed the gun, simply connect the garden hose to the pressure cleaner and squeeze the trigger BEFORE turning the electrical supply on. This allows any air trapped inside the pressure cleaner and gun to be removed before using the unit. Continue holding the trigger for approximately one minute to allow any excess air out of the unit. Water will flow through the gun at low pressure during this procedure. For more bleeding tips, see the section titled “Operating Instructions.”

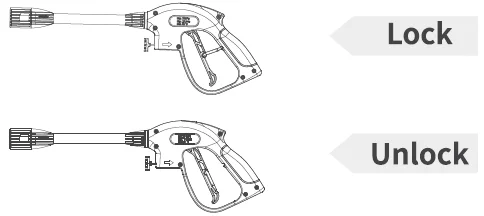

Gun Safety Lock

This pressure cleaner is equipped with a gun trigger safety lock. When not using the pressure cleaner, use the safety lock to keep from accidentally engaging the high pressure spray.

Adjustable Spray Nozzle

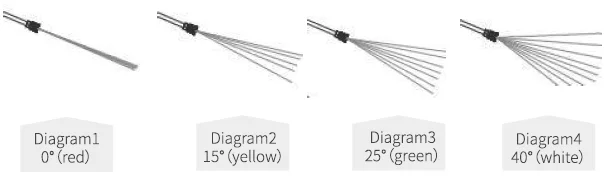

• 0°nozzle-red: This type of nozzle produces a vertical, stratified, high-pressure jet for surface cleaning with particularly severe dirt.
• 15°nozzle-yellow, 25°nozzle-green, 40°nozzle-white: These types of nozzles can produce the corresponding angle fan-shaped high-pressure jet, cleaning power, for large-scale dirt surface cleaning.

Warning: High pressure jets can be dangerous if subject to misuse. The jet must not be directed at persons, live electrical equipment, or the appliance itself. Do not direct the jet against yourself or others in order to clean clothes or footwear.

WATER FILTER AND NOZZLE CLEANING INSTRUCTIONS

A clogged or partially clogged water filter or nozzle can cause a significant reduction in water pressure coming out of the nozzle and/or cause the unit to pulsate while spraying.

1. The water filter was installed inside the water inlet quick connector, which should be cleaned periodically. Rinse it with clean tap water, and then place it back into the water inlet quick connector.
2. Using the nozzle tip cleaner provided ( or an unfolded paper clip), insert the wire into the nozzle hole and move back and forth until debris is dislodged. Back-flush water through the nozzles using ga arden hose and the highest pressure available (either a standard water nozzle or use your thumb over the nozzle to create water pressure for back-flush)

USING DETERGENTS

THE PRESSURE CLEANER WILL DISPENSE DETERGENT AT LOW PRESSURE. USE THE ADJUSTABLE SPRAY NOZZLE TO RINSE CLEAN.

BIODEGRADABLE DETERGENTS ARE SPECIFICALLY FORMULATED TO PROTECT THE ENVIRONMENT AND YOUR PRESSURE CLEANER. THESE DETERGENTS WILL NOT CLOG THE FILTER AND WILL PROTECT THE INTERNAL PARTS OF THE PRESSURE CLEANER FOR A LONGER LIFE.

Step 1

Separate the nozzle from the detergent container by turning the detergent reservoir counterclockwise and separating the two components.

Step 2

Fill the detergent container with approved detergent. Pour the detergent slowly into the reservoir using a funnel. Re-attach the two components by re-inserting the nozzle back onto the detergent reservoir and turning clockwise.

Step 3

To apply the detergent cleanser to your working area, attach the detergent nozzle to the gun. Turn the pressure cleaner switch to the ON position. Pull the trigger to operate the unit. The pressure cleaner will mix the detergent with water. Do not allow the detergent to dry on the object you are cleaning. (Remove the soap bottle in the same way you would remove a lance)

WARNING: NEVER USE PRODUCTS WITH BLEACH OR CHLORINE OR ANY OTHER CORROSIVE MATERIALS, INCLUDING LIQUIDS CONTAINING SOLVENTS (I.E., GAS, OILS, ETC.), TRI-SODIUM PHOSPHATE PRODUCTS, AMMONIA, OR ACID-BASED CLEANERS. THESE CHEMICALS WILL HARM THE UNIT AND CAUSE DAMAGE TO THE SURFACE BEING CLEANED. ALWAYS READ THE LABEL.

(I.E. GAS, OILS, ETC), TRI-SODIUM PHOSPHATE PRODUCTS, AMMONIA, OR ACID-BASED CLEANERS. THESE CHEMICALS WILL HARM THE UNIT AND CAUSE DAMAGE TO THE SURFACE BEING CLEANED. ALWAYS READ THE LABEL.

USE THE HOSE REEL

When not in use, insert the quick-connect end of the high pressure hose into the hook of the reel, turn the hose reel handle counterclockwise, and reel the hose onto the reel.

CLEAN-UP AND STORAGE

Shutting Down the Pressure Cleaner

WHEN FINISHED USING THE PRESSURE CLEANER, FOLLOW THESE STEPS TO SHUT DOWN THE UNIT:

• Turn the pressure cleaner to the OFF position.
• Turn off the water supply.
• Before disconnecting the high-pressure hose connection, point the gun in a safe direction and discharge the high-pressure water.
• Disconnect the high-pressure hose from the pressure cleaner and gun.
• Disconnect the garden hose from the pressure cleaner.
• Remove the quick coupler fitting from the garden hose and attach it to the nipple portion of the fitting installed on the pressure cleaner for storage.
• Remove excess water from the pump by tipping the unit on both sides to drain any remaining water from the inlet and outlet fittings.
• Remove the Water Intake Filter and flush with water to remove dirt or debris. Return filter once cleaned.
• Drain the detergent reservoir and flush with running water.
• Wipe away any remaining water on all parts and fittings.
• Engage the gun safety lock.
• Store the pressure cleaner, parts, and accessories indoors in an area with a temperature above 0°C (32° F).

Winterizing and Long-Term Storage

FOLLOW ALL OF THE ABOVE SHUT-DOWN PROCEDURES, ADDING THE FOLLOWING STEPS ….

• After disconnecting the water supply and before disconnecting the high-pressure hose, turn the pressure cleaner on for 2-3 seconds, until any remaining water in the pump exits.
• TURN THE UNIT OFF IMMEDIATELY. CONTINUOUS USE OF THE PRESSURE CLEANER WITHOUT A WATER SUPPLY ATTACHED WILL CAUSE SEVERE DAMAGE TO THE UNIT!
• Always store the pressure cleaner, parts, and accessories indoors in an area with a temperature above 0° C (32° F).

WARNING: FAILURE TO COMPLY WITH THESE STORAGE INSTRUCTIONS WILL RESULT IN DAMAGE TO THE PUMP ASSEMBLY.

Maintenance

• This pressure cleaner is supplied with a closed lubrication system, so no addition of oil is needed.
• Check all hoses and accessories for damage prior to use.
• Check the inlet filter periodically for deposits. Clean this filter regularly for maximum performance.

Troubleshooting

The unit will not turn on.

Make sure the washing machine is in the “off ” position. Plug the power cord into a grounded 120-volt outlet (extension cords should not be used). If the power cord does not plug into your outlet, your outlet is not properly grounded and should not be used. Use another power outlet. Press the reset button on the GFCI power box. If you don’t see the light on in the GFCI’s little window, unplug and plug it back in. Press reset, and if the light is on, turn the power switch on the power washer to “ON”. Press the trigger on the gun and try again.

If that doesn’t fix the problem, try plugging into another power outlet and repeat the process.

The unit is running, but there is no water flow.

Check the water source. Unclog the nozzle on the lace. (See nozzle cleaning instructions under “Cleaning nozzles”.) Or take off the lance and just spray out of the spray gun. This will indicate that the problem is with the lance.

Why is water leaking where the high pressure hose connects to the spray gun?

Make sure there is an o-ring at the end of the metal tip of the high pressure hose. If no o-ring is present, the connection between the hose and spray gun will leak.
