Wyze Video Doorbell User Guide

Wyze Video Doorbell

GET BETTER SECURITY WITH CAM PLUS

• Record Full-Length Videos
  Get unlimited full-length video recordings.
• Smart A.I. Detection
  Detect people, packages, vehicles, and more.
• Back-to-Back Event Recording
  Capture everything without 5-minute gaps.
• Exclusive Discounts
  Get exclusive discounts on Wyze products.
• Subscribe or learn more at services.wyze.com.

IN THE BOX

• Wyze Video Doorbell × 1
• Wyze Chime × 1
• Wall Plate × 1
• Vertical Wedge Kit × 1
• Horizontal Wedge Kit × 1
• Wire Caps × 4
• Fuse × 1
• Extension Wires × 2
• Bracket Screws × 2
• Screw & Plastic Anchors × 2
• Quick Start Guide × 1

SETUP

1. Download the Wyze app and sign in or create an account. Follow the instructions in the Wyze app to finish installation
2. Open the Wyze app and tap the + sign on the top left of the Home screen. Tap Add Device and then select Wyze Video Doorbell
   *Detailed installation steps are available in the Wyze app.
3. To add Wyze Chime:
   1. Select continue to add a chime after installing the doorbell, or
   2. Select an installed doorbell, and in the device page, select Device Settings→Extended Devices→Add Device. Follow the instructions to finish the installation.

INSTALLATION

Installing without the wedge

Installing with the wedge

Plug the Wyze Chime into an outlet.

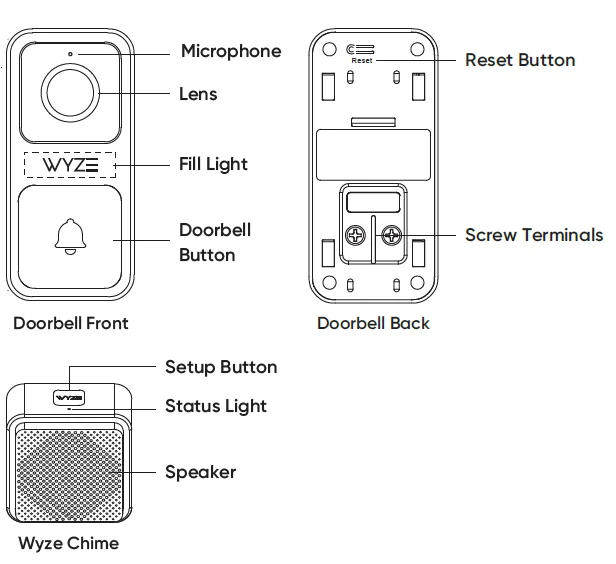

LIGHT INDICATIONS

Wyze Video Doorbell

• Solid yellow light
  The device is powered
• Flashing yellow light
  Waiting for connection
• Flashing yellow/blue light
  Connecting to router
• Flashing blue light
  Connecting to the external network

Wyze Chime

• Solid yellow light
  The device is powered
• Flashing blue light
  Connecting to network
• Solid blue light
  Connected

FCC WARNING:

Any change or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

FCC RADIATION EXPOSURE STATEMENT:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

ISEDC RSS WARNING

This device complies with the ISEDC license-exempt RSS standard(s). Operation is subject to the following two conditions:

1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.

ISEDC RADIATION EXPOSURE STATEMENT

This equipment complies with ISEDC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body.

NEED HELP?

• Contact our Support Team: https://wyze.com/support
• Join the Community: https://wyze.com/community
