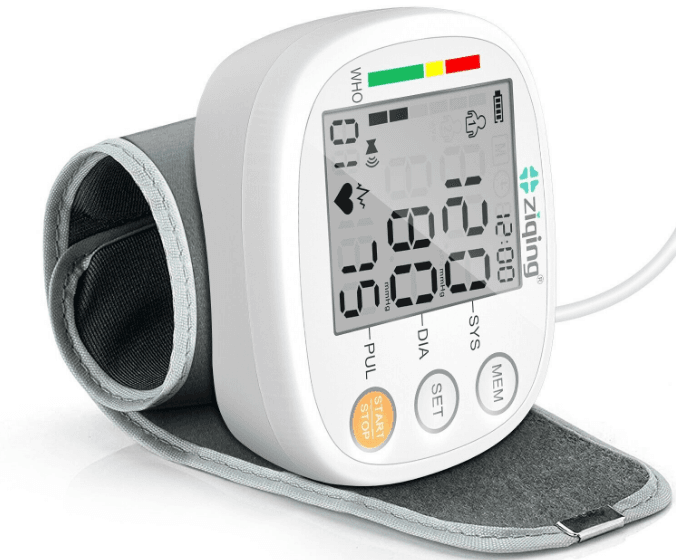

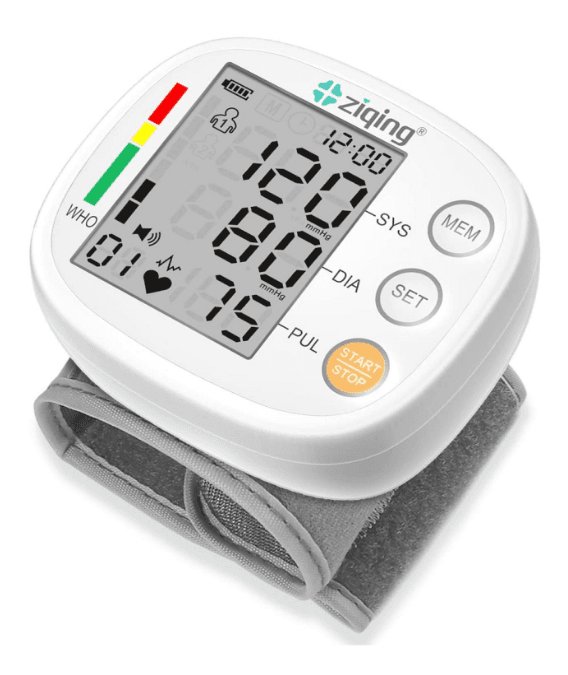

ZIQING 115 Wrist Blood Pressure Monitor

Introduction

Thank you for purchasing the Blood Pressure Monitor. This blood pressure monitor uses the oscillometric method of blood pressure measurement. This means that this monitor detects your blood movement through your brachial artery and then converts the movements into a digital reading.

Safety Instructions

This instruction manual provides you with important information about the Ziqing Blood Pressure Monitor. To ensure the safe and proper use of this, READ and UNDERSTAND all of these instructions.

If you do not understand these instructions or have any questions, contact our service first before attempting to use this monitor. For specific information about your own blood pressure, consult with your physician.

Intended Use

The device is a digital monitor intended for use in measuring blood pressure and pulse rate in an adult patient population with wrist circumferences ranging from 5.3 inches to 7.6 inches (13.5 cm to 19.5 cm). The device detects the appearance of irregular heartbeats during measurement and gives a warning signal with readings.

Receiving and Inspection

Remove this monitor from the packaging and inspect for damage. If this monitor is damaged, DO NOT USE and contact us first.

Contraindications

• This monitor is contraindicated for use in ambulatory environments.
• This monitor is contraindicated for use on aircraft.

Important Safety Information

Read the Important Safety Information in this instruction manual before using this monitor. Follow this instruction manual thoroughly for your safety. Keep it for future reference. For specific information about your own blood pressure, CONSULT WITH YOUR PHYSICIAN.

Warning

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

• DO NOT use this monitor on infants, toddlers, children, or persons who cannot express themselves.
• DO NOT adjust medication based on readings from this blood pressure monitor. Take medication as prescribed by your physician. ONLY a physician is qualified to diagnose and treat high blood pressure.
• DO NOT use this monitor on an injured wrist or a wrist under medical treatment.
• DO NOT apply the wrist cuff on your wrist while on an intravenous drip or blood transfusion.
• DO NOT use this monitor in areas containing high frequency (HF) surgical equipment, magnetic resonance imaging (MRI) equipment, computerized tomography (CT) scanners. This may result in incorrect operation of the monitor and/or cause an inaccurate reading.
• DO NOT use this monitor in oxygen-rich environments or near flammable gas.
• Consult with your physician before using this monitor if you have common arrhythmias such as atrial or ventricular premature beats or atrial fibrillation; arterial sclerosis; poor perfusion; diabetes; pregnancy; preeclampsia or renal disease. NOTE that any of these conditions in addition to patient motion, trembling, or shivering may affect the measurement reading.
• NEVER diagnose or treat yourself based on your readings. ALWAYS consult with your physician.
• This product contains small parts that may cause a choking hazard if swallowed by infants, toddlers, and children.

Battery Handling and Usage

• Keep batteries out of the reach of infants, toddler, and children.

Caution

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury to the user or patient, or cause damage to the equipment or other property.

• Stop using this monitor and consult with your physician if you experience skin irritation or discomfort.
• Consult with your physician before using this monitor on a wrist where intravascular access or therapy, or an arterio-venous (A-V) shunt, is present because of temporary interference to blood flow which could result in injury.
• Consult with your physician before using this monitor if you have had a mastectomy.
• Consult with your physician before using this monitor if you have severe blood flow problems or blood disorders as cuff inflation can cause bruising.
• DO NOT take measurements more often than necessary because bruising, due to blood flow interference, may occur.
• ONLY inflate the wrist cuff when it is applied to your wrist.
• Remove the wrist cuff if it does not start deflating during a measurement.
• DO NOT use this monitor for any purpose other than measuring blood pressure.
• During measurement, make sure that no mobile device or any other electrical device that emits electromagnetic fields is within 12 inches (30cm) of this monitor. This may result in incorrect operation of the monitor and/or cause an inaccurate reading.
• DO NOT disassemble or attempt to repair this monitor or other components. This may cause an inaccurate reading.
• DO NOT use in a location where there is moisture or a risk of water splashing this monitor. This may damage this monitor.
• DO NOT use this monitor in a moving vehicle such as in a car.
• DO NOT drop or subject this monitor to strong shocks or vibrations.
• DO NOT use this monitor in places with high or low humidity or high or low temperatures.
• During measurement, observe the arm to ensure that the monitor is not causing prolonged impairment to blood circulation.
• DO NOT use this monitor in high-use environments such as medical clinics or physician offices.
• DO NOT use this monitor with other medical electrical (ME) equipment simultaneously. This may result in incorrect operation of the monitor and/or cause an inaccurate reading.
• Avoid bathing, drinking alcohol or caffeine, smoking, exercising, and eating for at least 30 minutes before taking a measurement.
• Rest for at least 5 minutes before taking a measurement.
• Remove tight-fitting or thick clothing and any accessories from your wrist while taking a measurement.
• Remain still and DO NOT talk while taking a measurement.
• ONLY use this monitor on persons whose wrist circumferences are within the specified range of the cuff.
• Ensure that this monitor has acclimated to room temperature before taking a measurement. Taking a measurement after an extreme temperature change could lead to an inaccurate reading. We recommend waiting for approximately 2 hours for the monitor to warm up or cool down when the monitor is used in an environment within the temperature specified as operating conditions after it is stored either at the maximum or at the minimum storage temperature.
• DO NOT crease the wrist cuff excessively.
• DO NOT use this monitor after the durable period has ended.

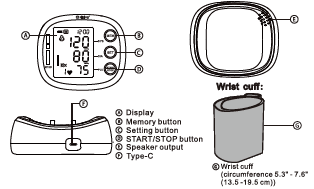

Know Your Monitor

Contents:

Monitor, Wrist cuff, instruction manual

Monitor:

Display and Symbols

Classification of blood pressure by the World Health Organisation

• The World Health Organisation (WHO) made classifications of blood pressure as shown in the following diagram.
• This table displays blood pressure measurements of different people at different postures in the hospital outpatient department as the standard

Notes:

• Low blood pressure has no definition.
• Generally, people whose high-pressure value is not up to 90mmHg(12kPa) are called hypotensive.

Blood Pressure Measurement

Tips

To help ensure an accurate reading, follow these directions:

• Stress raises blood pressure. Avoid taking measurements during stressful times.
• Measurements should be taken in a quiet place.
• It is important to take measurements at the same time each day. Taking measurements in the morning and in the evening is recommended.
• Remember to have a record of your blood pressure and pulse readings for your physician. A single measurement does not provide an accurate indication of your true blood pressure. You need to take and record several readings over some time.

Caution

• Avoid bathing, drinking alcohol or caffeine, smoking, exercising, and eating for at least 30 minutes before taking a measurement.
• Rest for at least 5 minutes before taking a measurement.

Using the Monitor

Applying the Wrist Cuff

Note

• The following steps are for applying the wrist cuff to your left wrist. When you take a measurement on your right wrist, apply the wrist cuff using the same steps as on your left wrist.
• The blood pressure can differ between the right wrist and the left wrist, and the measured blood pressure values can be different. Ziqing recommends you always use the same wrist for measurement. If the values between both wrists differ substantially, please check with your physician as to which wrist to use for your measurements.

Caution

• Remove tight-fitting, thick clothing and any accessories from your wrist while taking a measurement.

1. Apply the wrist cuff to your left wrist. Roll up sleeve. Make sure your sleeve is not rolled up too tightly on your arm. This may constrict the flow of blood in your arm.
2. Put your wrist through the cuff loop. Your palm and monitor display should both face upward.
3. Position the wrist cuff leaving a clearance of 0.5 inch (1 to 2 cm) between the cuff and the bottom of your palm.
4. Wrap the wrist cuff firmly around your wrist. Do not apply over clothing. Check to make sure that there is no gap between your wrist and the cuff.

Note

• Make sure the wrist cuff does not cover the protruding part of the wrist bone on the outside of your wrist.
• If the wrist cuff comes out of the metal ring, slide it back through as shown in the figure to the right.

How to Sit Correctly

To take a measurement, you need to be relaxed and comfortably seated in a room with a comfortable temperature. Place your elbow on the table to support your arm.

• Sit in a chair with your legs uncrossed and your feet flat on the floor.
• Sit with your back and arm being supported.
• Your monitor must be approximately the same level as your heart. If the monitor is too high above your heart, your blood pressure will be artificially low. If the monitor is too low below your heart, your blood pressure will be artificially high.
• Relax your wrist and hand. Do not bend your wrist back, clench your fist, or bend your wrist forward.

Taking a Measurement

Notes: To stop the measurement, press the START/STOP button once to deflate the wrist cuff.

Remain still and quiet while taking a measurement.

1. Press the START/STOP button. The wrist cuff will start to inflate automatically.
2. Remove the wrist cuff.
3. Press the START/STOP button to turn the monitor off. The monitor automatically stores the measurement result in its memory. It will automatically turn off after 60 seconds.

Note: Wait 2-3 minutes before taking another measurement. Waiting between measurements allows the arteries to return to the condition prior to taking a measurement.

Error Messages and Troubleshooting

If any of the below problems occur during measurement, check to make sure that no other electrical device is within 12 inches (30 cm). If the problem persists, refer to the table below.

Error Messages

Limited Warranty

This Blood Pressure Monitor, excluding the wrist cuff and batteries, is warranted to be free from defects in materials and workmanship appearing within 1 year from the date of purchase when used in accordance with the instructions provided with the monitor. The wrist cuff is warranted to be free from defects in materials and workmanship appearing within 1 year from the date of purchase when the monitor is used in accordance with the instructions provided with the monitor. The above warranty extends only to the original retail purchaser. We will, at our option, replace without charge any monitor or wrist cuff covered by the above warranty. Replacement is our only responsibility and your only remedy under the above warranty.

To obtain warranty service, contact Customer Service by contacting our customer service for the address of the inspection center and the return shipping and other handling fee that may apply. Enclosed is the original printed receipt. Include a letter with your name, address, cell phone number, and description of the specific problem. Pack the product carefully to prevent damage in transit. Because of possible loss in transit, we recommend insuring the product with the return receipt requested. The foregoing is the sole warranty provided by ZIQING. In connection with this product, ZIQING hereby disclaims any other warranties, express or implied, including the implied warranty of merchantability and fitness for a particular purpose. Implied warranty and other terms that may be imposed by law. If any, are limited in duration to the period of the above express warranty.

ZIQING shall not be liable for loss of use or any other special, incidental, consequential or indirect costs, expenses and damages.

This warranty provides you with specific legal rights, and you may have other rights that vary by jurisdiction. Because of special local requirements, some of the above limitations and exclusions may not apply to you.

Guidance and Manufacturer’s Declaration

• Customer Service

Information Shenzhen Ziqing Medical Equipment Co., Ltd.

1. Customer Service Department

For more details, refer to the warranty information.

• Calibration

The monitor is a precision measuring device. It should be calibrated once a year, and it can be returned to the manufacturer or performed at the local measurement agency.
