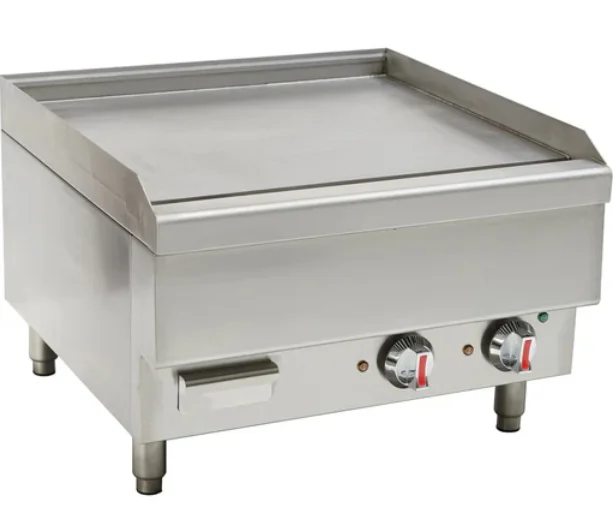

Adexa 6E-GH60 Commercial 6kw Electric Griddle
WARNING!
- The appliance is not suitable for people who have physical, sensory, or mental defects, or people who lack of operating knowledge or experience to use it (including children).
- Any refitting and wrong installation, adjustment, and maintenance can cause property loss and casualty. Please contact the supplier if you need to adjust or maintain the appliance. And all these operations should be done by authorized professionals.
- Do not put flammable liquid, gaor other flammable objects around the appliance for your safety.
- Make sure the voltage used coordinates with the voltage stated on the nameplate. The appliance should be grounded safely before using.
- Never use hard and sharp materials to scrape the surface of the body and the surface of the heating element.

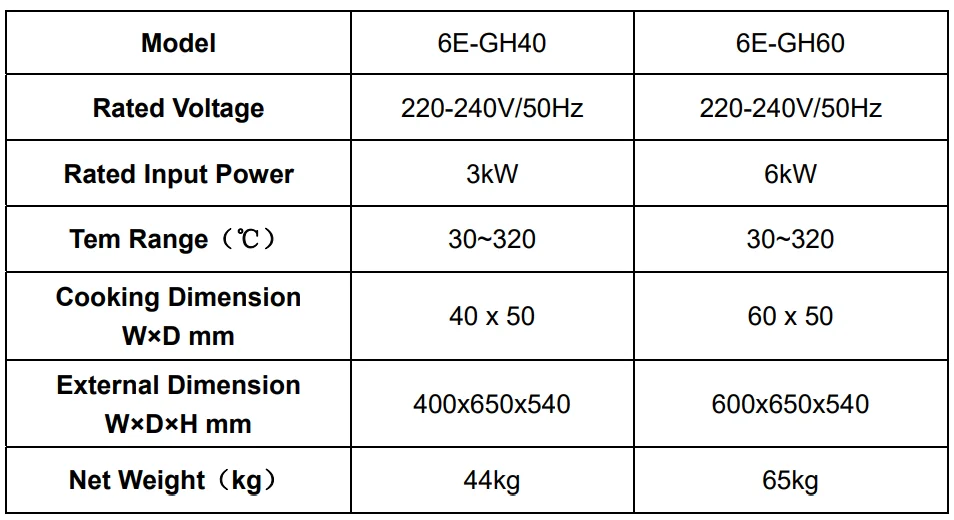

Basic Parameter

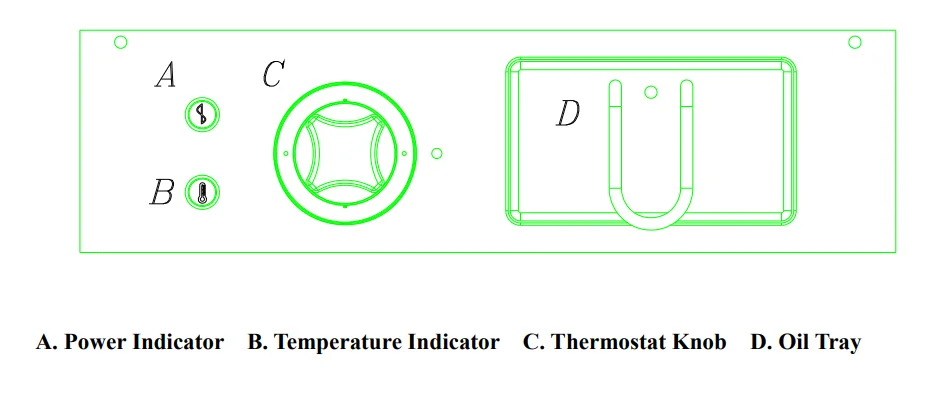

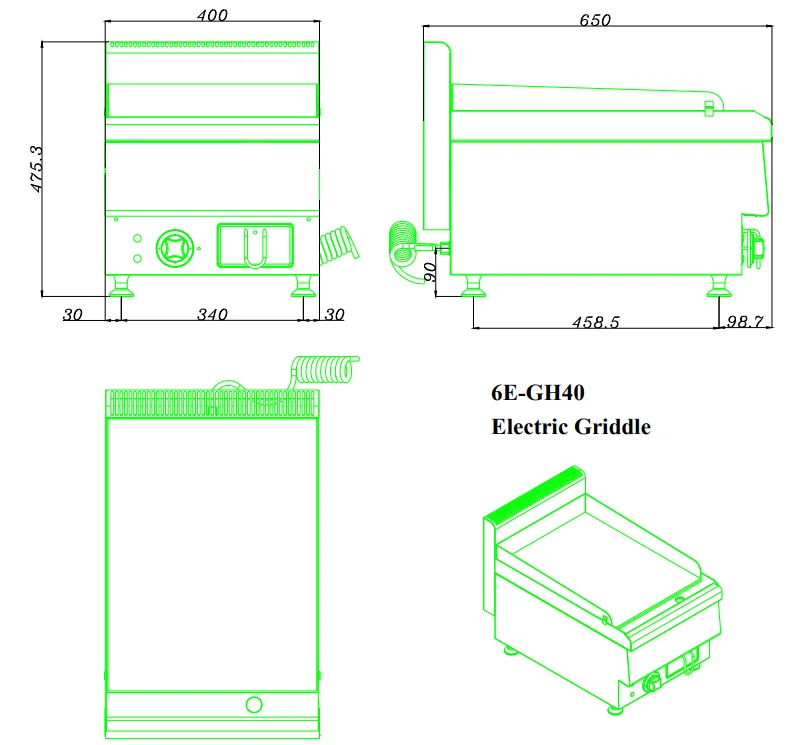

Structure
Installation
- The electrical installation of the appliance should be operated by a qualified electrician. The ground connection must be fixed firmly to prevent accidental loosening.
- The appliance should be positioned stably.
- The supply voltage must coordinate with the rated voltage of the appliance. It should be installed a general on/off switch on the main line. And a leakage protective switch is recommended to be fitted.
- The equipotential terminal should be connected with a copper cable under the relevant regulation. The size of the copper cable should not be less than 2.5 mm².
Warning!
- If the appliance is close to the wall, clapboard, other kitchen equipment, and decoration board, it is recommended that these neighboring objects be made from non-flammable materials. Otherwise, the appliance should be separated from these objects by non-flammable and insulating materials.
- The equipotential terminal
should be connected according to the relative regulation.
should be connected according to the relative regulation.Instructions for operation
- Before using, make sure the supply voltage coordinateswith the rated voltage otthe appliance and the ground connection is correct and fastened.
- When using, don’t put any objects on top of the appliance, especially inflammable things, such as towels, clothes, etc.
- If is abnormal situation occurs when using, please stop using the appliance immediately and cut off the electric power.
Cleaning and maintenance
- Cut off the power supply before cleaning the appliance in case of any electric shock accidents.
- Before cleaning or maintaining, wait till the appliance cools down completely.
- If you do not use the appliance at any time, please turn off the temperature controller and the main switch.
- After the appliance finished the daily work. Use a wet ,soft cloth and mild detergent to clean the appliance.
- If not going to use the appliance for a long time, please completely clean it and store it in a ventilated storehouse without corrosive gases.
WARNING!
Do not use any abrasive cleaning materials or water spray; wipe clean only. Never use a water hose or pressurized steam cleaning equipment when cleaning this fryer.

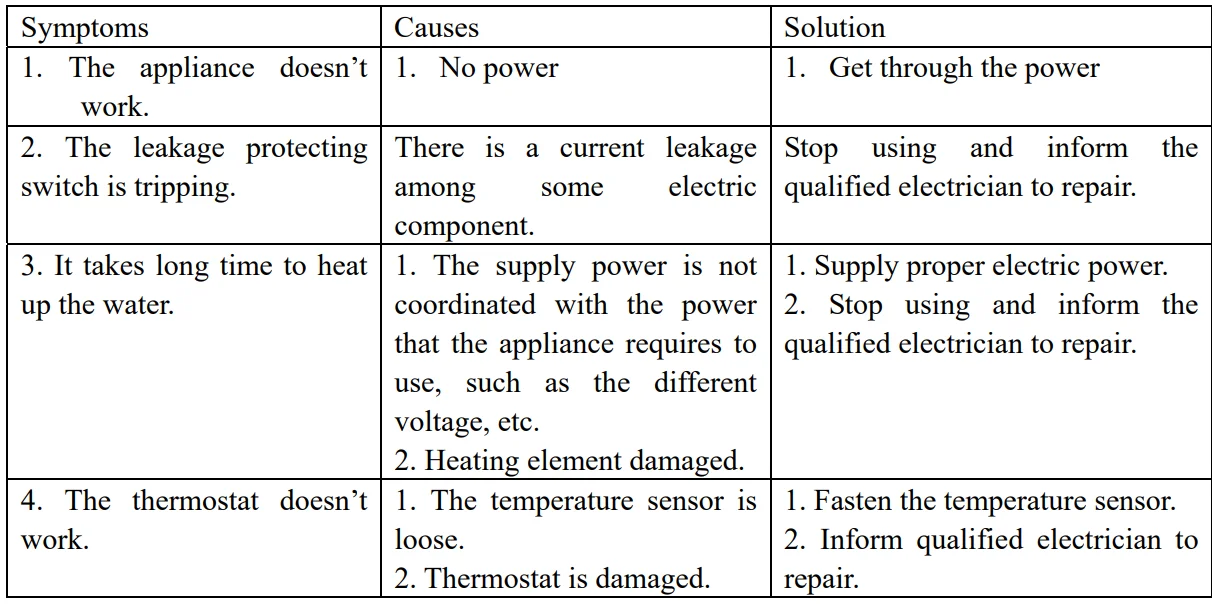

Troubleshooting
Before maintaining the appliance, please unplug the appliance and make sure the power is off.
Aforementioned troubles are just for reference. If any fault occurs, please stop using, and inform the professional technicians to check and repair.
ADEXA DIRECT LIMITED
Unit 1, Swift Point, Cosford Lane, Swift Valley Industrial Estate, Rugby, CV21 1QN, UK
T:+44 1788 222 410
EC Declaration of Conformity
Adexa Direct Limited declares that:
- Equipment Type: Electric griddle
- Model: 6E-GH40, 6E-GH60
- Imported By: ADEXA DIRECT LIMITED
Unit 1, Swift Point, Cosford Lane, Swift Valley Industrial Estate, Rugby, CV21 1QN, UK - Brand: ADEXA
- Application of Council Directive(s):
- EMC 2014/30/EU
- LVD 2014/35/EU
- Standards:
- EN 55014-1:2017+A11:2020
- EN IEC 61000-3-2:2019
- EN IEC 61000-3-3:2013+A1:2019
- EN 55014-2: 2015
- EN 60335-1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019
- EN 60335-2-38:2003+A1:2008
- EN 62233:2008
I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
- Date: 15.10.2021
- Signature:
- Full Name: Hakan Baykal
- Position: Purchase Manager
Declaration of Conformity
Adexa Direct Limited declares that:
- Equipment Type: Electric griddle
- Model: 6E-GH40, 6E-GH60
- Imported By: ADEXA DIRECT LIMITED
Unit 1, Swift Point, Cosford Lane, Swift Valley Industrial Estate, Rugby, CV21 1QN, UK - Brand: ADEXA
- Application of Council Directive(s): Electromagnetic Compatibility Regulations 2016 and Electrical Equipment(Safety) Regulations 2016 by UK legislation
- Standards:
- BS EN 55014‐1:2017+A11:2020
- BS EN IEC 61000‐3‐2:2019
- BS EN IEC 61000‐3‐3:2013+A1:2019
- BS EN 55014‐2: 2015
- BS EN 60335‐1:2012+A11:2014+A13:2017+A1:2019+A2:2019+A14:2019
- BS EN 60335‐2‐38:2003+A1:2008
- BS EN 62233:2008
I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).
- Date: 23.8.2021
- Signature:
- Full Name: Hakan Baykal
- Position: Purchase Manager
For more manuals by Adexa, visit ManualsLibraryy
Adexa 6E-GH60 Commercial 6kw Electric Griddle- FAQs
How do I turn on the Adexa 6E-GH60 griddle?
Plug in the griddle, switch on the main power, and use the temperature control knob to select the desired cooking temperature.
How long does it take to preheat the griddle?
It typically takes 10–15 minutes for the griddle to reach the selected temperature. The indicator light shows when it’s ready.
Can I adjust the cooking temperature?
Yes. The griddle has an adjustable thermostat allowing precise control from low to high heat depending on what you are cooking.
How do I clean the griddle safely?
Turn off the griddle and allow it to cool. Remove excess grease, then wipe the surface with a damp cloth. For stubborn residue, use a mild detergent; never immerse the unit in water.
Is this griddle suitable for commercial use?
Yes. The Adexa 6E-GH60 is designed for restaurants, cafés, and catering with a 6kW high-powered heating system for heavy-duty cooking.
What foods can I cook on the griddle?
It is suitable for cooking burgers, eggs, pancakes, vegetables, and sandwiches. The flat surface allows even cooking of multiple items at once.
How do I prevent food from sticking?
Apply a thin layer of cooking oil or use non-stick sprays before cooking. Avoid dragging utensils across the surface to maintain the coating.
How do I know if the griddle is working properly?
Check that the power indicator light is on and the surface is heating evenly. Uneven heating or no heat indicates a power or thermostat issue.
