Alpha Digital LD353 Vehicle Black Box DVR
Precautions
Use the original factory standard charger.
Not dismantle the machine, to avoid affecting the warranty. Modify the power line, please find construction professionals.
Accessories Check
The following is a list of standard and optional list. If there are any missing or damaged items, please contact your dealer immediately.

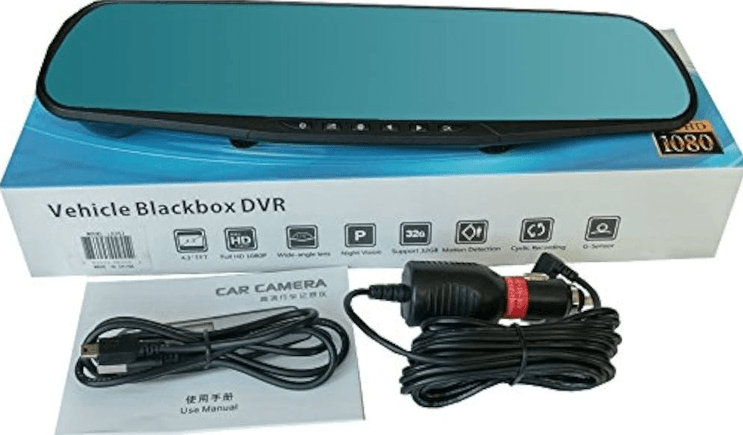

Standard

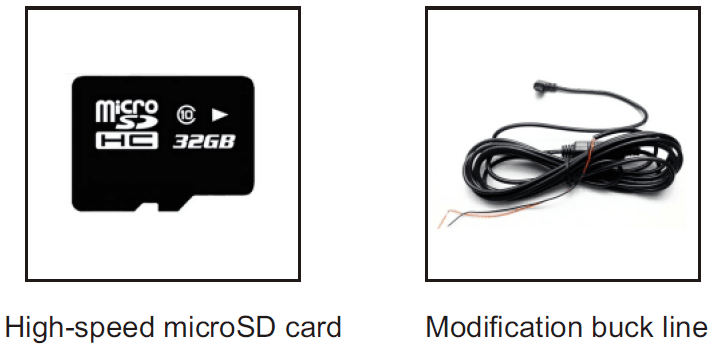

Optional
Product Overview

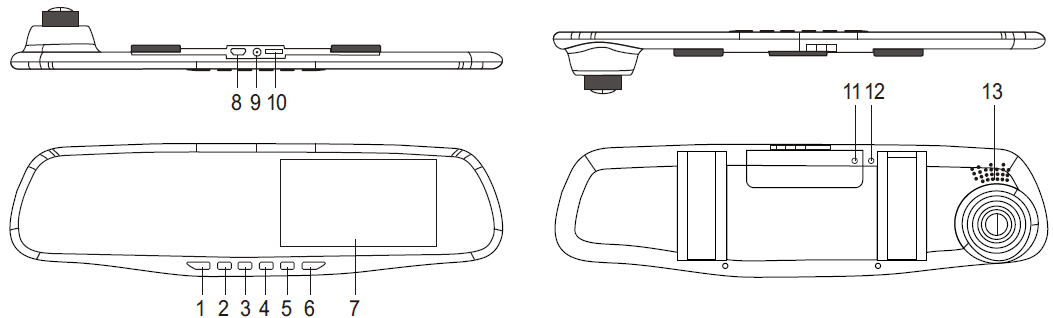

The structure of FIG
- Switch button: Turn on or turn off the system.
- Menu Key/Emergency button: Under the standby mode, press the menu key to bring up the feature set; Quickly press the camera button on the unit to show the current state of the video file locking, covering that cannot be recycled.
- Mode: For inter-camera mode, key/camera/playback switch.
- Down keys: In the menu options, select the function key down; standby or video, night vision lights turn on or off.
- On the turn key: Menu options, select the function keys up; standby or recording status, open or closed recordings.
- Ok button: Camera/camera/confirm the short press to start the camera, down key, camera mode, press again to stop recording;
Short press to camera mode to take a picture; the menu mode to confirm the key. - Display: 4.3-inch TFT with HD display screen.
- USB Port: For connecting a PC to transfer data; the Power connector supplies power.
- AV input port: An AV cable is used to connect the video output to AV equipment.
- MicroSD card slot: MicroSD memory card slot, install the correct direct installation tips.
- Reset button: The System restarts with the reset button.
- Microphone: Recording receiving port.
- Shot: Image acquisition.
Memory Installation
Insert a memory card
Insert the memory card into the device memory card correctly in accordance with the direction of the gap prompt, and press the card until a click is heard. Use a high-speed card (CLASS6 above).
Note: The first time you use your new card with this unit to format the card.
Remove the memory card
Press the memory card out of the slot
Note: When the device is in the boot state, do not remove or insert a memory card in order to avoid damaging the memory card.
Bundle the Vehicle DVR
To the current rearview mirror on your car, use the provided velcro tape and make sure it is tied solid.
Connect the power
Please use the original factory standard charger, the boot device, as well as the built-in battery. The end of the car charger is connected to the device’s USB port, and the other end of the car charger is plugged into the car port. Car engine once launched, the device automatically boots.
The device is on/off
Auto on/off: Once the car is ignited, the DVR will boot accordingly. Then, when you turn on the DVR, the camera starts to work. When the car stalls, the DVR will automatically save the record and turn off the power in 15 seconds.
Manual on/off: manual boot, then press the POWER button host, shut down the host with the same length POWER keys.
Initial user settings
Set the date and time:
- Because the machine has switched off the camera’s automatic functions, you need to press the OK button to click, and the device enters the standby state.
- Then press the M button twice, at <time/date> by pressing the Down keys or On the turn key to select <date/time>, then press the ok button to enter the setting.
- Press the Down key or On the turn key to adjust the value, and press the OK button to enter another field. Until the completion date and time settings, press M to exit.
Recorder Recording Operations
- When the car engine is started, the device is automatically turned on and starts recording. When the engine stalls, it will automatically stop recording. Or press the OK button. Way to manually stop recording. Note: some vehicles powered car charger interface is often when the engine stalled, the power supply will continue to work. If you encounter such a situation, take the following steps: Open the manual way/of the device, or the car charger from a car cigarette lighter port, unplugged.
- Other types of camera: Press the OK button, then start recording; press the OK button, then stop recording. Note: 1,2,3,4,5,10 minutes for every camera, it will save time, please refer to the circulation camera menu. The equipment will be saved in the camera memory card, If the memory card is full, the oldest file is automatically overwritten memory card.
- Emergency camera: Note: if you start a gravity sensor and detect a collision, the device will automatically lock the current record video will not be overwritten.
The recorder camera operates
- Press M to switch to camera mode, the camera icon in the upper left corner of the screen display.
- Press the OK button to take pictures, take pictures of the screen flashes once to indicate the camera is complete. Video/photo playback operations.
- As in the camera mode, you need to press the OK button to stop the recording.
- Press the M button to switch to playback mode, and the upper left corner of the screen to display the playback icon.
- Press the key up or down to select the file.
- Press the OK button to play the selected video file; short-press again to pause playback.
Menu setting operating
- If you are recording, you need to press the OK button to stop recording.
- Long-press the M key to bring up the setup menu twice on the menu page.
- By a short press up or down key, you can cycle up and down to select items in each set.
- Select the setting you want to change, press the OK button to enter the changes through short.
- After setting the short, short-press the short key to exit standby mode.
Special features
Gravity sensor function
When the gravity acceleration starts, the machine will automatically save the video when the incident occurred and will not delete the file.
Gravity sensor can be adjusted in the menu high-medium-low-off, the factory default is medium.
Parking mode feature
After stop mode is turned on, when the vehicle stalls, the tachograph will enter dormant status. When the car body feels vibration from outside, the tachograph will open the camera to record. After the vibration is gone, the DVR automatically shuts down after a record 10-15 seconds. When the body is detected again after the shock, start the camera function.
Parking for guarding video camera 1080p 15 frames/sec, and the file is automatically locked.
Note: the parking guard function must only work in the case of tachograph automatic shutdown, manual startup or shutdown, the parking guard does not work.
Motion detection function
If the motion detection feature turns on, quickly press OK to start recording. The camera automatically switches to a 10-second, motion detection standby mode. If the recorder in front of the screen is still, with no moving objects, the machine automatically enters the stop recording state. When detecting an object moves, the recorder start recording, the recorder screen jumps to the video, and the red recording light starts blinking. Default: motion detection off.
USB mode
Connect the USB cable to the computer, the USB menu will appear with the following options;
- Memory: In this mode, the video file can be accessed.
- Camera: Select this mode will bring up the USB video device, which can be a real-time network camera or video chat as a PC camera.
The battery instructions
Battery level indicator, refer to the diagram:
After switching on the car power, the red charging indicator lights up to start the charging process, The whole charging time is approximately 180 minutes; the red charging indicator light will automatically turn off after charging is completed.
Note: This equipment is to follow cars with state work long hours, stopping only for the built-in battery shutdown designed to save the file, so the limited length of battery life, in daily use, please link to the vehicle power supply.
Reset
If during use, the machine abnormal or crash situation, you can press the RESET button to reset the machine operating system shell through the hole touch through tiny needles.
Settings Menu
| Menu Options | Explanation | Available options |
| Resolution | Set the video resolution | 1080P HD, 1080P, 720P,WVGA, VGA |
| Loop recording | When setting up each video file length | 1 minute, 2 minutes, 3 minutes, 5 minutes, 10 minutes, off. If you choose to close the case, the card will not automatically cycle to full coverage |
| Exposure compensation | Underexposed, dim the screen, you need to fill light | +0.0, -1/3, -2/3, -10, -4/3, -5/3, -2.0, +2.0,+5/3, +4/3, +10, +2/3, -1/3- |
| Motions Detection | In standby mode, when the screen has moved to the detection of automatic video | On, Off |
| Recording Audio | The recording function is turned on or off | On, Off |
| Date Label | Camera video watermark date | On, Off |
| G-sensor | A collision-generated video will never be covered | High, medium, low, off |
| Lane shift | When the vehicle travels lane shift alarm will sound | Function switch, models, sensitivity, area selection, start speed |
| Stop mode | After parking the stall, if you receive external vibration generated by the tachograph will automatically turn on the camera | On, Off |
| Date / Time | Date and time | You can set the year, month, day, hour, minute, and second |
| Menu Options | Explanation | Available options |
| Automatic shutdown | No automatic shutdown operating state | 1 minute, 3 minutes |
| Screen Saver | The recorder automatically turns off the display work | 10 seconds, 30 seconds, 1 minute |
| Beep | During operation, the key is with sound | On, Off |
| Language Settings | Language operation menu | Traditional, Simplified Chinese, Russian, Japanese, French, Italian, German, Spanish, English, Korean |
| TV mode | Connected TV system | NTSC, PAL |
| Light frequency | Lights flicker frequency | 50HZ, 60HZ |
| Fill light | Use in low-light environments | On, Off |
| Format | You can delete the memory card data above | SD card |
| Default setting | Restore factory settings | Cancel, OK |
| Version | Software version shipped | Version number |
Product Specifications
| Product name | HD tachograph |
| Product features | Extremely wide angle of 170 degrees, 1080P full HD |
| G-sensor | Built-in ( under the car accident case of emergency save, not to be deleted) |
| LCD screen size | 4.3-inch high-resolution LCD screen |
| Shot | A+ grade high-resolution 170-degree ultra-wide-angle lens |
| Language | Russian, English, Chinese, Japanese, etc |
| File format | MJPEG AVI |
| Video resolution | 1920X1080P, 1280X720P |
| Recording video format | Audio, AAC |
| Color effects | Standard |
| Continuous loop recording | Seamless loop recording, no leakage seconds |
| Truck switch machine | Support auto ignition on, turn off shutdown |
| Motion detection function | Support |
| Division date | Support |
| Vector Media | Support built-in memory ( Total amount: 1024 MB) |
| Camera mode | 1200M |
| Photo format | JPEG |
| Memory card | MicroSD card (Max support 32GB) |
| Micphone | Support |
| Built-in stereo | Support |
| IR | Support |
| Video format | PAL / NTSC |
| Current frequency | 50Hz / 60Hz |
| USB functionality | 1: USB disk, 2: PC camera |
| Power interface | 5V 1A |
| Battery | Built-in 200mAh |
Troubleshooting
Under normal operating conditions, such as abnormal products, please refer to the solution:
Unable to boot:
Check the recorder and car charger are connected correctly, if you manually turned on, check the battery level is too low needs recharging. As a result of procedural questions by pressing the RESET button to restore to factory settings.
When the camera automatically stops recording, or does not cycle through the camera.
Due to the huge high-definition video data, it is possible because the memory card reader could not keep pace.
Make sure the gravity sensor function is closed, and memory is formatted. Each time, the camera and the set are not the same. Check to see if the motion detection function is working, because the camera’s motion detection state length of time, depending on the screen, and there is no movement.
Please check whether the stolen camera’s fingerprint. Please clean the Lens before using the camera. It is important to keep the lens clean.
Camera effects and lighting conditions will affect the quality of the video. Images have streak interference.
This is due to the wrong setting “light frequency” produced under the fluorescent lights, the domestic flat rate “50Hz”. When the machine is briefly pressed, the “RESET” the reset button is pressed to restore restart.
