Amazon Basics ‎24E2QA 24-inch IPS Monitor User Manual

Amazon Basics ‎24E2QA 24-inch IPS Monitor

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Only use the power cable provided with the product. Do not use the power cable with other products.
• Connect the product to an easily accessible socket outlet so that in case of an emergency,y the product can be unplugged immediately.
• Make sure the distribution system in the building installation provides a circuit breaker rated 120/240 V, 20 A (maximum).
• Care should be taken to route all cords and cables connected to the product so that they cannot be pulled, grabbed, or tripped over.
• Keep the product and the power cable away from hot surfaces and open flames.
• Do not expose the product to dripping or splashing water.
• Unplug the product during lightning storms or when unused for long periods of time.
• Do not cover the ventilation openings at the back of the product with items such as newspapers, tablecloths, or curtains.
• Do not engage the product in severe vibration or high-impact conditions during operation.
• To reduce the risk of electric shock, do not open the housing. No user­serviceable parts inside. Refer to qualified service personnel.

Specifications

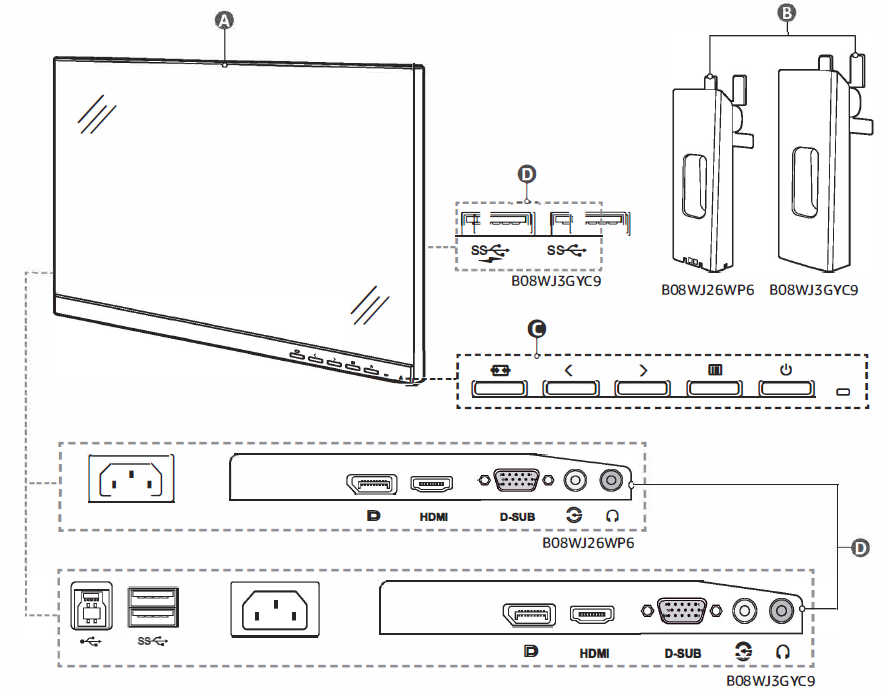

Product Description

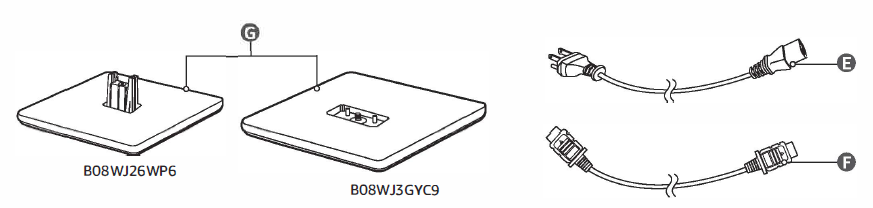

• A. Screen
• B. Stand
• C. Front panel
• D. Connection ports
• E.  Power cable
• F. HDMI cable
• G. Base

Intended Use

• This product is intended to be used in dry indoor areas only.

Before First Use

• Remove all the packing materials.
• Remove and review all components before use.
• Check the product for transport damage.
• Before connecting the product to the power supply, check that the power supply voltage and current rating correspond with the power supply details shown on the product rating label.

Setup

NOTICE

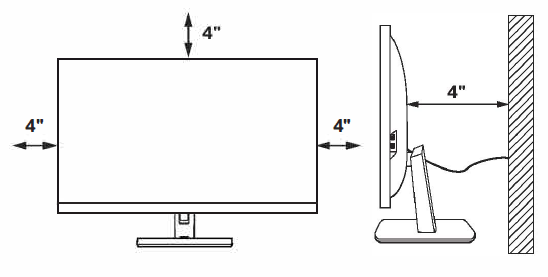

• Place the product in a convenient, well-ventilated location near the computer.
• To prevent any faults and unsafe situations, do not place any objects on top of the product.
• Consider placing the product in a controlled, luminous environment to avoid interference from surrounding light and bright surfaces that may cause disturbing reflections from the product.

Positioning on a table

For model B08WJ26WP6:

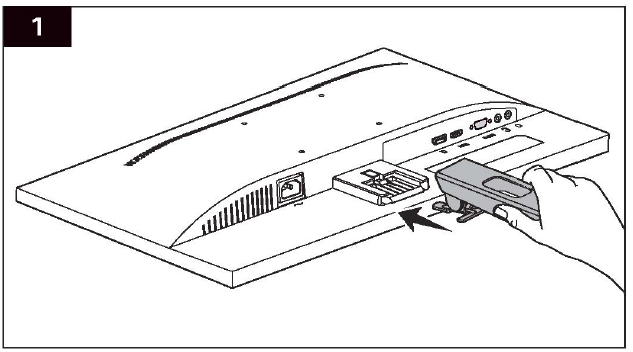

1. Slide the stand (B) into the slot on the rear side of the product (Fig. 1 )

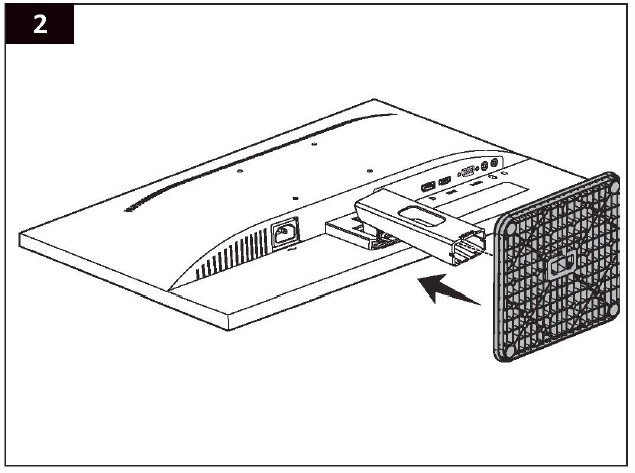

2. With both hands holding the bezel, attach the stand (B) to the base (G) firmly (Fig. 2)

For model B08WJ3GYC9:

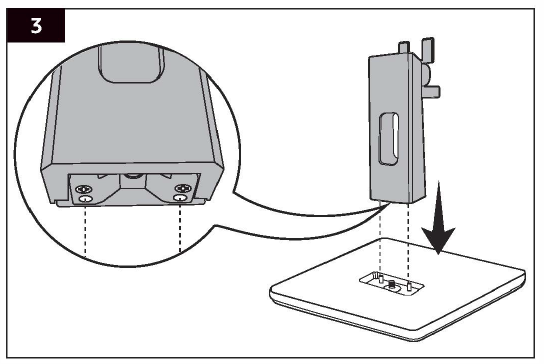

1. Attach the stand (B) to the base (G) (Fig. 3), aligning the bolts with the holes

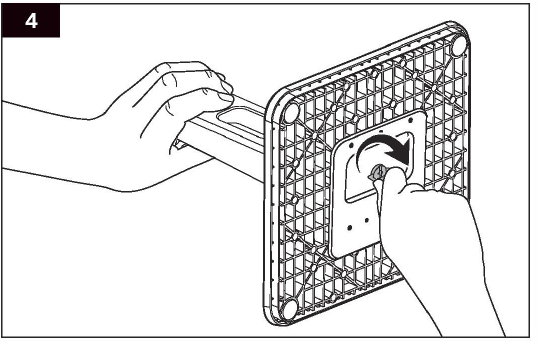

2. Hold the ring on the fixing bolt and turn clockwise. Flip the ring down after the bolt is tightened (Fig. 4)
3. Attach the product to the stand (B) (Fig. 5). The stand (B) clicks into place.

Detaching the stand and base (if installed)

For model B08WJ26WP6:

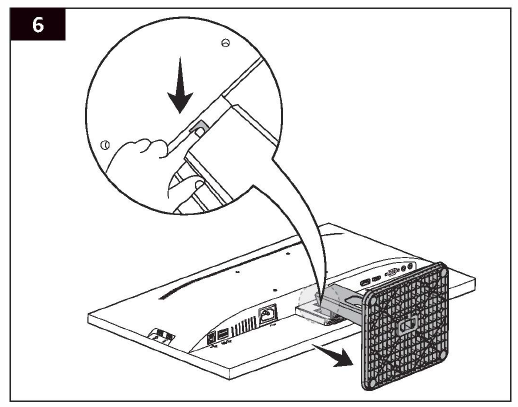

1. Press the lock button down and pull the stand (B) to detach it from the product (Fig. 6)

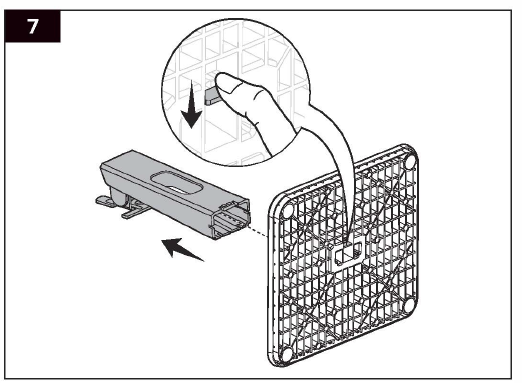

2. With the tab being pushed down, pull the stand (B) to detach it from the base (G) (Fig. 7)

For model B08WJ3GYC9:

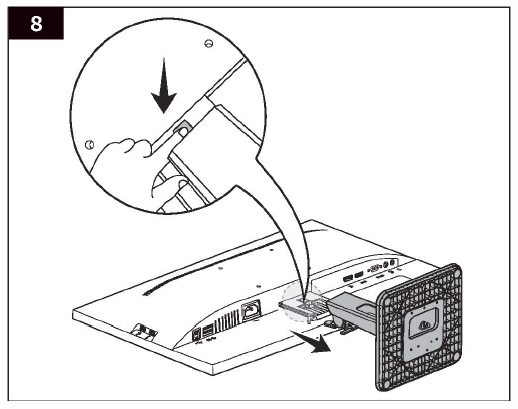

1. Press the lock button down and pull the stand (B) to detach it from the product (Fig. 8)

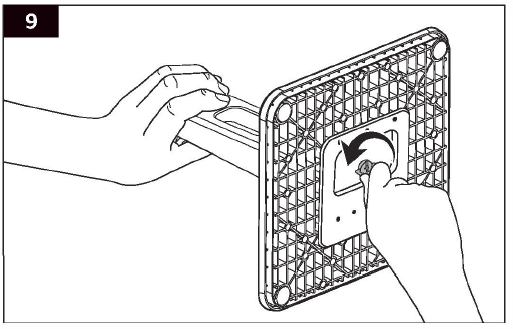

2. Flip the ring of the fixing bolt and turn it counterclockwise (Fig. 9).

Assembling the wall mounting arm

NOTICE

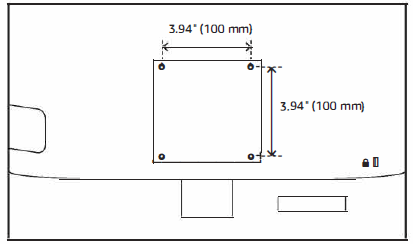

• Use only the VESA wall mounting arm (not included), fitting the 3.94″ x 3.94″ (100 x 100 mm) mounting holes with suitable wall plugs and holes.
• Follow the manufacturer’s instructions to assemble the wall mounting arm.
• Tidy up and organize the cables using cable ties or a clamp to avoid getting kinked or pinched when moving the wall-mounted product.

Connecting the Cables

Connection to the computer

NOTICE

• The product is a Plug-and-Play device. The computer recognizes the product as soon as they are properly connected.
• Check the types of ports at the back of the computer to be connected to the connection ports (D) at the back of the product.

Using a VGA cable

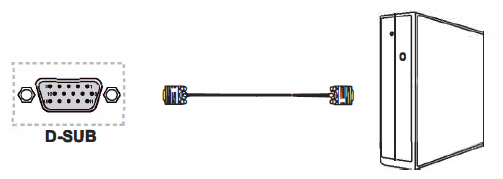

1. Connect a VGA cable (D-Sub 15-Pin connector) (not included) to the D-SUB port on the rear of the product and the other end to the D-SUB port on the computer.
2. Tighten the connectors of the VGA cable by turning the screws clockwise.

Using an HDMI cable

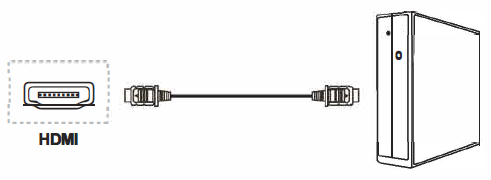

• Connect the HDMI cable (F) to the HDMI port on the rear of the product and the other end to the HDMI port on the computer

Using a DP cable

• Connect a DP (DisplayPort) cable (not included) to the DP port on the rear of the product and the other end to the DP port on the computer.

Connection to peripheral devices

For models B08WJ26WP6 and B08WJ3GYC9:

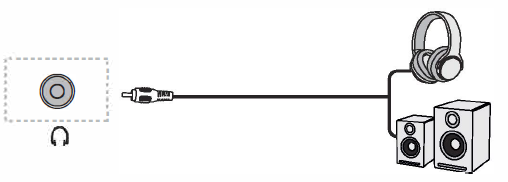

• Connect an audio output device, such as headphones or a speaker, to the headphone port on the rear of the product.
• Connect an audio input device to the green line-in port on the rear of the product

For model B08WJ3GYC9:

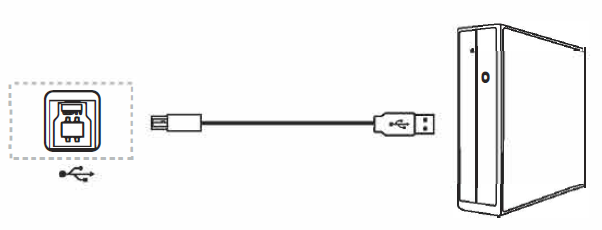

• To use the product as an extended hub for the computer, connect a USB Type-B cable to the upstream port and the other end to the USB port on the computer.
• Connect multiple source devices such as keyboard, mouse or smartphone to the USB port on the computer.

Adjusting Viewing Angle

NOTICE

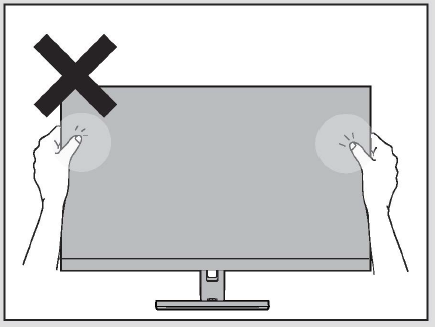

• Hold only the bezel when adjusting the tilting angle. Do not touch or press the screen (A) to prevent it from being damaged.

Installing a Cable Lock

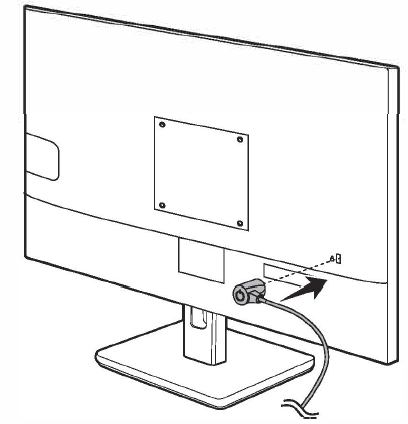

• The product can be secured to a fixed object with an optional cable lock.

Operation

Switching on/off

1. Connect the product to a suitable grounded socket outlet.
2. Press the power button to switch the product on

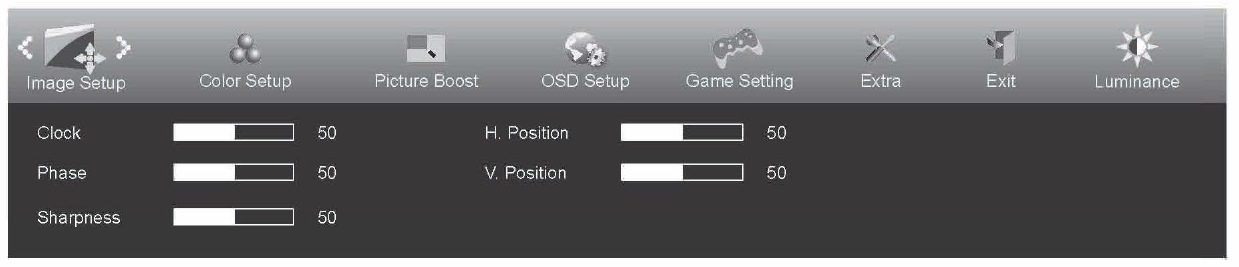

Front panel controls

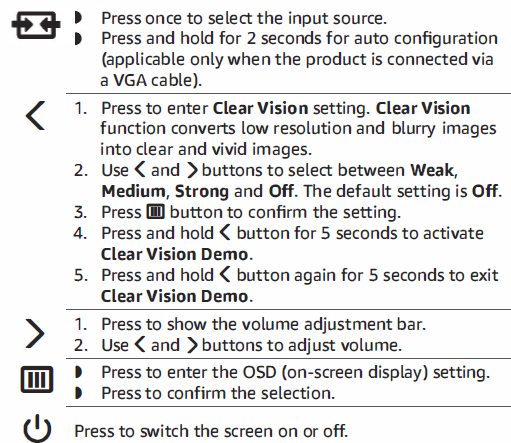

There are five buttons and one LED indicator light on the front panel (C)

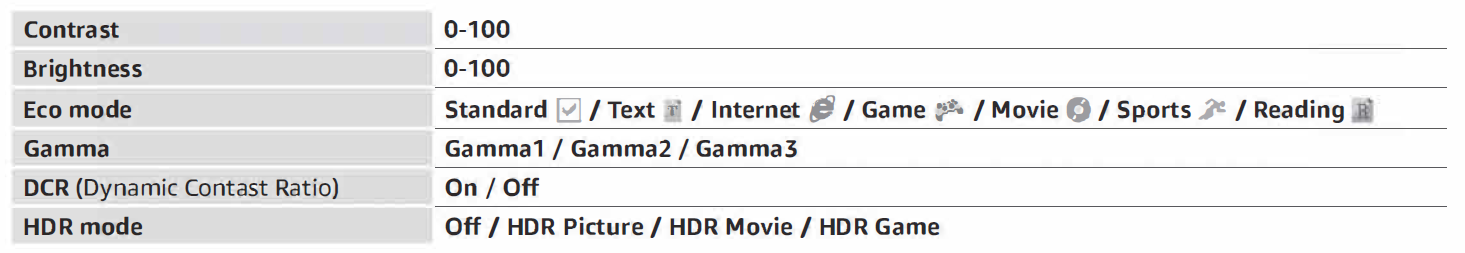

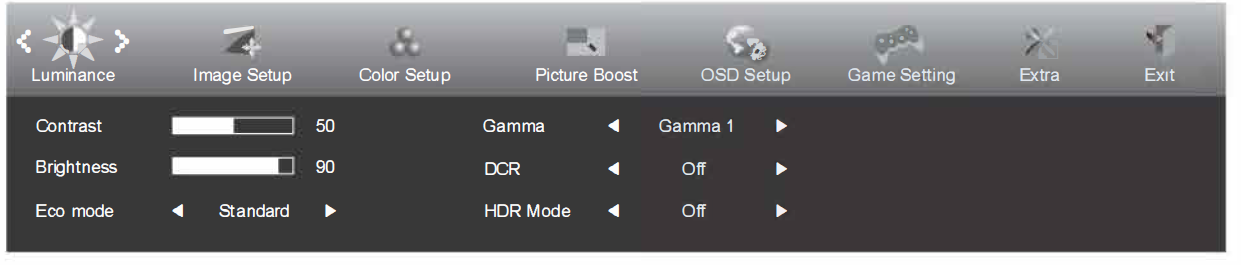

• NOTICE I Contrast, Eco, and Gamma can be adjusted only when HDR mode is set to Off.

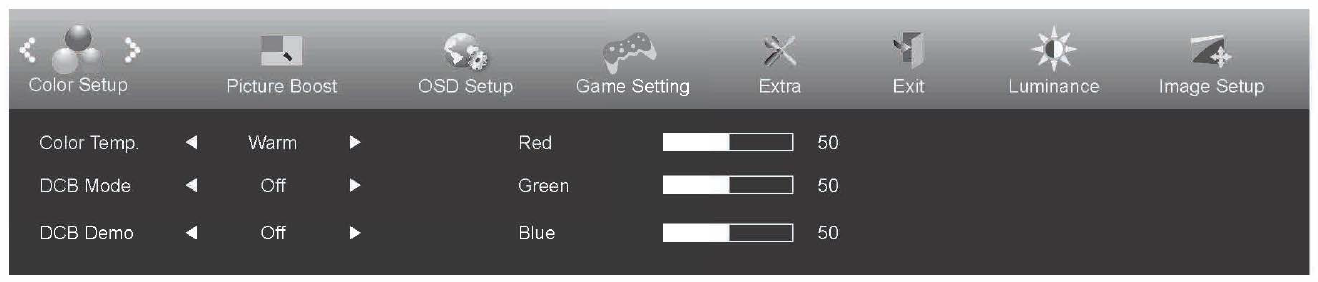

Color setup

• NOTICE I All settings under Color Setup can be adjusted only when the HDR mode under Luminance is set to Off.

• NOTICE I All settings under Picture Boost can be adjusted only when the HDR mode under Luminance is set to Off.

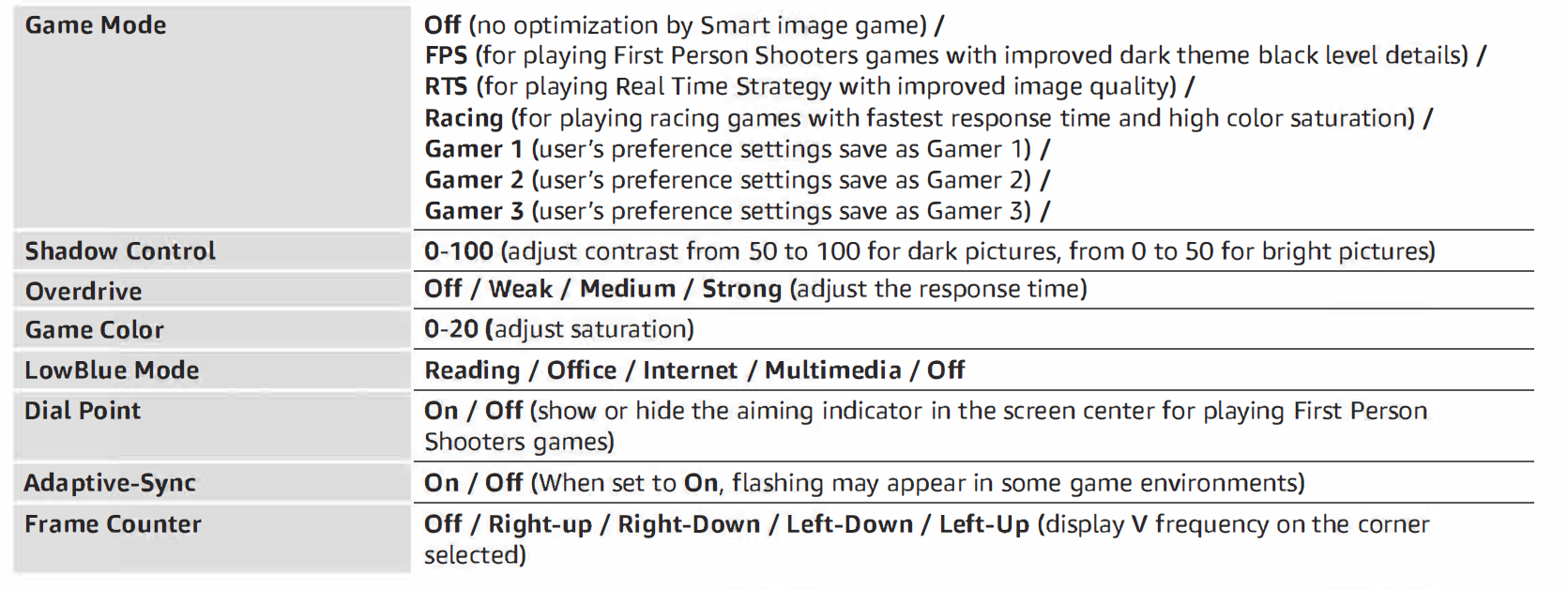

Game setting

Exit

Cleaning

• To clean the product, wipe with a soh, slightly damp cloth.
• To dust the screen, wipe with a soft, clean anti-static cloth.
• Wipe the product dry after cleaning.
•  Never use corrosive detergents, wire brushes, abrasive scourers, metal or sharp utensils to clean the product.

Frequently Asked Questions

Energy Star Declaration

• ENERGY STAR is a program run by the U.S. Environmental Protection Agency (EPA) and U.S. Department of Energy (DOE) that promotes energy efficiency.
• This product qualifies for ENERGY STAR in the “default” settings, and this is the setting in which power savings will be achieved.
• Changing the factory default picture settings or enabling other features will increase power consumption that could exceed the limits necessary to qualify for
  ENERGY STAR rating.
• For more information on the ENERGY STAR program, refer to energystar.gov.  17. FCC-

FCC Compliance Statement

1.  This device complies with Part 1 S of the FCC Rules. Operation is subject to the following two conditions:
   • (1) This device may not cause harmful interference, and
   • (2) This device must accept any interference received, including interference that may cause undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment

FCC Interference Statement

• This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are
  designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio
  frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there
  is no guarantee that interference will not occur in a particular installation.
• If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is
  encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.
•  Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.
