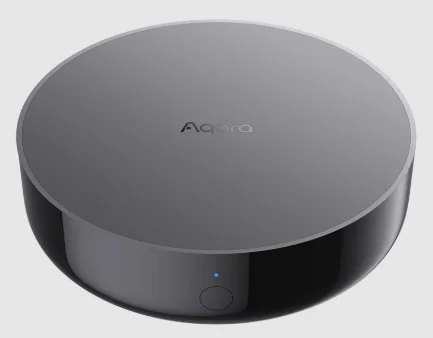

Aqara Hub M200
Product Introduction
The Hub M200 is a smart home control hub by Aqara that supports multiple wireless protocols. It can connect Zigbee and Thread child devices, and can act as a Matter Controller and Thread Border Router. It can connect paired Zigbee child devices to third-party Matter ecosystems via a Matter bridge. It supports dual-band 2.4GHz and 5GHz Wi-Fi 6 wireless networking and can easily discover and pair devices via Aqara MagicPair technology. It also supports Bluetooth pairing to connect to the Aqara Voice Mate. It can be powered via USB Type-C or PoE.
Device Connecting & Initialization
- Download the Aqara APP
- Search for “Aqara Home” in the Apple App Store, Google Play, Xiaomi GetApps, Huawei App Gallery, or scan the following QR code to download the Aqara Home App.
- Search for “Aqara Home” in the Apple App Store, Google Play, Xiaomi GetApps, Huawei App Gallery, or scan the following QR code to download the Aqara Home App.
- Set up the hub

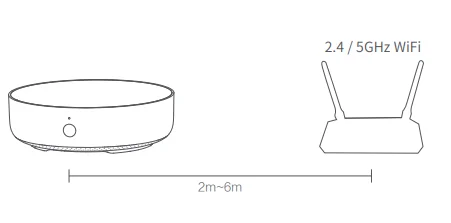

- Choose the installation location of the hub: the hub should be 2-6 meters away from the router in the house, and avoid metal obstacles between the hub and router or around the hub.

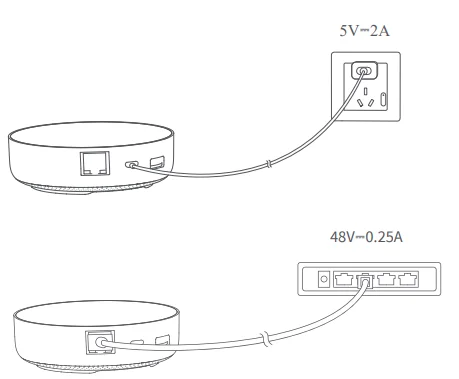

- Select power supply port:
- Type C: Please use a 5V=2A adapter (purchased separately) and a USB power cable to power the hub on.
- You can power the hub and connect it to your network using a PoE-enabled router or network switch with an RJ45 cable. When both Type C and RJ45 PoE power supplies are connected, the device will prioritize the power supply from the RJ45 PoE.
- Wait for the yellow hub indicator light to change from solid to flashing.
- Select the networking method:
- Wireless connection: Connect your phone to a 2.4/5GHz Wi-Fi network. After powering on the hub, open the Aqara Home App and follow the instructions to complete the network configuration.
- Wired connection: Using a wired network connection can effectively avoid connection instability caused by unstable Wi-Fi. If possible, it is recommended to connect the hub via a wired network. After powering on the hub, use an RJ45 cable to connect the hub’s RJ45 port to a LAN port on your router. Enter the Aqara Home App and follow the instructions to complete the network configuration.
- Choose the installation location of the hub: the hub should be 2-6 meters away from the router in the house, and avoid metal obstacles between the hub and router or around the hub.
- Add the product to the Aqara Home app
- Please open the Aqara Home app, tap “Home” and then tap “+” in the top right corner to enter the “Add Device (Accessory)” page, select “Hub M200”, and add it according to the instructions in the Aqara Home app. After a successful connection, the status indicator light will be solid blue.
- This product supports the Aqara MagicPair technology, and the device can be automatically discovered by the Aqara Home app when it is powered on and in pairing mode. Please select the device and follow the instructions in the app to complete the network configuration.
- Please place your phone as close to the hub as possible when pairing, and make sure that the phone and the hub are on the same Wi-Fi network.
Common reasons for binding failure:
- After powering on, please press the function button for more than 10 seconds until the yellow light flashes, then retry pairing in the app.
- Check if your router has enabled Wi-Fi anti-leeching settings, preventing the device from connecting to the network properly.
- Check if your router has enabled AP isolation, preventing your phone from discovering the device within the local network.
- It is recommended not to connect to bridged networks.
Connecting to HomeKit
Open the Apple “Home” app, click “+” in the upper right corner to enter the Add Accessories page, scan or manually input the HomeKit setup code (HomeKit QR code) on the product side, and bind the device to HomeKit.
Here are some common troubleshooting steps for HomeKit addition failures:
- Error Message: “Unable to add accessory”. Repeated connection failures have caused error data in the iOS cache. Please restart the iOS device (iPhone or iPad), reset the hub, and try again.
- Error Message: “Accessory added”. Please restart the iOS device and reset the hub, then manually enter the HomeKit setup code to add the hub.
- Error Message: “Accessory not found”. Please reset the hub, wait for 3 minutes, and add it again by manually entering the HomeKit setup code.
Connecting to a third-party Matter ecosystem
Please use the third-party Matter app to scan the Matter QR code on the User Manual or enter the 11-digit setup code to add the device. If the Matter QR code is missing, it can be found in the Aqara Home app – Device page – Expose to Matter.
Note: Please keep the QR code on the product or in the user manual in a safe place.
Binding a child device
- Binding Zigbee and Bluetooth child devices: Please operate according to the child device’s user manual, and select the Hub M200 to complete the binding.
- Bind Matter Over Thread device: This product serves as a Thread Border Router and supports connecting sub-devices using the Matter Over Thread protocol. Please connect the device according to the device’s user manual (Thread devices do not need to select to specify the Hub M200 during the binding process).
Other functions
For more device functions, please log in to the Aqara Home app and explore!

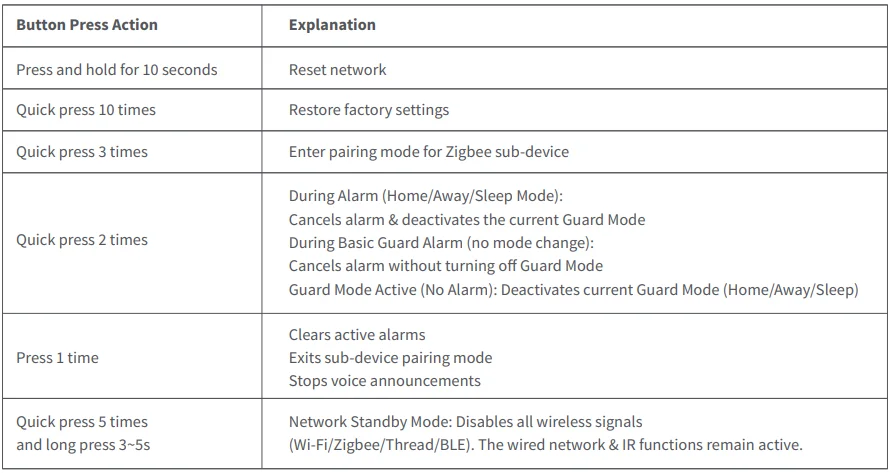

Button Operation Guide

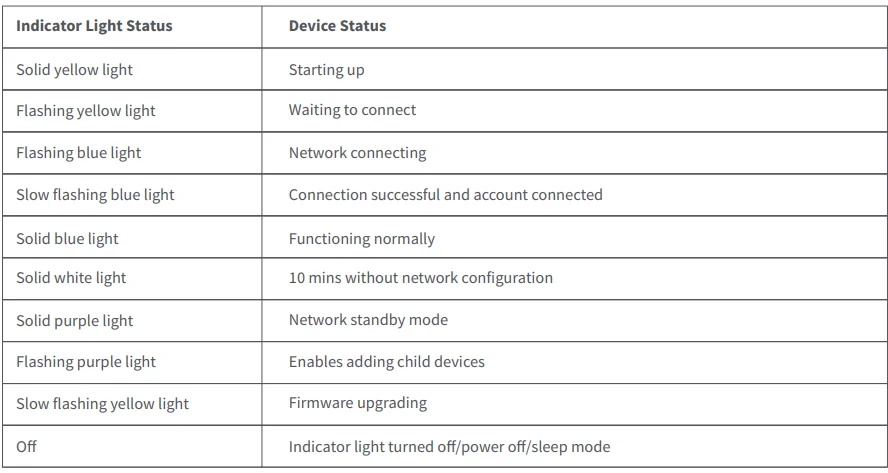

Description of Indicator Lights
Product Specifications
- Model: HM-G03E/HM-G03D
- Power Input: 5V=2A
- Dimensions: Ф100.5 × 30.75 mm
- PoE Input: 48V=0.25A
- Wireless Protocols: Wi-Fi IEEE 802.11 a/b/g/n/ac/ax 2.4 GHz / 5 GHz, Zigbee/Thread IEEE 802.15.4, Bluetooth
- Operating Temperature: -10°C ~ 50°C
- Operating Humidity: 0 ~ 95% RH, non-condensing
Notice
Communication between iPhone, iPad, Apple Watch, HomePod, HomePod mini, or Mac and the HomeKit-enabled Hub M200 is secured by HomeKit technology. Use of the “Works with Apple” badge means that an accessory has been designed to work specifically with the technology identified in the badge and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Apple, Apple Watch, HomeKit, HomePod, HomePod mini, Siri, iPad, iPad Air, and iPhone are trademarks of Apple Inc., registered in the U.S. and other countries.
Online Customer Service: www.aqara.com/support
Manufacturer: Lumi United Technology Co., Ltd.
Address: Room 801-804, Building 1, Chongwen Park, Nanshan iPark, No. 3370, Liuxian Avenue, Fuguang Community, Taoyuan Residential District, Nanshan District, Shenzhen, China.
Email: [email protected]
Made in China
For More Manuals By Aqara, Visit ManualsLibraryy.
Aqara Hub M200 -FAQs
What is the Aqara Hub M200, and what does it do?
The Aqara Hub M200 is a multi-protocol smart home hub that acts as a central controller for Aqara and third-party devices. It supports Matter, Thread, and Zigbee, allowing you to connect, manage, and automate multiple smart devices from one platform with reliable local control.
What makes the Aqara Hub M200 different from older Aqara hubs?
The M200 stands out by combining Matter Controller, Thread Border Router, and Zigbee hub functionality in one device. Unlike older hubs, it also supports advanced Matter bridging and improved local automations, making it more future-proof and compatible with modern smart home ecosystems.
Which smart home platforms are compatible with the M200?
The Aqara Hub M200 works with major ecosystems, including Apple Home, Google Home, Amazon Alexa, SmartThings, and Home Assistant. Its Matter support ensures seamless integration, allowing users to control Aqara and compatible third-party devices across multiple platforms without complex setups.
Does the Aqara Hub M200 support Matter and Thread?
Yes, the M200 includes a built-in Matter Controller and Thread Border Router. This allows it to connect Thread-based devices and manage Matter-compatible products directly, while also bridging Aqara Zigbee devices into Matter ecosystems for unified smart home control.
Can the M200 control non-smart appliances like TVs or air conditioners?
The Aqara Hub M200 features a built-in 360-degree IR blaster that can control traditional infrared devices such as TVs and air conditioners. It can also learn commands from existing remotes and integrate these appliances into smart home automations for enhanced convenience.
How many devices can the Aqara Hub M200 support?
The hub can support around 40 Zigbee devices and 40 Thread devices simultaneously. This capacity is suitable for most medium-sized smart homes, enabling users to connect sensors, switches, and other smart devices without needing multiple hubs.
Does the Aqara Hub M200 require an internet connection to work?
The M200 supports local automation, meaning many functions continue to operate even if the internet is unavailable. However, features like remote access, cloud notifications, and some integrations still require an active internet connection to function properly.
What connectivity options does the Aqara Hub M200 offer?
The hub supports dual-band Wi-Fi and also offers Power over Ethernet and USB-C power options. It uses Zigbee, Thread, and Bluetooth protocols to communicate with devices, ensuring flexible and stable connectivity across different smart home setups.
Does the Aqara Hub M200 support voice control?
Yes, the M200 supports voice control through platforms like Alexa, Google Assistant, and Apple Home. It can also work with Aqara’s Voice Mate accessory, allowing more private and flexible voice interaction within your smart home environment.
Is the Aqara Hub M200 suitable for advanced smart home automation?
The M200 is designed for advanced automation using local processing and flexible rules. Its upgraded automation engine allows multiple conditions and triggers, enabling complex scenarios such as combining presence, temperature, and time-based actions for a smarter, more efficient home setup.
