ASUS ROG Strix B760-A Gaming WiFi ATX Motherboard

CPU socket

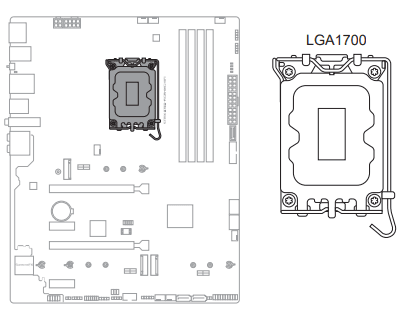

The motherboard comes with a LGA1700 socket designed for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors.

Warnings

Ensure that you install the correct CPU designed for the LGA1700 socket only. DO NOT install a CPU designed for other sockets on the LGA1700 socket.
The CPU fits in only one correct orientation. DO NOT force the CPU into the socket to prevent bending the connectors on the socket and damaging the CPU.
Ensure that all power cables are unplugged before installing the CPU.

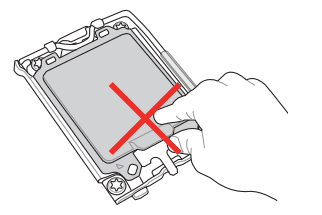

Upon purchase of the motherboard, ensure that the PnP cap is on the socket and the socket contacts are not bent. Contact your retailer immediately if the PnP cap is missing, or if you see any damage to the PnP cap/socket contacts/motherboard components. ASUS will shoulder the cost of repair only if the damage is shipment/transit-related.
Keep the cap after installing the motherboard. ASUS will process Return Merchandise Authorization (RMA) requests only if the motherboard comes with the cap on the LGA1700 socket.
The product warranty does not cover damage to the socket contacts resulting from incorrect CPU installation/removal, or misplacement/loss/incorrect removal of the PnP cap.

DIMM slots

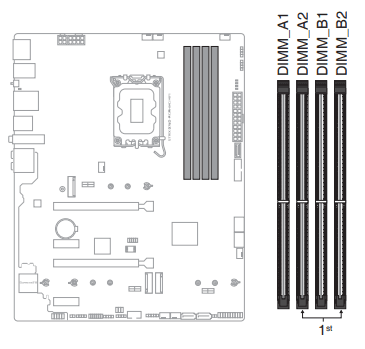

The motherboard comes with Dual Inline Memory Modules (DIMM) slots designed for DDR5 (Double Data Rate 5) memory modules.

A DDR5 memory module is notched differently from a DDR, DDR2, DDR3, or DDR4 module. DO NOT install a DDR, DDR2, DDR3, or DDR4 memory module to the DDR5 slot.

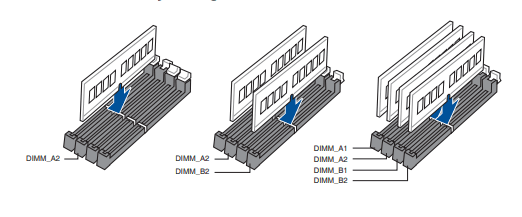

Recommended memory configurations

Memory configurations

You may install 8GB, 16GB, and 32GB unbuffered and non-ECC DDR5 DIMMs into the DIMM sockets.

You may install varying memory sizes in Channel A and Channel B. The system maps the total size of the lower-sized channel for the dual-channel configuration. Any excess memory from the higher-sized channel is then mapped for single-channel operation.

The default memory operation frequency is dependent on its Serial Presence Detect (SPD), which is the standard way of accessing information from a memory module. Under the default state, some memory modules for overclocking may operate at a lower frequency than the vendor-marked value.
For system stability, use a more efficient memory cooling system to support a full memory load or overclocking condition.
Always install the DIMMs with the same CAS Latency. For an optimum compatibility, we recommend that you install memory modules of the same version or data code (D/C) from the same vendor. Check with the vendor to get the correct memory modules.
Visit the ASUS website for the latest QVL.

Expansion slots

Unplug the power cord before adding or removing expansion cards. Failure to do so may cause you physical injury and damage motherboard components.

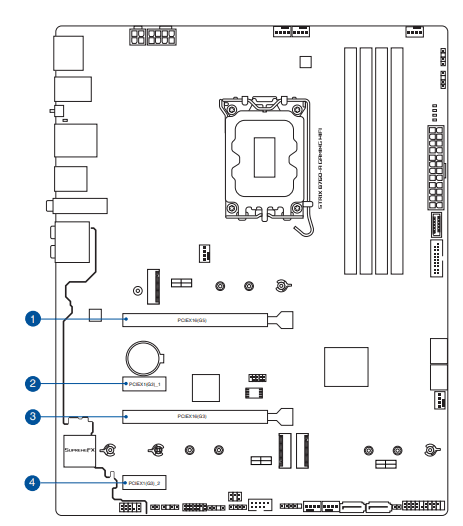

Please refer to the following tables for the recommended VGA configuration.

PCIEX1(G3)_1 and PCIEX1(G3)_2 slots share bandwidth with PCIe x16(G3). When PCIEX1(G3)_1 or PCIEX1(G3)_2 slot is operating, PCIEX16(G3) will only support x2 mode.

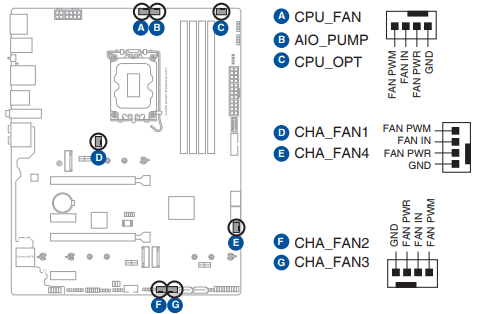

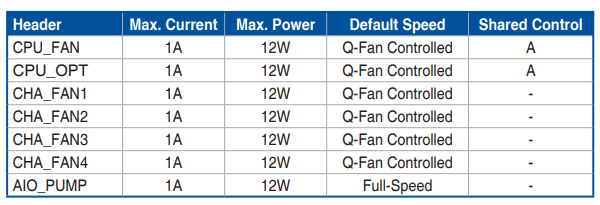

Fan and Pump headers

WARNINGS

DO NOT forget to connect the fan cables to the fan headers. Insufficient air flow inside the system may damage the motherboard components. These are not jumpers! Do not place jumper caps on the fan headers!
Ensure the cable is fully inserted into the header.

For water cooling kits, connect the pump connector to the AIO_PUMP header.

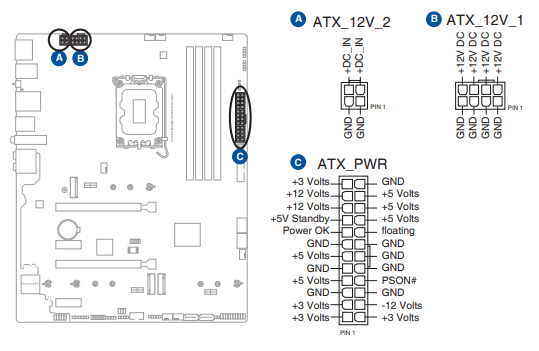

Power connectors

These Power connectors allow you to connect your motherboard to a power supply. The power supply plugs are designed to fit in only one orientation. Find the proper orientation and push down firmly until the power supply plugs are fully inserted.

Ensure to connect the 8-pin power plug, or connect both the 8-pin and 4-pin power plugs.

For a fully configured system, we recommend that you use a power supply unit (PSU) that complies with ATX 12V Specification 2.0 (or later version) and provides a minimum power of 350 W.
We recommend that you use a PSU with a higher power output when configuring a system with more power-consuming devices. The system may become unstable or may not boot up if the power is inadequate.
If you want to use two high-end PCI Express x16 cards, use a PSU with 1000W power or above to ensure system stability.

M.2 slots

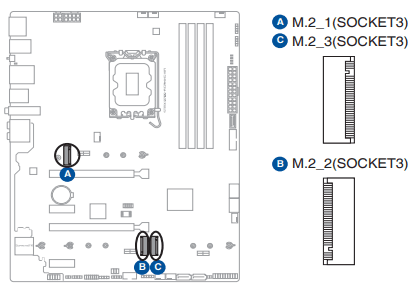

The M.2 slots allow you to install M.2 devices such as M.2 SSD modules.

Intel® 13th and 12th Gen Processors: M. 2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset: M. 2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PC Ie 4.0 x4 mode).

The M.2 SSD module is purchased separately.

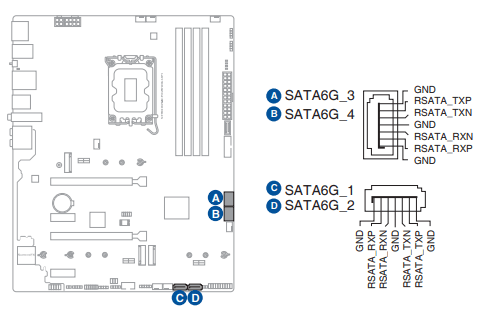

SATA 6Gb/s ports

The SATA 6Gb/s ports allow you to connect SATA devices such as optical disc drives and hard disk drives via SATA cables.

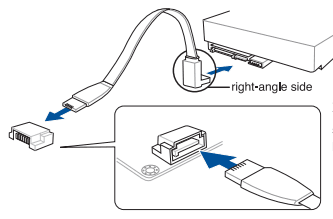

NOTE: Connect the right-angle side of SATA signal cable to SATA device. You may also connect the right-angle side of the SATA cable to the onboard SATA port to avoid mechanical conflict with huge graphic cards.

If you installed SATA storage devices to the SATA6G_1-4 ports, you can create a RAID 0, 1, 5, and 10 configuration with the Intel® Rapid Storage Technology through the onboard Intel® B760 chipset.

Before creating a RAID set, refer to the RAID Configuration Guide. You can download the RAID Configuration Guide from the ASUS website.

USB 3.2 Gen 2 Type-C® Front Panel connector

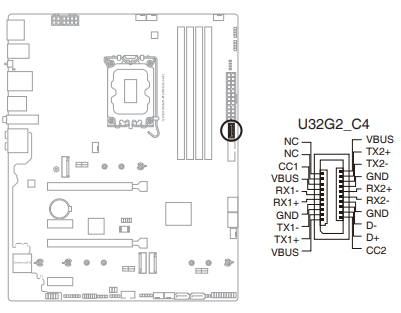

The USB 3.2 Gen 2 Type-C® connector allows you to connect a USB 3.2 Gen 2 Type-C® module for an additional USB 3.2 Gen 2 Type-C® port on the front panel. The USB 3.2 Gen 2 Type-C® connector provides data transfer speeds of up to 10 Gb/s.

The USB 3.2 Gen 2 Type-C® module is purchased separately.

USB 3.2 Gen 1 header

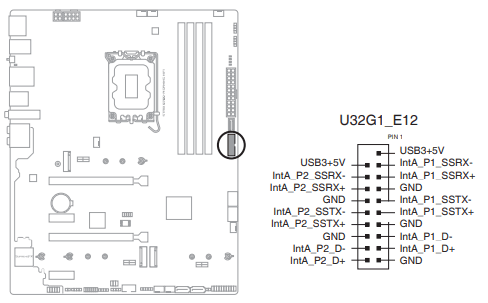

The USB 3.2 Gen 1 header allows you to connect a USB 3.2 Gen 1 module for additional USB 3.2 Gen 1 ports. The USB 3.2 Gen 1 header provides data transfer speeds of up to 5 Gb/s.

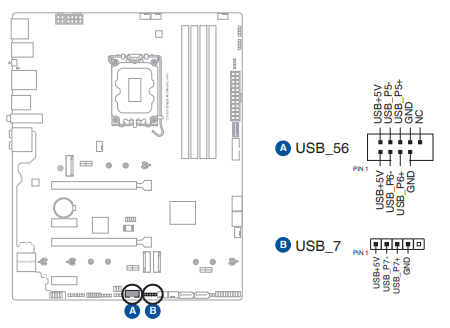

USB 2.0 headers

The USB 2.0 headers allow you to connect USB modules for additional USB 2.0 ports. The USB 2.0 headers provide data transfer speeds of up to 480 Mb/s.

DO NOT connect a 1394 cable to the USB connectors. Doing so will damage the motherboard!

The USB 2.0 module is purchased separately.

Addressable Gen 2 headers

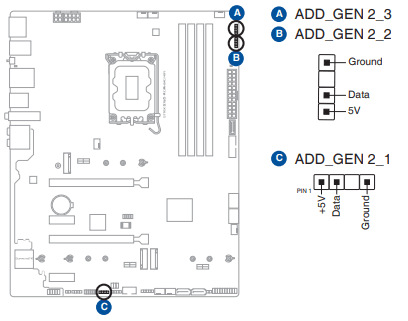

The Addressable Gen 2 headers allow you to connect individually addressable RGB WS2812B LED strips or WS2812B based LED strips.

The Addressable Gen2 header supports WS2812B addressable RGB LED strips (5V/Data/Ground), with a maximum power rating of 3A (5V), and the addressable headers on this board can handle a combined maximum of 500 LEDs.

Before you install or remove any component, ensure that the power supply is switched off or the power cord is detached from the power supply. Failure to do so may cause severe damage to the motherboard, peripherals, or components.

Actual lighting and color will vary with LED strip.
If your LED strip does not light up, check if the addressable RGB LED strip is connected in the correct orientation, and the 5V connector is aligned with the 5V header on the motherboard.
The addressable RGB LED strip will only light up when the system is powered on.
The addressable RGB LED strip is purchased separately.

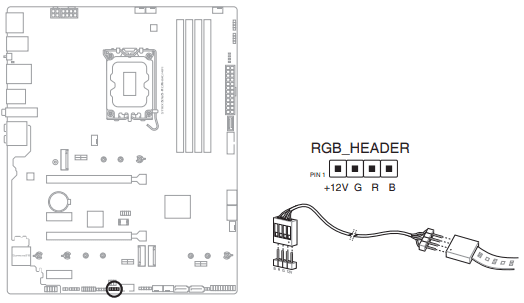

Aura RGB header

The Aura RGB header allows you to connect RGB LED strips.

The Aura RGB header supports 5050 RGB multi-color LED strips (12V/G/R/B), with a maximum power rating of 3A (12V).

Actual lighting and color will vary with LED strip.
If your LED strip does not light up, check if the RGB LED extension cable and the RGB LED strip is connected in the correct orientation, and the 12V connector is aligned with the 12V header on the motherboard.
The LED strip will only light up when the system is powered on.
The LED strip is purchased separately.

Clear CMOS header

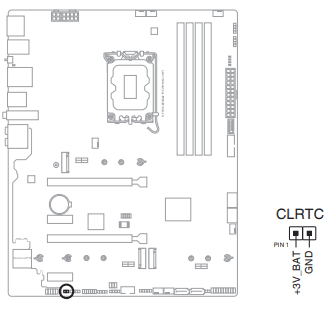

The Clear CMOS header allows you to clear the Real Time Clock (RTC) RAM in the CMOS, which contains the date, time, system passwords, and system setup parameters.

To erase the RTC RAM:

Turn OFF the computer and unplug the power cord.
Short-circuit pin 1-2 with a metal object or jumper cap for about 5-10 seconds.
Plug the power cord and turn ON the computer.
Hold down the <Del> key during the boot process and enter BIOS setup to re-enter data.

DO NOT short-circuit the pins except when clearing the RTC RAM. Short-circuiting or placing a jumper cap will cause system boot failure!

If the steps above do not help, remove the onboard button cell battery and short the two pins again to clear the CMOS RTC RAM data. After clearing the CMOS, reinstall the button cell battery.

Front Panel Audio header

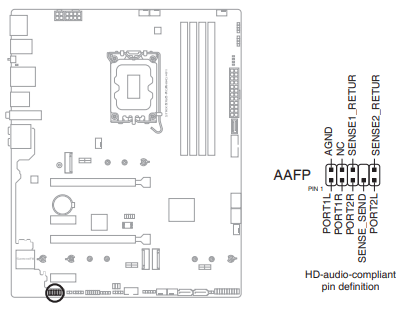

The front panel audio header is for a chassis-mounted front panel audio I/O module that supports HD Audio. Connect one end of the front panel audio I/O module cable to this header.

We recommend that you connect a high-definition front panel audio module to this connector to avail of the motherboard’s high-definition audio capability.

S/PDIF Out header

The S/PDIF Out header allows you to connect the Sony/Philips Digital Interface (S/PDIF) Out module.

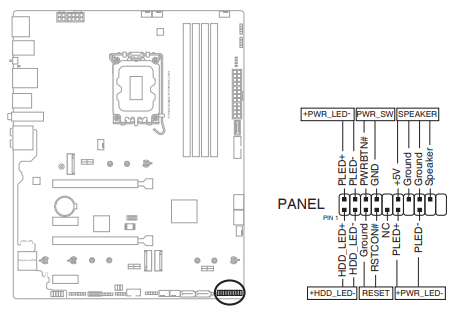

System Panel header

The System Panel header supports several chassis-mounted functions.

System Power LED header (+PWR_LED-) The 2-pin and/or 3-1 pin headers allow you to connect the System Power LED. The System Power LED lights up when the system is connected to a power source, or when you turn on the system power, and blinks when the system is in sleep mode.
Storage Device Activity LED header (+HDD_LED-) The 2-pin header allows you to connect the Storage Device Activity LED. The Storage Device Activity LED lights up or blinks when data is read from or written to the storage device or storage device add-on card.
System Warning Speaker header (SPEAKER) The 4-pin header allows you to connect the chassis-mounted system warning speaker. The speaker allows you to hear system beeps and warnings.
Power Button/Soft-off Button header (PWR_SW) The 3-1 pin header allows you to connect the system power button. Press the power button to power up the system, or put the system into sleep or soft-off mode (depending on the operating system settings).
Reset button header (RESET) The 2-pin header allows you to connect the chassis-mounted reset button. Press the reset button to reboot the system.

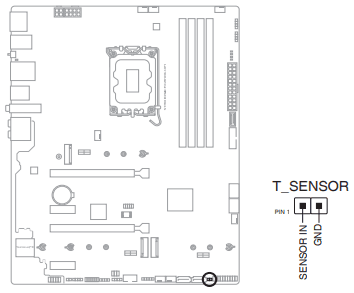

Thermal Sensor header

The Thermal Sensor header allows you to connect a sensor to monitor the temperature of the devices and the critical components inside the motherboard. Connect the thermal sensor and place it on the device or the motherboard’s component to detect its temperature.

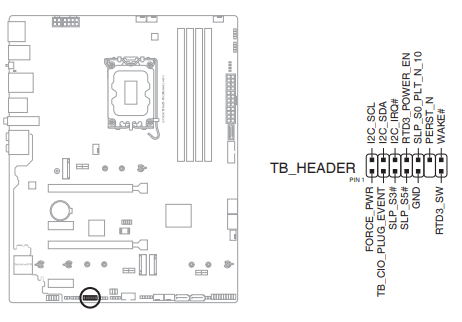

Thunderbolt™ (USB4®) header

The Thunderbolt™ (USB4®) header allows you to connect an add-on Thunderbolt™ I/O card that supports Intel®’s Thunderbolt™ Technology, allowing you to connect Thunderbolt™-enabled devices to form a daisy chain-configuration.

The add-on Thunderbolt™ I/O card and Thunderbolt™ cables are purchased separately.
Please visit the official website of your purchased Thunderbolt™ card for more details on compatibility.

The Thunderbolt™ card can only be used when installed to the PCIEX16(G3) slot. Ensure to install your Thunderbolt™ card to the PCIEX16(G3) slot.

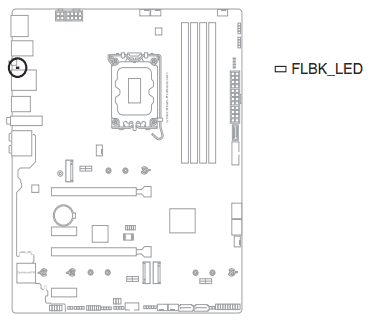

BIOS Flash Back™ LED

The Flash Back™ LED lights up or blinks to indicate the status of the BIOS Flash Back™.

Q-LEDs

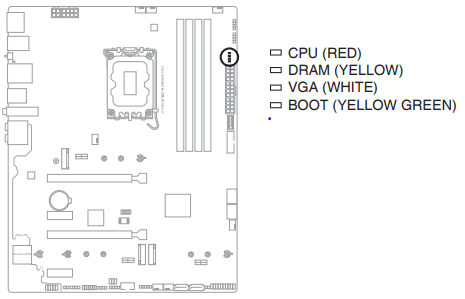

The Q-LEDs check key components (CPU, DRAM, VGA, and booting devices) during the motherboard booting process. If an error is found, the critical component’s LED stays lit up until the problem is solved

Basic Installation

Building your PC system

CPU installation

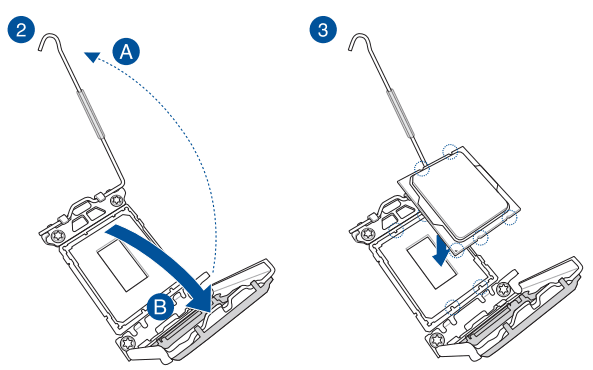

Ensure that you install the correct CPU designed for LGA1700 socket only. DO NOT install a CPU designed for LGA1155, LGA1156, LGA1151, and LGA1200 sockets on the LGA1700 socket.
ASUS will not cover damages resulting from incorrect CPU installation/removal, incorrect CPU orientation/placement, or other damages resulting from negligence by the user.

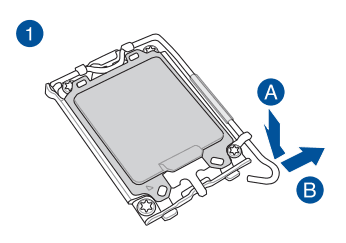

Take caution when lifting the load lever, ensure to hold onto the load lever when releasing the load lever. Letting go of the load lever immediately after releasing it may cause the load lever to spring back and cause damage to your motherboard.

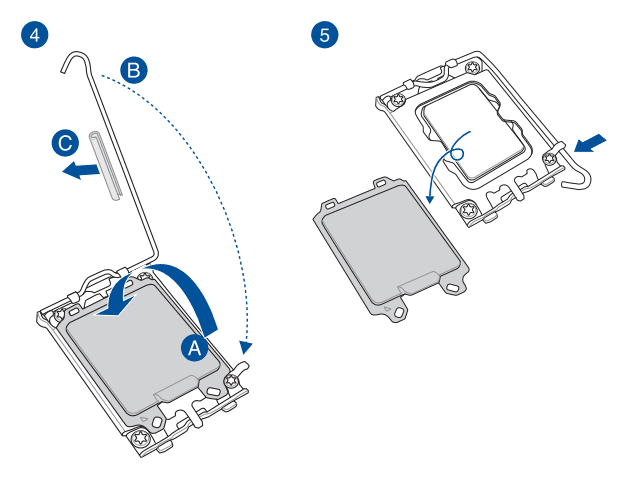

Ensure to remove the CPU Socket lever protector on the lever latch before locking the lever latch under the retention tab. Failure to do so may cause damages to your system when installing the cooling system.

Cooling system installation

Apply Thermal Interface Material to the CPU cooling system and CPU before you install the cooling system, if necessary. Ensure to remove the CPU Socket lever protector on the lever latch before installing the cooling system, failure to do so may cause damages to your system.

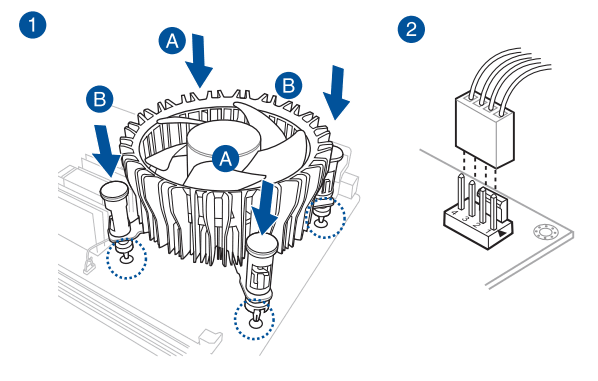

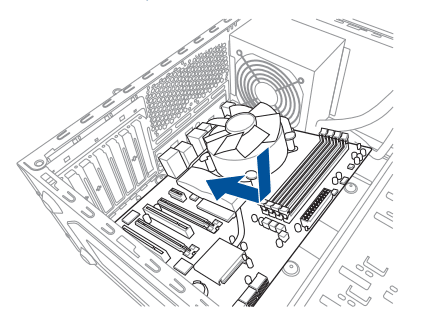

To install a CPU heatsink and fan assembly

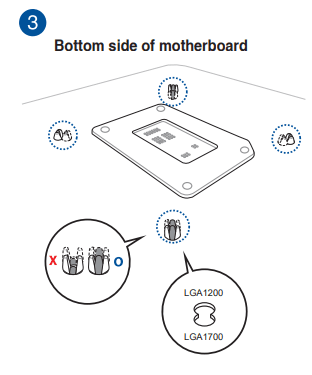

Bottom side of motherboard

We recommend using a LGA1700 compatible cooling system on an Intel® 700 series motherboard.
Additional holes for LGA1200 compatible cooling systems are also available on ASUS’ Intel® 700 series motherboards, however, we still strongly advise consulting with your cooling system vendor or manufacturer on the compatibility and functionality of the cooling system.
Push-pin type LGA1200 compatible cooling systems cannot be installed to this motherboard.

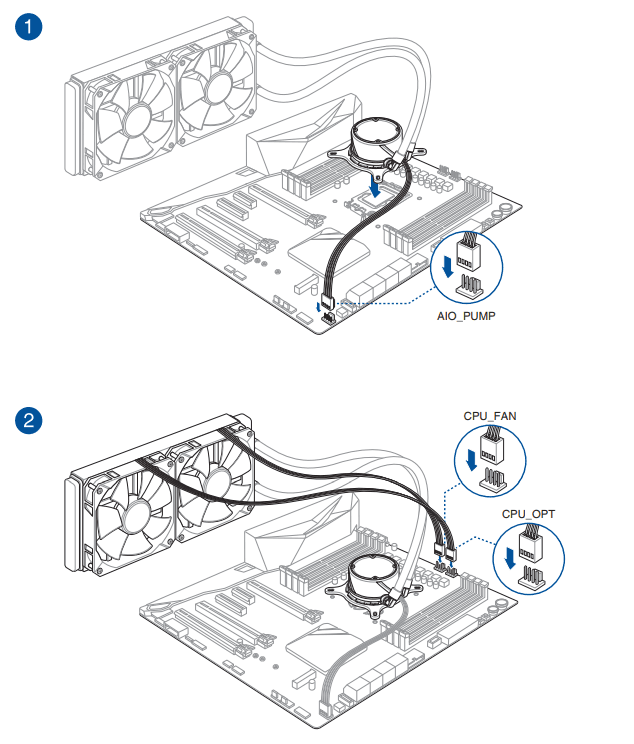

To install an AIO cooler

We recommend using a LGA1700 compatible cooling system on an Intel® 700 series motherboard.
Additional holes for LGA1200 compatible cooling systems are also available on ASUS’ Intel® 700 series motherboards, however, we still strongly advise consulting with your cooling system vendor or manufacturer on the compatibility and functionality of the cooling system.
If you wish to install an AIO cooler, we recommend installing the AIO cooler after installing the motherboard into the chassis.

DIMM installation

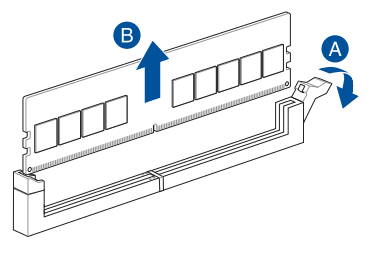

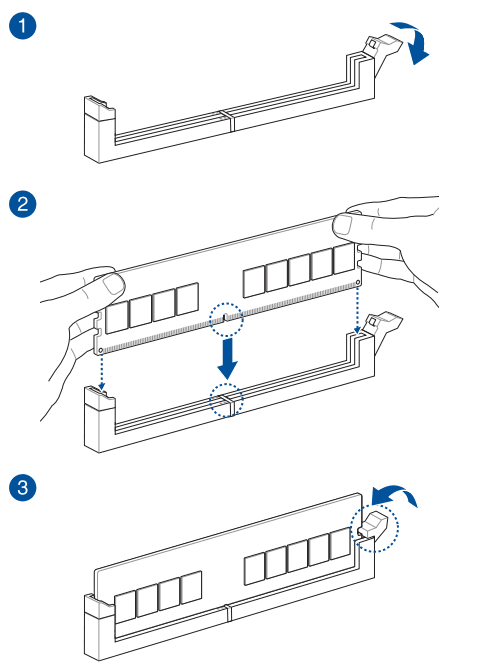

To remove a DIMM

M.2 installation

If the thermal pad on the M.2 heatsink becomes damaged, we recommend replacing it with the bundled thermal pad or a thermal pad with a thickness of 1.25mm.

The illustrations only show the installation steps for a single M.2 slot, the steps are the same for the other M.2 slots if you wish to install an M.2 to another M.2 slot.
Use a Phillips screwdriver when removing or installing the screws or screw stands mentioned in this section.
The M.2 is purchased separately.

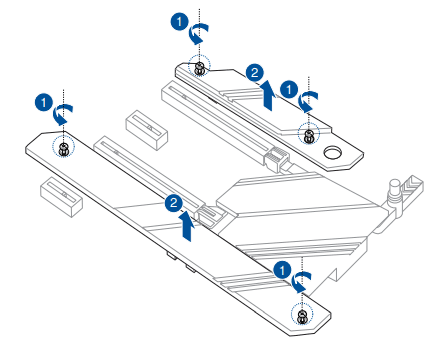

Loosen the screws from the M.2 heatsinks.
Lift and remove the heatsinks.

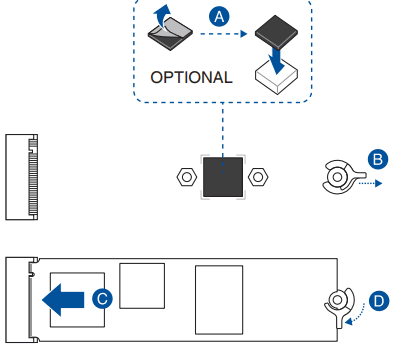

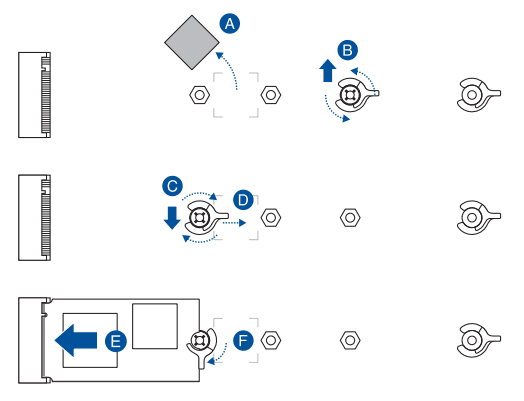

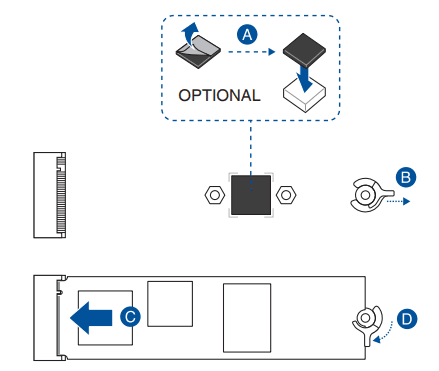

Install your M.2 to your M.2 slot. The steps may differ between installing M.2 of different lengths, please refer to the different types and their installation steps below: • To install an M.2 to M.2_2 slot. For 2280, 22110 length.
A. (optional) .Remove the pre-installed removable M.2 Q-Latch screw at the 2280 length screw hole.
B (optional). Install the bundled rubber for M.2 if you are installing a single sided M.2 storage device. DO NOT install the bundled rubber for M.2 when installing a double-sided M.2 storage device. The rubber installed by default is compatible with double sided M.2 storage devices.
C. Rotate and adjust the M.2 Q-latch so that the handle points away from the M.2 slot.
D. Install your M.2 to the M.2 slot.
E. Rotate the M.2 Q-Latch clockwise to secure the M.2 in place.

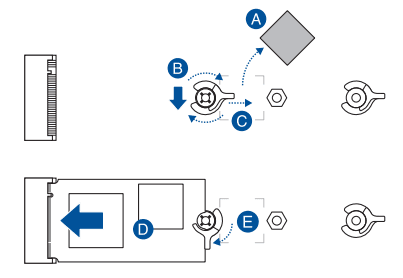

For 2242, 2260 length

A. (optional) Remove the M.2 rubber.
B.(optional) If required, remove the pre-installed removable M.2 Q-Latch screw at the 2280 length screw hole.
C. Install the M.2 Q-Latch to the M.2 length screw hole you wish to install your M.2 to.
D. Rotate and adjust the M.2 Q-latch so that the handle points away from the M.2 slot.
E. Install your M.2 to the M.2 slot.
F. Rotate the M.2 Q-Latch clockwise to secure the M.2 in place.

To install an M.2 to M.2_1 and M.2_3 slot

For 2280 length

A. (optional) Install the bundled rubber for M.2 if you are installing a single sided M.2 storage device. DO NOT install the bundled rubber for M.2 when installing a double-sided M.2 storage device. The rubber installed by default is compatible with double sided M.2 storage devices.
B. Rotate and adjust the M.2 Q-latch so that the handle points away from the M.2 slot.
C. Install your M.2 to the M.2 slot.
D. Rotate the M.2 Q-Latch clockwise to secure the M.2 in place.

For 2242, 2260 length

A. (optional) Remove the M.2 rubber.
B. Install the M.2 Q-Latch to the M.2 length screw hole you wish to install your M.2 to.
C. Rotate and adjust the M.2 Q-latch so that the handle points away from the M.2 slot.
D. Install your M.2 to the M.2 slot.
E. Rotate the M.2 Q-Latch clockwise to secure the M.2 in place.

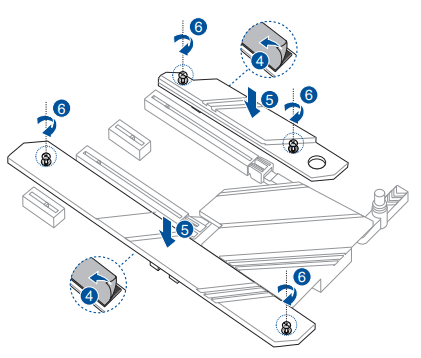

Remove the plastic film from the thermal pads on the bottom of the heatsink.
Replace the heatsink.
Secure the heatsink using the screws removed previously.

Motherboard installation

Place the motherboard into the chassis, ensuring that its rear I/O ports are aligned to the chassis’ rear I/O panel.

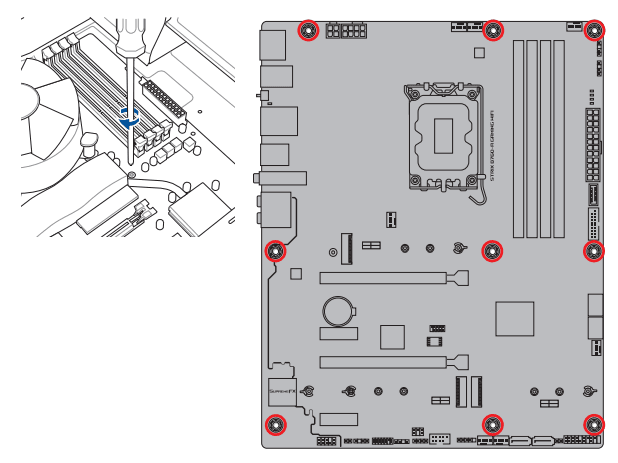

Place nine (9) screws into the holes indicated by circles to secure the motherboard to the chassis.

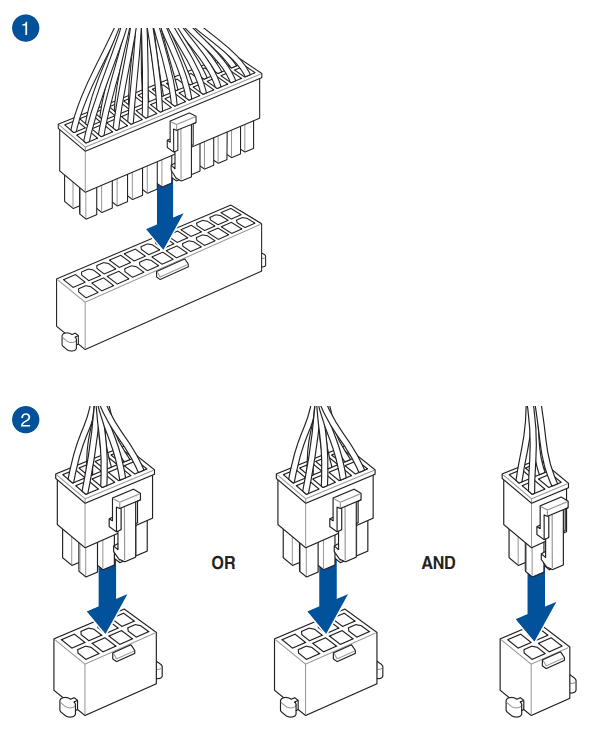

ATX power connection

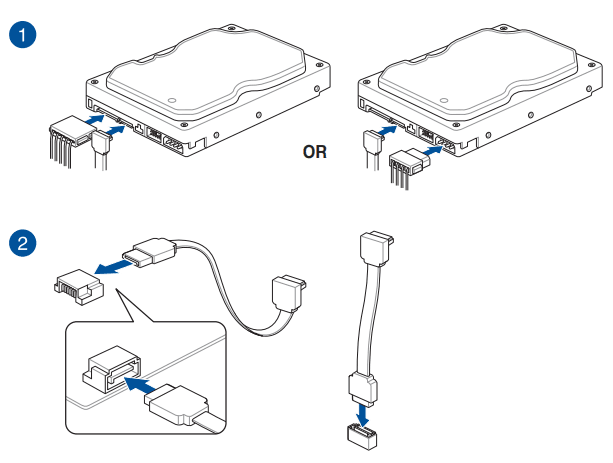

SATA device connection
