BOAVISION HD22M102M Outdoor Security Camera User Manual

BOAVISION HD22M102M Outdoor Security Camera

Declaration

Copyright 2021 Boavision Technology Co., Ltd All Rights Reserved.

Without written permission, please do not Imitate, Reproduce, or translate part or all of the contents of this manual, and cannot be used for commercial dissemination in any form.

This guide provides a brief introduction to the Pan/Tilt home security Wi-Fi Camera and the CamHipro app, as well as regulatory information. Please note that The Product Specifications, Appearance Pictures, And Related Information Mentioned In This Manual Are For Reference Only and may not reflect your actual Boavision Camera experience.

Introduction

When you are away from home, there is always something you care about. This is where the smart camera functions. No matter whether your child is climbing the kitchen cabinet, or the pet is stealing snacks, the Pan/Tilt Home Security Wi-Fi Camera helps you stay with them anytime, anywhere. Receive a notification whenever your camera detects motion and see a video clip of this motion to check everything.

• Smooth Pan and Tilt – 355° horizontal range and 90° vertical range.
• 1080p High-Definition – Capture every detail in crystal-clear Full HD definition.
• Advanced Night View – Even at night, the camera can provide a visual distance of up to 100 ft.
• Live View – Always stay with what matters most to you from anywhere, anytime.
• Two-Way Audio – Communicate with others with the built-in microphone and speaker.
• Sound and Light Alarm – Trigger light and sound effects to frighten away unwanted visitors.
• Privacy Mode – Shut down the surveillance to protect your privacy.
• Sharing – Share the memorable moments with your family and friends.
• Safe Storage – Store up to 128 GB on a micro SD card.
  *The micro SD card is not included in the package.

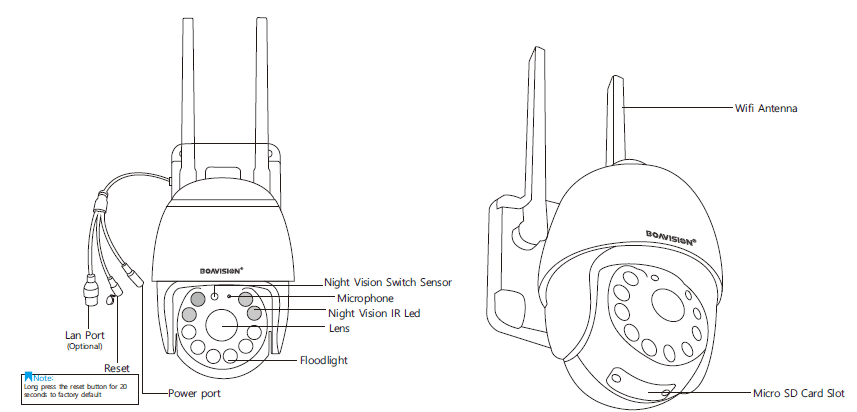

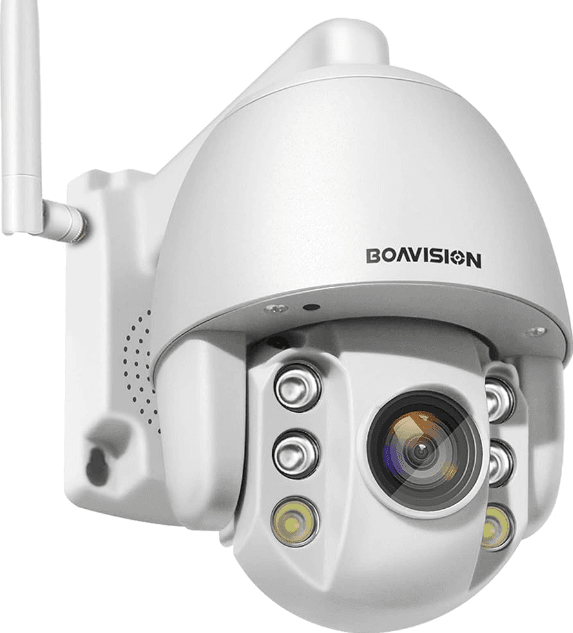

Product Detail

Insert Micro SD Card

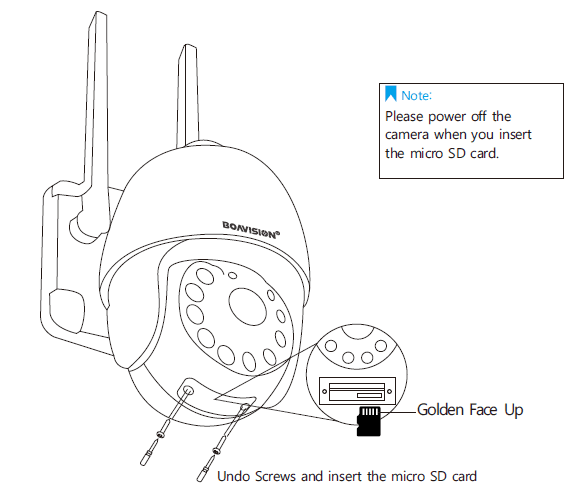

Open the bottom micro SD Card slot cover with a small screwdriver
Insert a micro SD card (Support Class 10, 8Gb~128Gb, micro SD Card Not Included, Sold Separate)

Set Up Your Camera

Note: For Android Phones, Please Select “Agree” To The Tips Pop-Up：

1. Allow Camhipro To Access Mobile Cellular Data And Wireless LAN, Otherwise, It Can not Add a Camera.
2. Allow Camhipro To Receive Pushed Messages, Otherwise, The Phone Will Not Receive an Alarm Push Message.
3. Allow Camhipro To Use The Microphone When You Want To Use 2 Way Audio Function.

Add Camera

Please follow the steps below to find the hotspot AP of the camera and connect to it, set up the camera’s WiFi, and let it connect to the WiFi router in your home wirelessly.

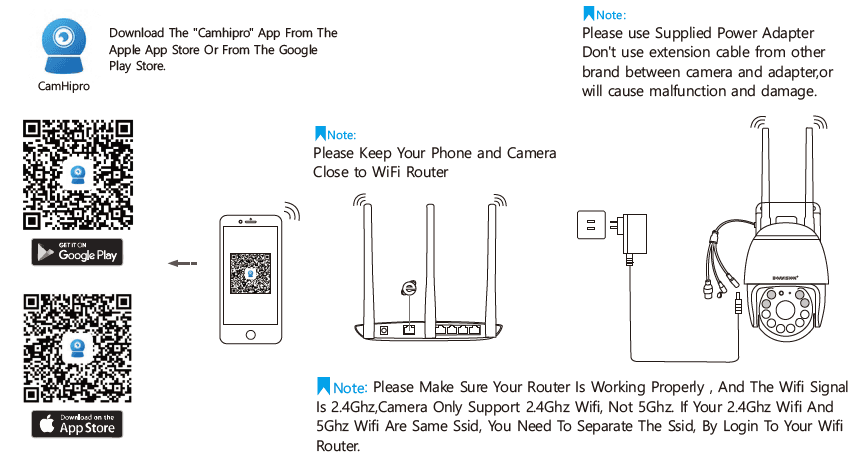

1. Step1: Download the mobile app (CamHiPro)
   Search “Camhipro” in the App Store /Google Play Store or Visit www.boavision.com
2. Step2:Connect AP Wifi “IPCAM-XXXXX”

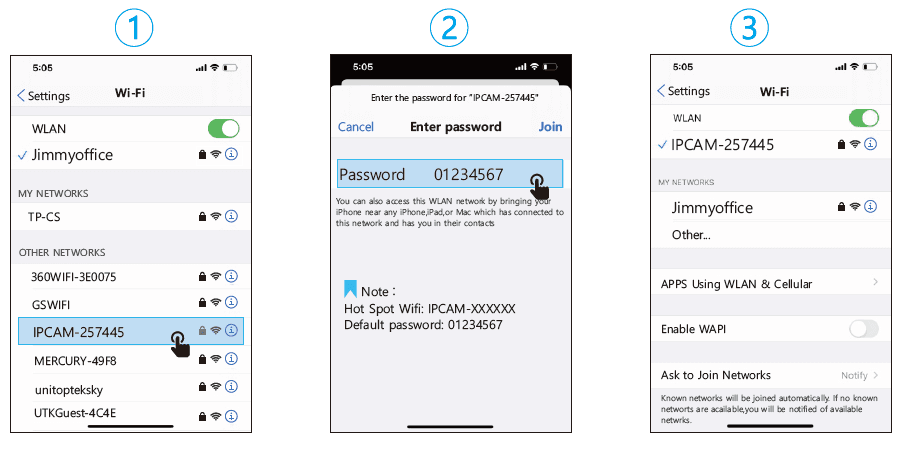

   Turn On The Mobile Wlan And Connect the Hotspot Wifi “IPCAM-XXXXX” ,Default Password “01234567”
3. Step3:Add New Device in the App

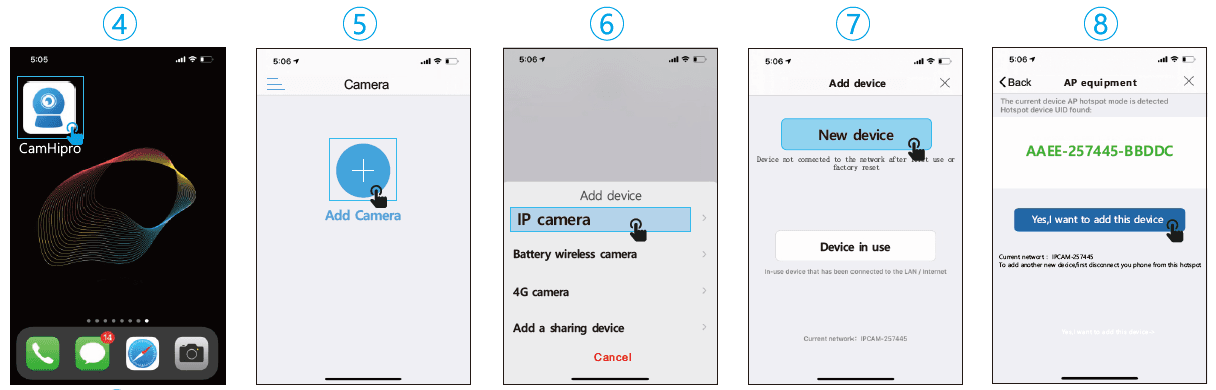

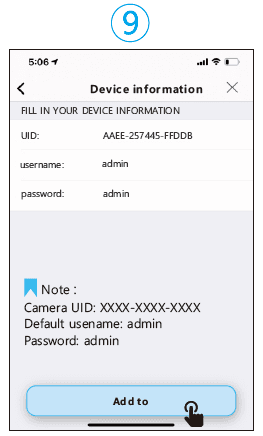

   Open The Camhipro App, Select —>“+”—> “IP camera”—>“New device”—>You will see a new device UID name as “xxxxx-xxxx-xxxx “—>Click “Yes, I want to add this device”—>”Add to”
4. Step4:Configure the WiFi connection

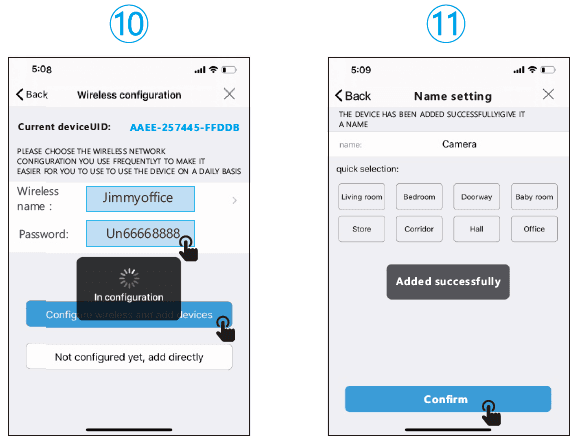

   Select your home Internet WiFi and enter your WiFi password,Click”Configure wireless and add device” to finish the setting.(You will hear a tone from camera once it connected to your WiFi network.)
   Tips:
   1. The camera will be sending One Big Voice out when connected successfully.
   2. If not successful, the camera gives you 4 small tones, which will be a WIFI Password error.

Format Micro SD Card

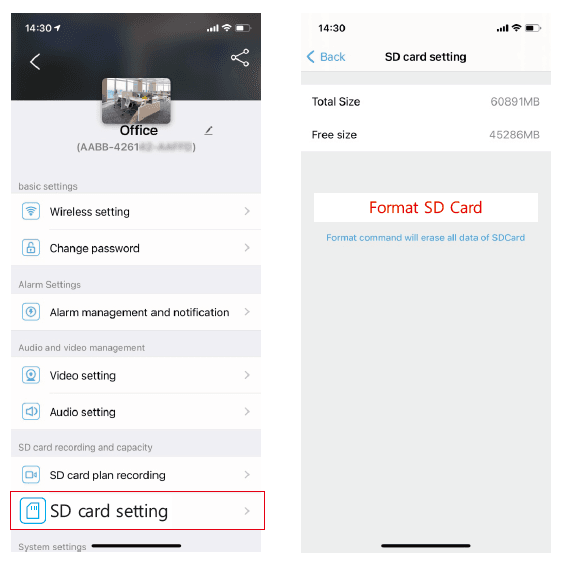

Open the Camhipro app, Tap on the Gear Wheel Icon”“ –> SD card setting –> format SD card.
Note: The camera will start loop recording once installed micro SD card, 10 minutes per video, the latest video will cover the oldest video.

Wall Mount

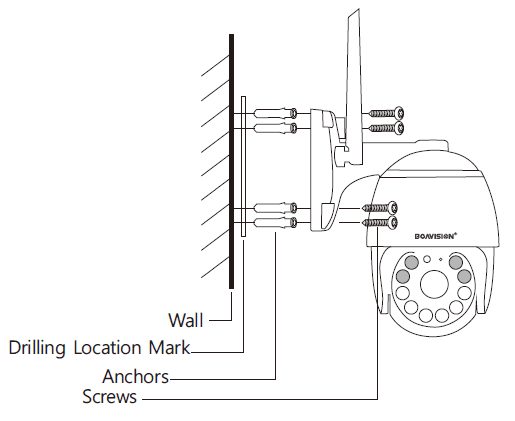

Paste the drilling location mark on the wall, then drill the hole according to the mark and Insert the anchors, pass the screw through the back of the bracket, and fix the top of the bracket on the wall.

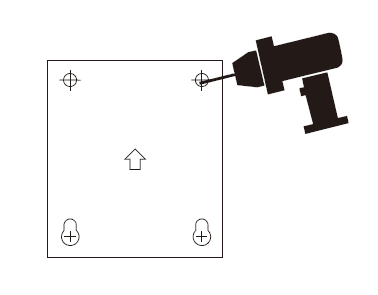

1. Mark Position
   Place the mounting template where you want the camera. For wall mounting, drill holes through four circles.
2. Mount Camera
   Affix the camera base using the screws. For wall mounting, insert four anchors into the holes and use the screws to affix the camera base over the anchors.Note： After installation, please properly insert the rubber plug into the LAN port and Enclose the reset button cover

Intelligent Tracking

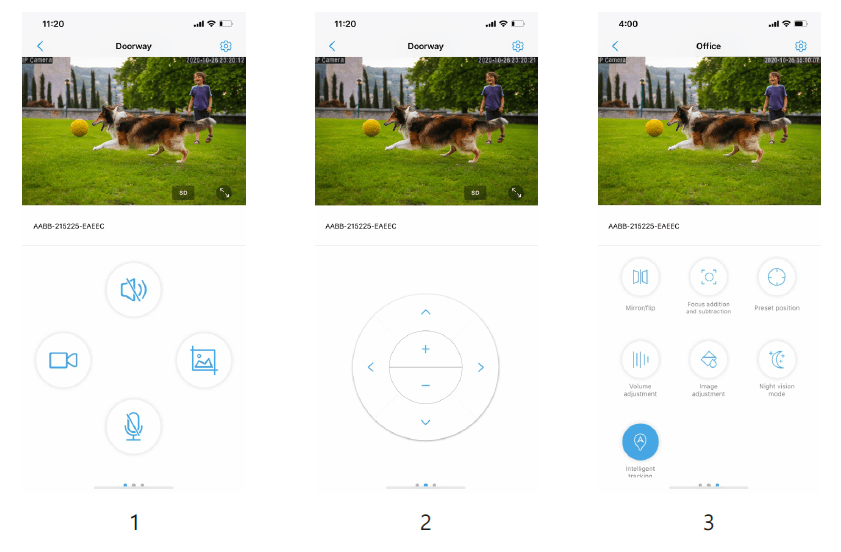

1. Slide the menu to 3
2. Click the icon “”
3. Tap on Intelligent tracking

Motion Detection and Push Alert Message

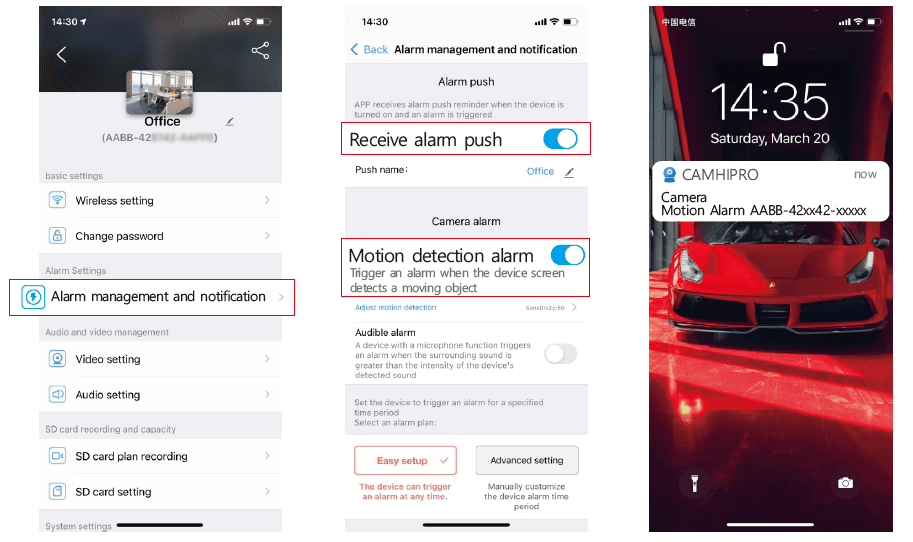

Open the Camhipro app, Tap on the Gear Wheel Icon”“ –> Alarm management and notification–>Turn on both “Receive alarm push” and “Motion detection alarm”.

Note:

1. If you want the camera also detect a sound, please turn on the “Audible alarm”.
2. If you only want the camera to detect motion at night or any special time, you can go to “Advanced Setting” to set up the time range.

Actions When Detect a Motion

Save Motion Videos to a micro SD Card

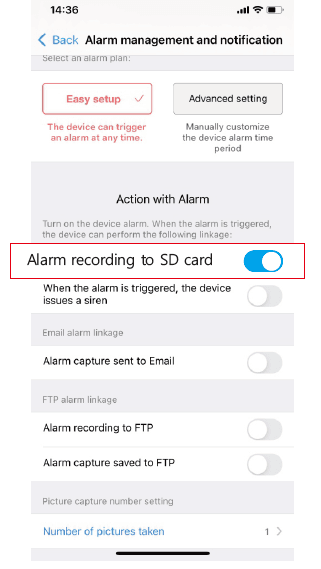

• If you have inserted a micro SD card into the camera, you will be able to turn on the switch “Alarm recording to SD card” (can not turn on if no SD card).

Sound Warning

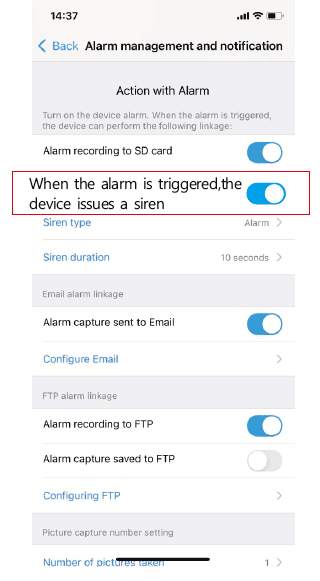

• If you want the camera warning with a sound when detecting the motion, please turn on “When the alarm is triggered, the device issues a siren”.

Email Alert (Gmail setting reference)

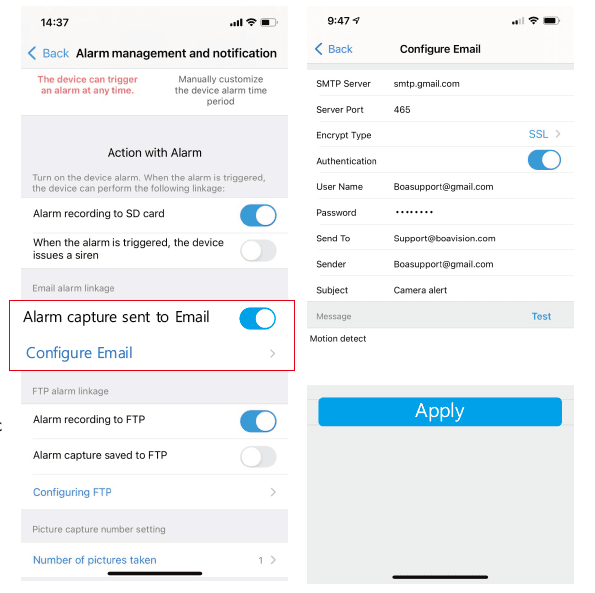

1. If you want camera send an Email Alert with picture, you can turn on “Alarm Capture sent to Email”, and configure Email, see below photos for your reference.
2. Tap “Apply” before Test

Note: Please turn on Gmail 2-factor Authentication

1. If your Gmail has not turned on 2-factor authentication
   • Login Gmail account and go to Google Apps –> Account –>Security page.
   • Scroll the page down to Less secure app access and click to turn it on (only personal Gmail account has this option)
2.  If your Gmail has turned on 2-factor authentication
   • Please login Gmail account and go to Google Apps –>Account–>Security page, find 2-step verification, and turn it on.
   • Setup an APP password, select windows mail type, and use this unique password instead of your original Gmail password on the email alert settings page.

Playback and Download Videos From a Micro SD Card

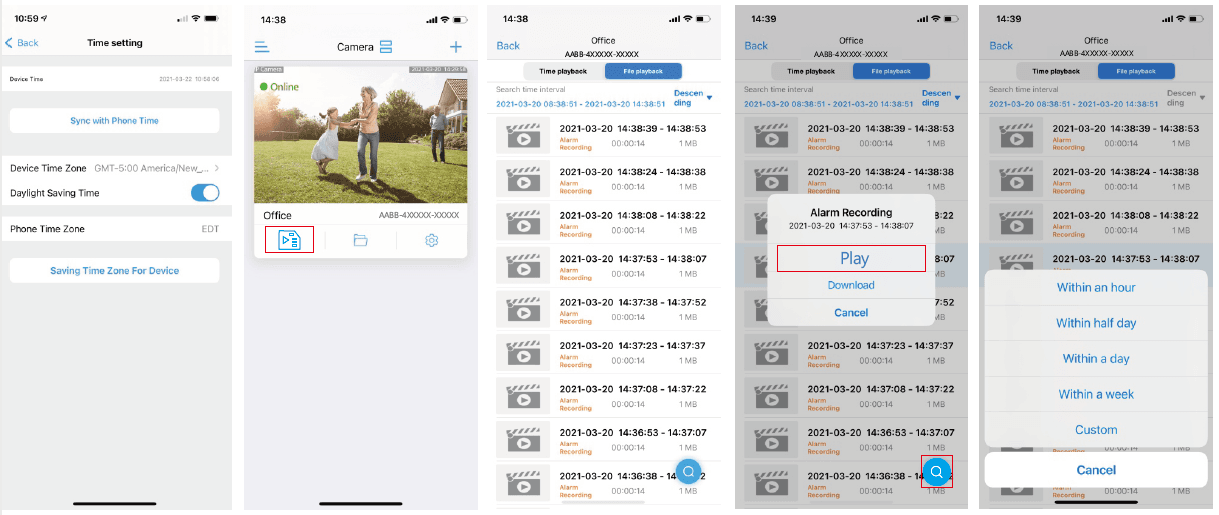

Please tap the icon to check videos saved in a micro SD card, and select and tap a video to play, if you want to find older videos, tap the right-down Search icon to select the date.

Note: Select your Time Zone, and enable Daylight Saving Time, then Click Saving Time Zone for Device, Open the Camhipro app, Tap on the Gear Wheel Icon” “ –> Time Setting –> Enable Daylight Saving Time –> Saving Time Zone for Device.

Upload Pictures and Videos to the FTP Server

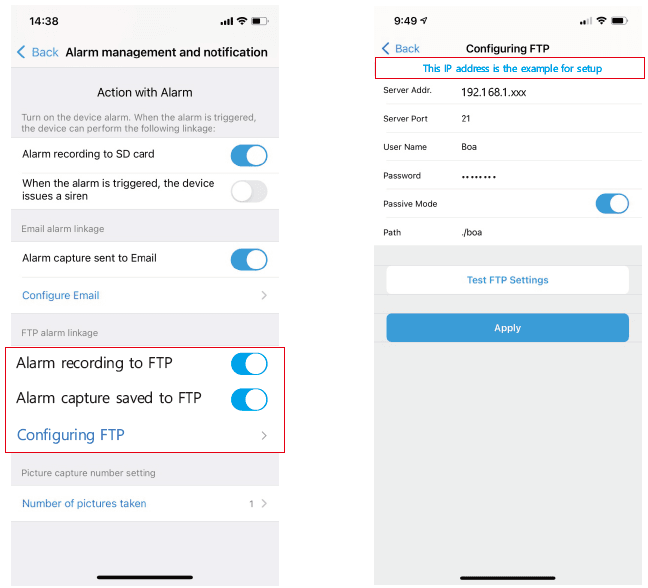

If you want to upload pictures and videos to the FTP server, please turn on “Alarm recording to FTP” and “Alarm Capture saved to FTP”, and configure FTP, Tap “Apply” before the test.

Download Video

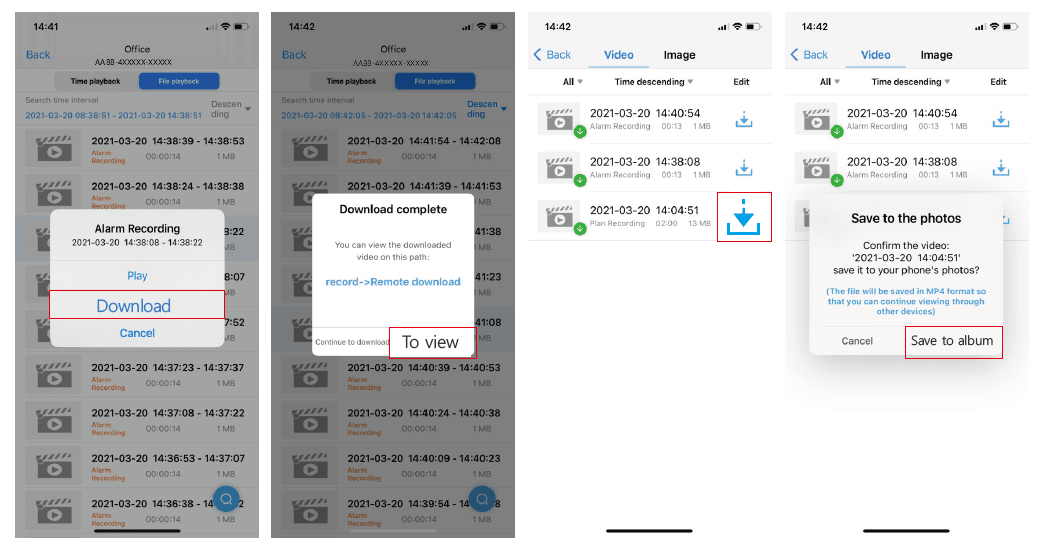

Select the video –> Tap the video –> Tap Download —> After Download complete, Tap “To View”. If you want to save this video to phone or share with family, you can tap download icon to save it to the album, then you can find the videos in your phone photo album. right down the Search icon to select the date (make sure your camera date and time were right when recorded).

Note:

1. The camera will continue to loop and record video 1 after you insert the SD card.
2. Saved to sd card 10min per video, no matter if there is a motion, there is a blue label “plan recording” for this kind of videos.
3. If you have turned on the motion detection and action with alarm “Alarm recording to SD card”, you may also find there are 14s short videos with Orange label “Alarm Recording”, these videos are all recorded when the camera is triggered by a motion.
4. The Alarm recording could stop the Plan recording when there is a motion, so the plan recording maybe shorter than normal 10min per video.
5. If you just want to save the motion videos and hope the limited SD card to save videos for a longer time, please go to “SD card plan record” to turn OFF “Enable record”, and also make sure the “motion detection alarm” and “motion recording to sd card” are both opened.

Device Information

You can easily find the camera ip address with the device information, and access the camera with its IP address on the Web browser. (IE, Edge, Firefox, Chrom, Safari)

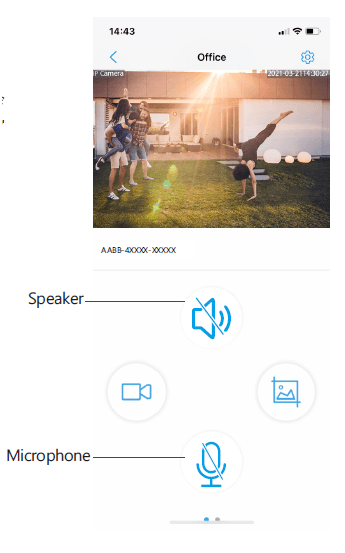

How to Use Two-way Talk Function

If you want to talk with a camera, need to go to the live video page

1. Step 1: Activate the Speaker icon, which you can hear from the camera.
2. Step 2: Active the Microphone icon to speak

Note: You can not hear from the camera when you activate the microphone, and can not speak when you hear from the camera, so you need to switch from the microphone and speaker.

IR LED Night Vision and Floodlight

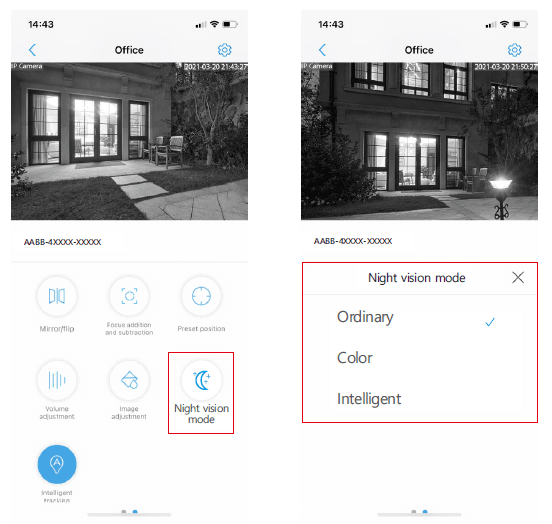

This smart camera has 3 types night vision mode:

• Ordinary: IR LED works at night (light is low) automatically, picture is black/white, F Ordinary: loodlight does not work.
• Color: IR LED does not work at night, Floodlight works at night, picture is color .
• Intelligent: IR LED works at night, and when there is a motion detected, the IR LED will be off, the Floodlight will be on for 30 seconds, the it will be off if there is no motion in 30 seconds, if there are continue motions, the floodlight working time will extend until no motion detected, after floodlight off, the IR led will work again.

Share The Camera With Your Family

Each camera can be managed by several Camhipro app

1. After you set the camera connected to your home WiFi, go to the settings page;
2. Find the top right share icon to get a QR code;
3. Then ask your familyto download Camhipro, and scan the QR code to add the camera to the device list.

Camera Works On Other Devices

This small outdoor security camera not only works with phone app Camhipro, but also works on Windows PC / MAC / ipad/Android pad, we offer free windows pc software which could connect camera locally and remotely.
For Mac, it can only work with Safari via a local IP address.
Please check detailed instructions on www.boavision.com/download.html
Support page or contact our support team via Email Support@boavision.com
If you need help making it work with other devices or 3rd party ONVIF software/devices.

ONVIF & RTSP

ONVIF:

If you want to add the camera to 3rd party onvif software/device, please find the camera IP address from the device information (settings page), usually, we should use it.

information below:

Protocol: ONVIF, IP address, Onvif port : 8080 , User: admin , Password: admin (for some special software may need more information, please contact us for remote online help, we use Teamviewer to help you to set up remotely).

RTSP:

The camera RTSP port is 554, and there are two live H.264 rtsp streams,
mainstream: http://ip address:554/11
sub steam: http://ip address:554/12
E.g. If the camera IP address is 192.168.1.123, main steam: http://192.168.1.123:554/11

How to Reset The Camera

Connect camera to power adapter, press and hold camera reset button for 20 seconds, it will reset and restart in 1 min, the reset button is on the cable with a cover.

Connect to Blue Iris

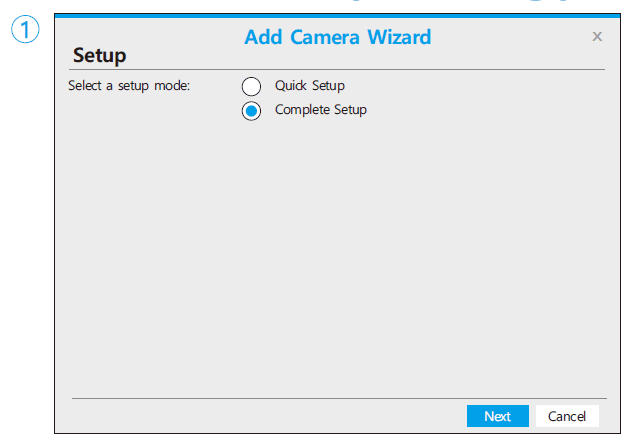

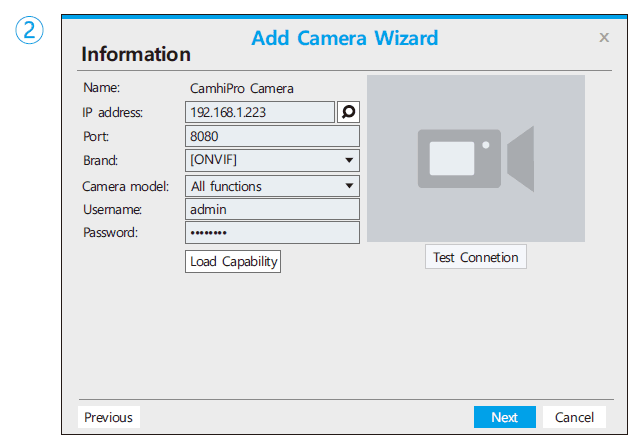

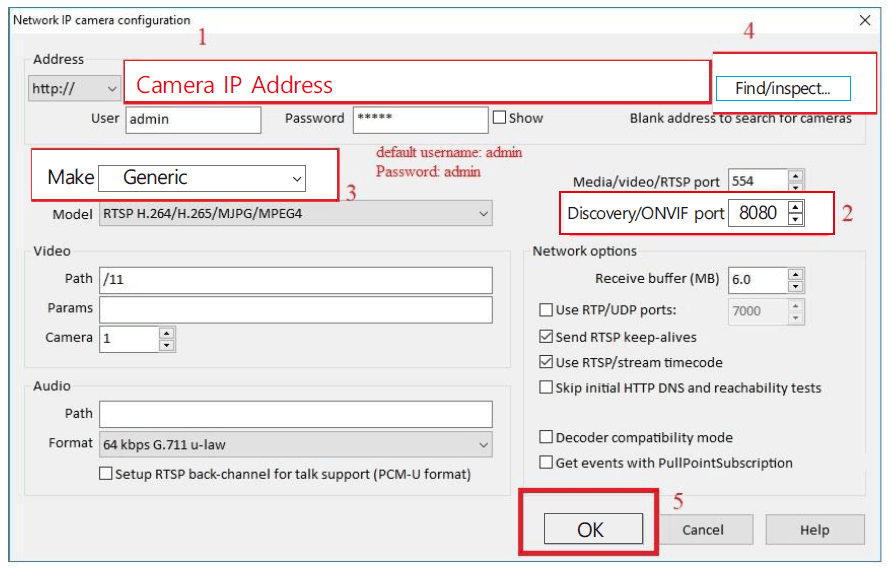

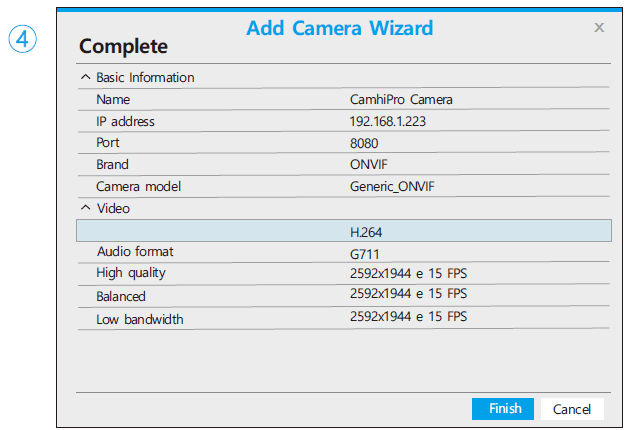

Input ip address and onvif port: 8080, click Find/Inspect

Connect to Synology
