COMFEE CDC17P2AWW 6L Countertop Portable Dishwasher User Manual

COMFEE CDC17P2AWW 6L Countertop Portable Dishwasher

QUICK START GUIDE

Please read the entire manual for detailed operating instructions.

Connecting to Power Supply

The power required is 120VAC 60Hz, 10Amp circuit.

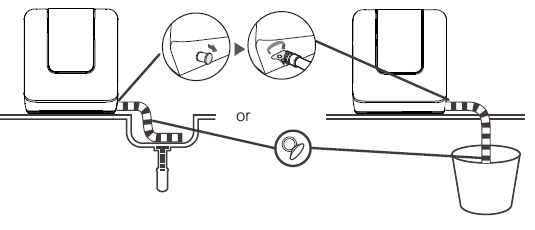

Drain hose installation

Place the end of the drain Hose into a sink or bucket.

Remove the rubber plug from the drain pipe at the rear of the machine.

Install one end of the drain hose to the drain pipe at the rear of the machine, and then tighten the drain hose clamp by hand to secure it.

Secure the drain hose to the sink or bucket with the supplied suction cup.

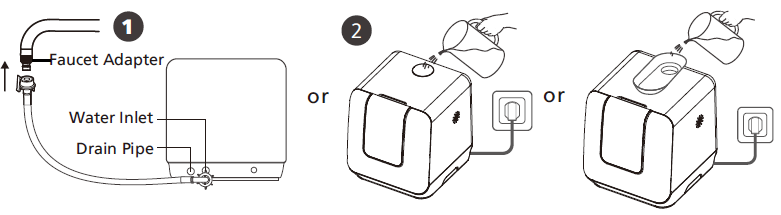

Adding Water to the Tank

Note: Before adding water, you need to press the power button to turn on the dishwasher.

There are two ways to add water to the tank:

Add water into the tank automatically by connecting the inlet hose to the tap.
Open the cap and slowly add water into the tank manually by using a water container.

IMPORTANT

The water tap symbol will be on if there is not enough water in the tank. Add water until the unit beeps rapidly for 3 seconds and the symbol is off, which means the tank is filled.

Prep the Dishware

Remove the large residue on the dishware and glasses before placing them into the dishwasher.

Loading The Dishwasher

Place dishes in the dishwasher in order by size and starting from the two ends, then load into the middle. All dishes are suggested to be tilted to improve cleaning performance.

The top arm will be blocked if dishes are improperly placed, and the cleaning effect may not be ideal.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

When using your dishwasher, follow the precautions listed below:

Do not allow children to play with the appliance. Cleaning and user maintenance shall be made by children without supervision.
This appliance is not intended for use by children or persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
This appliance is for indoor use only, for household use only.
To protect against the risk of electrical shock, do not immerse the unit, cord, or plug in water or other liquid.
Please unplug before cleaning and maintaining the appliance.
Use a soft cloth with mild soap and water to clean the exterior. Use a dry cloth to wipe dry.
Do not abuse, sit on, or stand on the door or dish rack of the dishwasher.
Do not operate your dishwasher unless all enclosure panels are properly in place.
Open the door very carefully if the dishwasher is operating; there is a risk of water squirting out.
Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward.
Check that the detergent powder is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items without the mark, check the manufacturer’s recommendations.
Use only detergent additives designed for an automatic dishwasher.
Never use soap, laundry detergent, or hand washing detergent in your dishwasher. Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent, or a similarly qualified person in order to avoid a hazard.
During installation, the power supply must not be excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance is to be connected to the water mains using new hose sets, and old hose sets should not be reused.

GETTING TO KNOW YOUR APPLIANCE

IMPORTANT:

Before using this dishwasher for the first time, and to get the best performance, read these instructions.

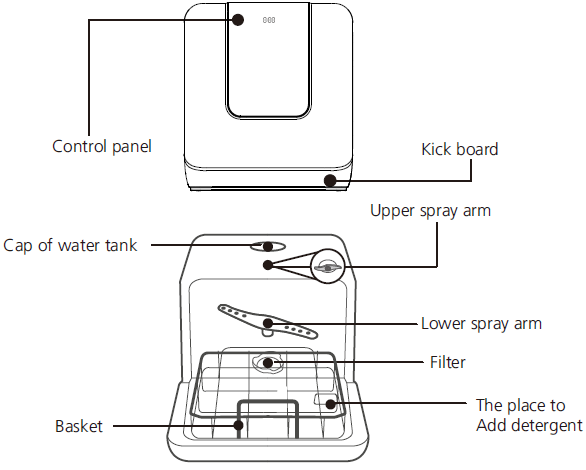

Dishwasher features

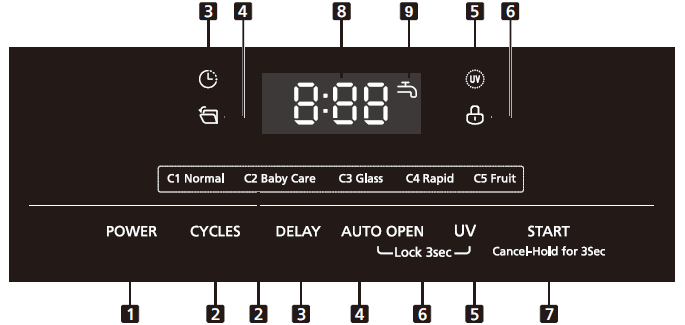

Control panel

Power	Press this button to turn on your dishwasher.
Program	Press this button to select corresponding washing program code C1 (Normal) – C2 (Baby Care) – C3 (Glass) – C4 (Rapid) – C5 (Fruit). C1 Normal This cycle is for normally soiled loads, such as pots, plates, glasses, and lightly soiled pans. C2 Baby Care This cycle is for washing baby bottles. C3 Glass The glass cycle is for lightly soiled loads, such as glasses, crystal, and fine china. C4 Rapid This cycle is for lightly soiled loads that do not need drying. C5 Fruit Used to clean fruits, vegetables, shells, etc.
Delay	Press this button to set the delayed hours for washing. You can delay the start of washing up to 24 hours. One press on this button delays the start of washing by one hour.
Auto open	Press this button to activate or deactivate auto auto-open function. When this function is on, the light will be lit, and the dishwasher will open the door automatically in the drying phase to help dry. (It can only be used with Normal, Baby Care, and Glass)

UV	Press this button. The UV light will be on during the drying phase. When this function is on, the light will be lit. (It can only be used with Normal, Baby care, and Glass)
Child lock	This option allows you to lock the buttons on the control panel, so children cannot accidentally start the dishwasher by pressing the buttons on the panel. Only the Power button remains active. To lock or unlock the buttons on the control panel, press and hold the Auto open button UV button simultaneously for 3 seconds. When this function is on, the light will be lit.
Start /Cancel	Start Press to start the dishwasher, and the drain pump will start the cycle. Cancel Press and hold START for 3 seconds to cancel a cycle when the dishwasher is running. The display will show “– : –” , indicating the cycle has been canceled. Pause If you need to pause a cycle in process, open the door slightly and wait a few seconds until the wash action stops. To restart the dishwasher, press the start button with the door closed.
Screen	The LED screen displays program cycle code (C1, C2,…), minutes remaining in a running cycle, hours of delay before the unit is set to start, error codes, etc. If the machine is in operation, the remaining time (minutes) of the selected cycle will be shown in the display window. If the Delay option is selected, the number of hours of delay (1 h- 24 h) will be shown in the display window. After the machine starts, the remaining time of the selected cycle will be shown in minutes on the display window. NOTE: The remaining time could suddenly increase or drop several minutes. This means the Smart Sensor has checked the soil level and adjusted the number of fill cycles. If an error occurs that is critical to the machine’s function and safe operation, the control shall shut down and indicate an error code in the display window. (See Error Codes) If Error codes are displayed, contact the dealer or a qualified service center. They will available to provide assistance in trouble shooting the problem and/or locate and authorized service technician if needed.
Water Faucet	When the icon is on, it means that the internal water tank does not have enough water. Add water or check the inlet hose connection to make sure the water supply is turned on until this icon is off, which means the tank is full of water.

USING YOUR DISHWASHER

Loading The Dishwasher

Recommendation

All items to be washed should be marked “dishwasher safe”.
Use only dish detergent designed for automatic dishwashers; hand dishwasher soap will create foam and require significant clean up and issues with the dishwasher.
For delicate items, select a program with lower temperatures.

CAUTION: Do not take glass and cutlery out of the dishwasher immediately after the program has ended. These items will still be very hot.

Items Not Recommended for Dishwasher Use

Not suitable for use:

Cutlery with wooden, horn, china, or mother-of-pearl handles
Plastic items that are not heat resistant, older cutlery with glued parts that are not temperature resistant
Bonded cutlery items or dishes
Pewter or copper items
Crystal glass
Steel items are subject to rusting
Wooden items
Items made from synthetic fibres

Limited suitability:

Some glasses can become dull after a large number of washes.
Silver and aluminium have a tendency to discolour during washing.
Glazed patterns may fade if washed frequently.

Dishwasher Loading Tips

(For the best performance of the dishwasher, follow these loading guidelines. Features and appearance of baskets and cutlery baskets may vary for your model.) Scrape off any large food particles. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. Place objects in the dishwasher in the following way:

Items such as cups, glasses, pots/pans, etc., load face downwards.
Curved items, or those with recesses, should be loaded at a slant so that water can run off.
All items are inserted securely and can not tip over, or move around and contact other items.
All utensils are placed in the way that the spray arms can rotate freely during washing.
Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

Load items in a way that the dirty surface faces the center of the dishwasher
Load long and/or sharp cutlery horizontally on the cutlery tray
Avoid nesting dishes for best results(for example, two spoons together)
Ensure items do not touch or move/wobble in the basket, as this can cause damage to your dishes
Do not allow items to extend below the dishwasher rack, as this could cause interference with the wash arm.
Do not overload your dishwasher. If the water can not get to your dishes from the bottom or top, the wash results may be poor.

MAINTENANCE AND CLEANING

Filter System

WARNING

Never use the dishwasher without filters!
Make sure the filter is properly assembled.

The performance may be affected, and dishes and utensils could become damaged.

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle.

For best performance and results, the filter assembly must be cleaned regularly. For this reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the filter and cup under running water.

Step 1: Turn the filter assembly clockwise, then lift it up.
Step 2: Lift the fine filter up and separate it from the main filter.
Step 3: Clean all of the filter elements under running water to remove food soils.

Dishwasher Care

The control panel and exterior can be cleaned by using a lightly dampened cloth.

After cleaning, make sure to dry it thoroughly. Never use sharp objects, scouring pads, or harsh cleaners on any part of the dishwasher.

Cleaning The Door

To clean the edge around the door, you should use only a soft, warm, damp cloth.

To avoid allowing water into the door lock and electrical components, do not use a spray cleaner of any kind.

WARNING

Never use a spray cleaner to clean the door panel, as it may damage the door lock and electrical components.
Abrasive agents or rough paper towel should not be used because of therisk of scratching or leaving spots on the stainless steel surface.

Protect against freezing

Protect the dishwasher from freezing temperatures. If the dishwasher will experience freezing temperatures, please follow the procedure below:

In standby mode, press and hold the DELAY button + the AUTO OPEN button for 3 seconds simultaneously to drain the water tank.
Cut off the electrical power to the dishwasher
Turn off the water supply and disconnect the water inlet pipe from the back of the dishwasher.
Drain water from the inlet pipe and dishwasher (use a pan to catch the water).
Disconnect the drain hose, and drain water from the hose and the back of the dishwasher (place a catch pan under the connection before disconnecting to catch water).
Reconnect the water inlet pipe and drain hose to the back of the dishwasher.
Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

TROUBLESHOOTING TIPS

Before calling for service

Reviewing the charts on the following pages may save you from calling for service.

Problem	Possible Causes	What To Do
The dishwasher doesn’t start	Fuse blown, or the circuit breaker tripped.	Replace the fuse or reset the circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher.
	The power supply is not turned on.	Make sure the dishwasher is turned on and the door is closed securely. Make sure the power cord is properly plugged into the wall socket
	Error code: E1; Water pressure is low	Check that the water supply is connected properly and the water is turned on.
	The door of the dishwasher was not properly closed.	Make sure to close the door properly and latch it.
Water is not pumped from the dishwasher	Kinked or crushed drain hose.	Check the drain hose.
	Filter clogged.	Check ﬁlters.
	The kitchen sink is clogged.	Check the kitchen sink to make sure it is draining well. If the problem is the kitchen sink that is not draining , you may need a plumber rather than a serviceman for dishwashers.
Drain hose routing is too high		The dishwasher drain hose should not installed higher than 39 1/4″(1m) from the surface that the dishwasher is sitti on to prevent performance issues.

Problem	Possible Causes	What To Do
Suds in the tub	Incorrect Detergent/ Soap	Remove all of the dishes from the dishwasher. Scoop out as much of the suds as you can with a plastic container. Add a cup of either olive oil or white vinegar, and run a normal wash for a few minutes, and force the drain. Repeat as necessary until the foam is cleared, then run a complete Normal Cycle with no dishes.
	Spilled rinse-aid.	Always wipe up rinse-aid spills immediately.
Stained tub interior	A detergent with colorant may have been used.	Make sure that the detergent has no colorant.
White ﬁlm on inside surface	Hard water minerals.	To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent otherwise, it may cause foaming or suds.
Rust stains on cutlery	The affected items are not corrosion resistant.	Avoid washing items that are not corrosion-resistant in the dishwasher.
Knocking noise in the dishwasher	A spray arm is knocking against an item in a basket	Interrupt the program and rearrange the items that are obstructing the spray arm.
Rattling noise in the dishwasher	Items of crockery are loose in the dishwasher.	Interrupt the program and rearrange the dishware.
Knocking noise in the water pipes	Water hammer in household piping	This has no inﬂuence on the dishwasher function. If in doubt, contact a qualiﬁed plumber.
The dishes are not clean	The dishes were not loaded correctly.	See notes in Loading & unloading your dishwasher.
	The program was not powerful enough.	Select a more intensive program.
